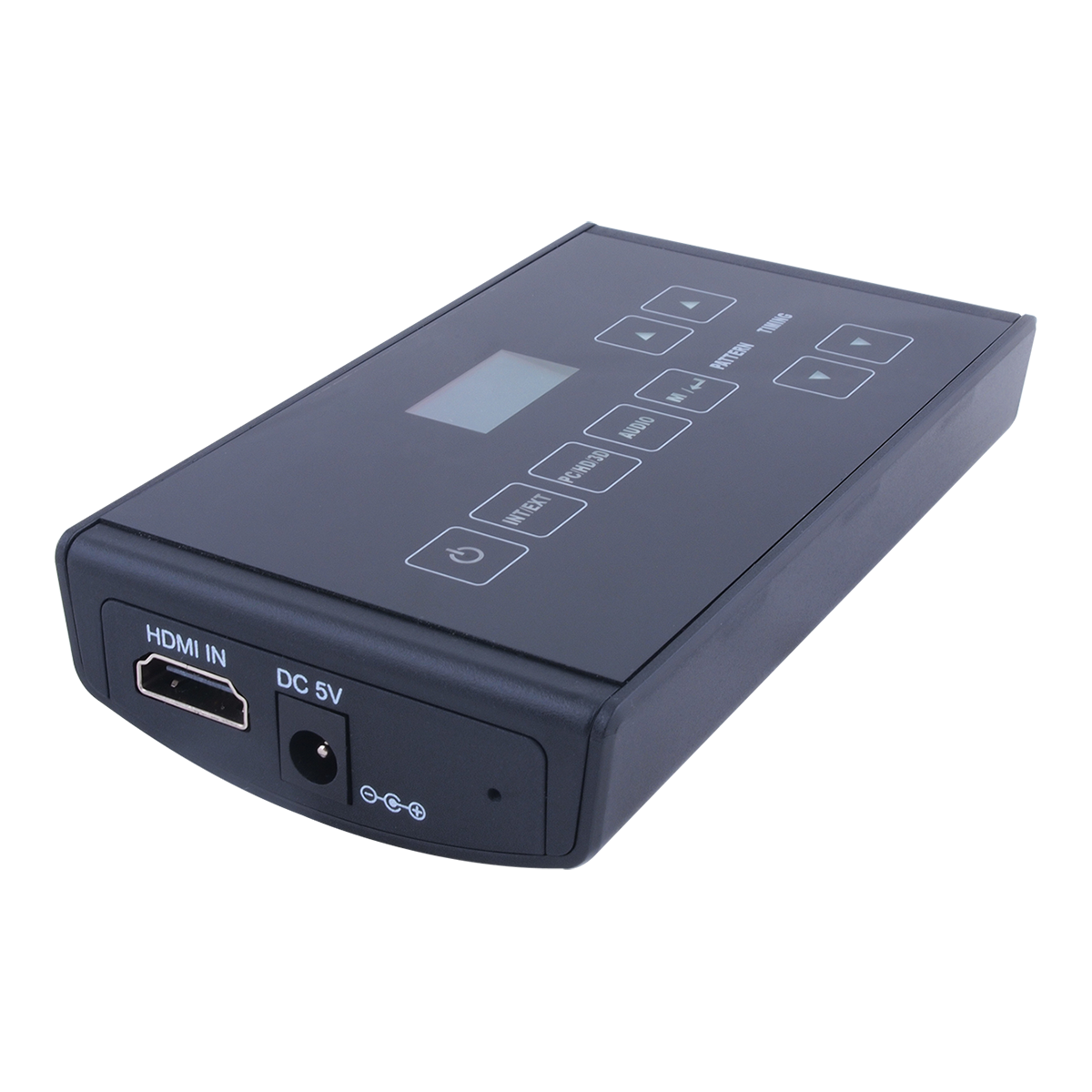

HDMI Signal Generator with 3D Patterns and Audio Return Channel
The Mini HDMI 3D Analyzer is a tool for checking both source (Blu-ray or DVD players) and display devices (TV or monitors). With touch button controls and built-in OLED display it can show the status and information of both the input and output devices connected to it by HDMI. The analyzer can be used to analyze the input source device info-frame and output sink device EDID. It also has a built-in pattern generator that can be used to test the capabilities of the output device including 3D and resolution/ timing support.
Audio over IP Transmitter & Receiver
The advantage of Audio over IP is that it can flexibly route and use cost effective CAT cable. This greatly reduces the cost of wiring and improves convenience. CH-A320TX and CH-A320RX take the advantage of Audio over IP and provide fl exibility for installation. These products specify the system to implement Analog (Line in and Mic in) and Digital (S/PDIF and TOSLINK®) over IP, allows you with help of CDPS-CS7S AV over IP master controller to easily extend the connection between an audio source and an audio playback device via a Local Area Network.

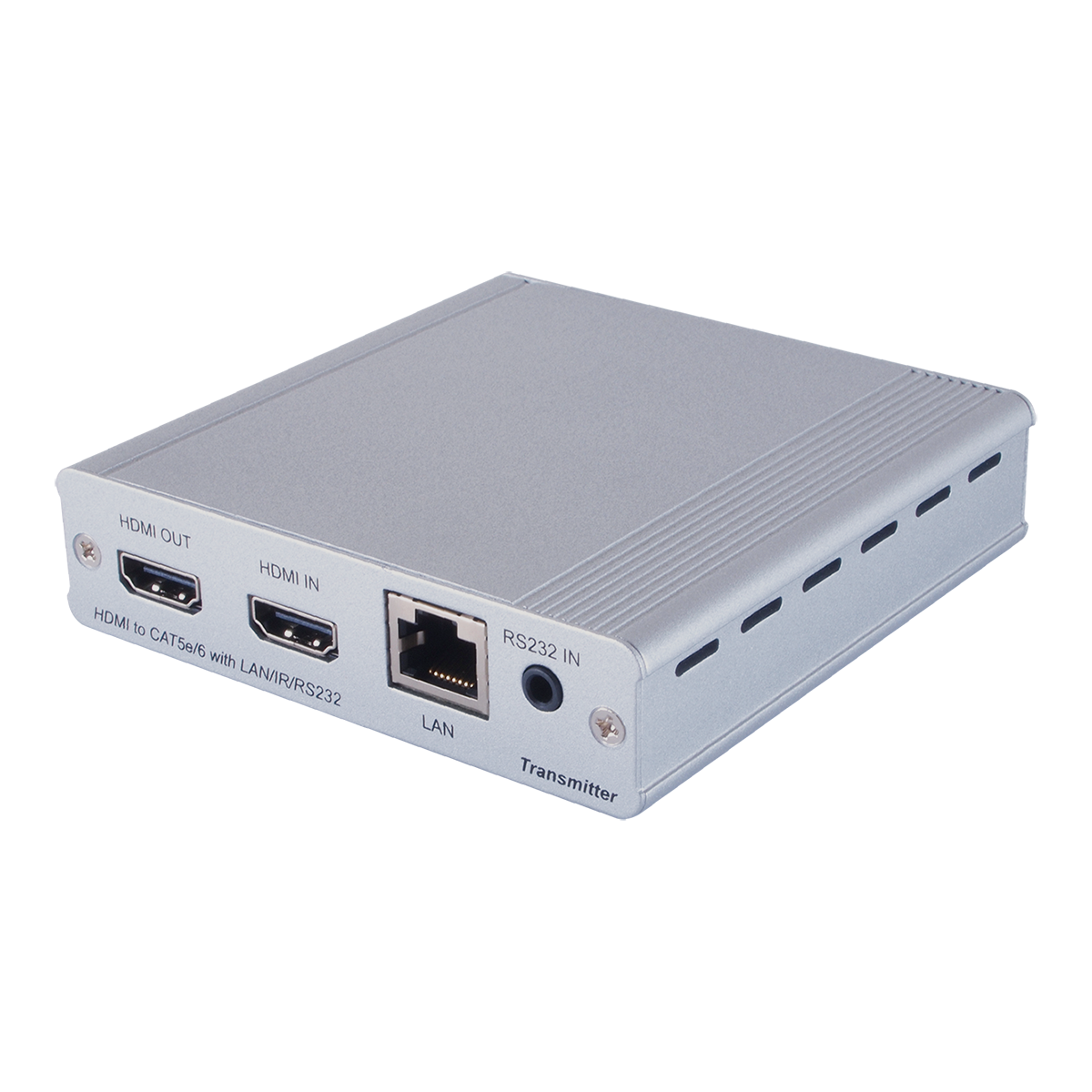

HDMI to CAT5e/6 with LAN/IR/RS232
The HDMI over HDMI and CAT5e/6/7 Transmitter can convert a single HDMI input, 2-way IR and RS-232 control and LAN serving to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 100 meters.
