UHD+ 1 by 2 HDMI to HDBaseT and Splitter
This 1 by 2 HDMI to HDMI and HDBaseT splitter can take a single 4K source and simultaneously deliver it to a local HDMI display as well as to a second HDMI display up to 100m away via HDBaseT. This unit complies with the advanced HDCP 2.x and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The HDMI input and output supports uncompressed 4K UHD HDMI sources,up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR while the HDBaseT output, despite its 10.2Gbps bandwidth limitation, is able to process and extend the same high bandwidth sources by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Receiver.

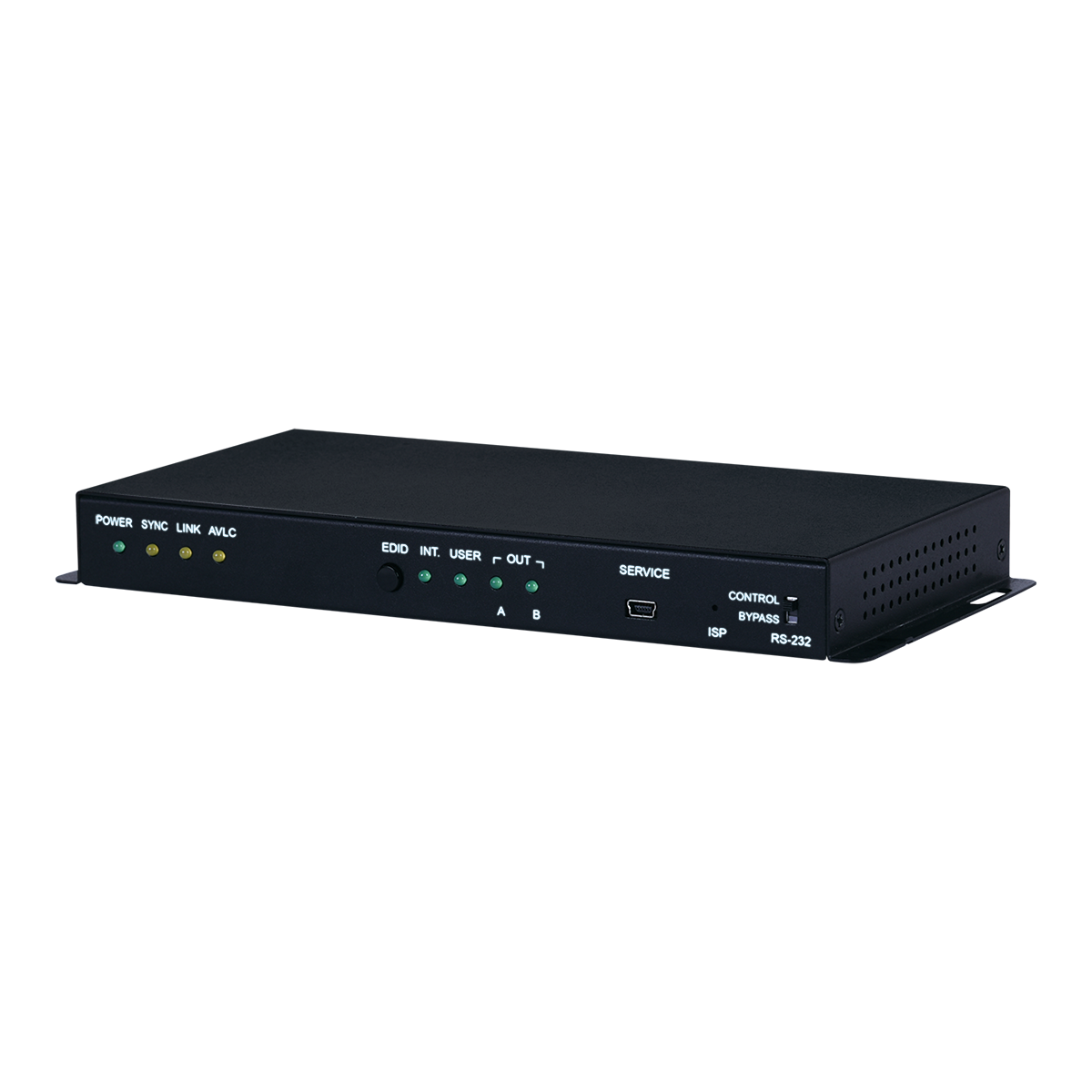

1 by 3 HDMI to HDMI & CAT5e/6/7 with LAN/IR/ RS-232 Transmitter
The HDMI over HDMI & CAT5e/6/7 Transmitter can supports resolutions up to 4Kx2K timing, 3D and multichannel digital audio formats such as LPCM 7.1CH, Bitstream, HD Bitstream from Hi-Def sources to one HDTV and CAT5e/6/7 outputs. This Transmitter has the ability to provide you with 1 HDMI and 2 HDBaseT outputs where the HDMI can be connected to HDMI display for instant display or cascading with another Transmitter and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters.
1×4 HDMI over HDMI and CAT5e/6/7 Splitter with PoE and LAN Serving
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to HDBaseT to HDMI receivers to extend the operating distance up to 100 meters.Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.
