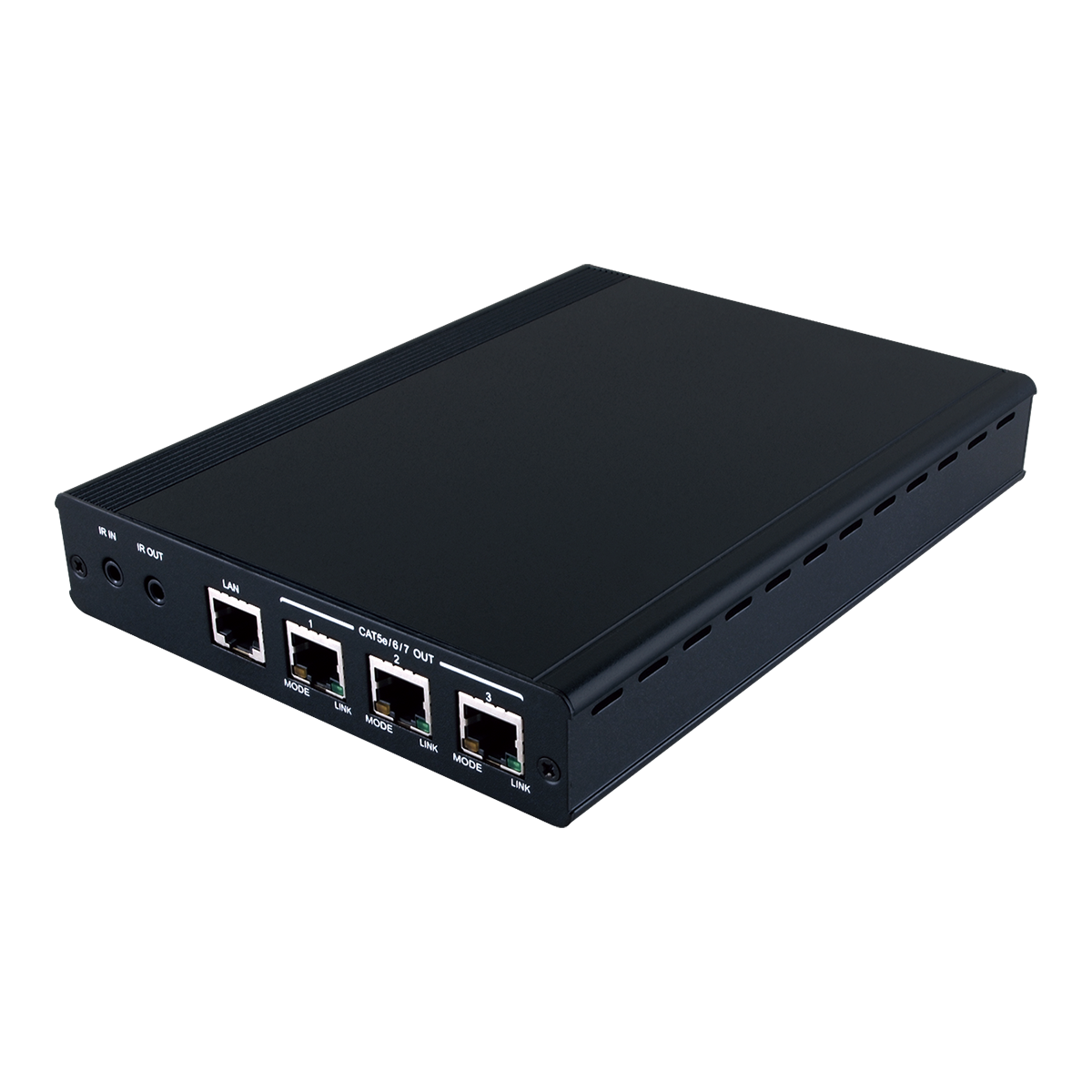

1×4 HDMI over HDMI and CAT5e/6/7 Splitter with PoE and LAN Serving
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to HDBaseT to HDMI receivers to extend the operating distance up to 100 meters.Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.

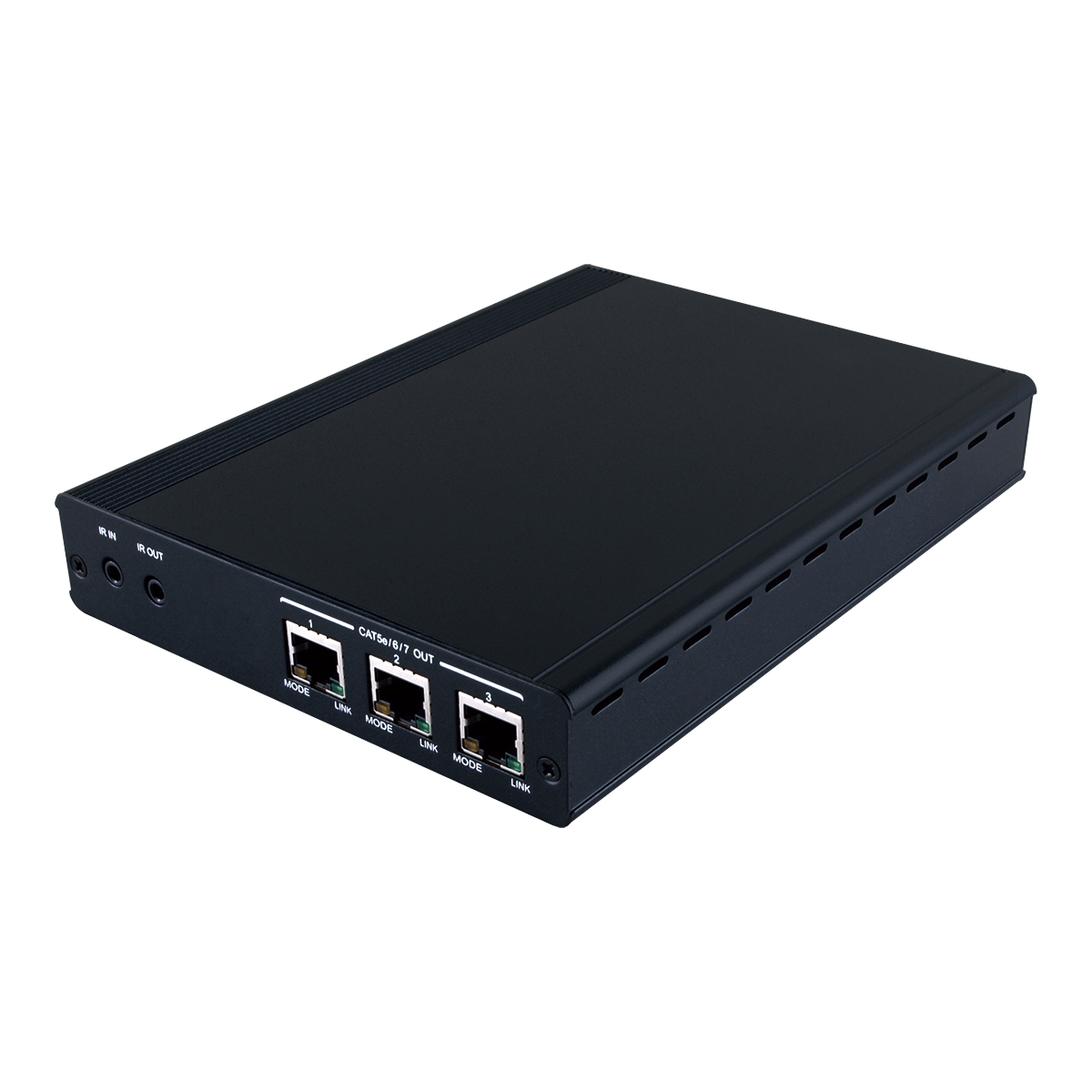

1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 70 meters.
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 70 meters with Power Over Cable feature.
