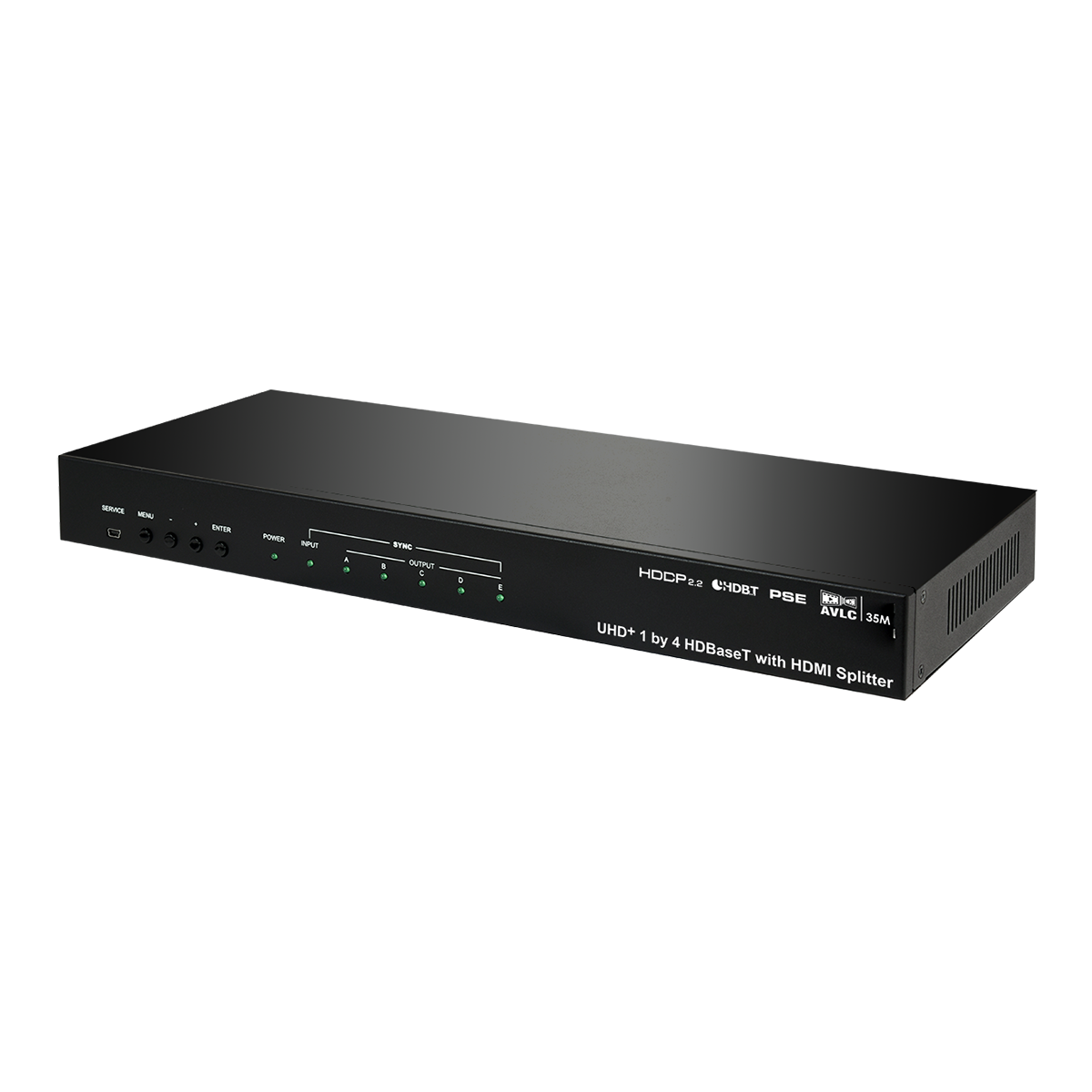

UHD+ 1 by 4+1 HDBaseT/HDMI Splitter
This 1×4+1 4K UHD HDMI Splitter provides an advanced solution for splitting and distributing a single HDMI input (up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.X) to 4 HDBaseT outputs as well as to a single HDMI output with analog stereo audio breakout. The UHD source may be distributed to any of four HDBaseT Receivers via a single Cat.5e/6/7 cable (up to 70m at 1080p or up to 40m at 4K). Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to compatible AVLC Receivers. If the connected HDBaseT Receiver can’t support AVLC, 4K@60Hz RGB/YUV 4:4:4 signals will be converted to YUV 4:2:0 or downscaled to 1080p based on the detected EDID on each output.

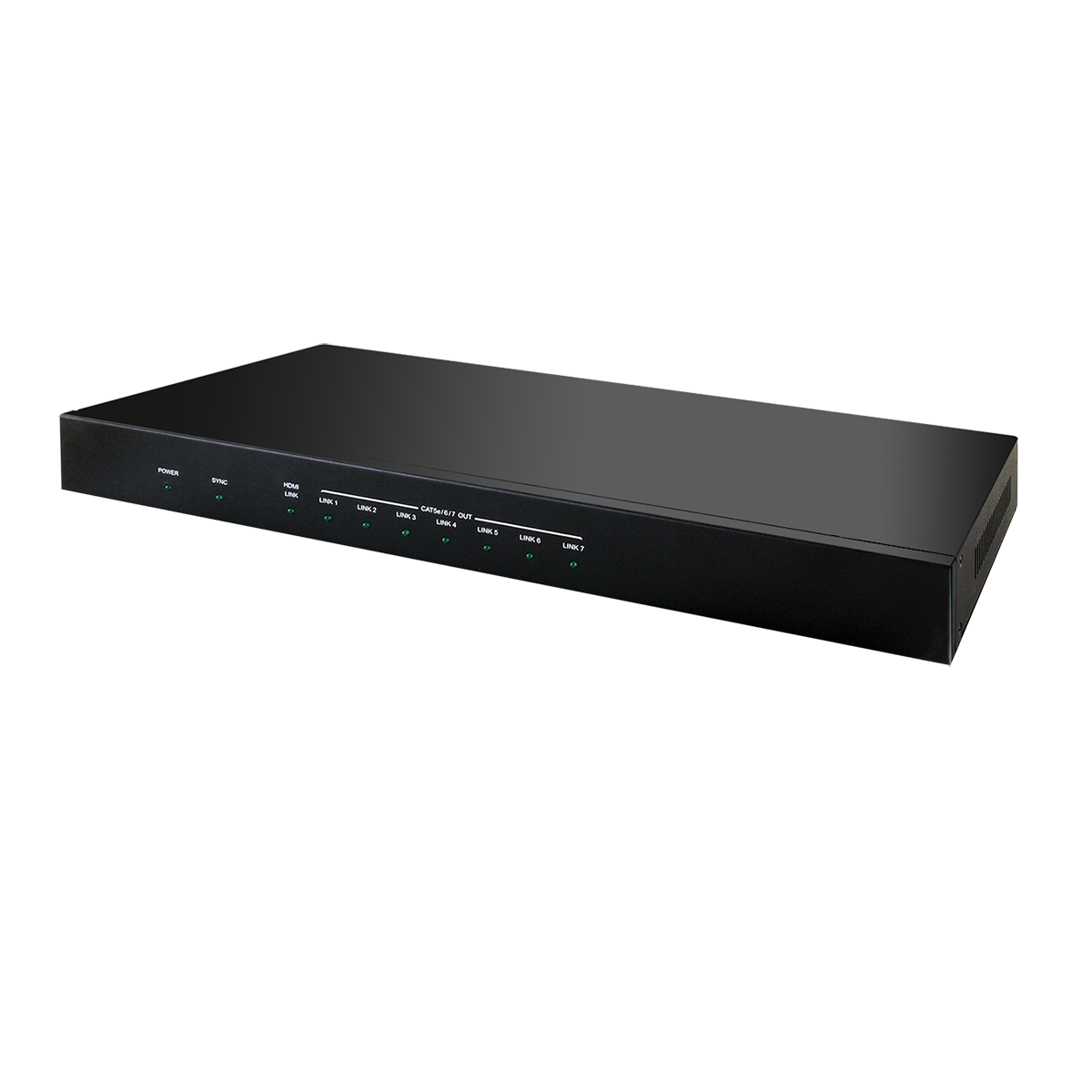

1 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter
The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 4K@60 4:2:0 timing, 3D and 7.1 channel digital audio formats to one HDTV and seven HDBaseT outputs. The HDMI can be connected to HDMI display mirrored output as local monitoring and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters. Further, a total of 100Mbps Ethernet transmission rate allows all connected device to share the Ethernet service and the POC function free the power shortage issue from the Receiver end.
