1 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter
The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 4K@60 4:2:0 timing, 3D and 7.1 channel digital audio formats to one HDTV and seven HDBaseT outputs. The HDMI can be connected to HDMI display mirrored output as local monitoring and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters. Further, a total of 100Mbps Ethernet transmission rate allows all connected device to share the Ethernet service and the POC function free the power shortage issue from the Receiver end.

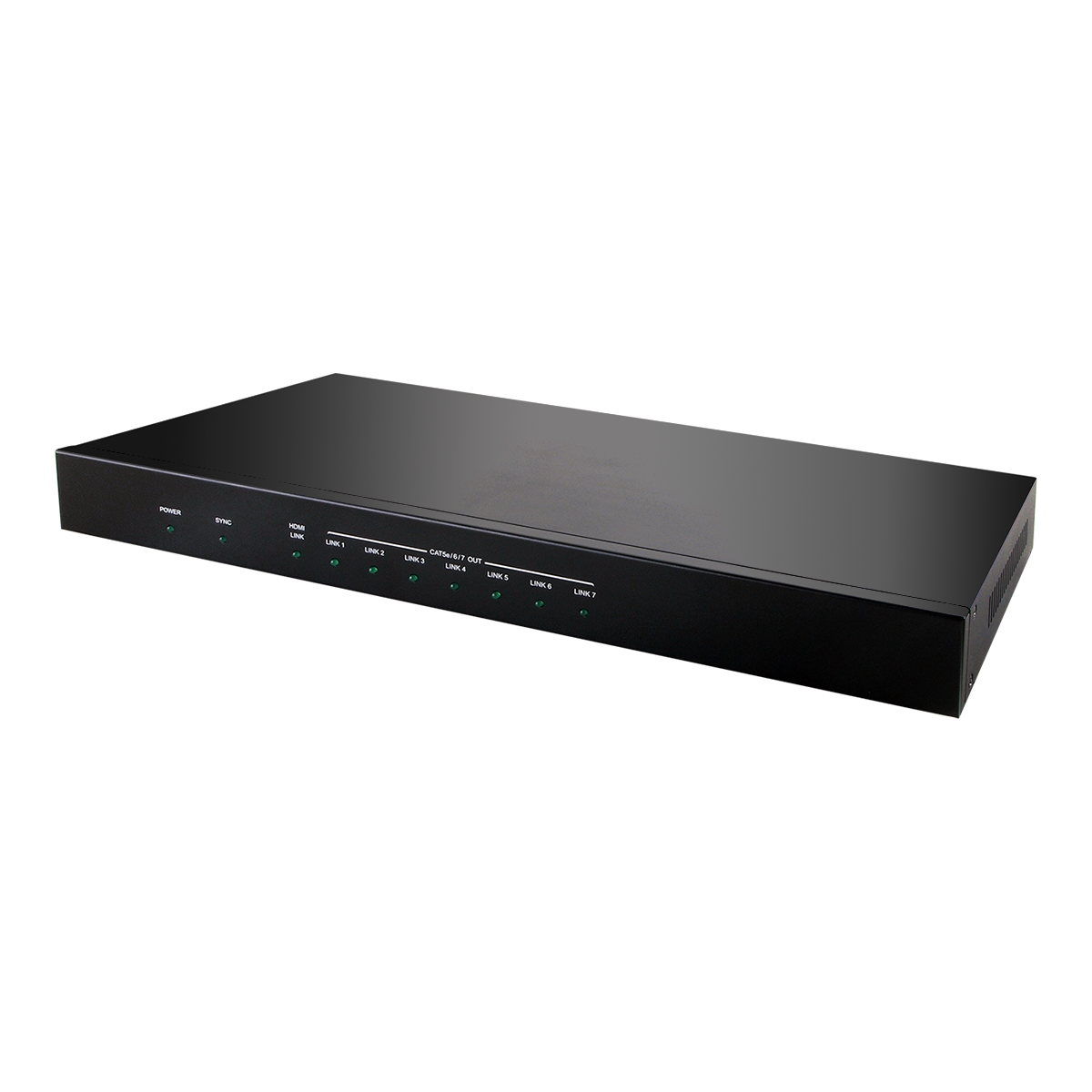

1 by 8 HDMI over HDMI & CAT5e/6/7 Splitter
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and seven HDBaseT outputs and one HDMI mirrored output. It supports resolutions up to 4K@60 4:2:0 timing, 3D and 7.1 channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The HDBaseT outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 70 meters.
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 outputs can be connected to HDBaseT to HDMI Receivers to extend the operating distance up to 70 meters with Power Over Cable feature.
