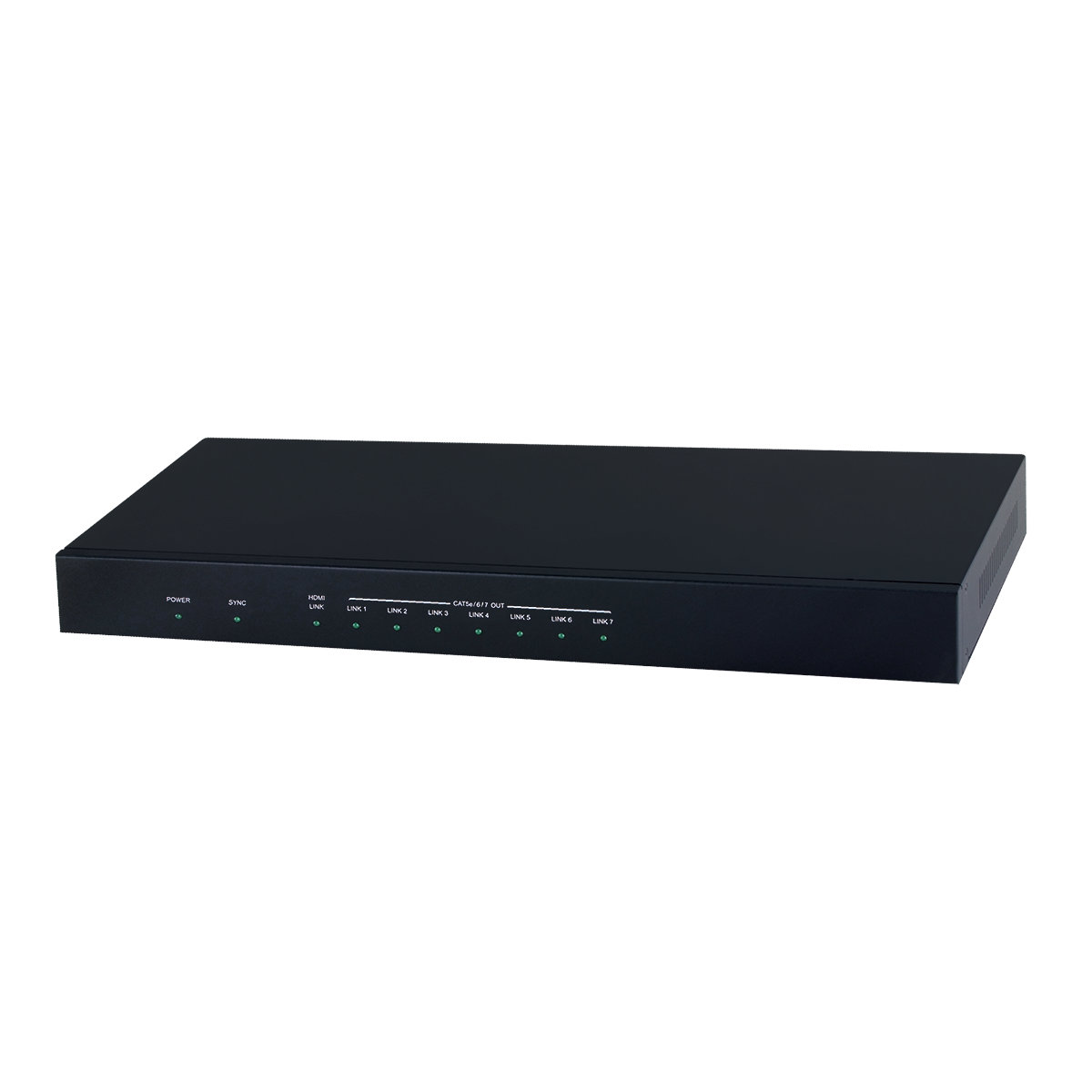

1 by 8 HDMI over HDMI & CAT5e/6/7 Splitter
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 outputs can be connected to HDBaseT to HDMI Receivers to extend the operating distance up to 70 meters with Power Over Cable feature.

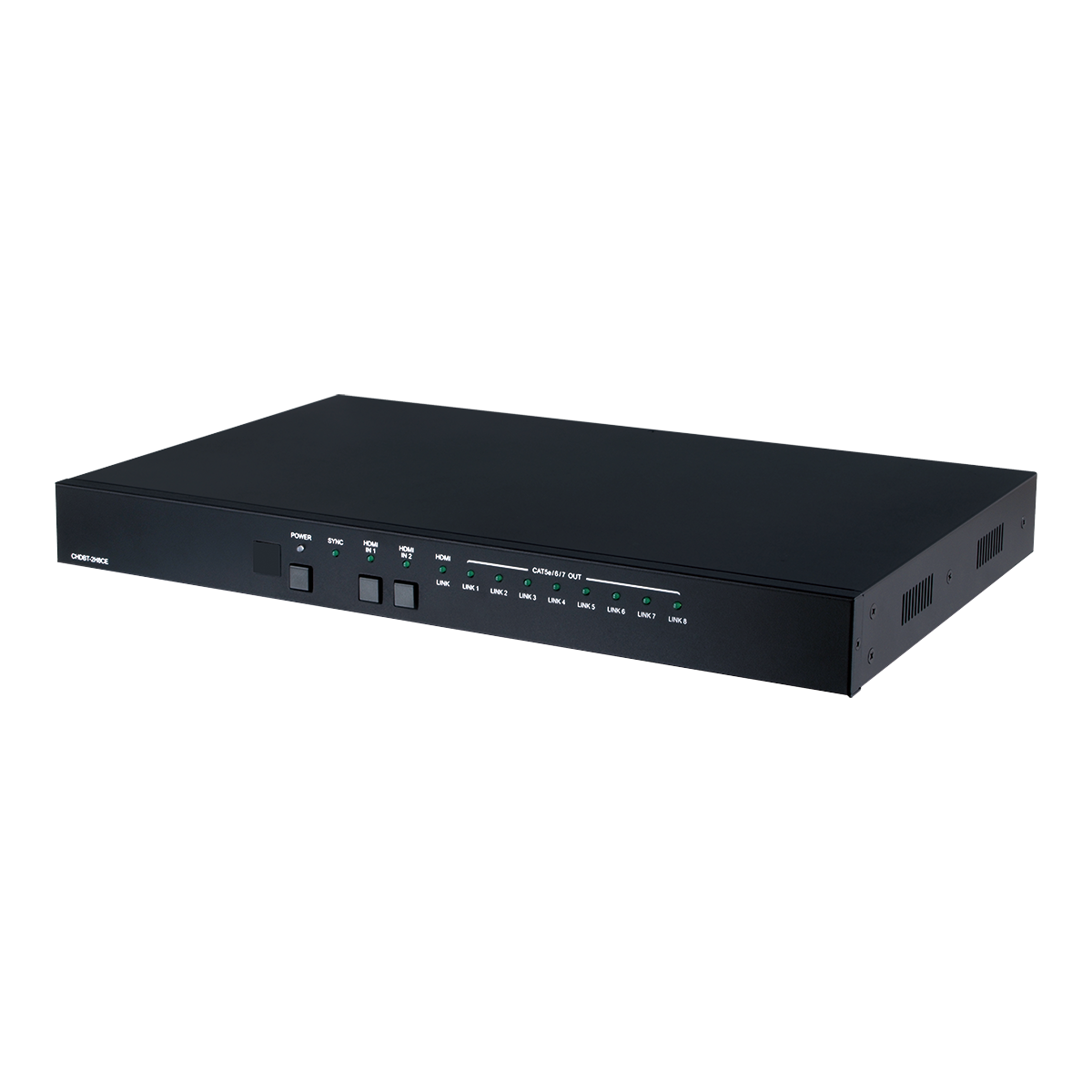

2 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter
The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 4Kx2K timing, 3D and multi-channel digital audio formats to one HDTV and eight HDBaseT outputs. The HDMI can be connected to HDMI display for instant nearby display and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters. Further, a total of 100Mbps Ethernet transmission rate allows all connected device to share the Ethernet service and the PoC function free the power shortage issue from the Receiver end

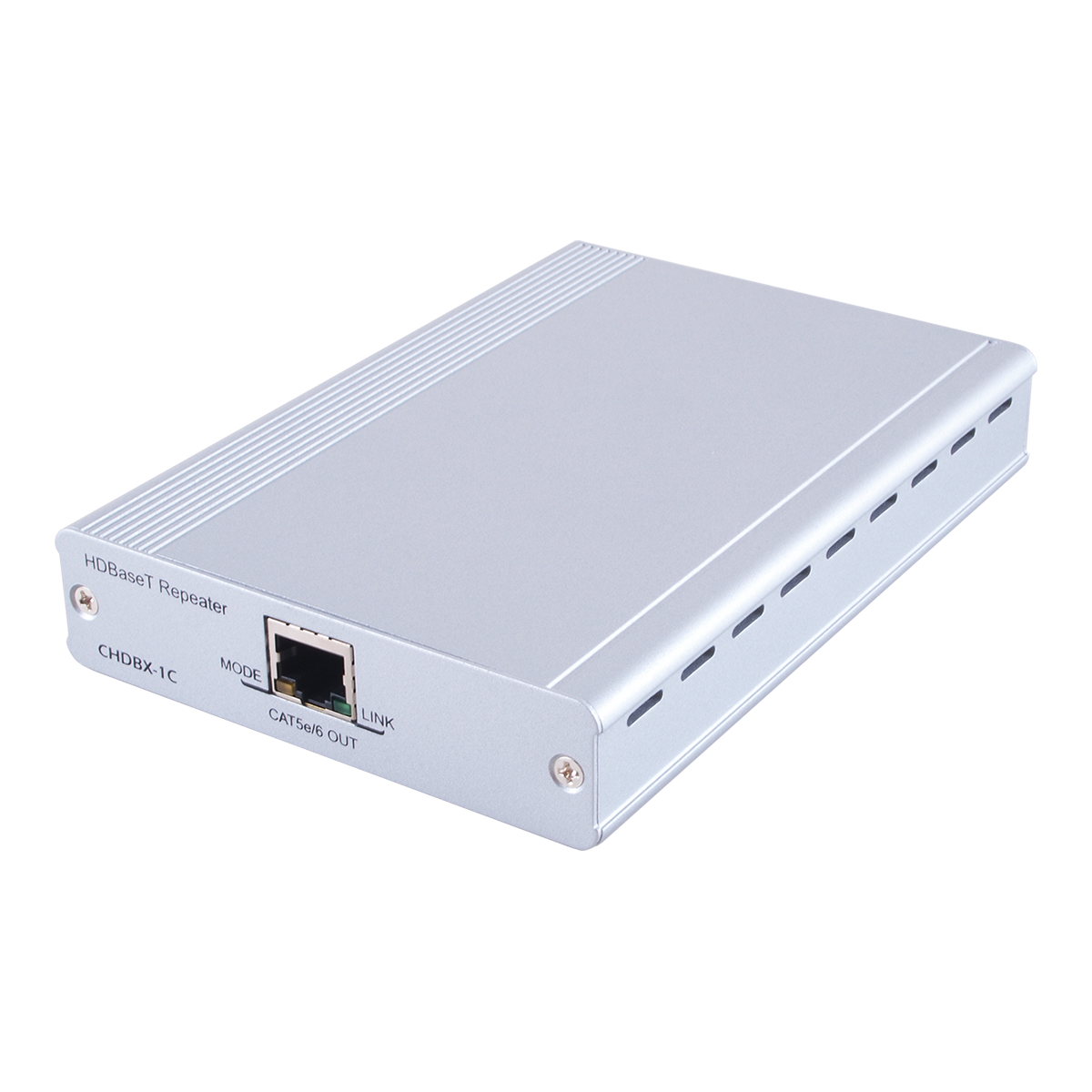

CAT5e/6/7 Repeater with 24V PoC and LAN Serving
The HDBaseT™ Repeater allows HDBaseT systems to be extended and cascaded. The model supports the highest quality of uncompressed high-definition HD video up to 4K×2K (Ultra HD), up to 8 channels of uncompressed multi-channel audio, RS-232 and IR control systems, PoE and Ethernet, complete HDBaseT 5Play™ convergence with just a simple connection over a single CAT5e/6/7 cable.
