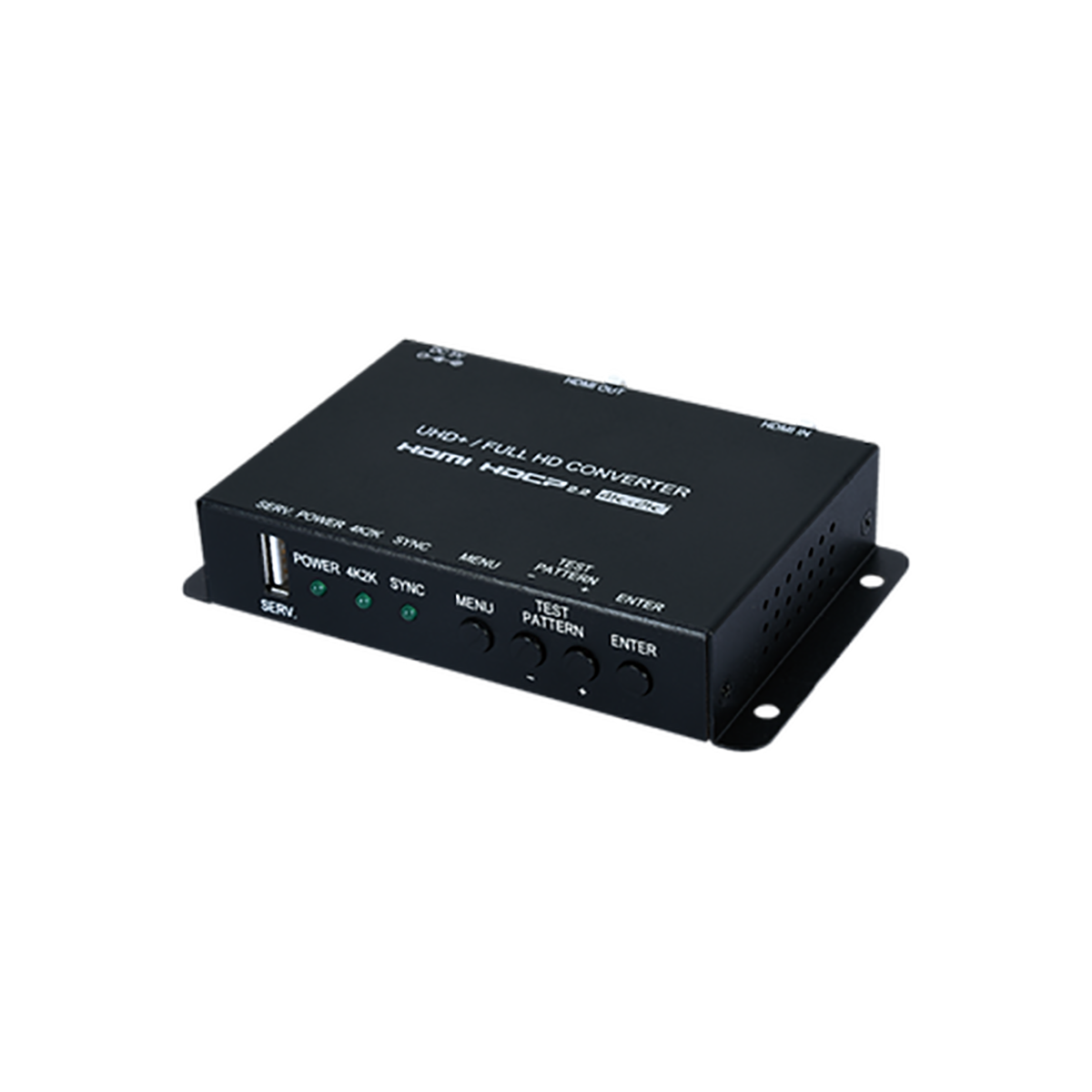

4K60 (4:4:4) 1×1 HDMI Scaler with Test Patterns
This Scaler is designed to convert sources between 4K and 1080p to enable greater compatibility with the native resolutions of available displays. 4K sources may be scaled to 1080p, or bypassed, and 1080p sources may be scaled to 4K, or bypassed, all while maintaining the original frame rates. Additionally, a variety of output color space options are available, including RGB, YUV (4:4:4, 8-bit) and YUV (4:2:0, 8-bit).

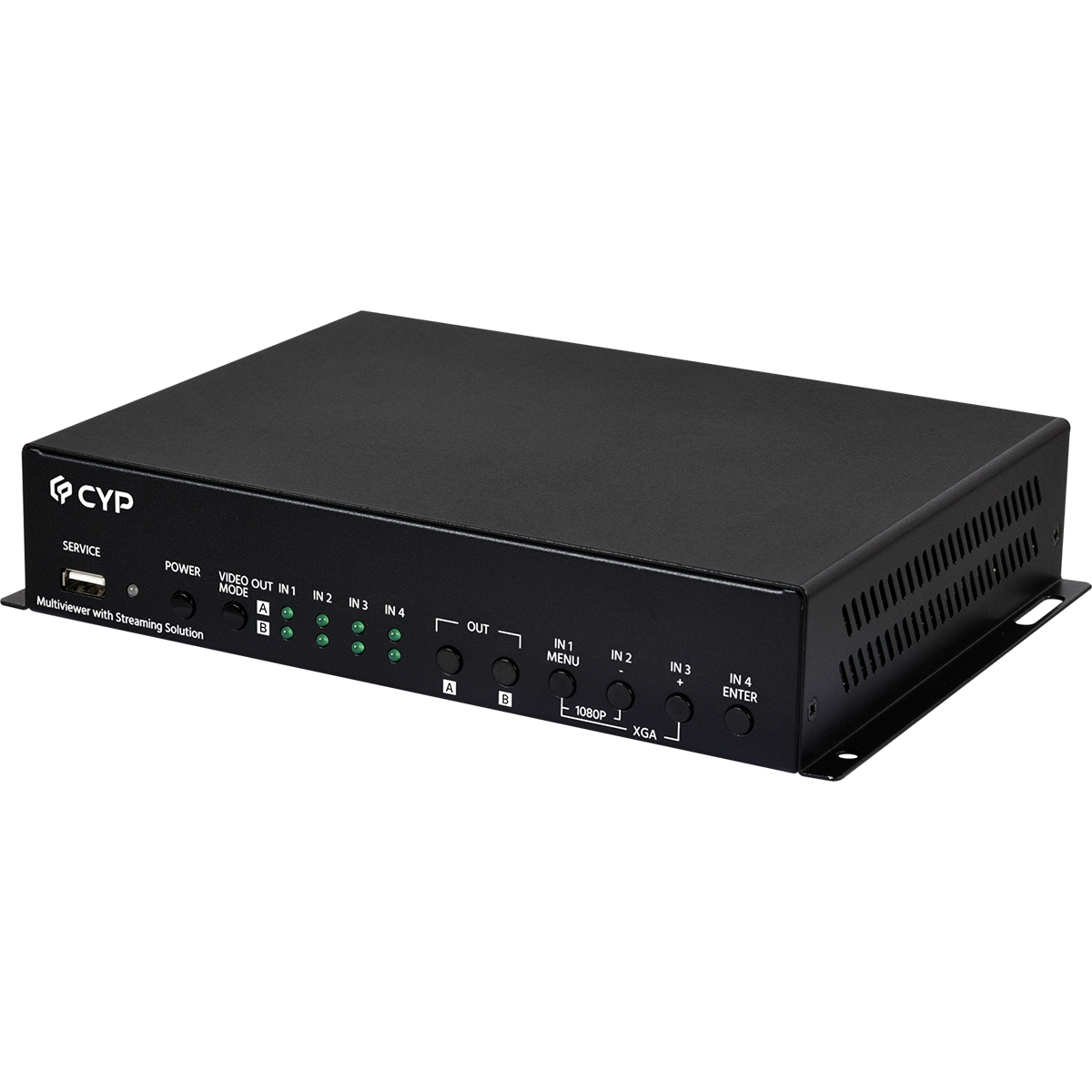

Multi-View with Streaming Solution for Video Conference
Video conference is important and convenient to communicate with people in distance. If you want to express your thought clearly by sharing varied and rich images, an integrated machine with multi-view and video capture functions is a splendid idea. CSC-VPR-3420 is the one to meet your requirement. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and video capture function are also supported. Any of the 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode, PiP , and PoP mode. Using an HDMI cable to connect between HDMI out indicated as capture and the HDMI input above it. The HDMI input supports resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 1080p to a USB connected PC for capture or re-broadcast. It supports most common video capture, chat, or streaming software, including free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. In this product, the video capture is powered directly by the USB 3.0 port, not from the DC 24V power source. (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.
Multiview Modular Processor
CSC-VPR-3421 is a wonderful solution for streaming, because it offers more than streaming and recording functionality but also offers rich video processing functions. It makes online broadcasting of live video an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and streaming are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP, and PoP mode, which becomes splendid source for streaming.
