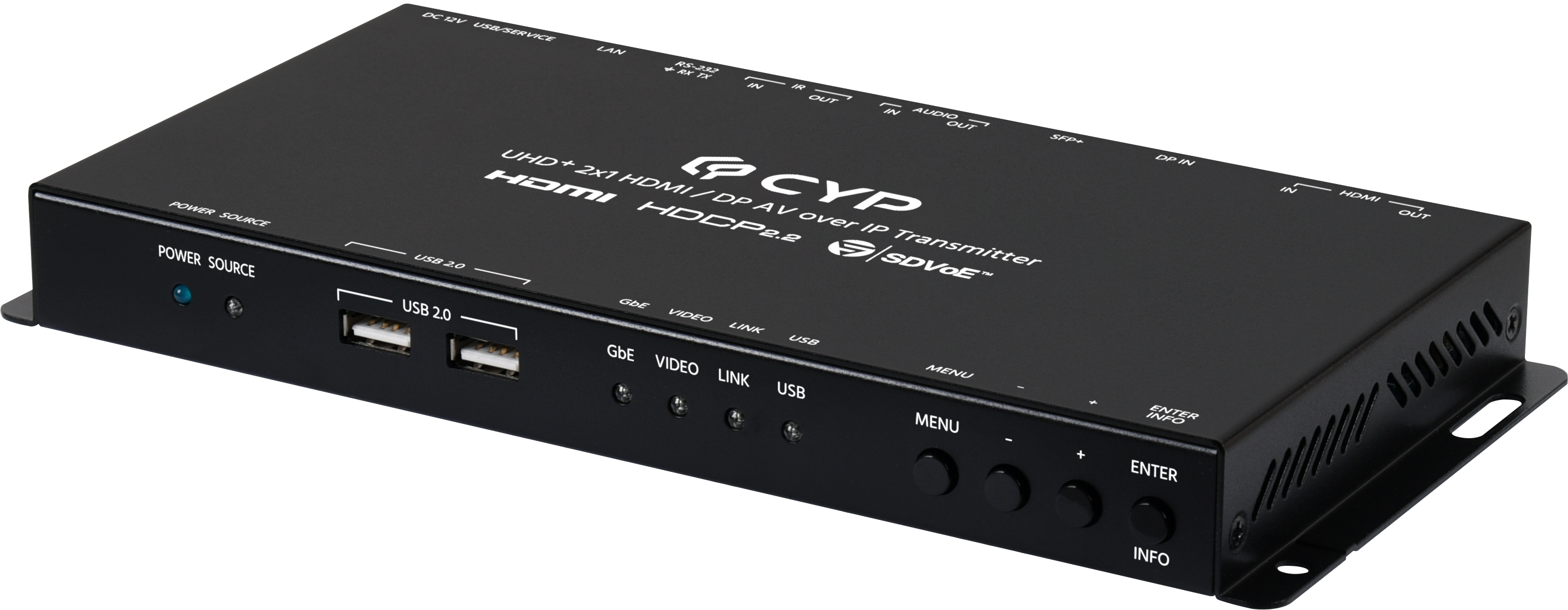

UHD+ 2x1 HDMI/DP AV over IP Transmitter with Preview
This transmitter is designed for high-quality, IP routable and AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content), it’s a great solution for extending 4K audio/video streams and data. The fiber optical port supports both singlemode and multimode fiber module. The distance of signal extension is up to 120 km in Point-to-Point mode. When combined with the optional IP Master Controller or control software, the functionality of the transmitter expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to set up a video matrix mode, a multiview mode or a video wall mode. It’s suitable for large scale installations. The very own exclusive development technology of preview function has remedied the lack of this AV over IP solution and fulfilled the needs of long distance transmission.
4K60 2x1 HDMI/USB-C to HDMI AV over IP Receiver with Dante
This Receiver is designed for high-quality, IP-routable AV extension up to 4K@60 4:4:4 with minimum latency and integrated Dante technology which extends and routes audio across standard Ethernet networks, including insertion and extraction. The use of 10-Gigabit Ethernet ports, and Cat.6A cable allows transmission of the video signal up to 100m. The unit can be powered directly via PoE when connected through Cat.6A to a 10-Gigabit Ethernet switch that supports PoE (802.3at), allowing for great installation flexibility. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and Ethernet. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. Dante output port can transmit any audio source available from this unit, while input port can insert Dante audio to any audio outputs. It also supports AES67 and Audinate Dante Controller. When combined with the optional IP Master Controller or control software, the functionality of the receiver expands exponentially. Multiple transmitters and receivers can be combined with one or more 10-Gigabit Ethernet switches, allowing the units to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Additionally, the specially engineered source preview functionality added to this hardware platform increases its utility when controlled remotely. The integrated USB hub of each transmitter can function as a simple point to point KVM extension or freely routed between any two endpoints. This type of USB KVM routing flexibility enables a wide range of multi-user, control room, or on-demand installation scenarios. The built-in EDID and HDCP management functionality enables the unit to fit into every situation. Basic configuration of the unit can be achieved via front panel buttons with an OSD (On-Screen Display). Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software.

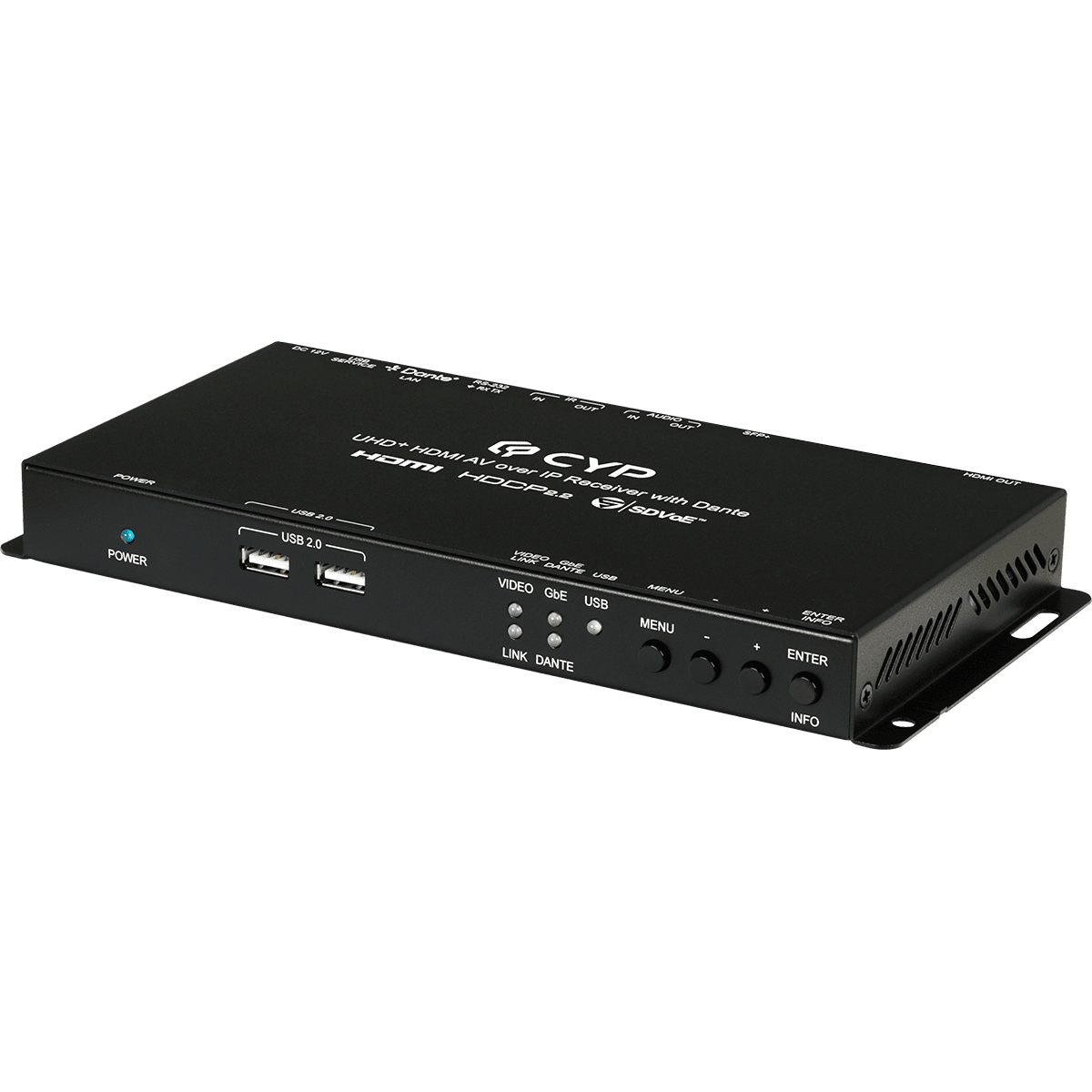

4K60 HDMI AV over IP Receiver with Dante
This Receiver is designed for high-quality, IP-routable AV extension up to 4K@60 4:4:4 with minimum latency and integrated Dante technology which extends and routes audio across standard Ethernet networks, including insertion and extraction. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 120km (Maximum transmission distance depends on the SFP+ modules used). Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and Ethernet. Advanced HDMI content such as HDR (High Dynamic Range), 12-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. Dante output port can transmit any audio source available from this unit, while input port can insert Dante audio to any audio outputs. It also supports AES67 and Audinate Dante Controller.

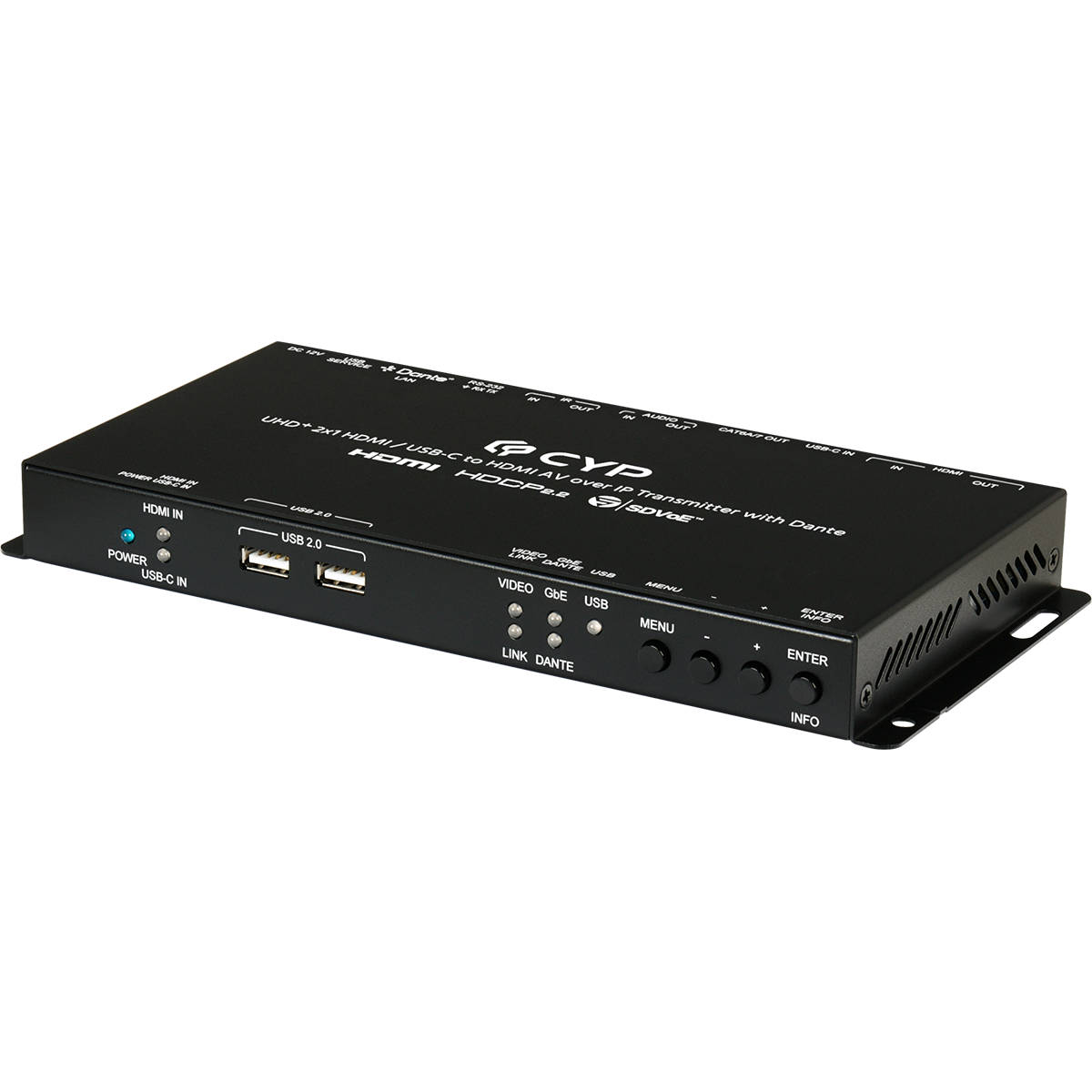

4K60 2x1 HDMI/USB-C to HDMI AV over IP Transmitter with Dante
This Transmitter is designed for high-quality, IP-routable AV extension up to 4K@60 4:4:4 with minimum latency and integrated Dante technology which extends and routes audio across standard Ethernet networks, including insertion and extraction. The use of 10-Gigabit Ethernet ports, and Cat.6A cable allows transmission of the video signal up to 100m. The unit can be powered directly via PoE when connected through Cat.6A to a 10-Gigabit Ethernet switch that supports PoE (802.3at), allowing for great installation flexibility. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and Ethernet. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. Dante output port can transmit any audio source available from this unit, while input port can insert Dante audio to any audio outputs. It also supports AES67 and Audinate Dante Controller. When combined with the optional IP Master Controller or control software, the functionality of the transmitter expands exponentially. Multiple transmitters and receivers can be combined with one or more 10-Gigabit Ethernet switches, allowing the units to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Additionally, the specially engineered source preview functionality added to this hardware platform increases its utility when controlled remotely. The integrated USB hub of each transmitter can function as a simple point to point KVM extension or freely routed between any two endpoints. This type of USB KVM routing flexibility enables a wide range of multi-user, control room, or on-demand installation scenarios. The built-in EDID and HDCP management functionality enables the unit to fit into every situation. Basic configuration of the unit can be achieved via front panel buttons with an OSD (On-Screen Display). Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software.
