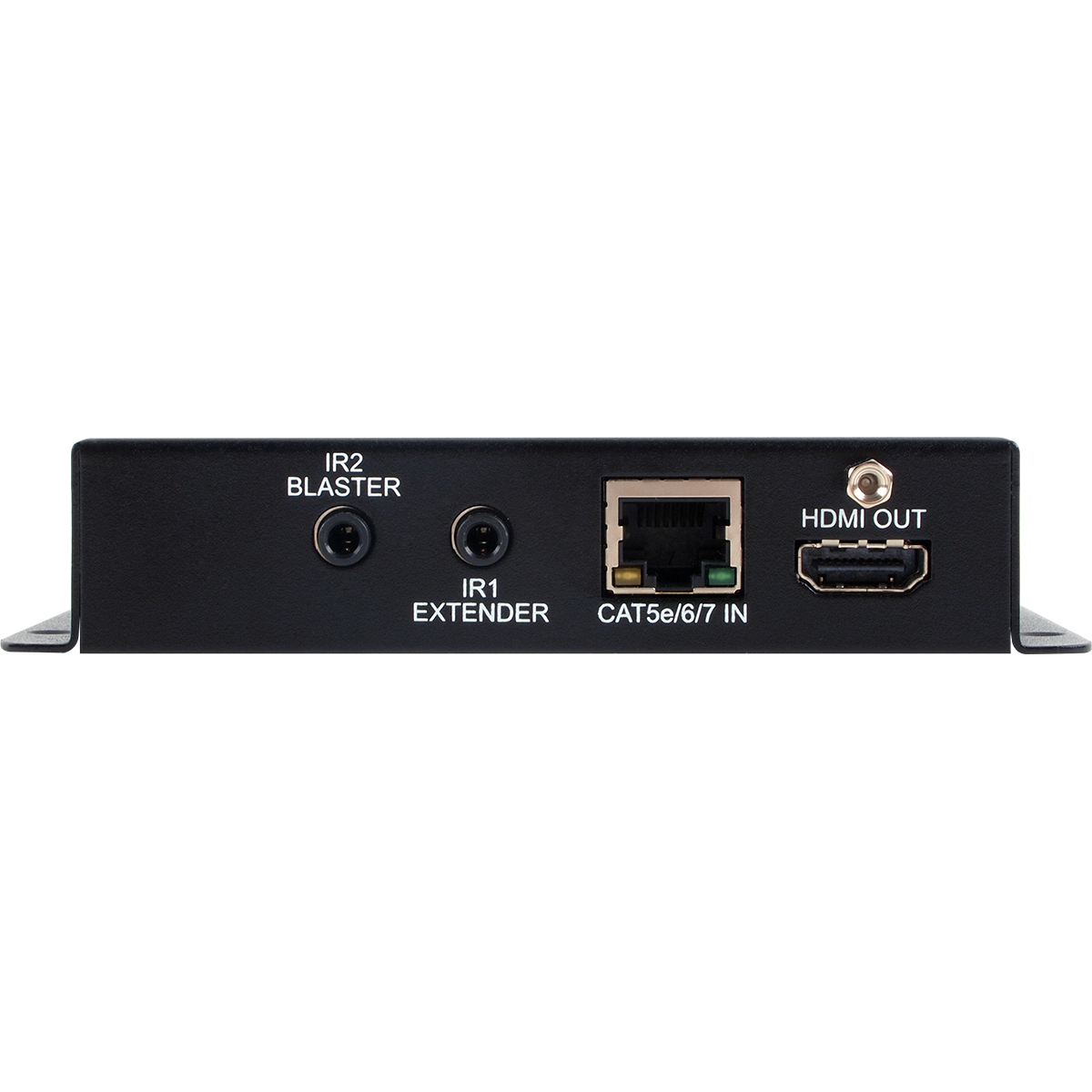

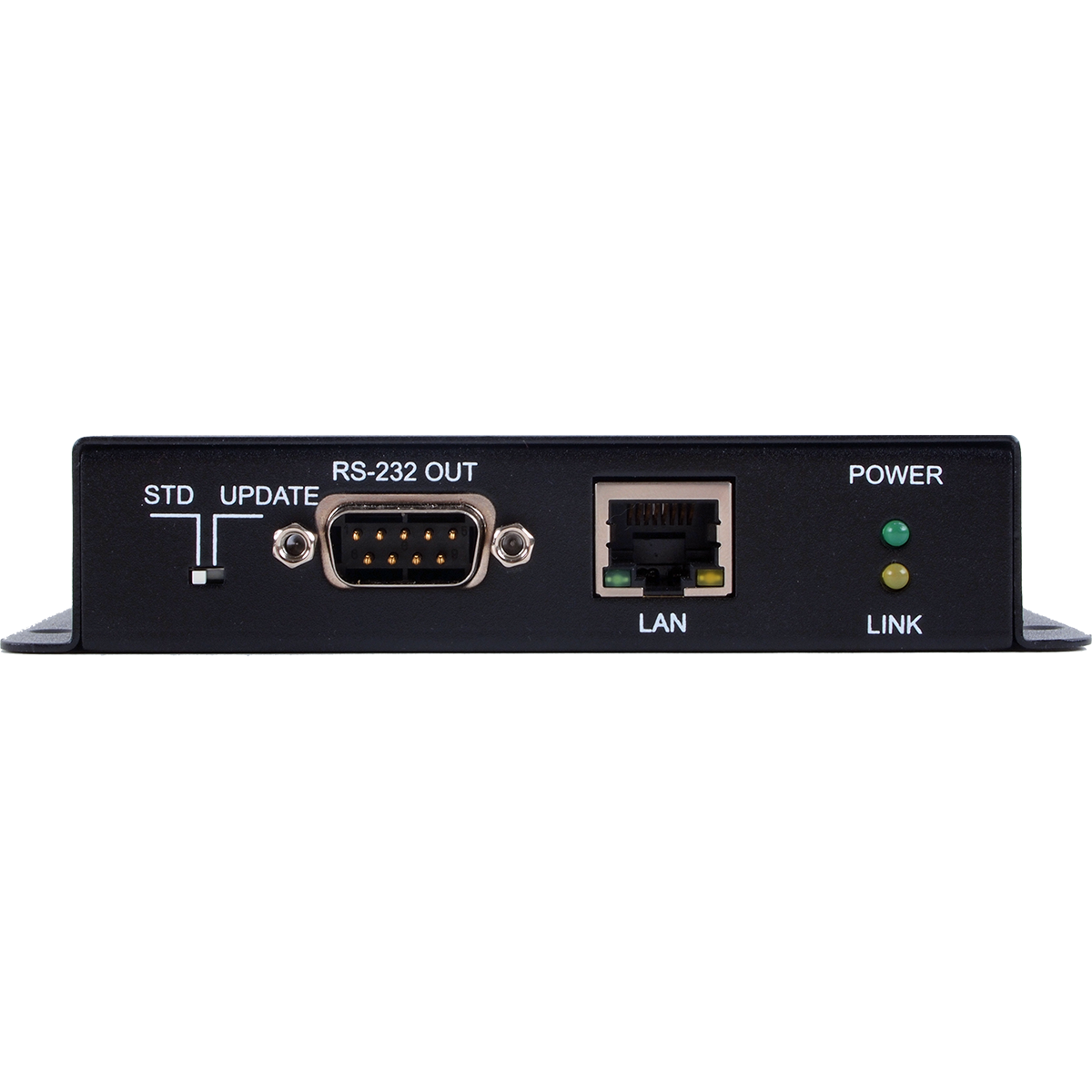

CH-1527RX
UHD HDMI over HDBaseT Receiver with PoH (4K@60 420 up to 70M)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- RS-232 with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- HDMI with 3D, 4K2K support, HDMI & DVI Compliant
- Supports CEC bypass
- Simultaneous reception of uncompressed data over a single 100m/328ft CAT5e/6/7 cable
- 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232)
- Supports resolution up to 4K2K@50/60 & YUV 4:2:0 and 21:9
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
- Installation Friendly
- Supports HDMI Output cable distance up to 5m at 4K2K@50/60 & YUV 4:2:0
Note:
Displaying HDMI 3D and 4K2K contents, equivalent source signal and HDMI cable are required in order to secure the quality.
PRODUCTS FEATURED

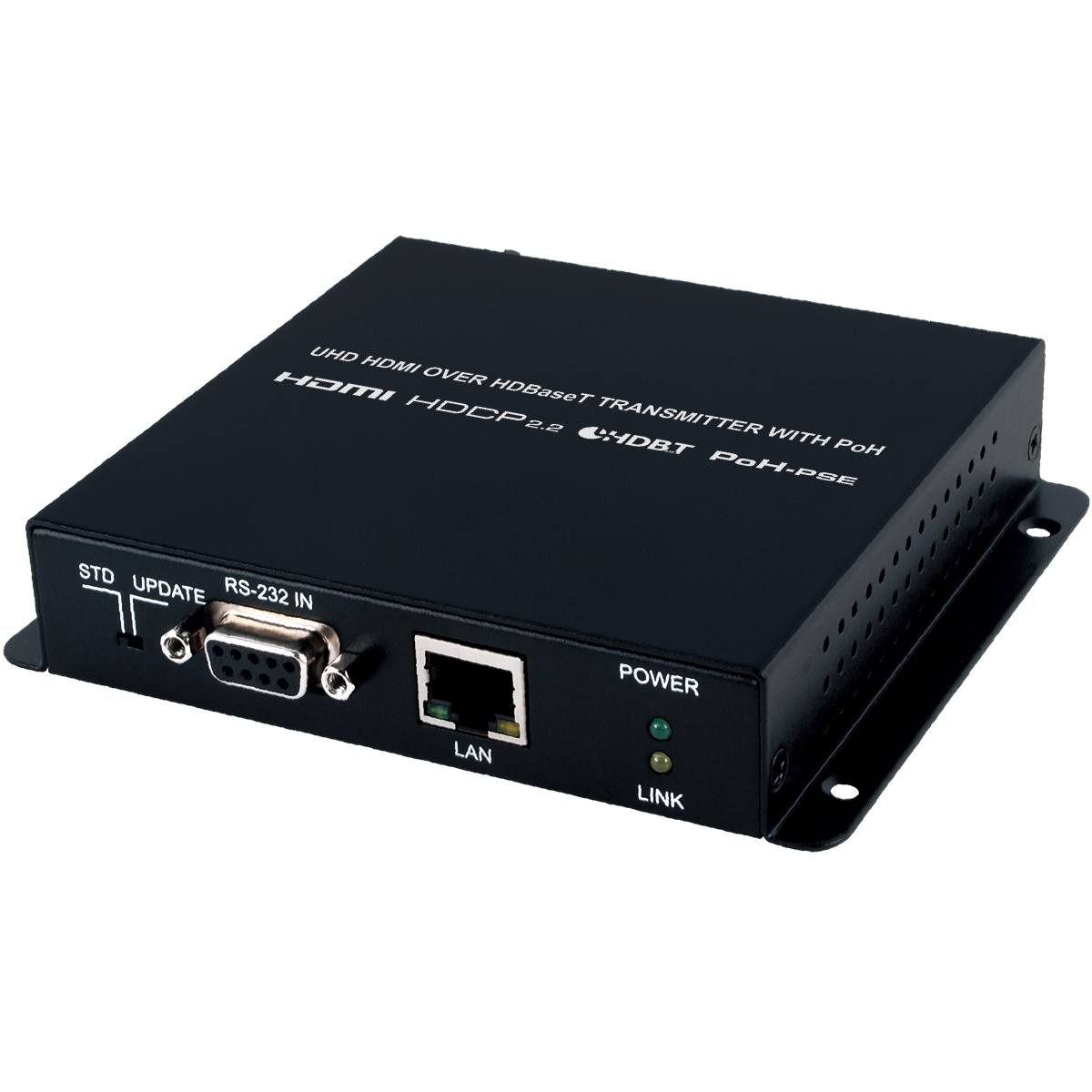

CH-1527TX
UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 70M)
The HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Transmitter (PSE) can provide power to the Receiver(PD) allowing a greater flexibility in installations.
