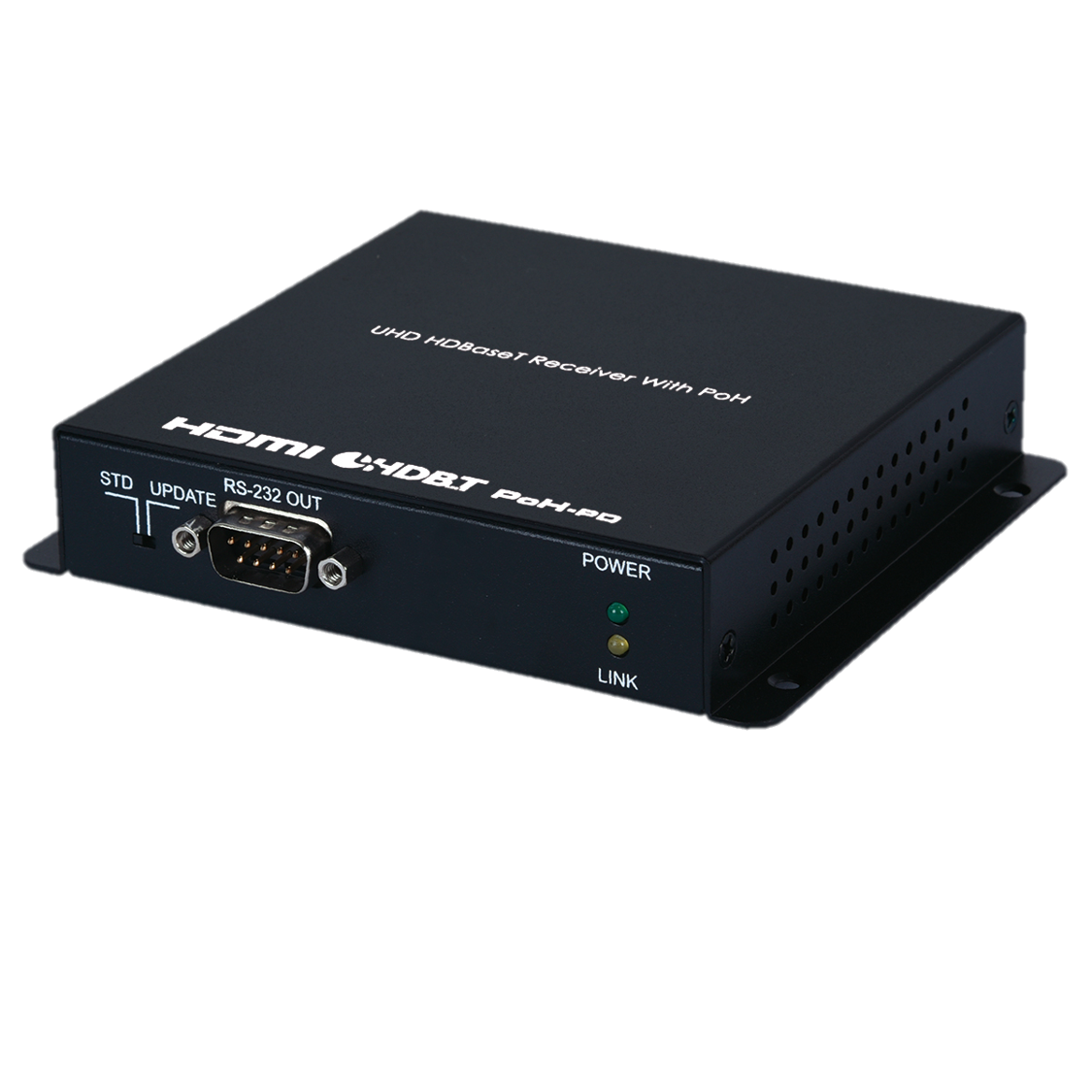

CH-2527RXPL

UHD HDMI over HDBaseT Receiver with PoH

HDMI with 3D & 4K support
Supports CEC bypass
Simultaneous transmission of uncompressed video, audio and data over a single 70m/230ft Cat.5e/6/7 cable at 1080p60 and 35m/115ft at 4K
HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)

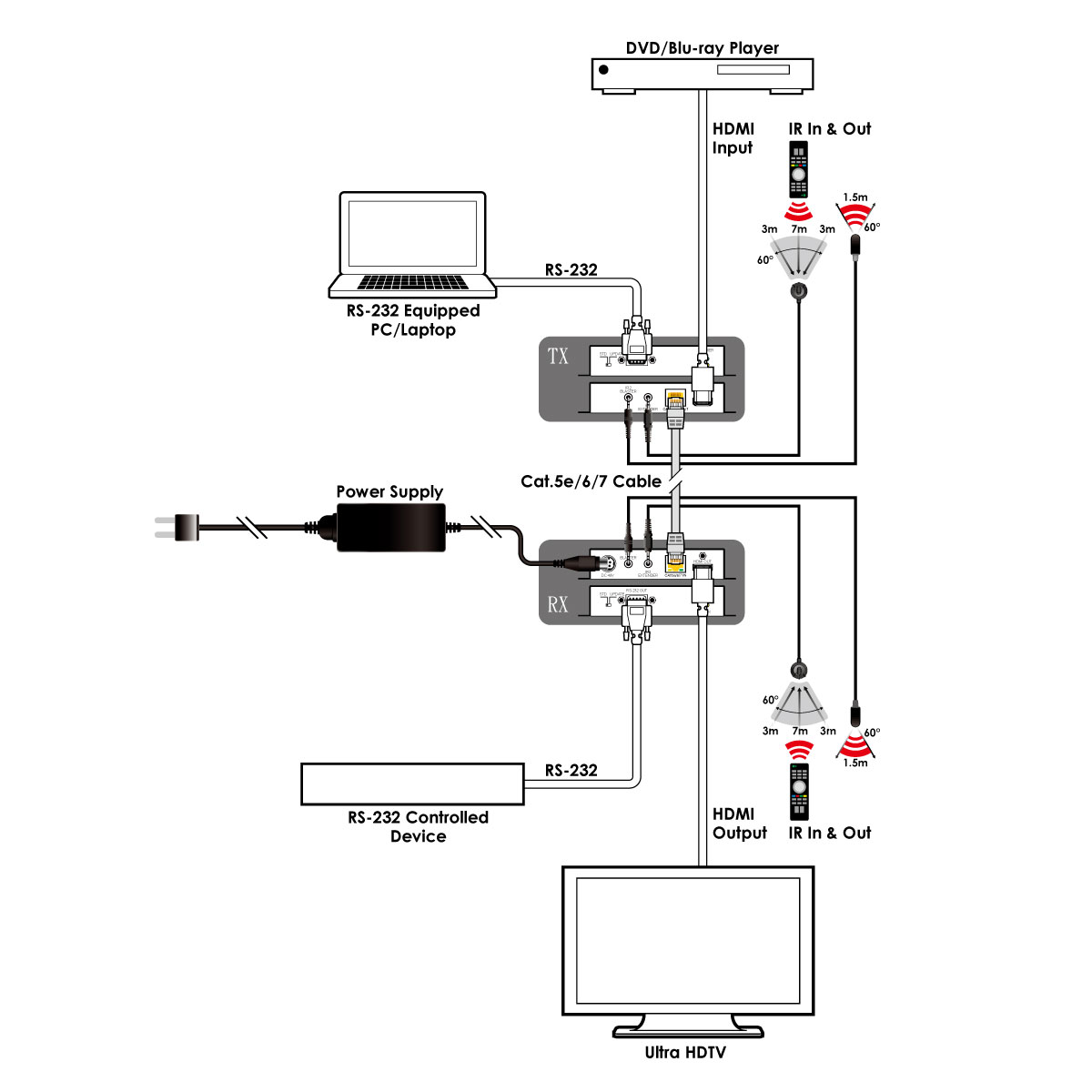

This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Receiver (PSE), allowing for greater flexibility within different installation scenarios.

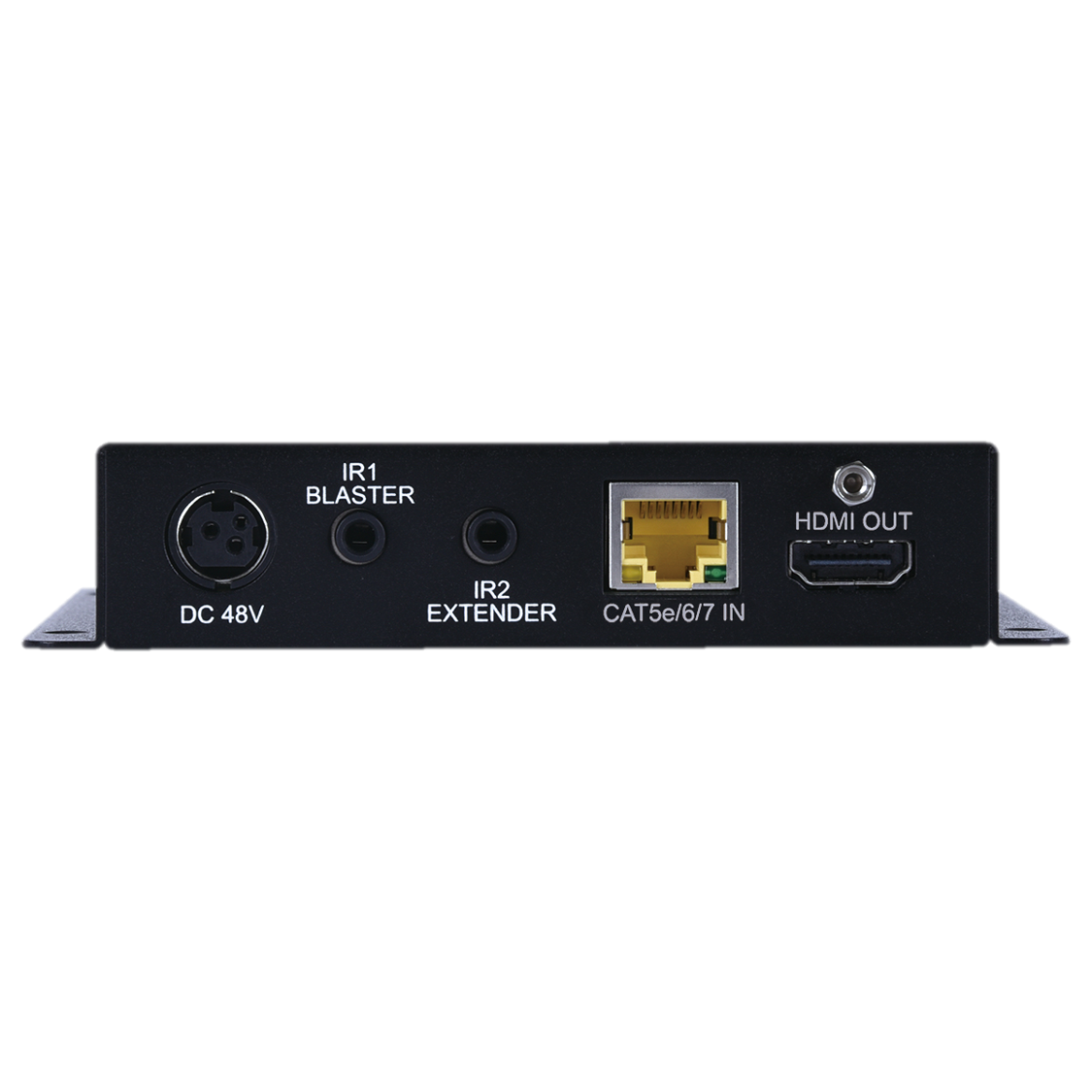

Interfaces
Input Port	1×HDBaseT (RJ-45)
Output Port	1×HDMI (Type-A)

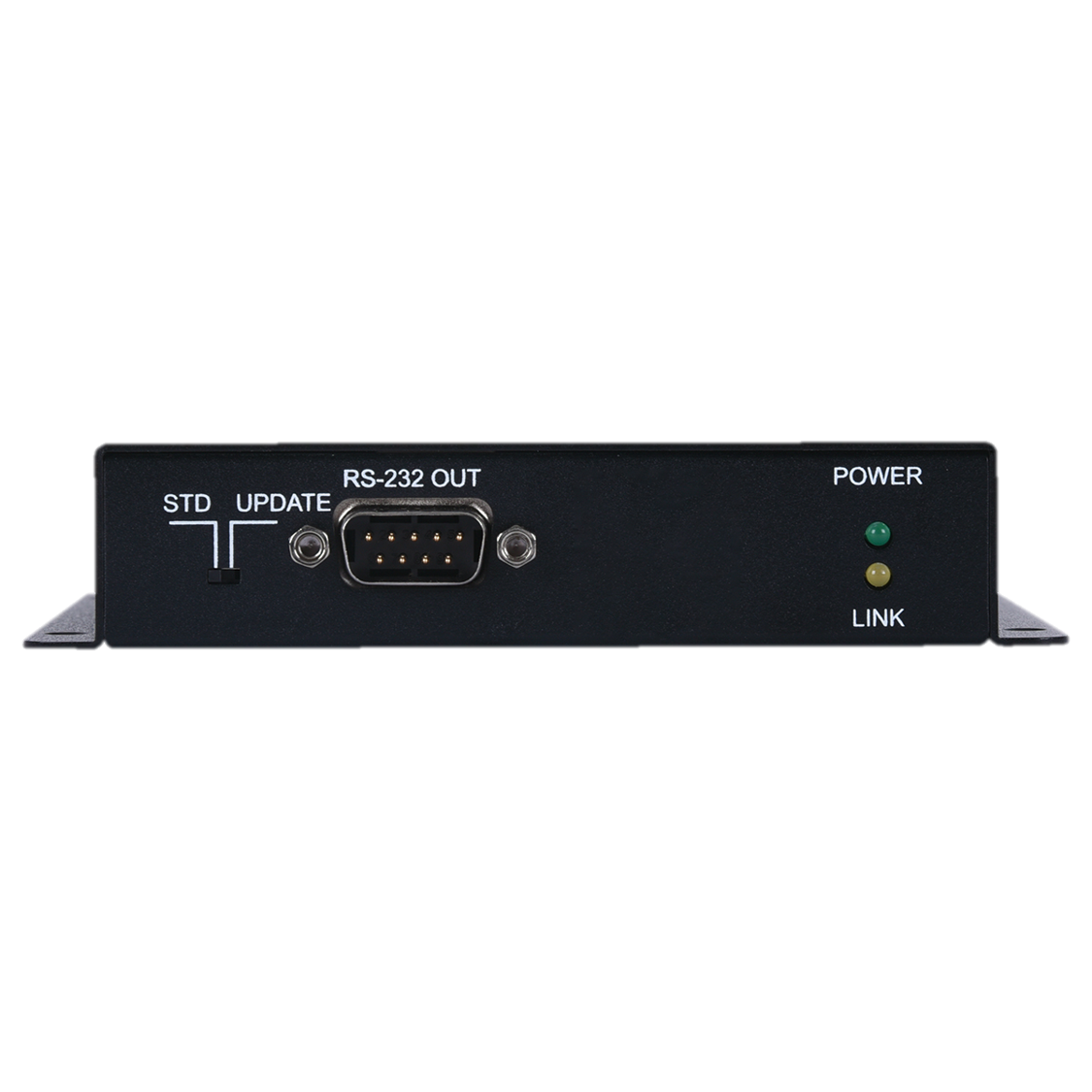

Pass-through Port	1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232(DE-9)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:2:0
Output Signal Type	4K@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDBaseT	4096×2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096×2160p@60 YUV 4:2:0

Power
Power Supply	48V PoH
Power Consumption	8.74W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm (W×H×D) [Case Only] 128mm×25mm×117m (W×H×D) [All Inclusive]
Weight	366g

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description
CH-2527RXPL	UHD HDMI over HDBaseT Receiver with PoH

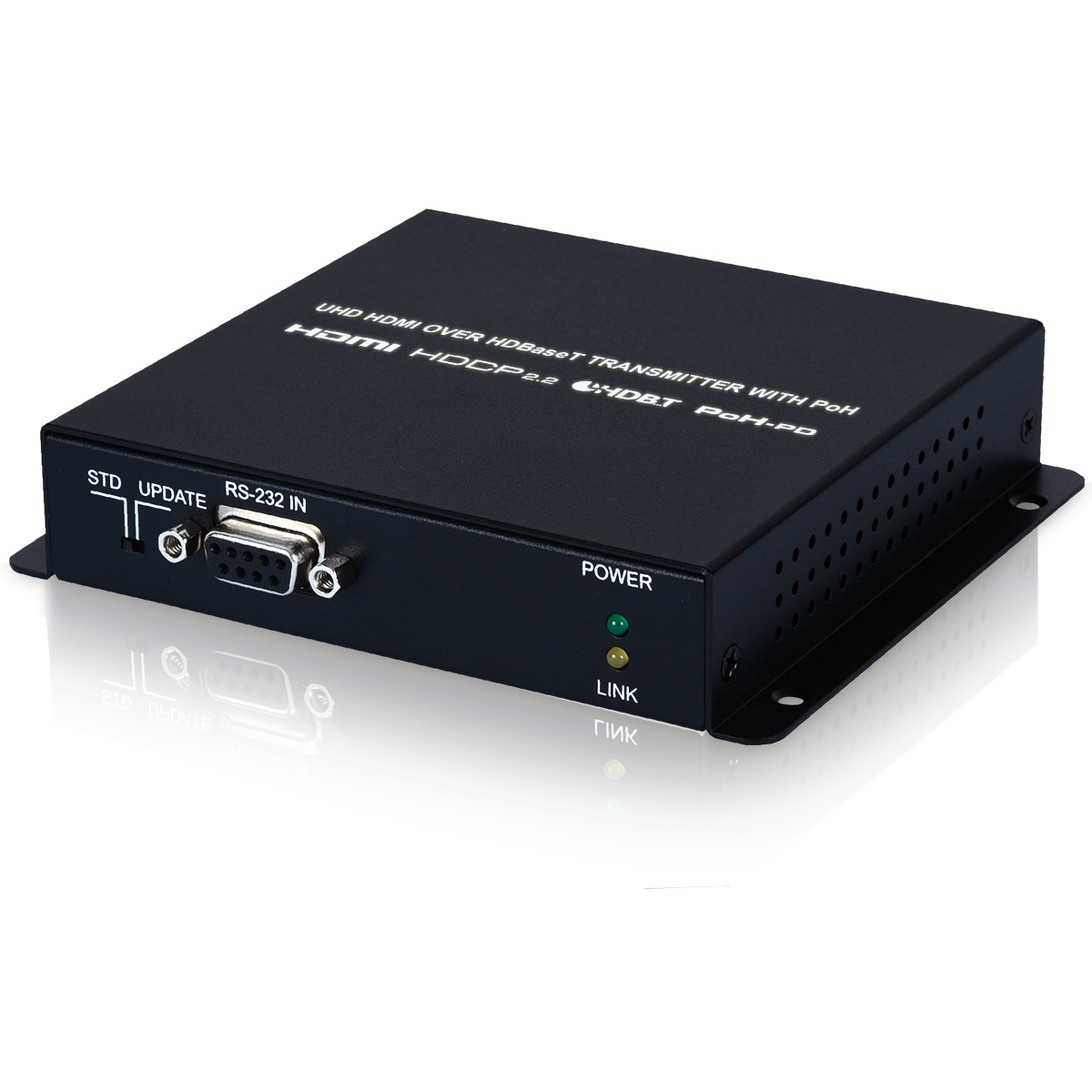

CH-2527TXPL	UHD HDMI over HDBaseT Transmitter with PoH

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/22	CH-2527RXPL_Manual	1	all	CH-2527RXPL_Manual
