CLUX-SDI2HC EOL

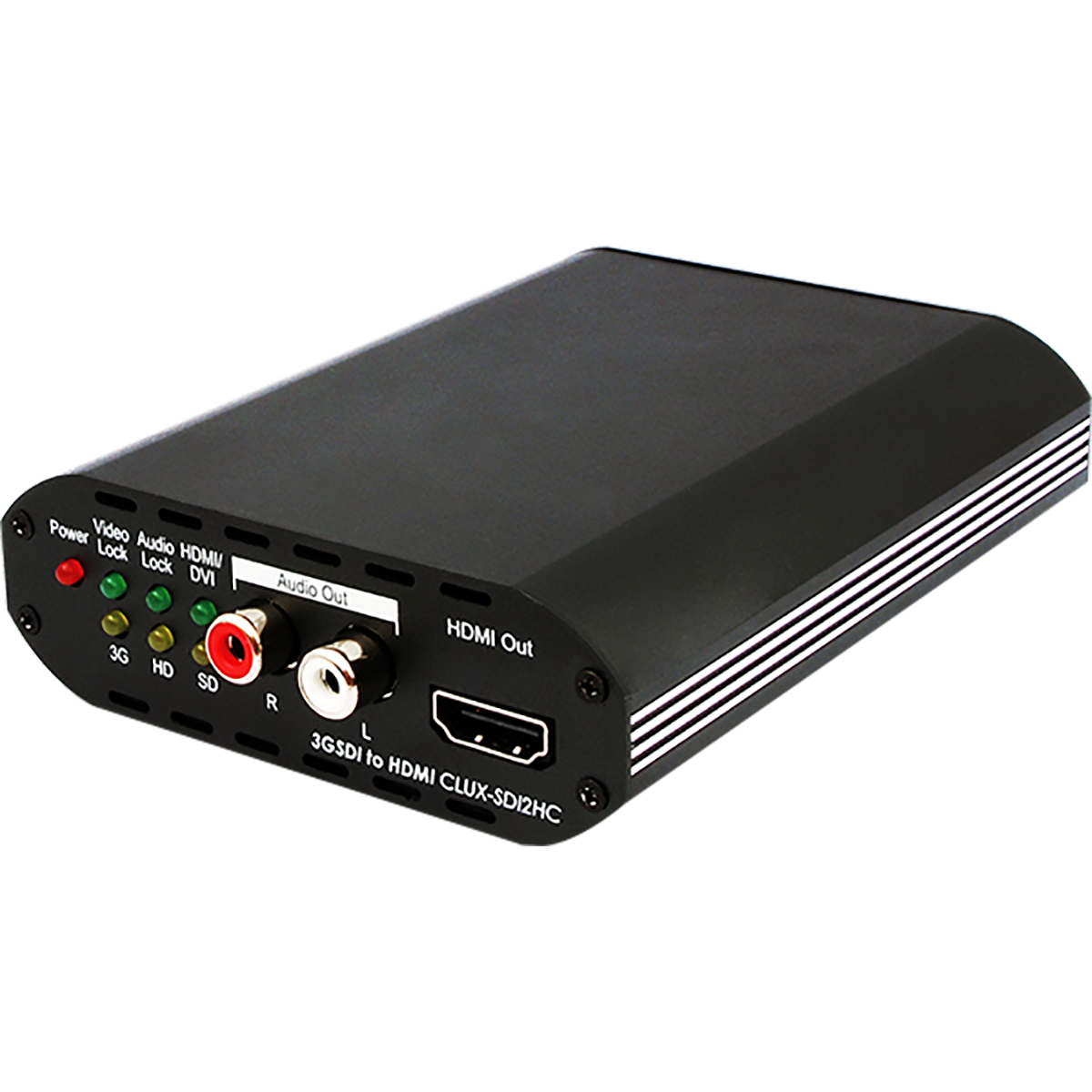

3G-SDI Extender with HDMI Converter
- Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection

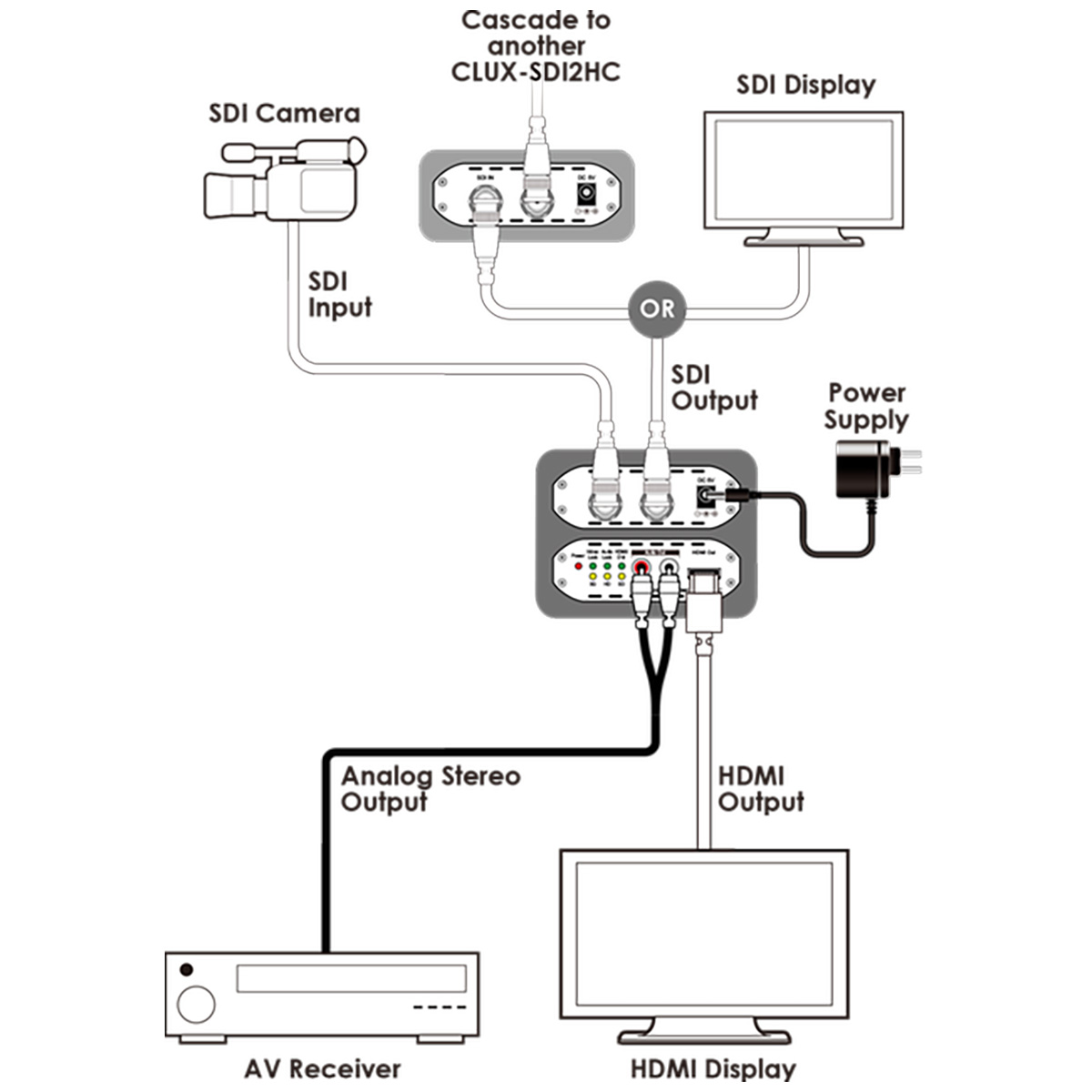

- Supports HDMI and SDI (bypass) output simultaneously
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
- Converts SDI signal to HDMI:
1. SD-SDI (SMPTE 259M-C) to 480i/576i
2. HD-SDI (SMPTE 292M) to 720p@50/59.94/60, 1080i@50/59.94/60
3. 3G-SDI (SMPTE 424M/425M-AB) to 1080p@23.98/24/25/29.97/30/ 50/59.94/60, 1080PsF@23.98/24/25/29.97/30
- Supports SDI input modes:
1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)
3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

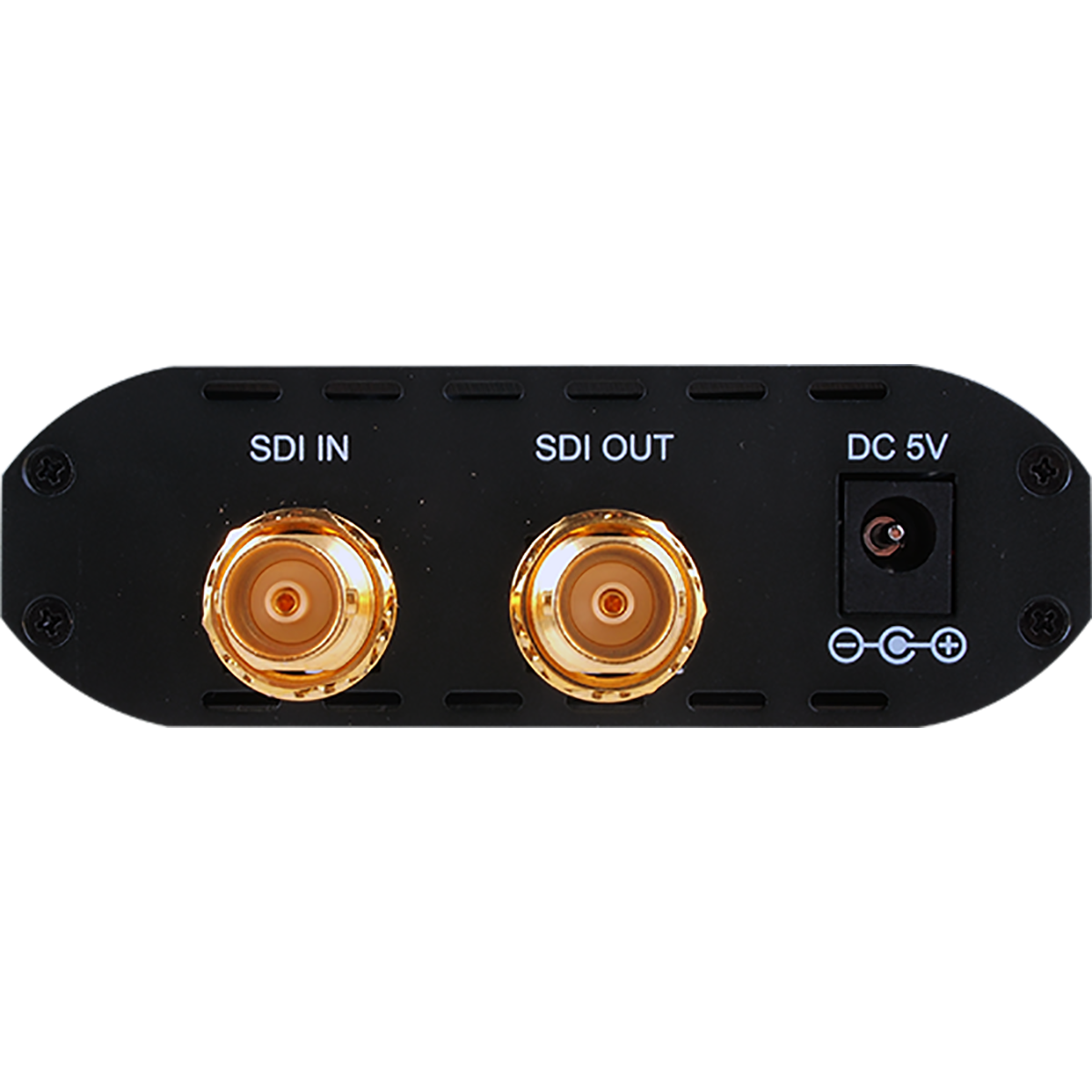

- Equalized and re-clocked loop output

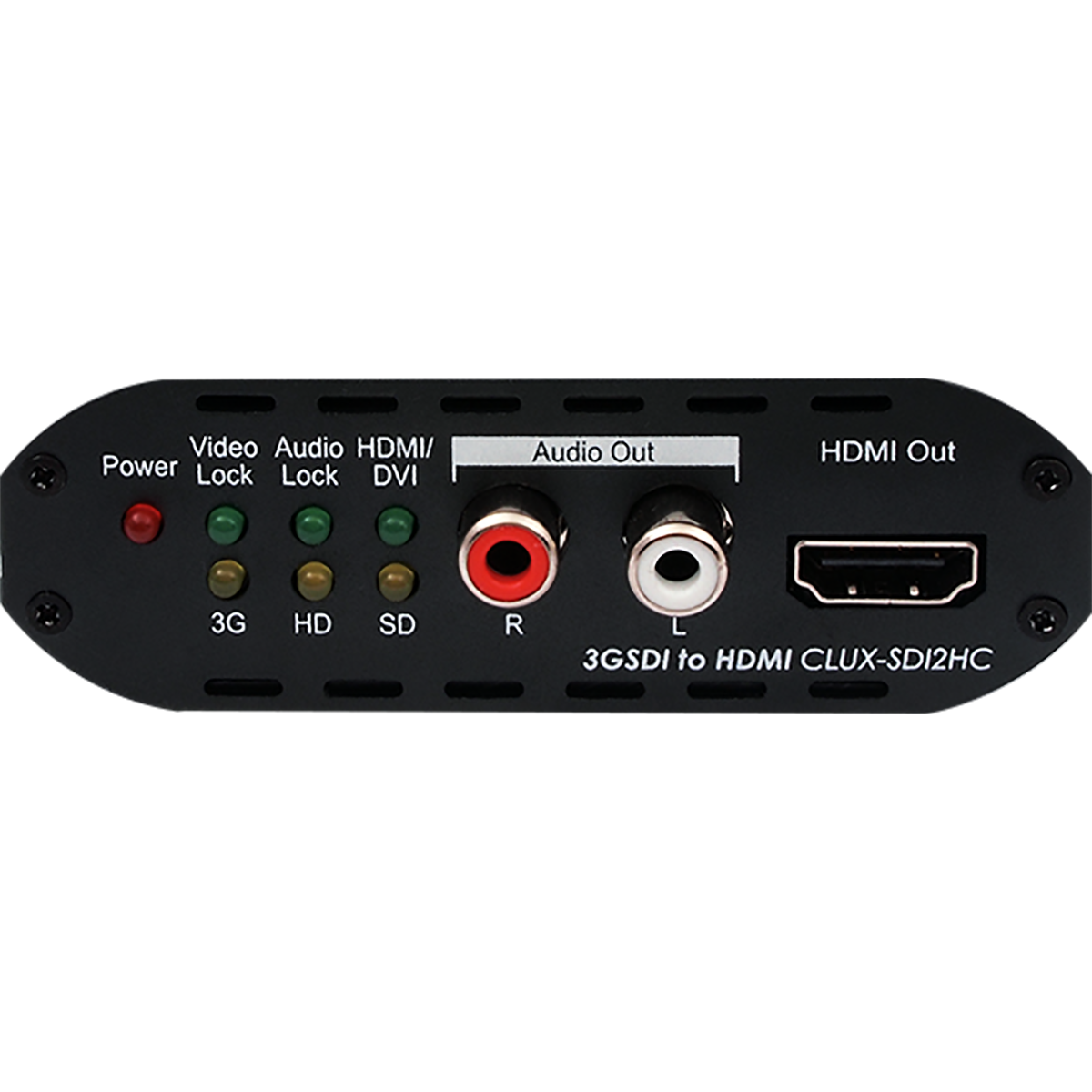

- Alternative audio output to coaxial and analog 2 CH
- Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note: Tested with Belden 1694A cable. Operating distances may vary with other specifications of cable.
