CSI-8H8CV2IR EOL

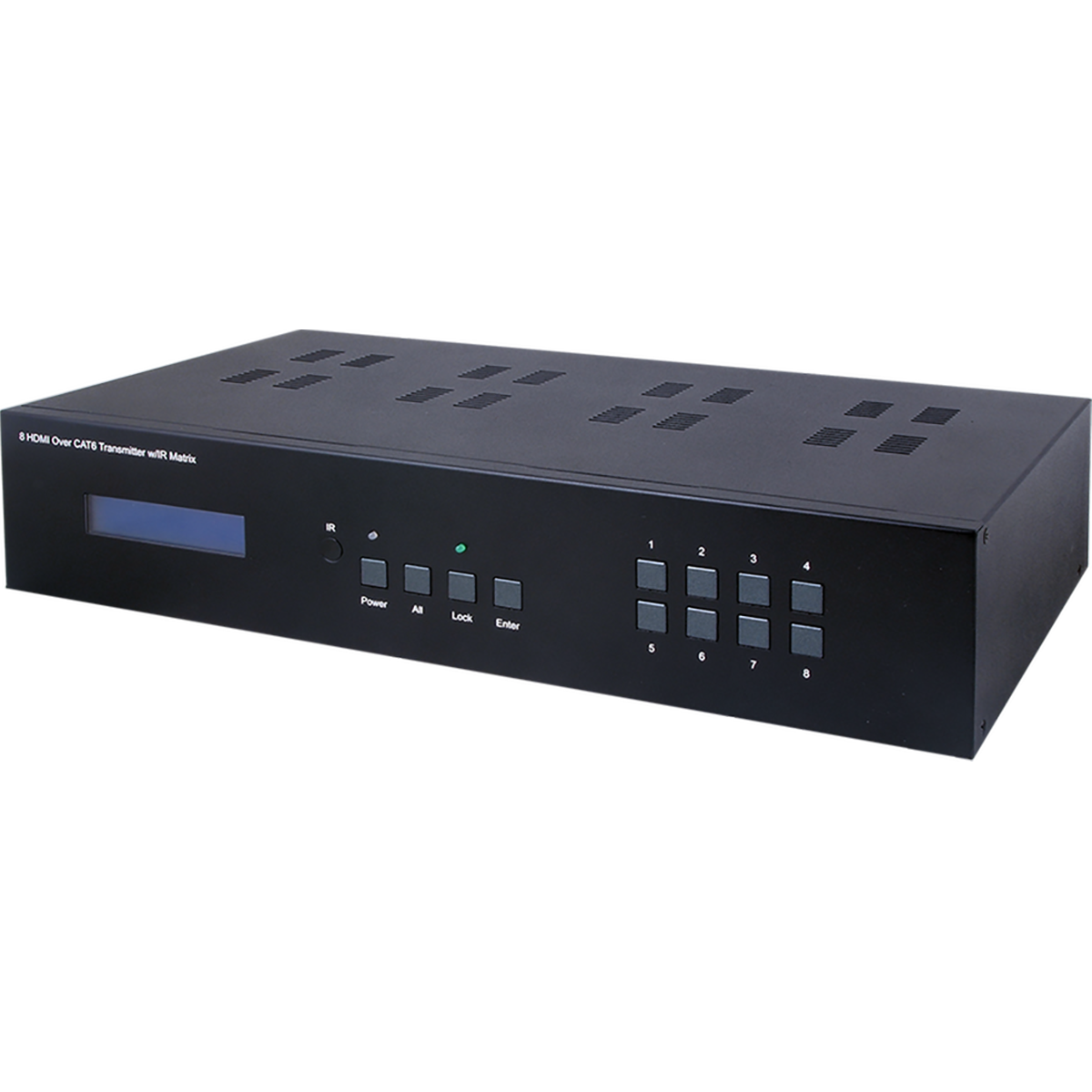

8 HDMI over CAT6 Point-to-Point Transmitter (with IR Matrix)
- HDMI, HDCP1.1 and DVI compliant
- Supports HDMI 3D, 4k x 2k features
- Supports Stereo digital audio signal input and output
- Supports high bit-rate audio up to 192 kHz
- Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings
- Supports extension up to 100 meters through CAT5e/6
- Supports 3D signal display dependent upon the output display's EDID settings
- Supports HDMI input up to 10 meters at 8-bit resolution or 3 meters at 12-bit resolution
- Supports bi-directional IR from input and output locations
- Supports RS-232, remote control and on-panel control
- Supports PoE (Power over Ethernet) on compatible receivers only
- 2U size design
