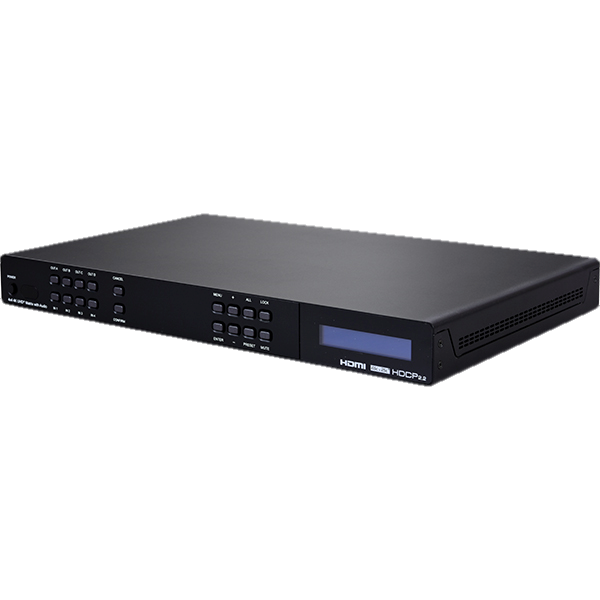

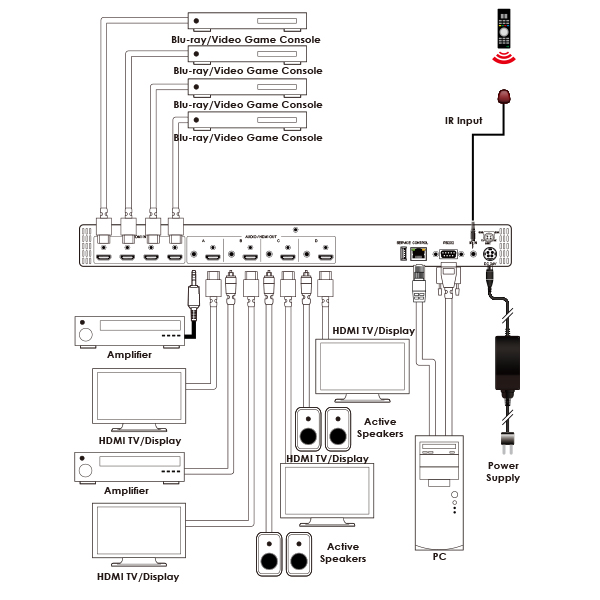

This 4K UHD 4 by 4 Matrix provides the ability to connect up to four 4K UHD
HDMI sources to up to four 4K UHD HDMI displays and freely switch between
them. This unit comes with full support for 18Gbps (600Mhz) resolutions up
to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep
Color, HDR (High Dynamic Range), HD audio and other features defined by the
HDMI 2.0 specification. With a comprehensive EDID management feature that
includes the ability to select between built in default EDID, EDID copied from
connected sink devices, as well as a configurable EDID, this matrix can solve
many interconnectivity problems. The built in OSD has the ability to display
user editable general information text so each output can display up to 2 lines
of customized text on top of the video source in the color of your choice. This

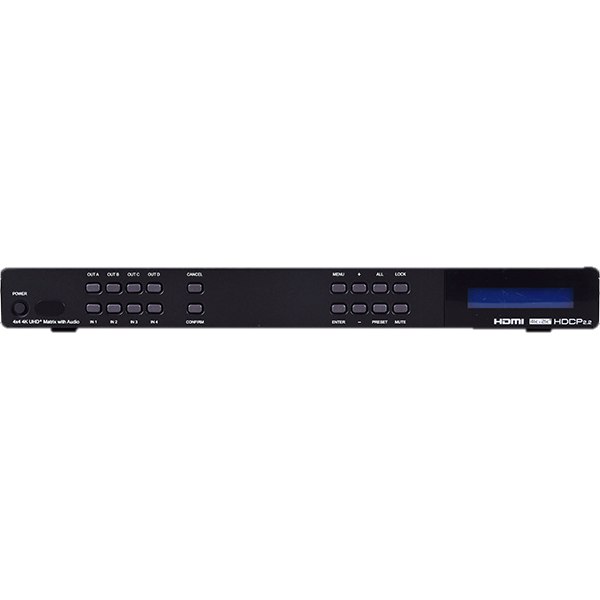

unit provides an intuitive set of front panel controls with an OSD as well as
RS-232, telnet, WebGUI, and IR remote control options.

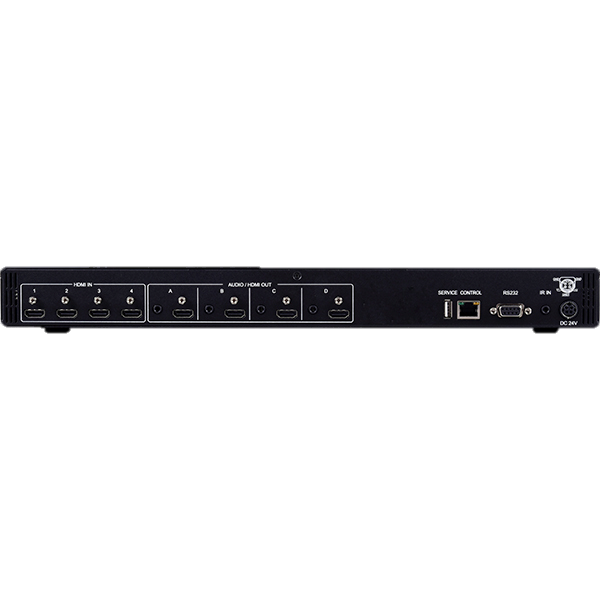

Interfaces |
|
Input Port |
|
Output Port |
- 4 HDMI
- 4 Stereo Audio ( 3.5mm )
|
Bi-directional Port |
|
Control I/O |
- 1 Control (RJ 45)
- 1 RS-232 (9-pin D-sub)
|
Video |
|
HDMI Compliance |
|
HDCP Compliance |
|
Input Signal Types |
- 4096x2160p@60 8-bit YUV 4:4:4, HDR 10
|
Output Signal Type |
- 4096x2160p@60 8-bit YUV 4:4:4, HDR 10
|
Resolutions |
|
|
Maximum Input |
HDMI |
|
Maximum Output |
HDMI |
|
Audio |
|
Digital Formats |
HDMI 7.1 CH LPCM, Bitstream, HD Bitstream |
Power |
|
Power Supply |
|
Power Consumption |
|
Enclosure |
|
Chassis Material |
|
Chassis Color |
|
Dimensions (W×H×D) |
- 438mm×49mm×269mm [Case Only]
- 482mm×49mm×274mm [All Inclusive]
|
Weight |
|
Field Firmware Update |
|
Interface |
|
Ordering Information |
|
Model No. |
Product Description |
CPLUS-V4H4HPA |
- A UHD+ 4x4 Matrix with Audio Output
|
Product Support |
Upload Date |
File Name |
Version |
OS |
Description |
Download |
2024/01/19 |
CPLUS-V4H4HPA-Manual |
1 |
all |
CPLUS-V4H4HPA-Manual |
|
