Installation Sites

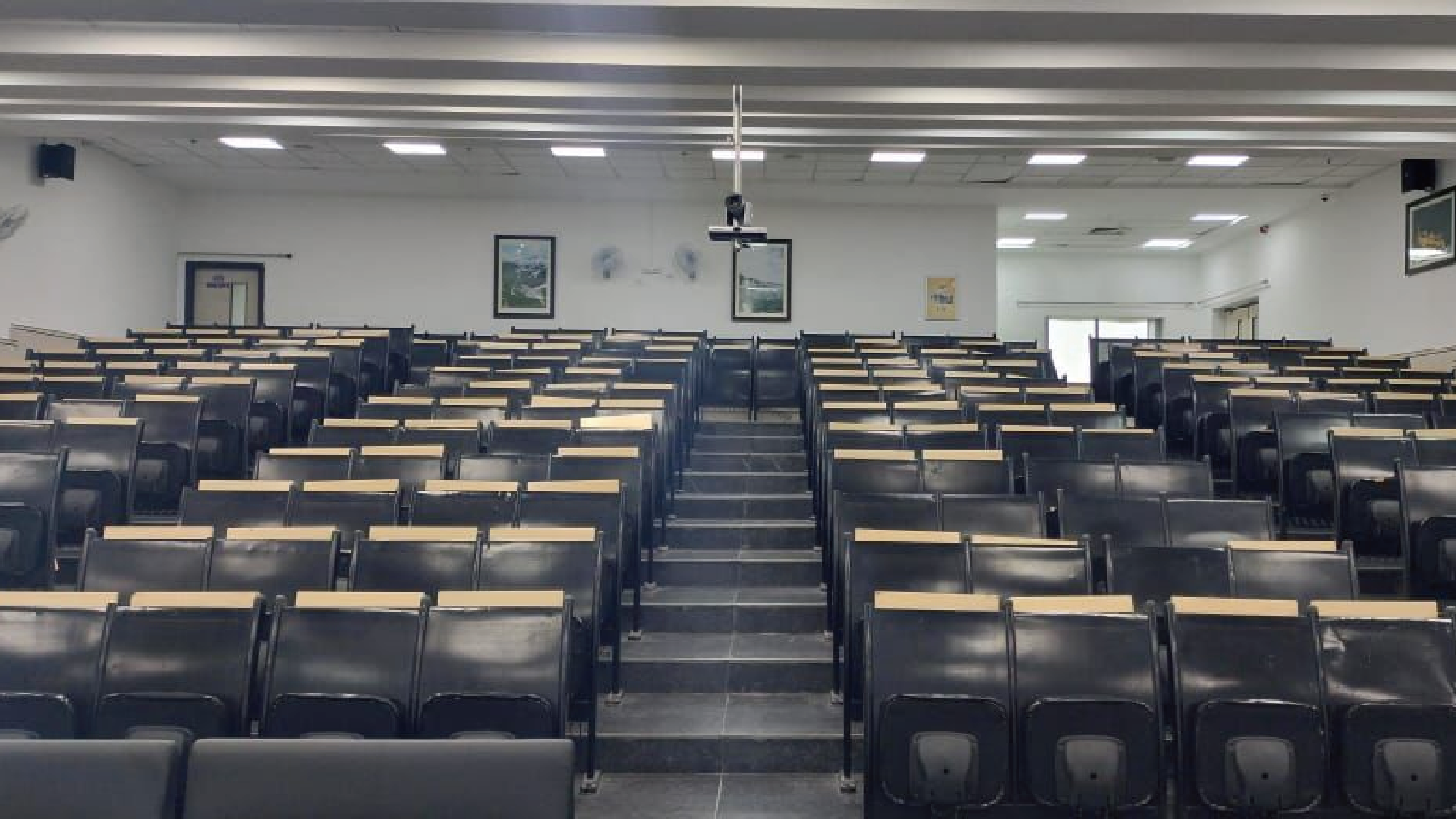

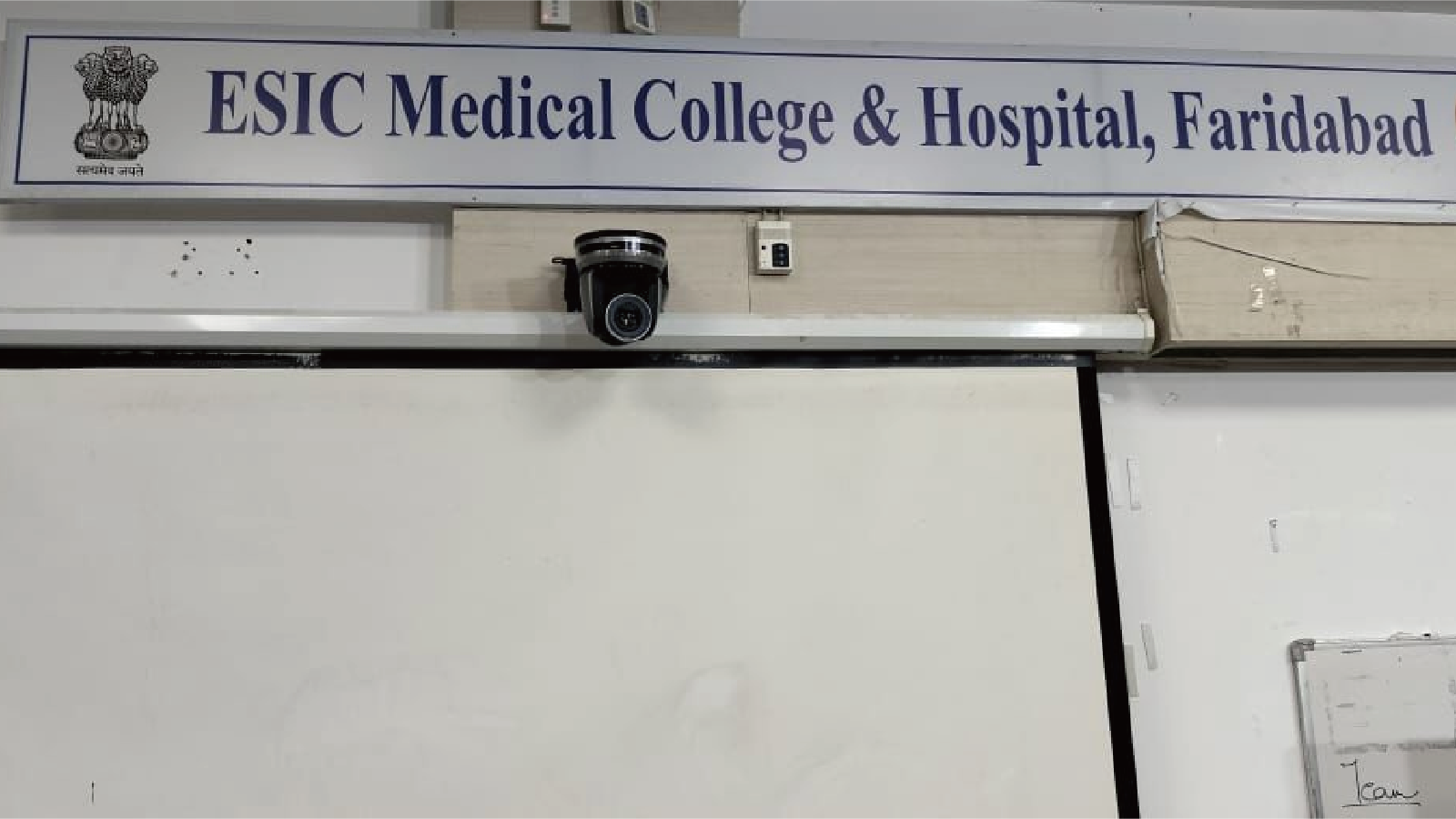

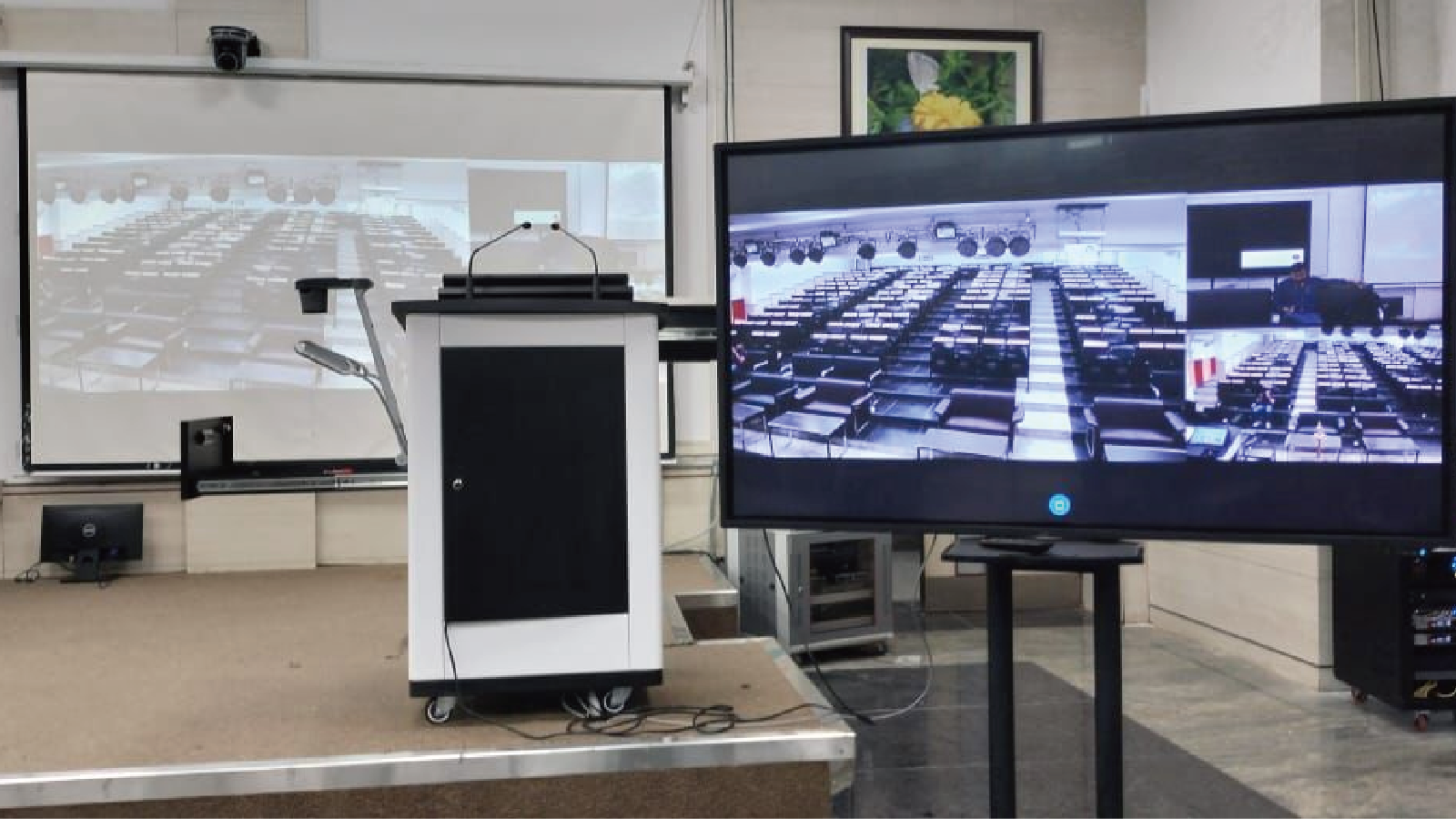

Lecture Hall at ESIC Medical University, India

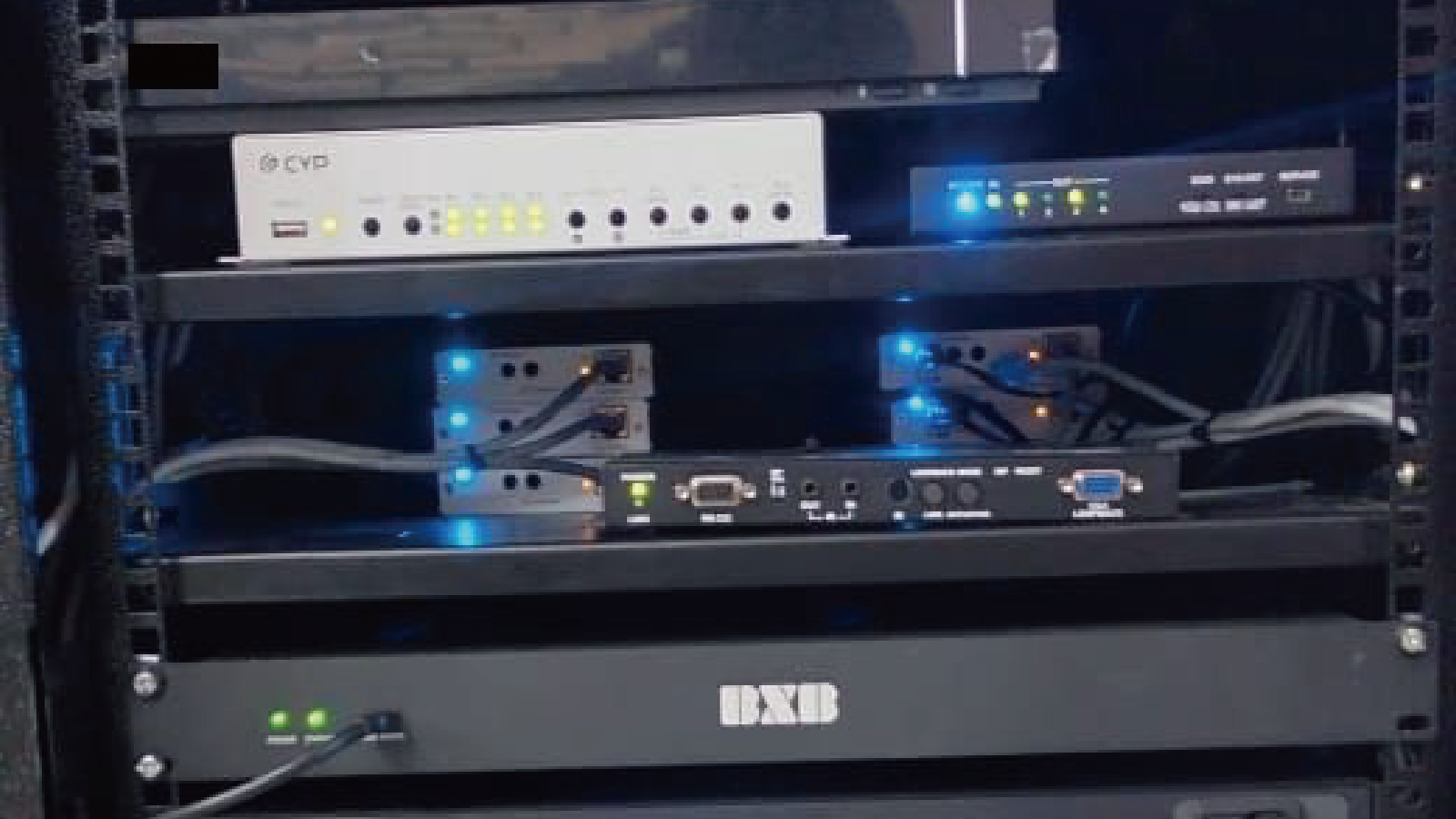

Installation Requirements
- Multiple video sources can be freely switched
- Single display is able to be displayed multiple sources simultaneously
- 4K video is transmitted without loss and is able to be extended to back of lecture hall
- The conference with screen of participants are able to be recording simultaneously

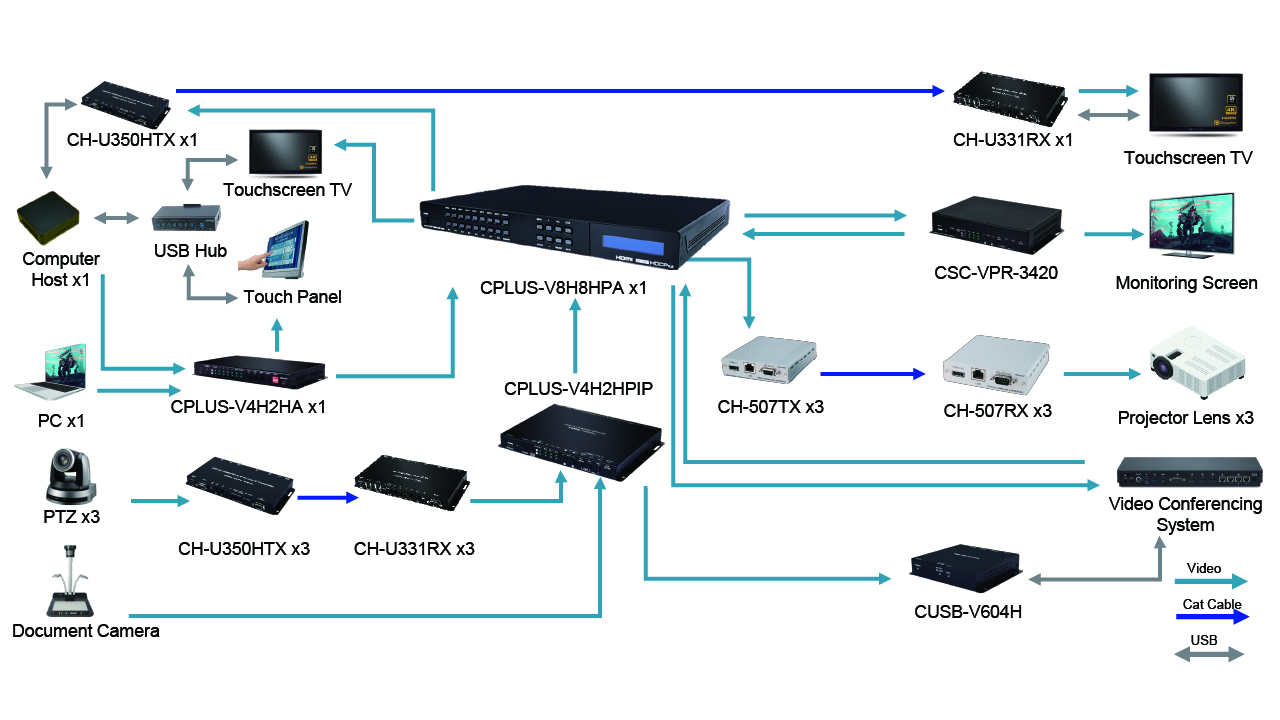

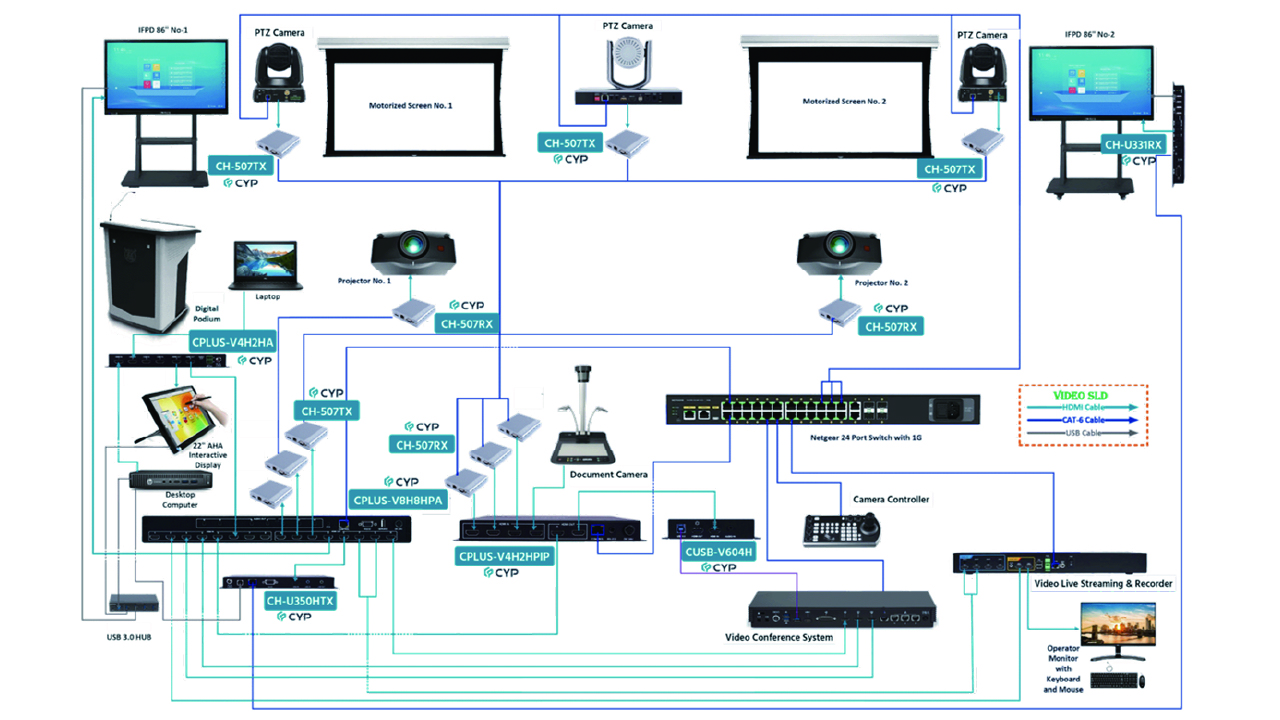

- Sources: Computer x2, Video Camera x3, Document Camera x1, Video Conferencing System x1
- Sinks: Projector x3, Monitor x1, Touchscreen TV x3
Solution Advantages
- Advanced video processing technology which achieve monitoring, recording, and transmission of multiple video streams at the same time
- The flexible system configuration which allowing to equip the devices based on sizes of venues or customize for fitting to existing configuration
- Seamless switching of video which significantly enhances meeting efficiency and quality
CPLUS-V8H8HPA

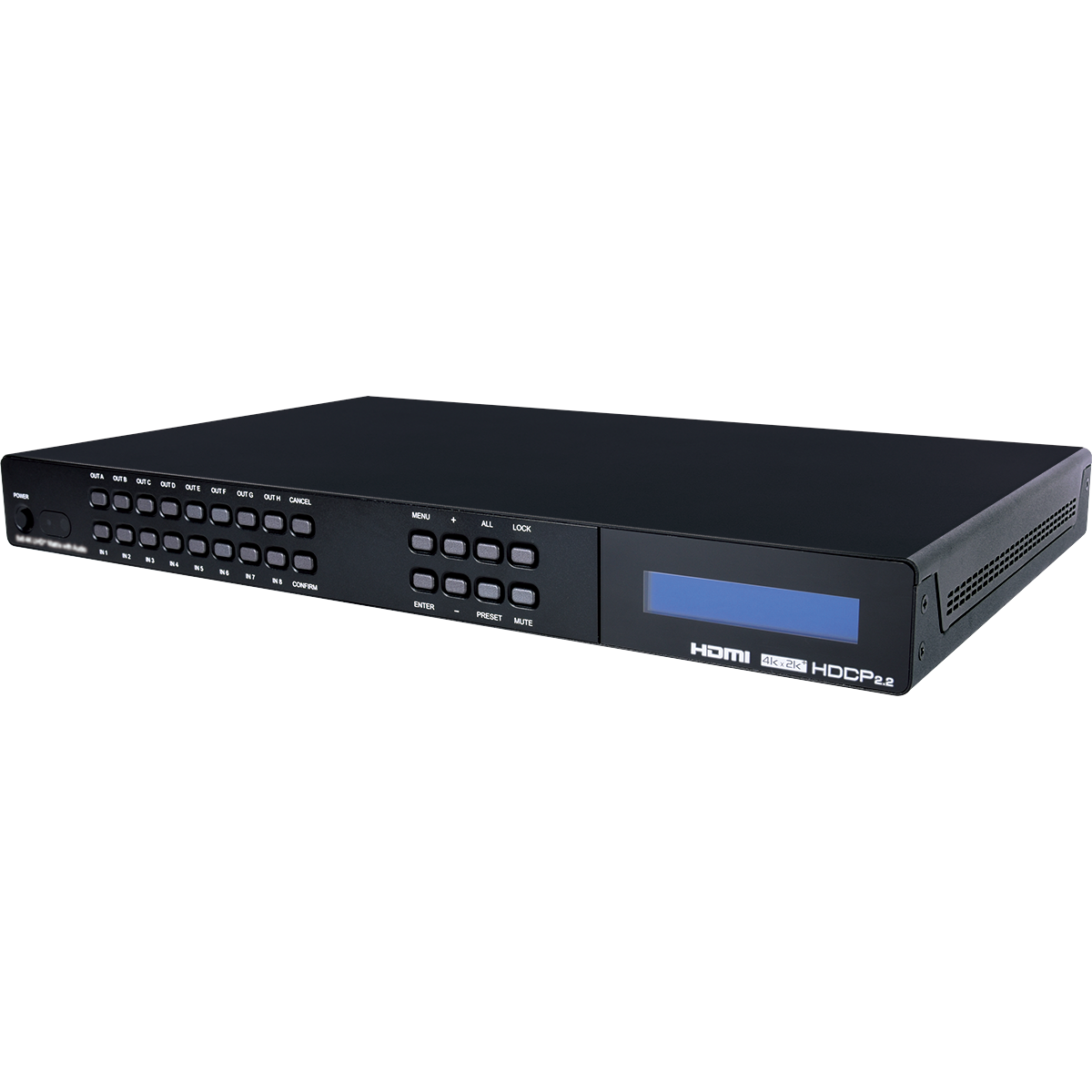

UHD+ 8×8 HDMI Matrix with Audio Output
This 8 by 8 Matrix has the ability to connect up to eight 4K UHD HDMI sources to up to eight 4K UHD HDMI displays and freely switch between them. The unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as supports for 16-bit Deep Color up to 1080p@60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. With a comprehensive EDID management feature that includes the ability to select among built in default EDID, EDID copied from connected sink devices, as well as a configurable EDID, this matrix can solve many interconnectivity problems.
CPLUS-V4H2HA

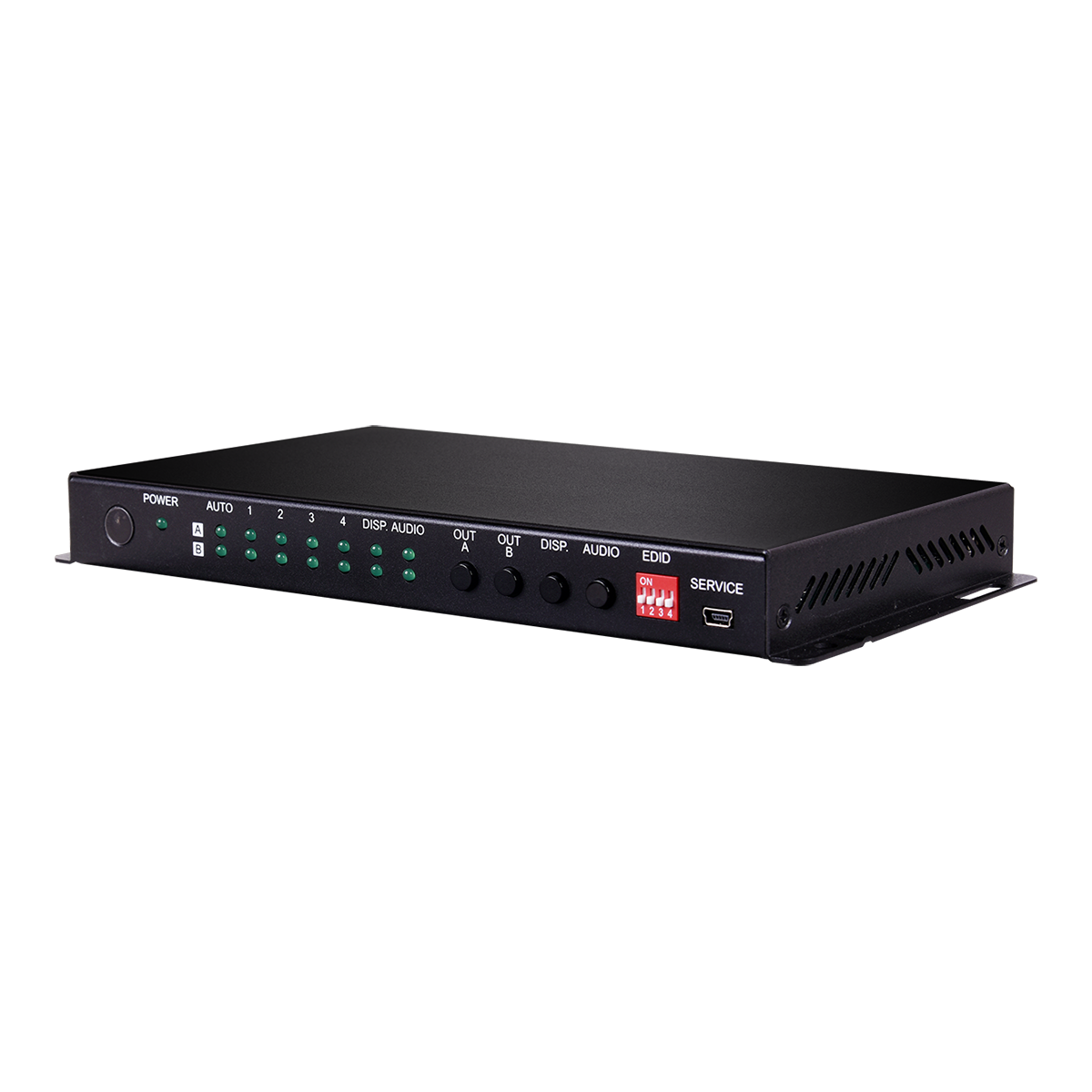

UHD+ 4x2 HDMI Matrix with Audio Output
This 4K60 4 by 2 Matrix provides the ability to connect up to four 4K60 HDMI sources to up to two 4K60 HDMI displays and freely switch between them. This unit comes with full support for 4K@60Hz (4:4:4, 8- bit) as well as support for 16-bit Deep Color, HDR (High Dynamic Range), 3D content, HD audio and other features defined by HDMI 2.0 specification. Pre-defined internal EDIDs and external EDIDs option are available for EDID managing. The matrix also supports auto source switch and display control for power on/off the connected devices by sending CEC or RS-232 commands. Control is provided via frontpanel buttons, RS-232, and IR remote.
CPLUS-V4H2HPIP
UHD+ 4 x 2 HDMI Matrix with PiP
This 4 by 2 Matrix is a high performance HDMI switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz and LPCM audio up to 7.1 channels and 192kHz are supported on both input and
CSC-VPR-3420

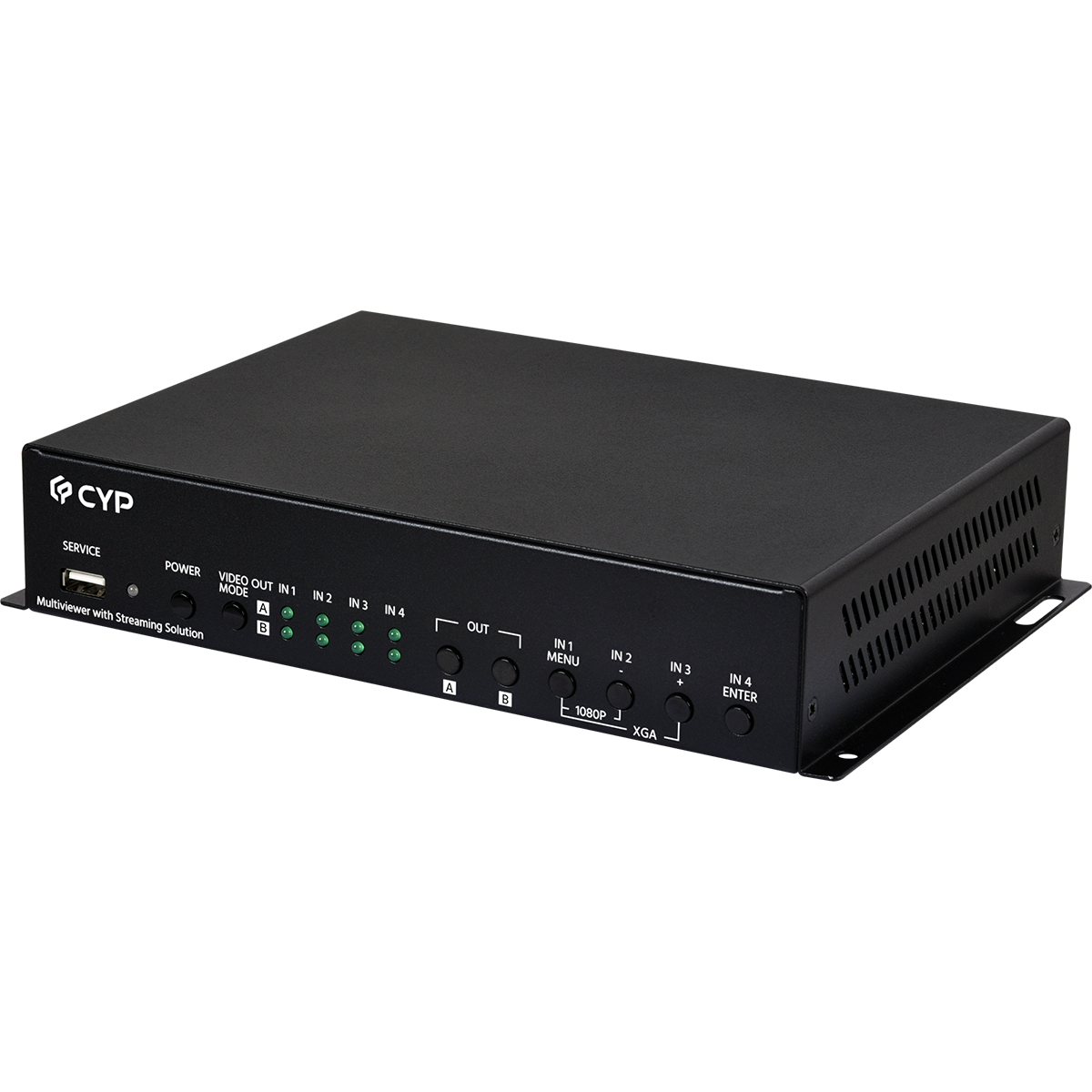

Multi-View with Streaming Solution for Video Conference
Video conference is important and convenient to communicate with people in distance. If you want to express your thought clearly by sharing varied and rich images, an integrated machine with multi-view and video capture functions is a splendid idea. CSC-VPR-3420 is the one to meet your requirement. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and video capture function are also supported. Any of the 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode, PiP , and PoP mode. Using an HDMI cable to connect between HDMI out indicated as capture and the HDMI input above it. The HDMI input supports resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 1080p to a USB connected PC for capture or re-broadcast. It supports most common video capture, chat, or streaming software, including free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. In this product, the video capture is powered directly by the USB 3.0 port, not from the DC 24V power source. (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.
CUSB-V604H
UHD+ USB Capture
This HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 1080p to a USB connected PC for capture or re-broadcast. HDMI sources up to 1080p60 are supported for capture without modification, while 4K sources will be automatically scaled down to 1080p. The use of a special video timing stabilization feature helps to ensure that the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or becomes disconnected. Digital stereo audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input will be captured with the HDMI video source and is selectable within the configuration software. USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. The unit is powered directly by the USB 3.0 port so an external power supply is not required (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.
CH-U350HTX
HDMI over IP Transmitter with USB/KVM Extension
This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI signal along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity
CH-U331RX
UHD HDMI/VGA over IP Receiver with KVM Extension
The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.
CH-507TX
HDMI over CAT5e/6/7 Transmitter with 24V PoC and LAN Serving
The CH-507TX & RX set allows uncompressed HDMI™ signals and IP data to be transmitted over a single CAT5e/6/7 cable. This solution has the added features of built-in RS-232, 2-way IR control and Power over Ethernet all over the single CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.
