Customer Requirement

  • Source: 6 computers, laptops, or tablets.
  • Sink: 24 display devices (55-inch screens)

  • User-friendly and intuitive interface.

  • Integrated centralized device management.
  • Long-distance and zero latency of 4K@60 video and audio.

    • Can use laptops or tablets flexibly as instructional devices for interactive teaching

    CYP Solution

    • Utilizing state-of-the-art AV over IP technology for zero latency of 4K high-definition images.
    • Integration of various signal sources and receiving devices is supported, along with HDCP content.
    • Flexible configuration and scalability to accommodate future additions of devices and displays.

    • Integration with various environmental control systems to simplify equipment setup and create a smart space.

    Product Advantage

    Through the installation of a smart TV wall and the transmission of high-definition images, students' works can be showcased in full detail, enabling a comprehensive display. Simultaneously, teachers can incorporate more details into their teaching, thereby enhancing the overall quality of education.

    More Application

    Situation Room, Large Digital Signage, News Reporting Studio"

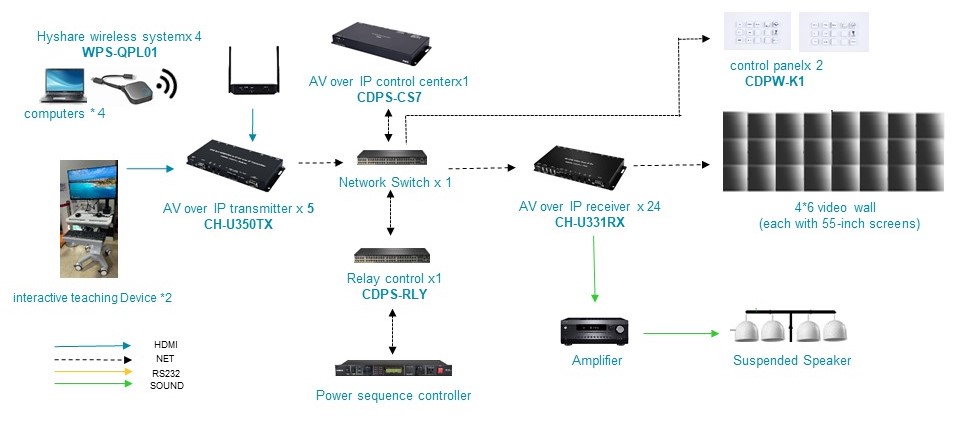

    Connection Diagram


    PRODUCTS FEATURED
    CH-U350TX

    HDMI/VGA over IP Transmitter with USB/KVM Extension

    This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Defi nition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity

    CH-U331RX

    UHD HDMI/VGA over IP Receiver with KVM Extension

    The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.

    WPS-QPL01

    Wireless Presentation System, Entry Level Model (Lite)

    WPS-QPL01 (LT01/LR01) is an entry level modle of CYP WPS (Wireless Presentation System) product family. It is a powerful but low cost WiFi Presentation System product. It contains one transmitter(LT01) and one receiver (LR01). The plug & mirror capability makes it easier to use without learning curve. LT01 comes with high speed 802.11ac WiFi module and external antenna to bring you the great connection and smooth streaming. Through our advanced Receiver LR01, you can even use your mobile phone to cast without efforts, this will be the great entry-level product for WPS application.

    CDPS-CS7

    AV over IP Master Controller

    This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.

    CDPS-RLY

    Auxiliary Relay Control System

    The Auxiliary Relay Control System is design for multi-purpose and multi-task trigger system usage. With 8 relays to trigger, 8 PWM (Pulse-Width Modulation) to set duty cycle, 8 voltage to set trigger voltage and 1 definition to control through command setting which supports RS-232/422/485 and DM512 that allows up to 25 devices connection for control. Device’s control interfaces like RS-232 and Telnet and PoE (PD) inside design leads user with completely friendly usage.

    CDPW-K1

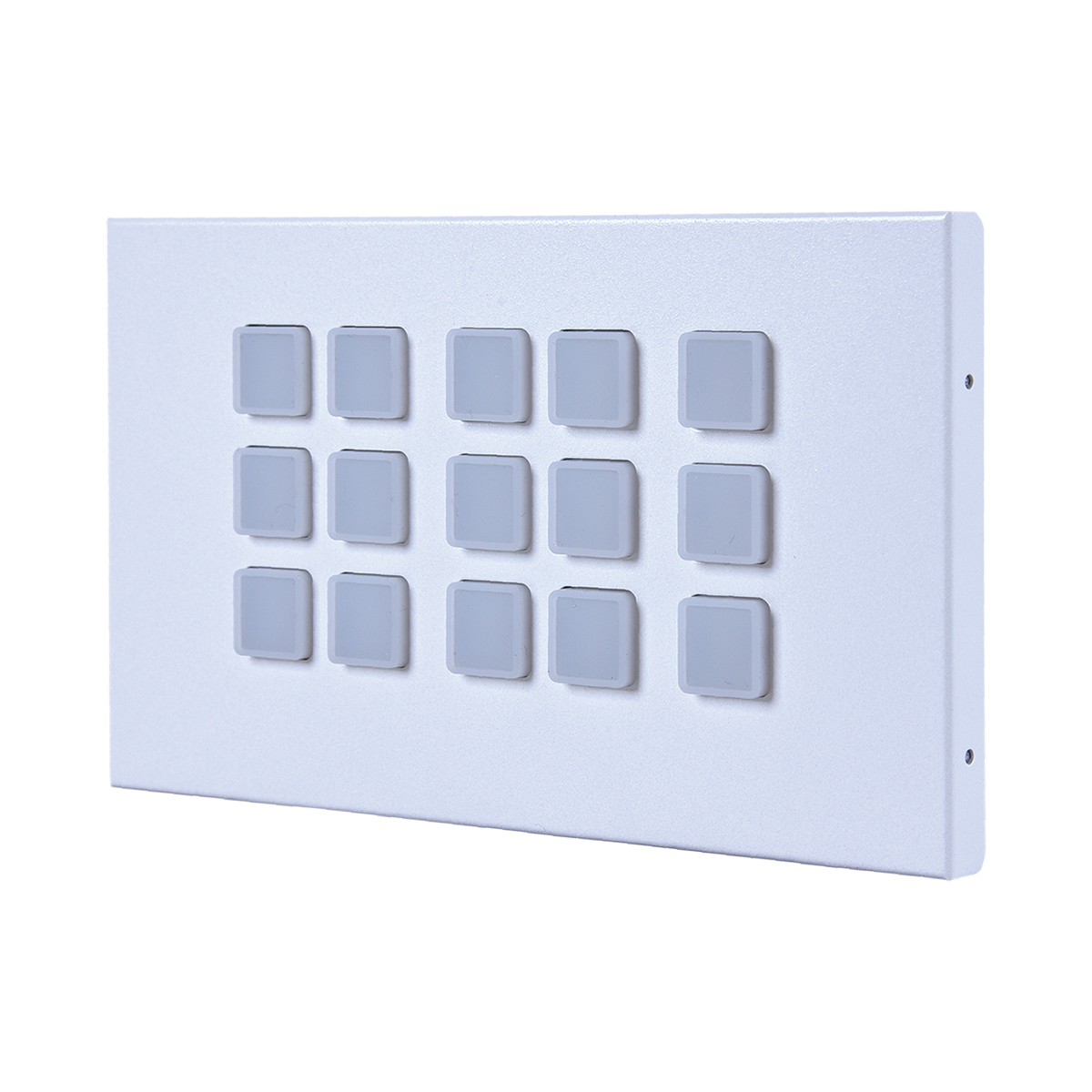

    15-Button Control Keypad

    These keypads are versatile and useful products for both system integrators and smart home users alike. These keypads can send commands to any Ethernet controlled or relay controllable device in your system. With up to 15 physical macro buttons and up to an additional 45 software macro buttons (9 physical and 27 software buttons on the 1-gang version) you can pre-program and recall up to 60 (36 on the 1-gang version) distinct macros providing for complete control over your audio and video environment. The soft and colorful LED buttons are suitable for all environments and PoE (Power over Ethernet) support allows for creative placement of the keypad within your space without needing to be concerned about keeping it near a live power source. Additionally, the integrated clock and calendar based scheduling feature allows you to trigger macros to control devices within your installation at a specific time, or on a recurring schedule.
