Customer Requirement

  • Source: 1 of teacher’s  laptop and 1 of camera for interior design mold
  • Sink: 1 of Projector
  • Streaming box: 1 unit (model: MED-VPR-3420)

  •  To display teacher’s presentation PowerPoint and interior design mold in one display and also integrate with Zoom for grouping discussion

CYP Solution

Utilizing a multi-window streaming recorder, various online and offline signal sources are integrated onto a single display screen for easy comparison. It also allows for layout adjustments according to different scenarios, enabling simultaneous live streaming and recording of high-quality 4K@60 images to create a diverse blended teaching experience.

Product Advantage

  • Flexibility window layout: PiP/PoP/Quad View to easily integrate multi sources in one display
  • Streaming Ultra HD content and sharing on Zoom, Popular streaming platform supported eg. Zoom, Teams and so on to allow more people join the conference
  • Support recording to SD card, USB hard disk and NAS while streaming

More Application

Corporate seminars , hybrid operating rooms

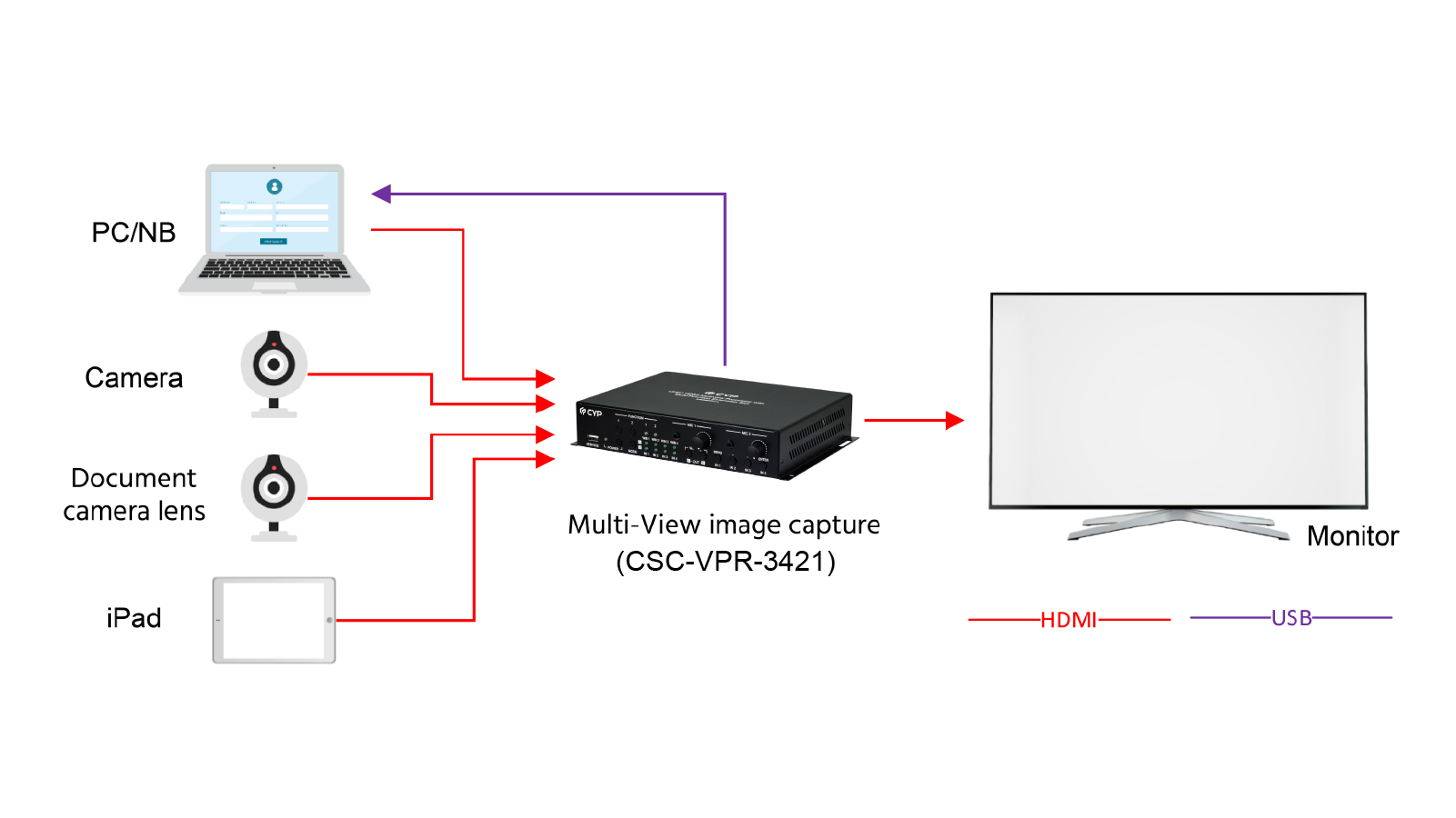

Connection Diagram
PRODUCTS FEATURED
CSC-VPR-3421

Multiview Modular Processor

CSC-VPR-3421 is a wonderful solution for streaming, because it offers more than streaming and recording functionality but also offers rich video processing functions. It makes online broadcasting of live video an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and streaming are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP, and PoP mode, which becomes splendid source for streaming.

MED-VPR-3420

Multi-View with Streaming Solution for Video Conference

Video conference is important and convenient to communicate people in distance. If you want to express your thought clearly by sharing varied and rich images, an integrated machine with multi-view and video capture functions is a splendid idea. MED-VPR-3420 is the one to meet your requirement. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and video capture function are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP , and PoP mode.
