Installation Sites

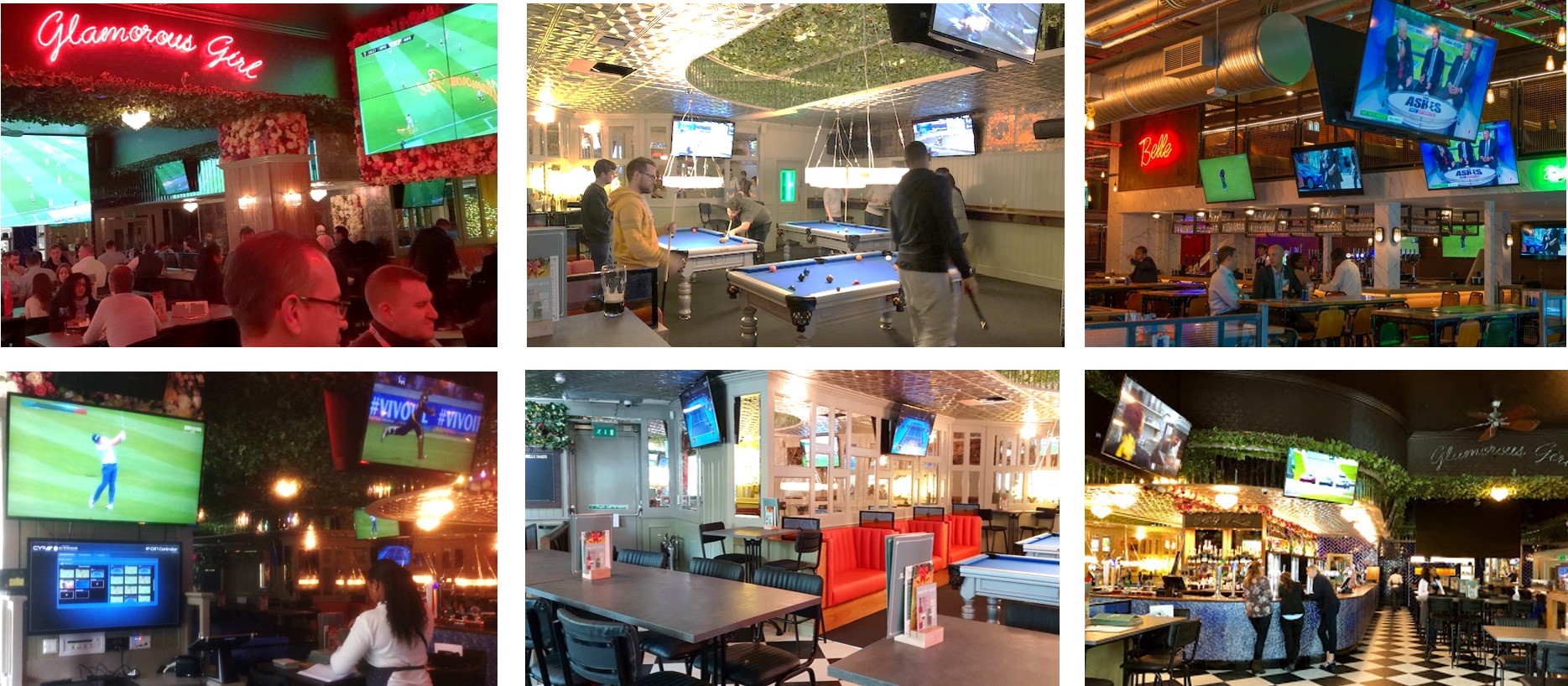

Sports bar located at London, UK
Customer Requirement
8 units transmitter and 31 units receivers of AV over IP which configured as matrix Work with controllers of AV over IP (model number: CDPS-CS7) providing intuitive switching and operation
CYP Solution
Utilizing both wired transmission and wireless projection, high-resolution signals can be stably transmitted over long distances and extended to the venue's video wall. Through intuitive operation on a tablet, real-time adjustments to screen configurations and switching of signal sources can be made, ensuring uninterrupted audio-visual entertainment.
Product Advantage
Flexible to adjust system configuration and scale
Easy control all the Transmitter and Receiver through CDPS-CS7
Video wall supported
Utilize internet configuration to execute audio and video transmission in real time
More Application
Sports Arena , Entertainment Venues
Installation Site
Connection Diagram
CH-U350HTX
HDMI over IP Transmitter with USB/KVM Extension
This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI signal along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity
CH-U331RX
UHD HDMI/VGA over IP Receiver with KVM Extension
The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.

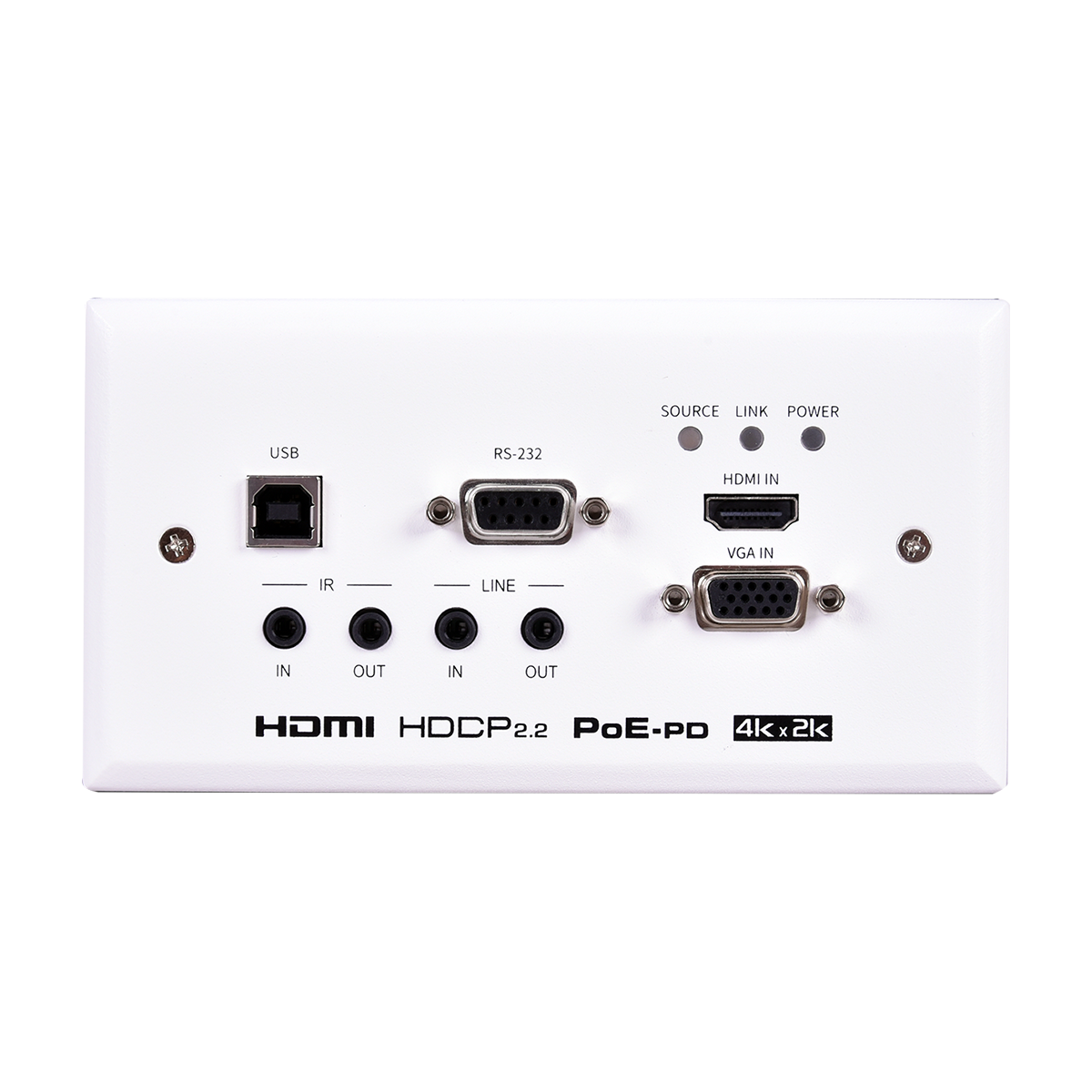

CH-U331TXWPEU
HDMI/VGA over IP Transmitter with USB/KVM Wall Plate Extender
The AVoIP wall plate transmitter is part of a 4K UHD Multi-Function Extension system is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. Pairing to existing series receiver unit with built-in 3 LAN Ethernet switch, could able to extend and expand a basic system without the need for an external network switch. This unit also allows you to send a single AV signal to a large number of Receivers within the same local network. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This system is perfect for both residential and commercial installation environments.
CDPS-CS7
AV over IP Master Controller
This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.

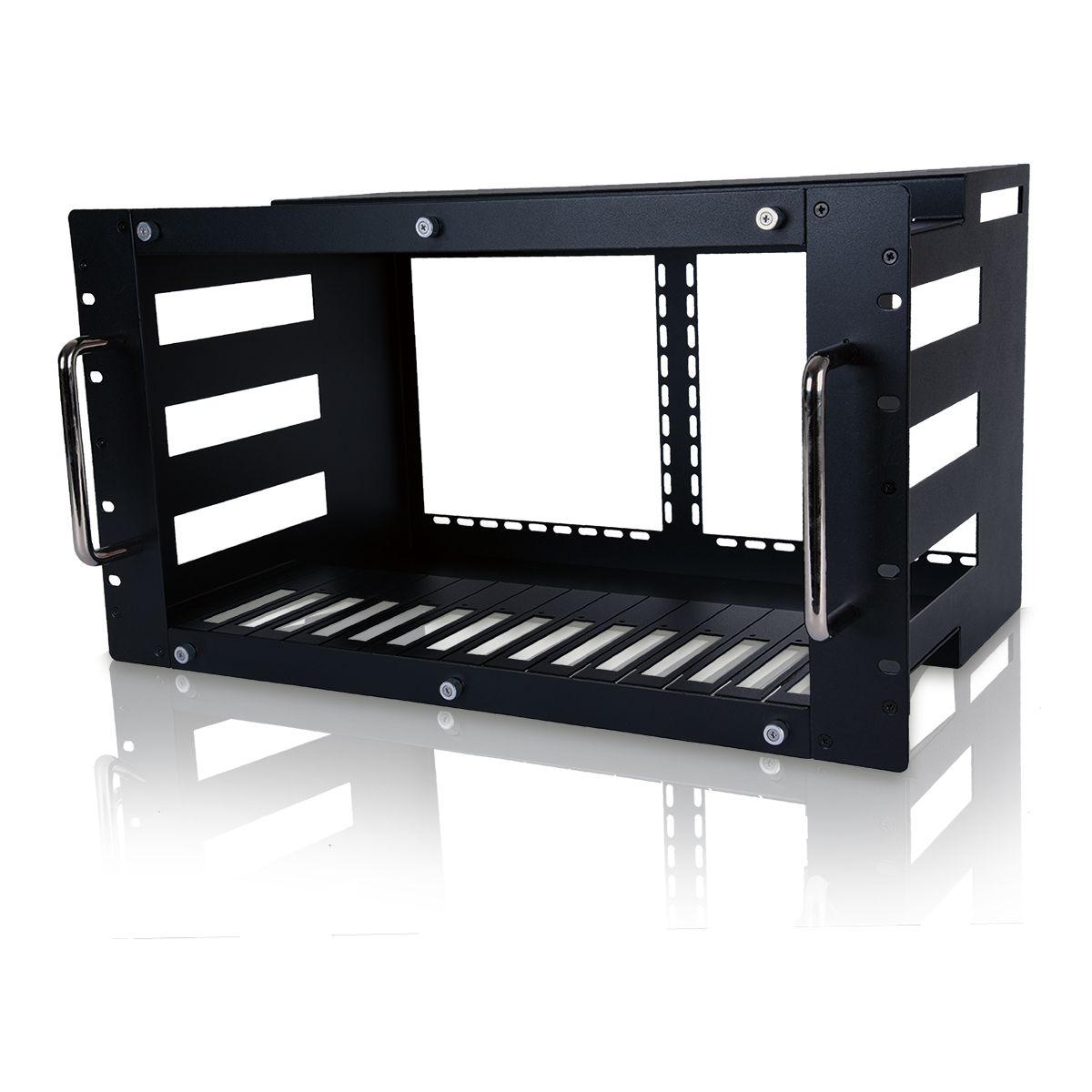

CSR-G6300
6U Rack Chassis
These flexible rack-mounting systems offer the ability to efficiently house up to 15 professional AV products and are available as either a 6U rack chassis. These storage units are suitable for customers who require the efficient integration and mounting of multiple units into a relatively small rack space along with optional cooling fans and intelligent power control. Each rack chassis is a standard 19 inches wide. The system allows for the optional inclusion of up to 2 power supply units, multiple cooling fan units, and empty trays for mounting non-standard equipment.

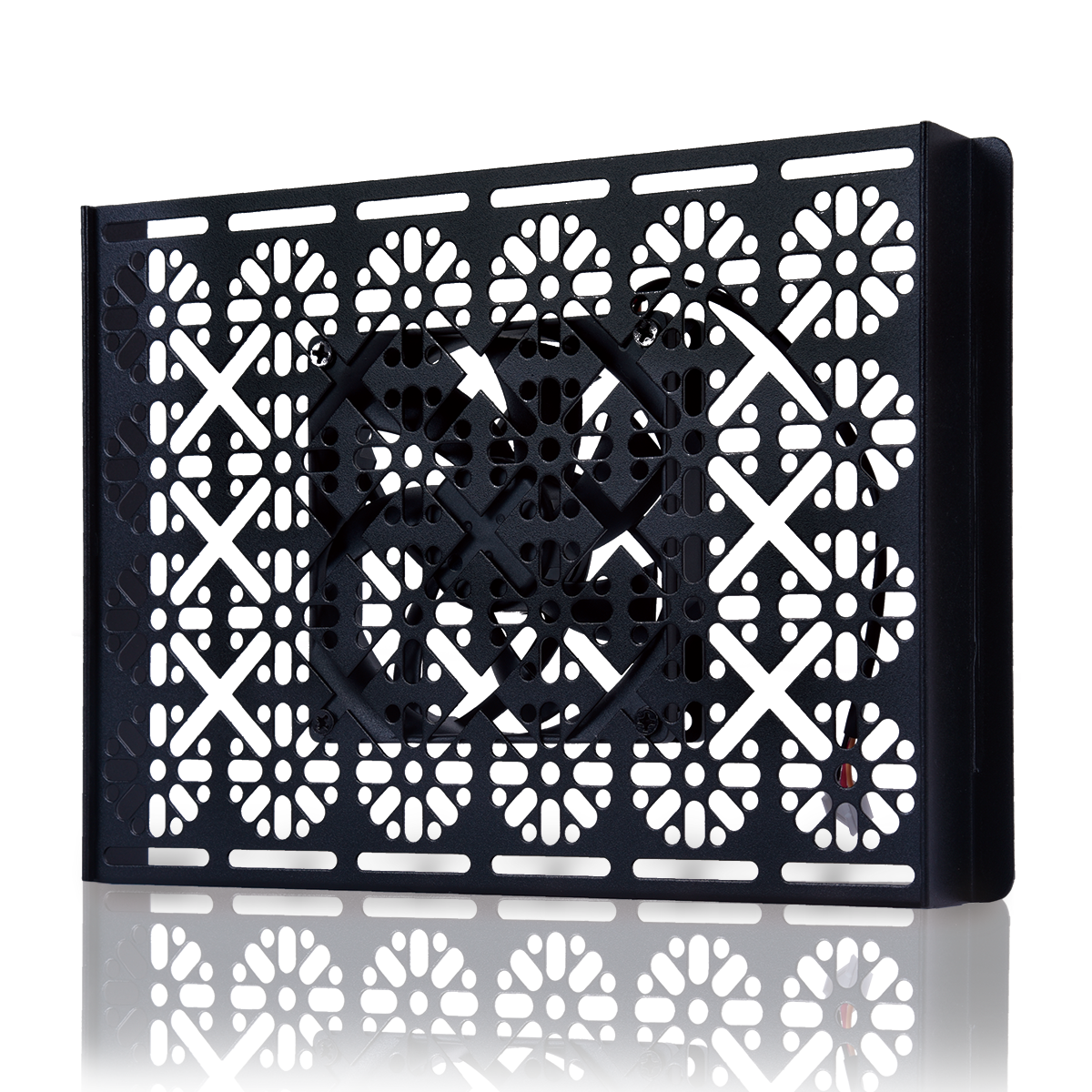

CSR-FANTRAY6300
6U Rack Chassis
The Cooling Fan System is a specialized version of the 6U tray design with 3 side covers and a place to mount the cooling fan to provide additional cooling to your installation.
