Installation Sites
Toyota City Council, Japan
Installation Requirements
- It is not feasible to install a PC on every wall, so the signal needs to be extended to output devices in different locations

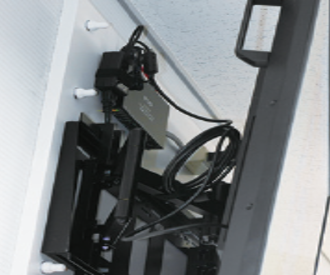

- Installed behind the display, keeping the wall clean and tidy
- Compatible with analog touch panels that are connected to the “present/absent” tally system
- High-quality video extension up to 100 meters
- Source: One touch panel
- Sink device：Three LCD monitors
CYP AV over IP Advantage
- Intuitive and user-friendly interface for smooth switching and improved meeting efficiency
- Highly compatible with various source and sink devices, making it more convenient to integrate with existing environmental control systems
- Video and audio is able to be extended between different buildings with zero latency

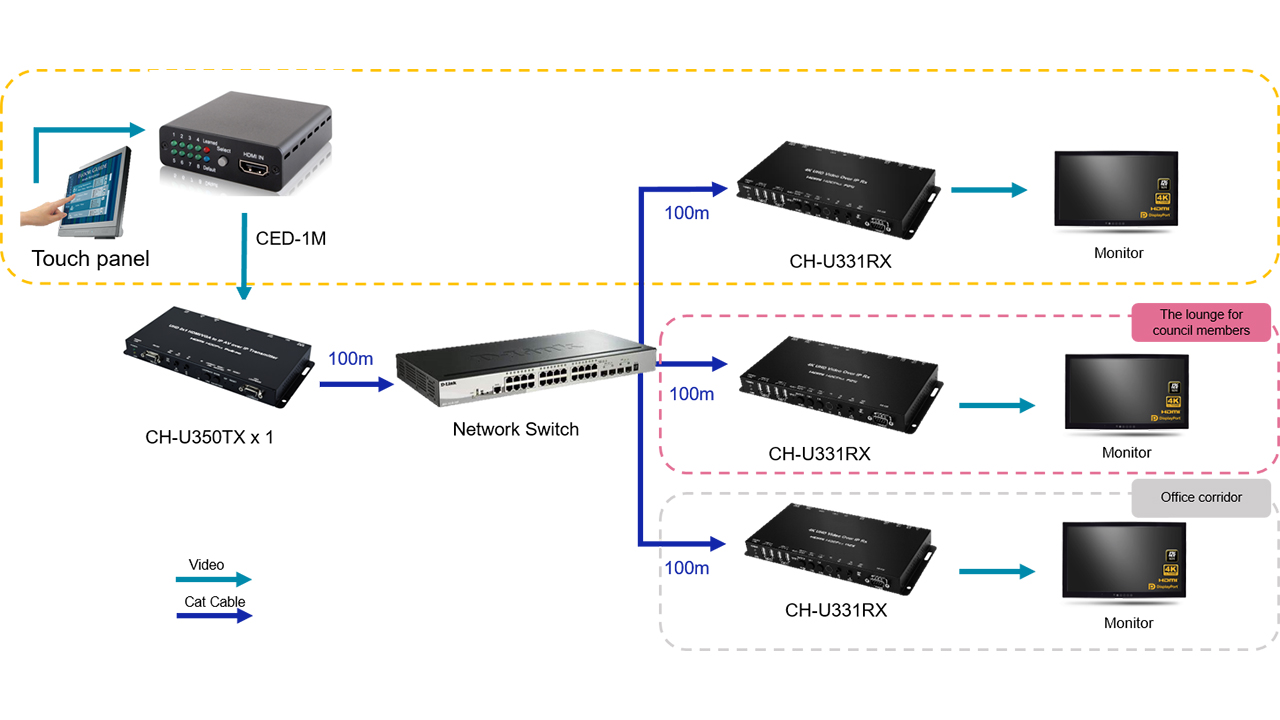

Installation Site
CED-1M
HDMI EDID Emulator
The HDMI EDID Emulator is designed to allow the adjustment of HDMI/DVI EDID information that is provided to a source device by a connected display so that it can output the correct video/audio signal. Aiming to simplify the technical complications involved in video/audio system integration, home theater installation, video/audio equipment testing and experimentation, the unit’s learning function allows the user to Read and Write the video/audio EDID to the system. It also supports EDID Emulation and Bypass modes.
CH-U331RX
UHD HDMI/VGA over IP Receiver with KVM Extension
The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.
CH-U350TX
HDMI/VGA over IP Transmitter with USB/KVM Extension
This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Defi nition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity
