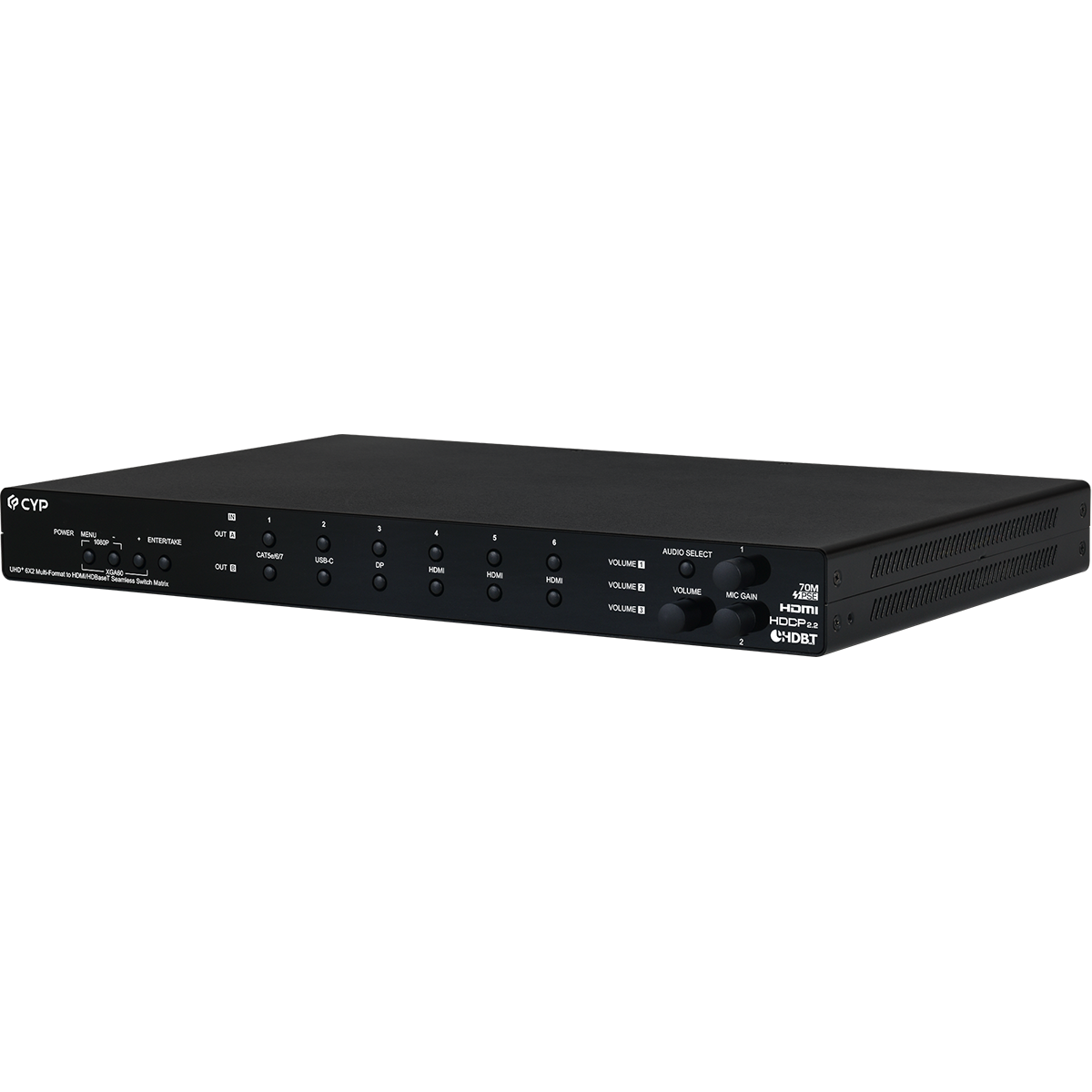

UHD+ 8x2 Multi-Format to HDMI/HDBT Switcher with Scaler
This 8 by 2 multi-format scaling switcher provides HDMI, DisplayPort, USB-C and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.

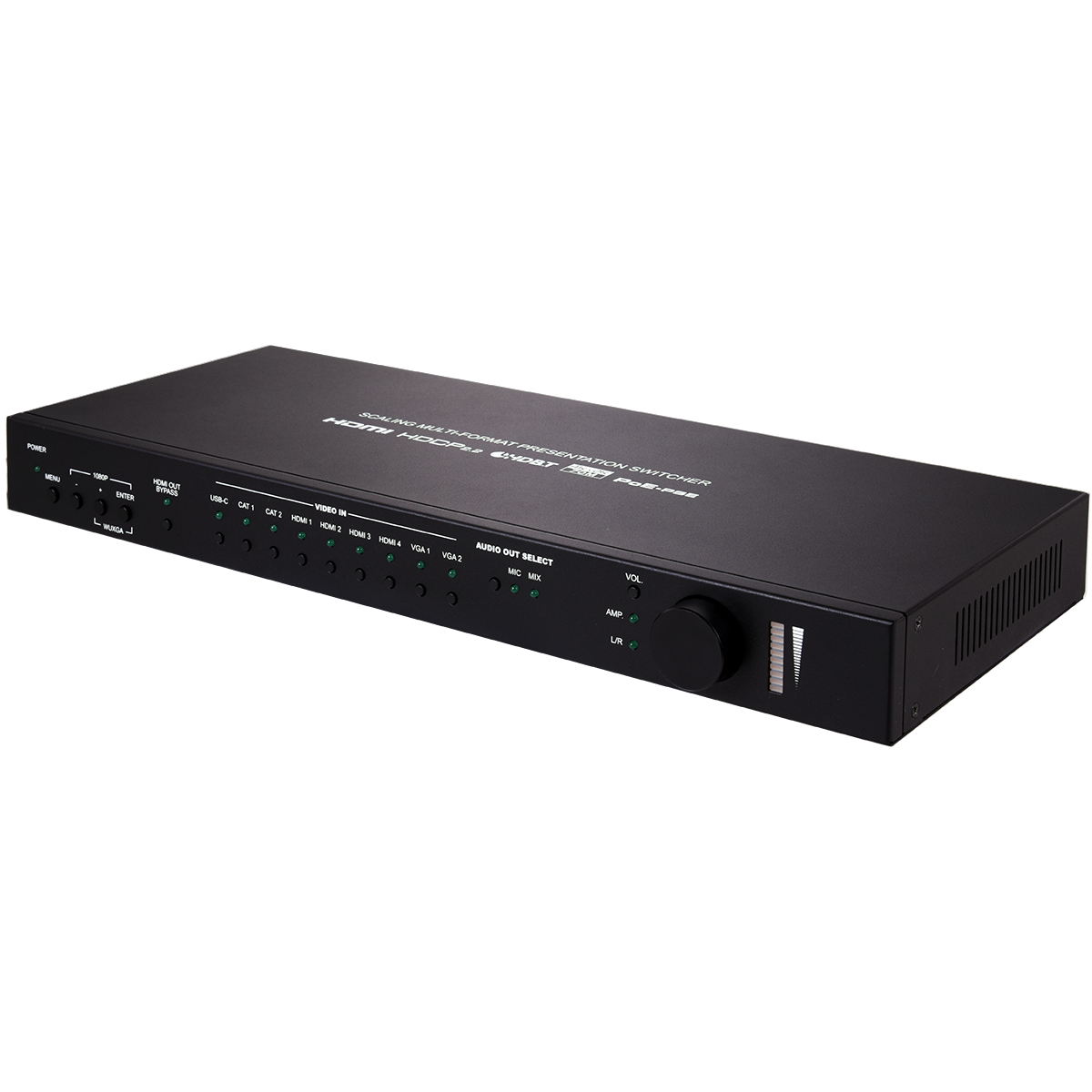

HDMI/HDBaseT/USB-C/VGA to HDMI/HDBaseT Scaler
This 9 by 2 multi-format scaling switcher provides HDMI, USB Type C, HDBaseT, and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.
4K60 6X2 Multi-Format to HDMI/HDBaseT Seamless Switch Matrix
This 6 by 2 Matrix is a multi-format switcher with integrated scaling featuring HDMI, DisplayPort, USB Type-C, and HDBaseT. The selected source (video & audio) can be transmitted over Cat.6A cable up to 100 meters along with bi-directional Ethernet, RS-232, USB, and IR as well as providing 48V PoH power to compatible HDBaseT transmitter and receiver. The HDMI, DisplayPort and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0).
