4K Premium HDMI Cables

4K Premium High Speed HDMI Cable (CBL-H100 & CBL-H300)

4K @ 60Hz, HDR, 4:4:4 Chroma
Audio Return Channel (ARC)
High Dynamic Range imaging (HDR)
HDMI Ethernet Channel (HEC)
Consumer Electronics Control (CEC)
High-Bandwidth Digital Content Protection(HDCP)
Dolby TrueHD & DTS-HD Master Audio
48-Bit Deep Color & 3D
Foil shielding & Braided shielding
24K Gold-plated HDMI connectors

Premium HDMI cables deliver higher performance and value than standard HDMI cables. Only certified Premium HDMI Cables are tested and verified by HDMI authorized test centers to ensure they support high bandwidth HDMI 4K features.

PRODUCT OVERVIEW

Not all the HDMI cables in the market are the same. The Premium high speed certified cable is the one you should select to deliver 4K signal. CERTIFIED HDMI Cable carries the official Premium High Speed HDMI cable Authentication Label, that is verified by the official HDMI certification. These cable are tested and certified to transmit video and audio over the full 18 Gbps bandwidth and pass an EMI (electromagnetic interference) noise test; Superior construction combines gold-plated connectors, bare copper conductors and foil & braid shielding to provide superior cable performance, static-free video transmission, and unwanted noise suppression.

HDMI Signal Support
HDMI Standards	2.0 (18Gbps)
Video Format	4K/1080p, 60fps, 3D, HDR
Data Rate	18Gbps
Control Signal	HDCP 2.2/EDID/ CEC/ DDC
Connector	HDMI Type A Connector
Audio Support	Dolby TrueHD/ DTS-HD Master Audio

Physical Properties
Op. Temp.	0°C to 50 ° C
Humidity	0%~85% RH
Bending Radius	12mm
Pulling Force	12kg

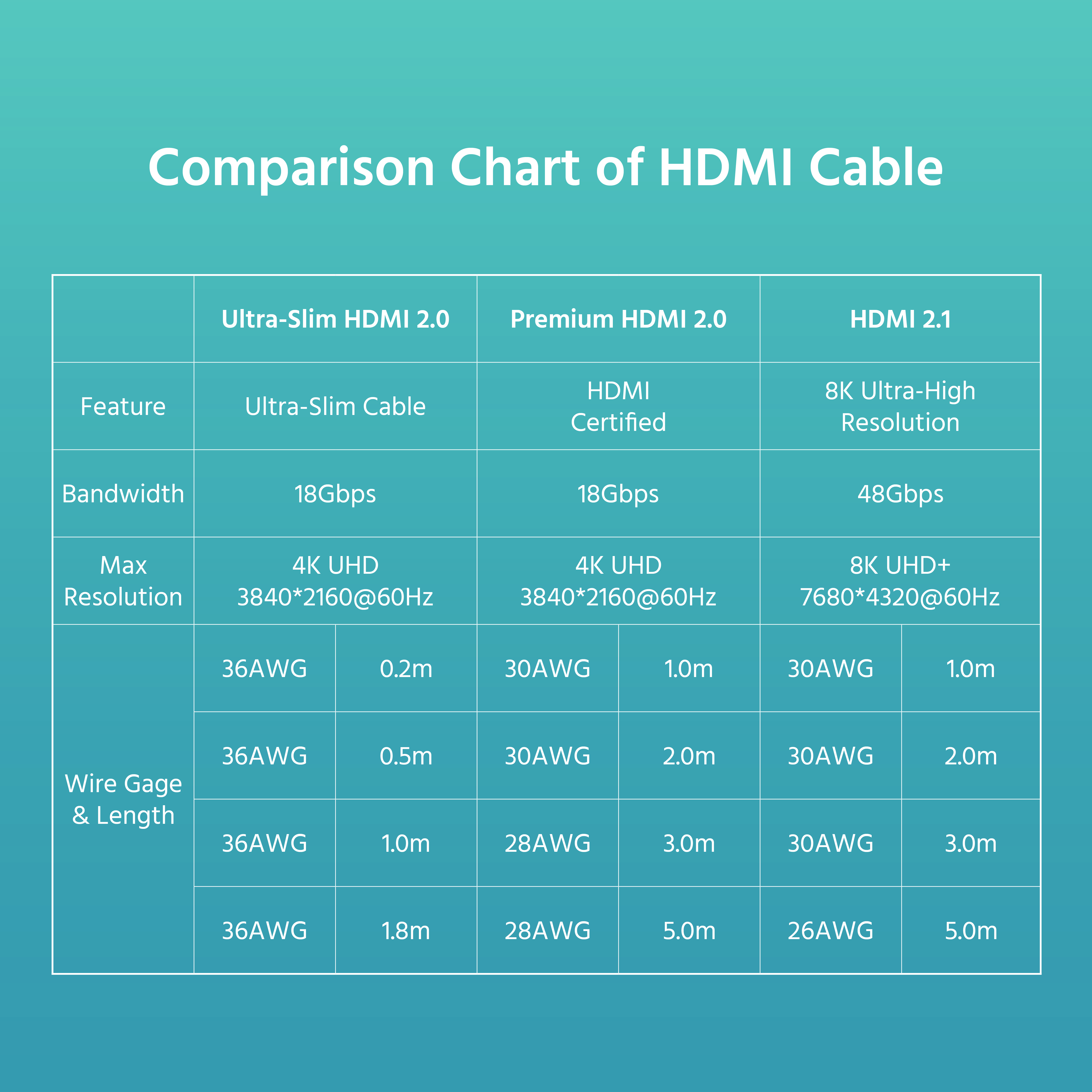

Comparison Chart
	Ultra-slim HDMI2.0		Premium HDMI 2.0		Ultra HDMI 2.1
Bandwidth	18Gbps		18Gbps		48Gbps
Max Resolution	4K UHD 3840*2160@60Hz		4K UHD 3840*2160@60Hz		8K 7680 x 4320@60Hz
Slimmest & Longest	36AWG	0.2m	30AWG	1.0m	30AWG	1.0m
		0.5m		2.0m		2.0m
		1.0m	28AWG	3.0m		3.0m
		1.8m		5.0m	26AWG	5.0m
			24AWG	7.0m

Ordering Information
Model No.	Product Description
CBL-H100-002	Ultra-Slim HDMI 2.0, 0.2M, 36AWG
CBL-H100-005	Ultra-Slim HDMI 2.0, 0.5M, 36AWG
CBL-H100-010	Ultra-Slim HDMI 2.0, 1.0M, 36AWG
CBL-H100-018	Ultra-Slim HDMI 2.0, 1.8M, 36AWG
CBL-H300-010	Premium HDMI 2.0, 1.0M, 30AWG
CBL-H300-020	Premium HDMI 2.0, 2.0M, 30AWG
CBL-H300-030	Premium HDMI 2.0, 3.0M, 28AWG
CBL-H300-050	Premium HDMI 2.0, 5.0M, 28AWG
CBL-H300-070	Premium HDMI 2.0, 7.0M, 24AWG
