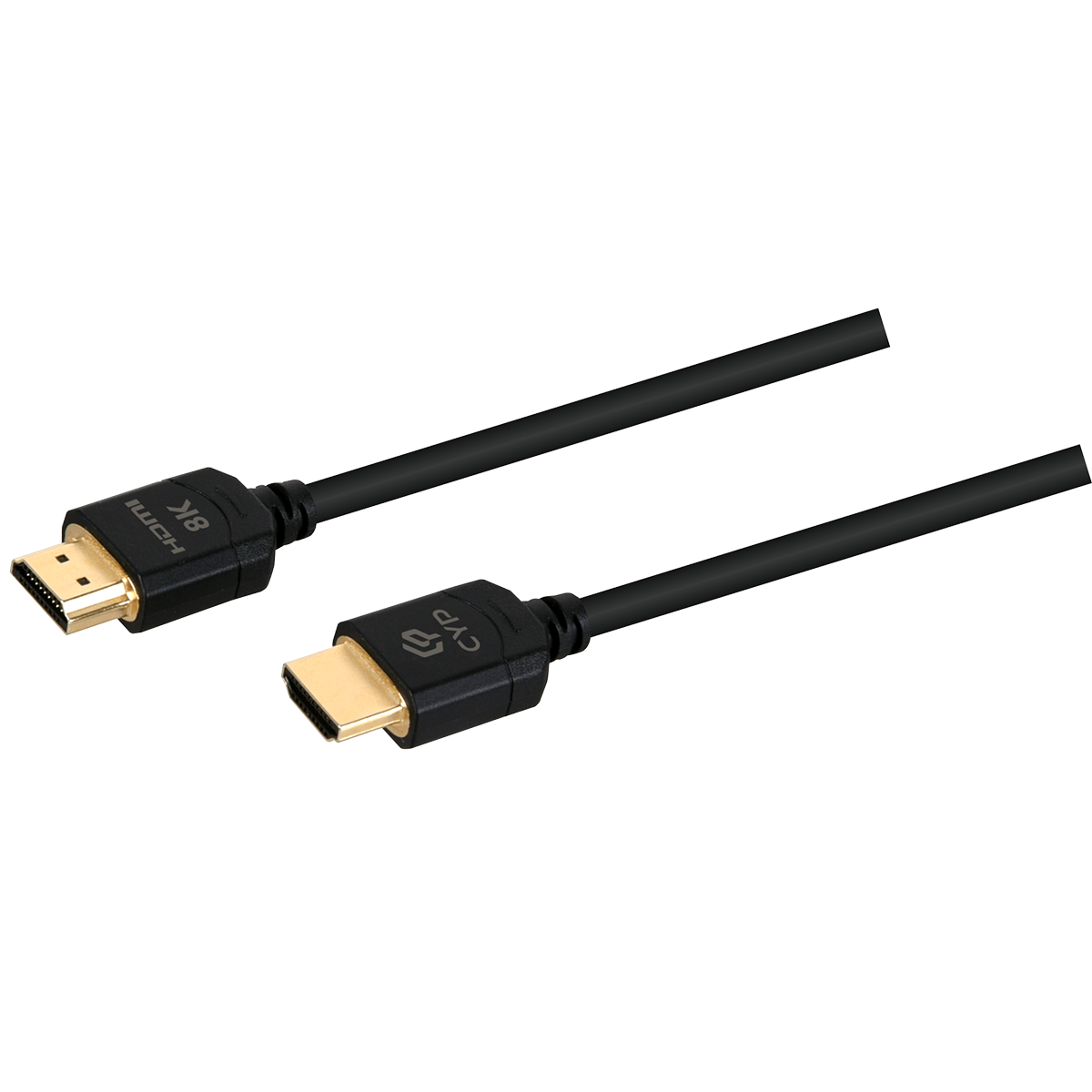

8K Ultra High Speed HDMI Cable

8K Ultra High Speed HDMI Cable (CBL-H600)

8K Ultra High Speed HDMI Cable

Certified Ultra High Speed HDMI™ Cable
8K@120Hz/60Hz, 4K@144Hz/120Hz resolution, 48Gbps bandwidth
Dolby Atmos, TrueHD & DTS:X, HD Master Audio • Foil & braided shielding
24K gold-plated HDMI connectors
3-Year Warranty

This Ultra High Speed HDMI™ Cable has been verified by HDMI Authorized Testing Center. 48Gbps bandwidth for latest HDMI features, Dolby Vision, Dynamic HDR, Enhanced Audio Return Channel (eARC), Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick Frame Transport (QFT). Supports HDCP2.3, 8K@120Hz/60Hz, 4K@144Hz/120Hz, and up to 10K resolution.

HDMI Signal Support
HDMI Standards	HDMI 2.1
Video Format	8K@120Hz/60Hz, 4K@144Hz/120Hz
Data Rate	48Gbps
Control Signal	HDCP 2.3/EDID/ CEC/ DDC
Connector	HDMI Type A Connector
Audio Support	Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio

Physical Properties
Op. Temp.	0°C to 50°C
Humidity	0% to 85% RH
Bending Radius	12mm
Pulling Force	12kg

Comparison Chart

	HDMI 2.1	HDMI 2.0	HDMI 1.4
Image Quality	8K@60Hz	4K@60Hz	4K@60Hz
	Dynamic and Static HDR	Static HDR	X
	Auto Low Latency Mode (ALLM)	X	X
	Variable Refresh Rate (VRR)	X	X
	Quick Media Switching (QMS)	X	X
Sound Quality	eARC	ARC	ARC
Sound Quality	32 Audio Channels	32 Audio Channels	8 Audio Channels
Sending Rate	48Gbps Bandwidth	18Gbps Bandwidth	10.2Gbps Bandwidth
	Quick Frame Transport (QFT)	X	X
	Display Stream Compression (DSC)	X	X

ORDERING INFORMATION
Model No.	Product Description
CBL-H600-010	1M, 30AWG
CBL-H600-020	2M, 30AWG
CBL-H600-030	3M, 30AWG
CBL-H600-050	5M, 26AWG
