CBL-FH510

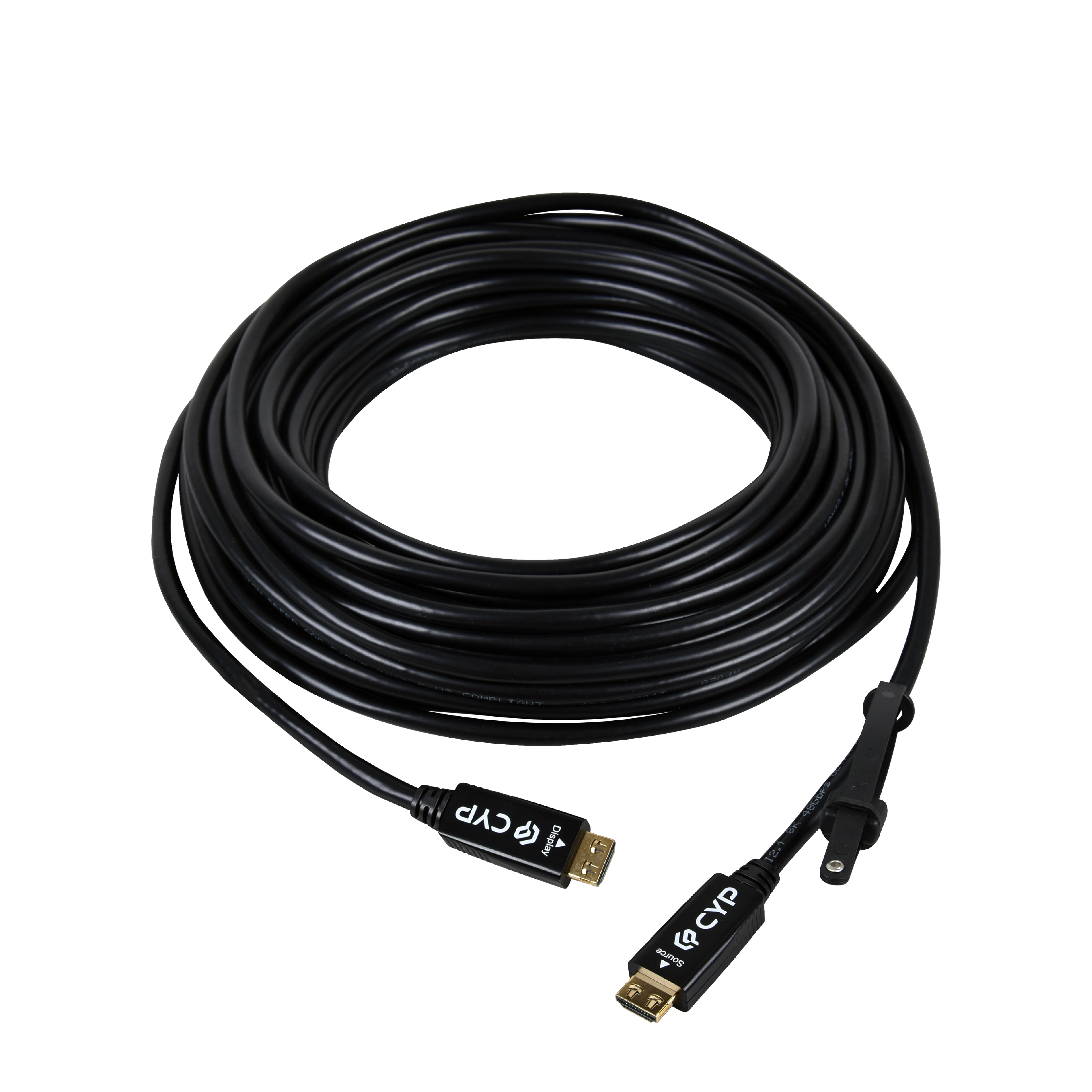

8K HDMI Active Optical Cable

8K@60Hz, 4K@120Hz and 48Gbps bandwidth
Transmission interfaces: fiber and copper
Metal shielding and high pulling force

This Active Optical Cable can transfer 8K@60Hz signals over 48Gbps bandwidth. The transmission distance is up to 15 meters, longer than standard copper. It supports QMS, ALLM, QFT and VRR modes to reduce latency, lag and refresh rate for great watching experience. It also supports Dolby Atmos, Dolby TrueHD, Dolby Digtal Plus and LPCM 7.1. It eliminates EMI/RFI line noise that can interfere your audio/video signal.

HDMI Signal Support
HDMI Standards	HDMI 2.1
Video Format	8K@60Hz, 4K@120Hz
Data Rate	48Gbps
Control Signal	HDCP/EDID/CEC/DDC
Connector	HDMI Type-A connector
Audio Support	Dolby Atmos, Dolby TrueHD, DTS:X, DTS HD Master Audio, LPCM7.1

Physical Properties
Op. Temp.	0°C to 50°C
Humidity	0% to 85% RH
Bending Radius	70mm
Pulling Force	10kg

ORDERING INFORMATION

Model No.	Product Description
CBL-FH510-010	8K HDMI Active Optical Cable, 10 meters
CBL-FH510-015	8K HDMI Active Optical Cable, 15 meters
