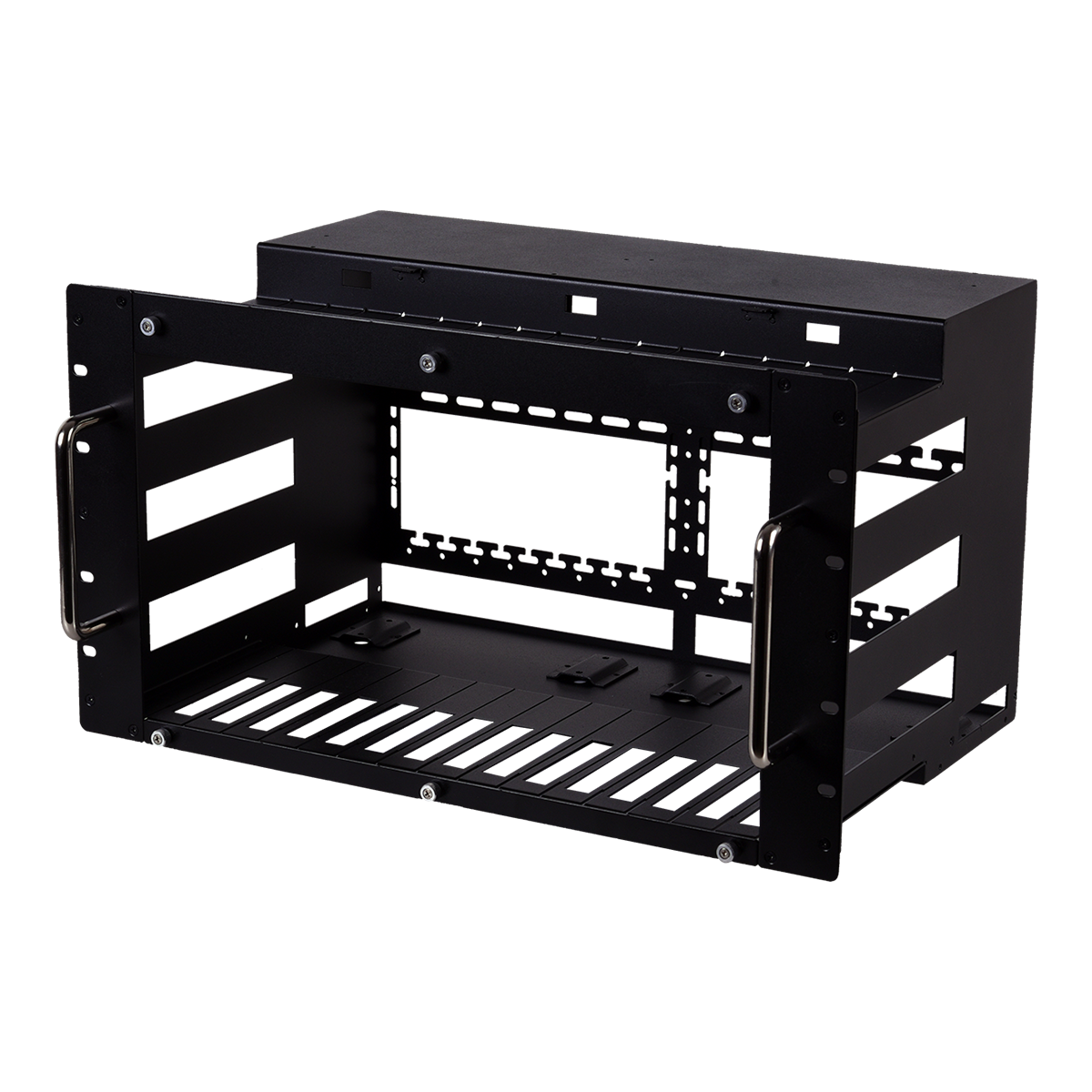

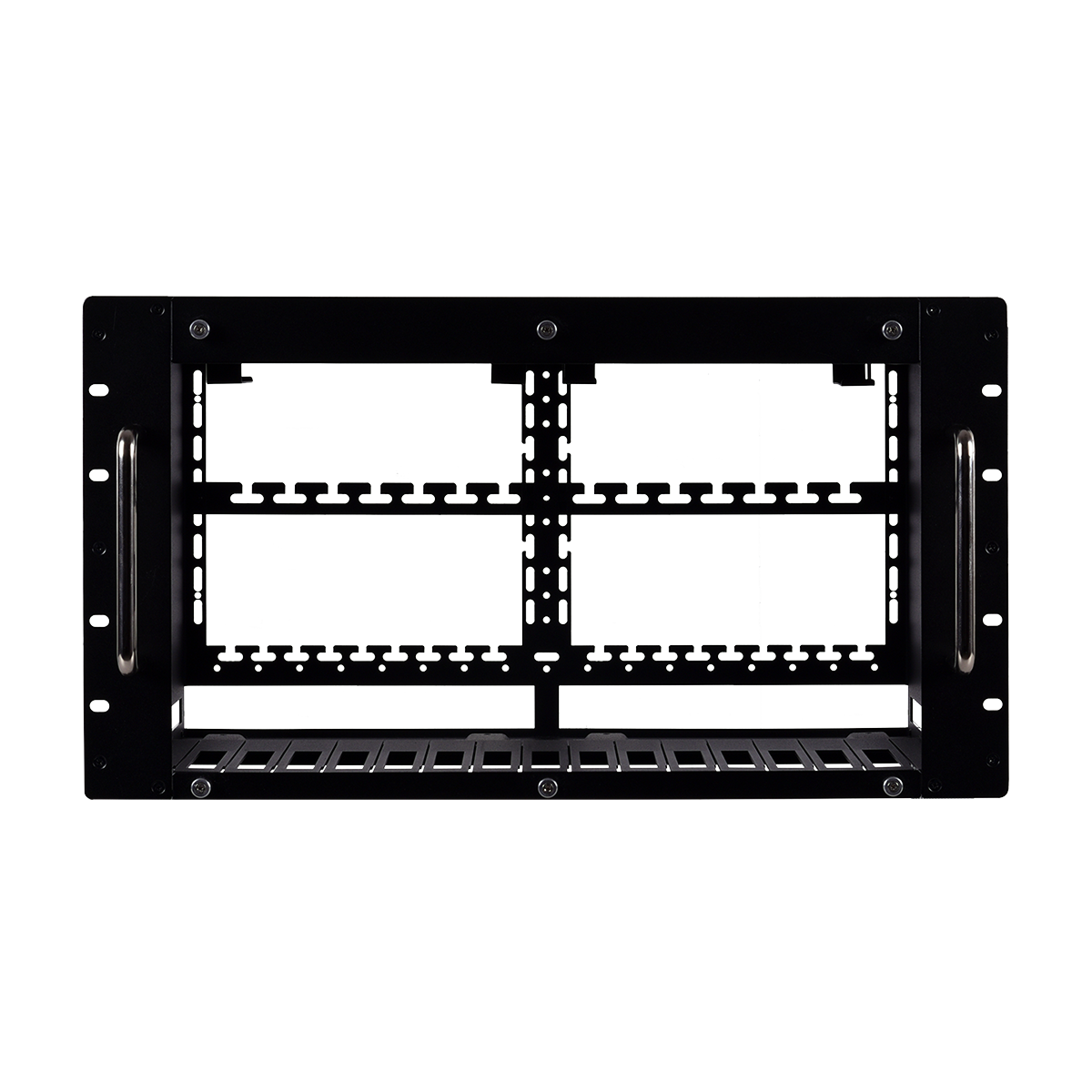

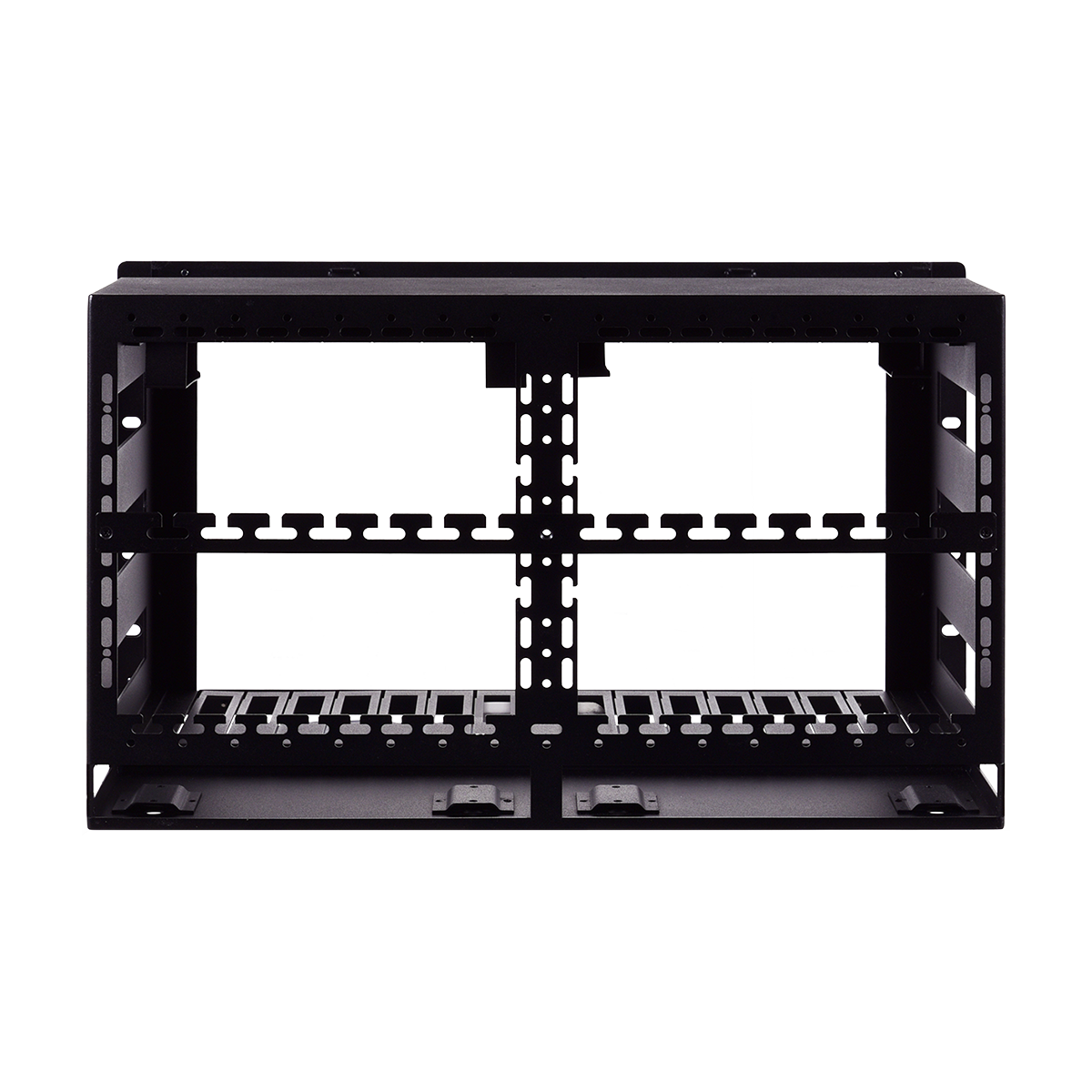

CSR-G6400
6U Rack Chassis
- Optional accessories include: DC Power Manager units, Cooling Fan System, Cable Management Frame, and the Network Switch Tray.
- Each optional DC Power Manager unit provides power (5v, 12v, 24v or 48v), remote power control, and power state monitoring for up to 8 devices plus up to 2 fans.
- The dual fans within the optional Cooling Fan System can be temperature controlled to automatically turn the fan on or off as needed
- Optional Cable Management Frame provides additional options to help manage audio, video and power cabling from installed units
- Optional Network Switch Tray provides a convenient mounting location for ancillary equipment such as a network switch or router

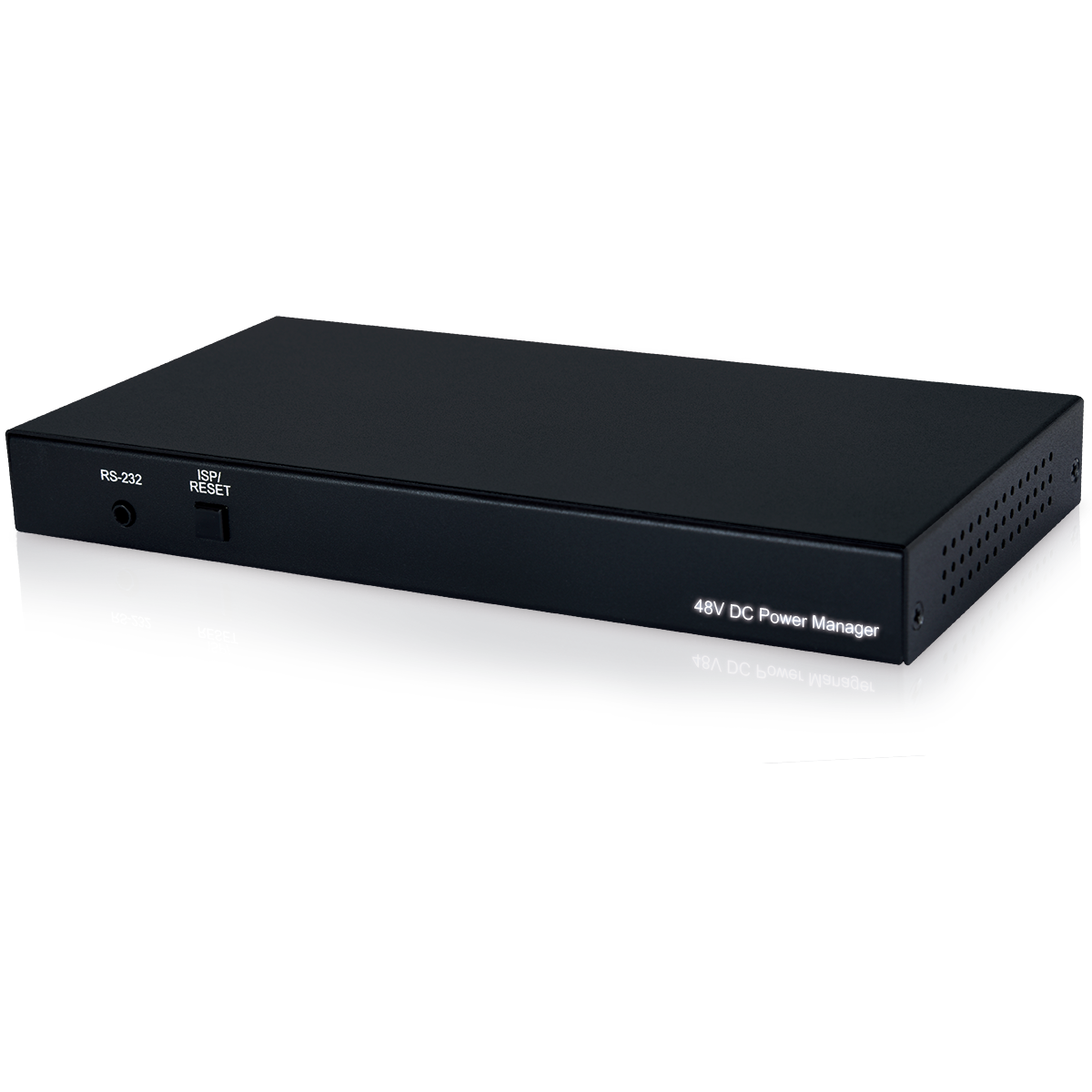

CSR-8PSU-48V
8-Port 48V DC Power Manager
This 8-Port 48V DC Power Manager is a DC power splitter which can distribute up to 300 milliamps of 48 volt power to up to eight connected devices via 2-pin terminal block connections (115 watts total across all 8 outputs). Ideal for professional applications, this unit provides direct per-port power control via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows for detailed power scheduling based on a repeating daily/weekly schedule, or single events. Up to 2 fans may be connected and their speed can be either automatically controlled based on a detected temperature, or set to a single static speed. Detailed status information about the power input, each power output, current fan speed, and system temperature is provided to give a comprehensive system overview.

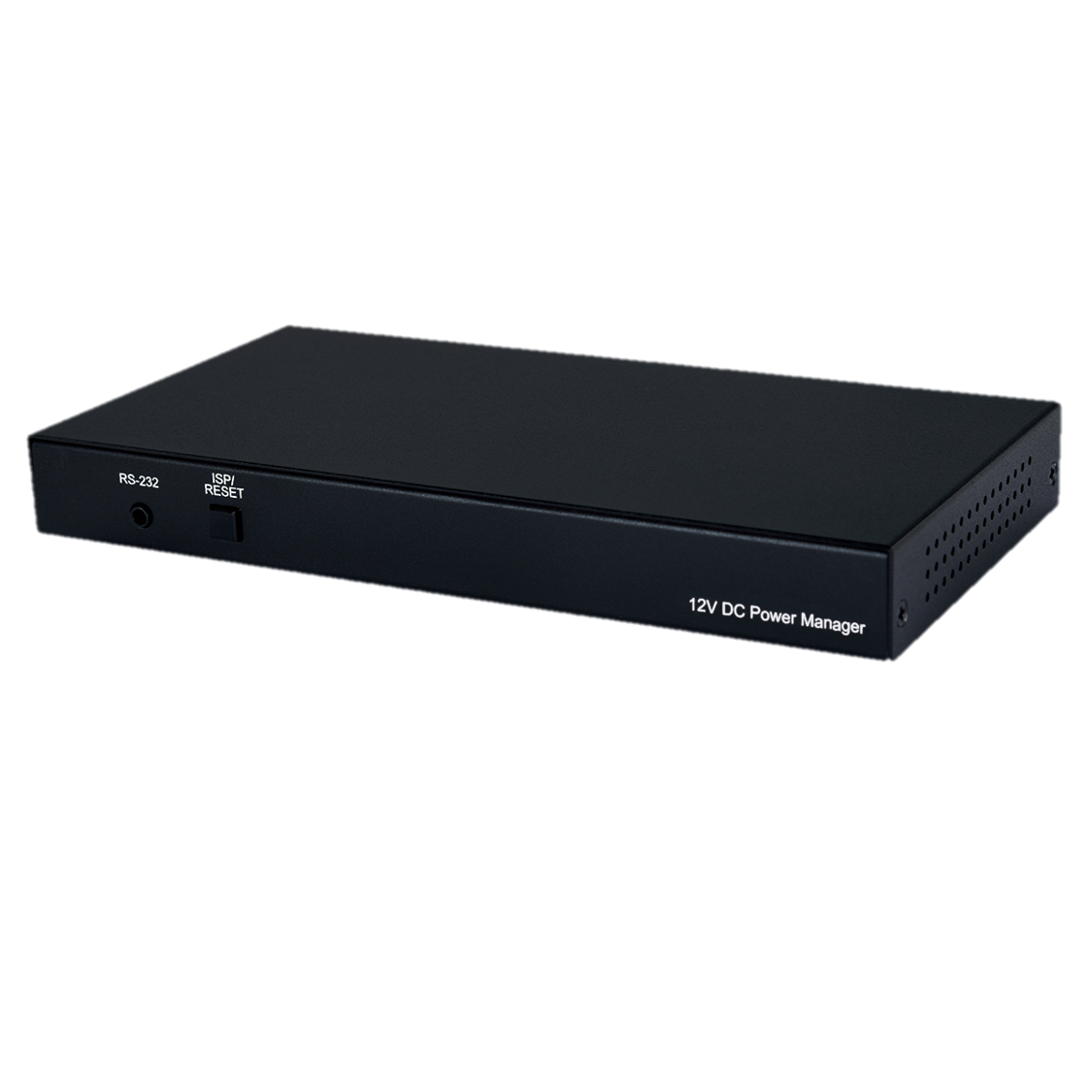

CSR-8PSU-12V
8-Port 12V DC Power Manager
This 8-Port 12V DC Power Manager is a DC power splitter which can distribute up to 125 milliamps of 12 volt power to up to eight connected devices via 2-pin terminal block connections (115 watts total across all 8 outputs). Ideal for professional applications, this unit provides direct per-port power control via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows for detailed power scheduling based on a repeating daily/weekly schedule, or single events. Up to 2 fans may be connected and their speed can be either automatically controlled based on a detected temperature, or set to a single static speed. Detailed status information about the power input, each power output, current fan speed, and system temperature is provided to give a comprehensive system overview.
CSR-G6400TRAY
Network Switch Tray
This flexible rack-mounting system offers the ability to efficiently house up to 15 professional AV products and is available as a 6U rack chassis. This storage unit is suitable for customers who require the efficient integration and mounting of multiple units into a relatively small rack space along with optional cooling fans and intelligent power control. Each rack chassis is a standard 19 inches wide. The system allows for the optional inclusion of up to 2 power supply units, multiple cooling fan units, cable management frames, and a network switch tray.

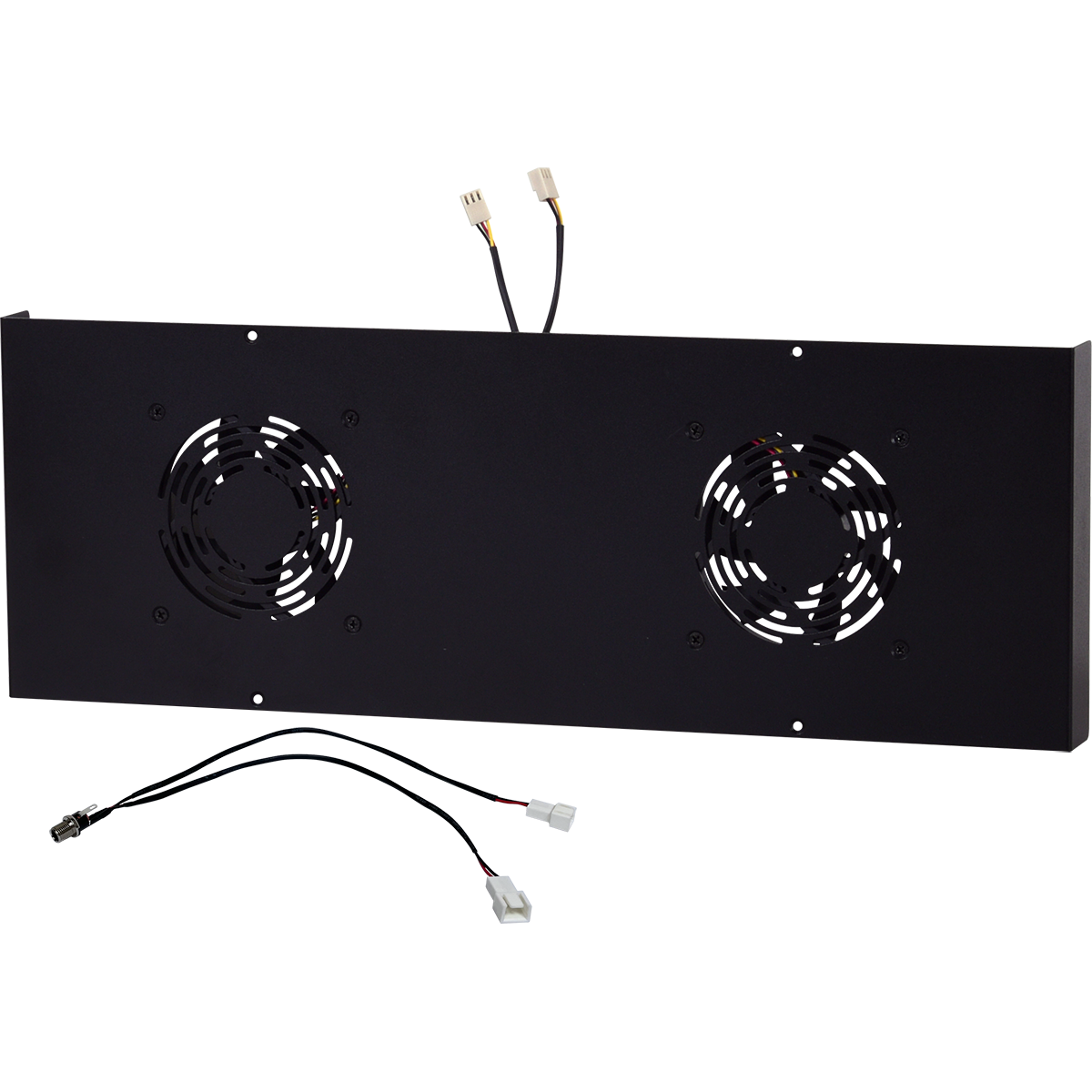

CSR-G6400FAN
Cooling Fan System
This flexible rack-mounting system offers the ability to efficiently house up to 15 professional AV products and is available as a 6U rack chassis. This storage unit is suitable for customers who require the efficient integration and mounting of multiple units into a relatively small rack space along with optional cooling fans and intelligent power control. Each rack chassis is a standard 19 inches wide. The system allows for the optional inclusion of up to 2 power supply units, multiple cooling fan units, cable management frames, and a network switch tray.

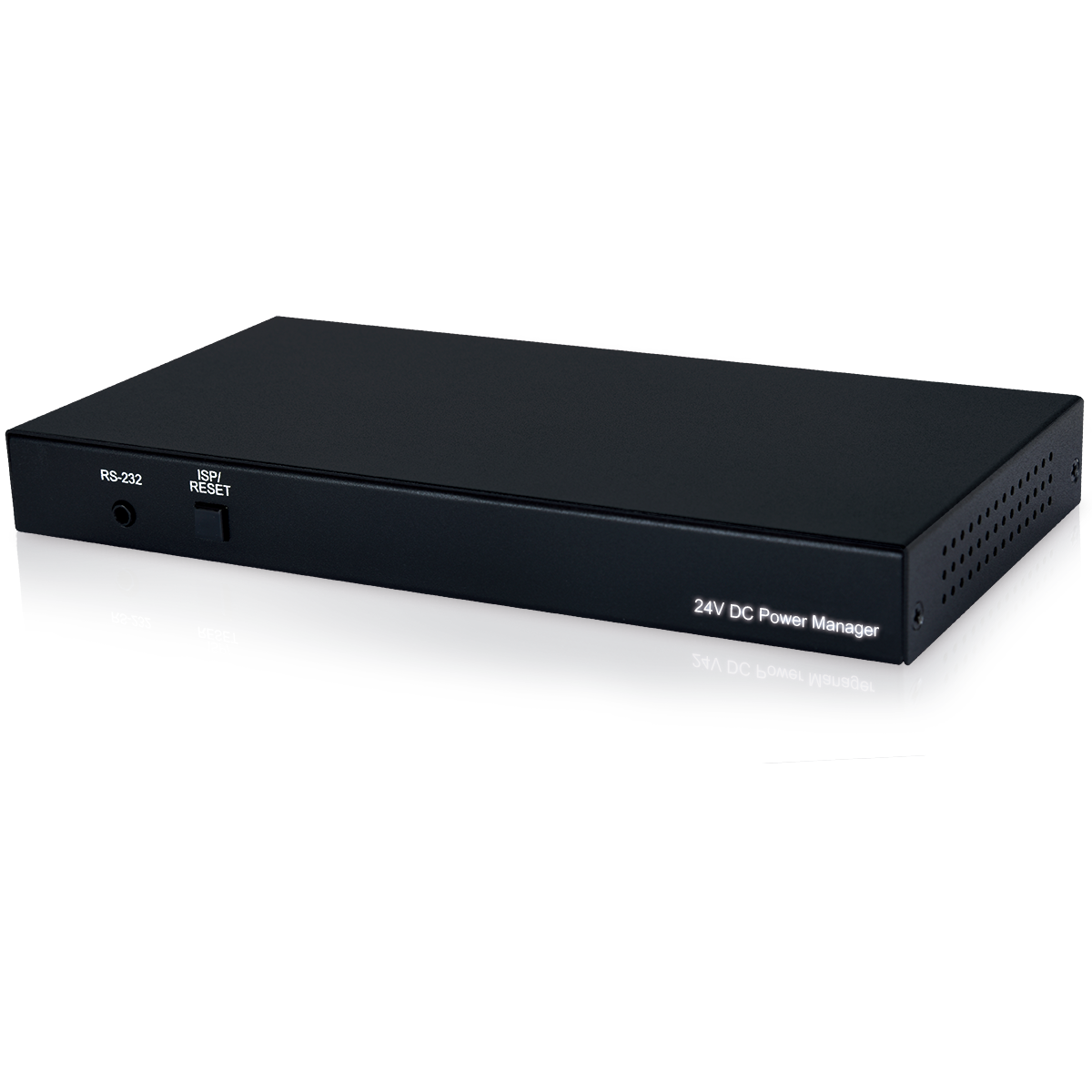

CSR-8PSU-24V
8-Port 24V DC Power Manager
This 8-Port 24V DC Power Manager is a DC power splitter which can distribute up to 625 milliamps of 24 volt power to up to eight connected devices via 2-pin terminal block connections (115 watts total across all 8 outputs). Ideal for professional applications, this unit provides direct per-port power control via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows for detailed power scheduling based on a repeating daily/weekly schedule, or single events. Up to 2 fans may be connected and their speed can be either automatically controlled based on a detected temperature, or set to a single static speed. Detailed status information about the power input, each power output, current fan speed, and system temperature is provided to give a comprehensive system overview.

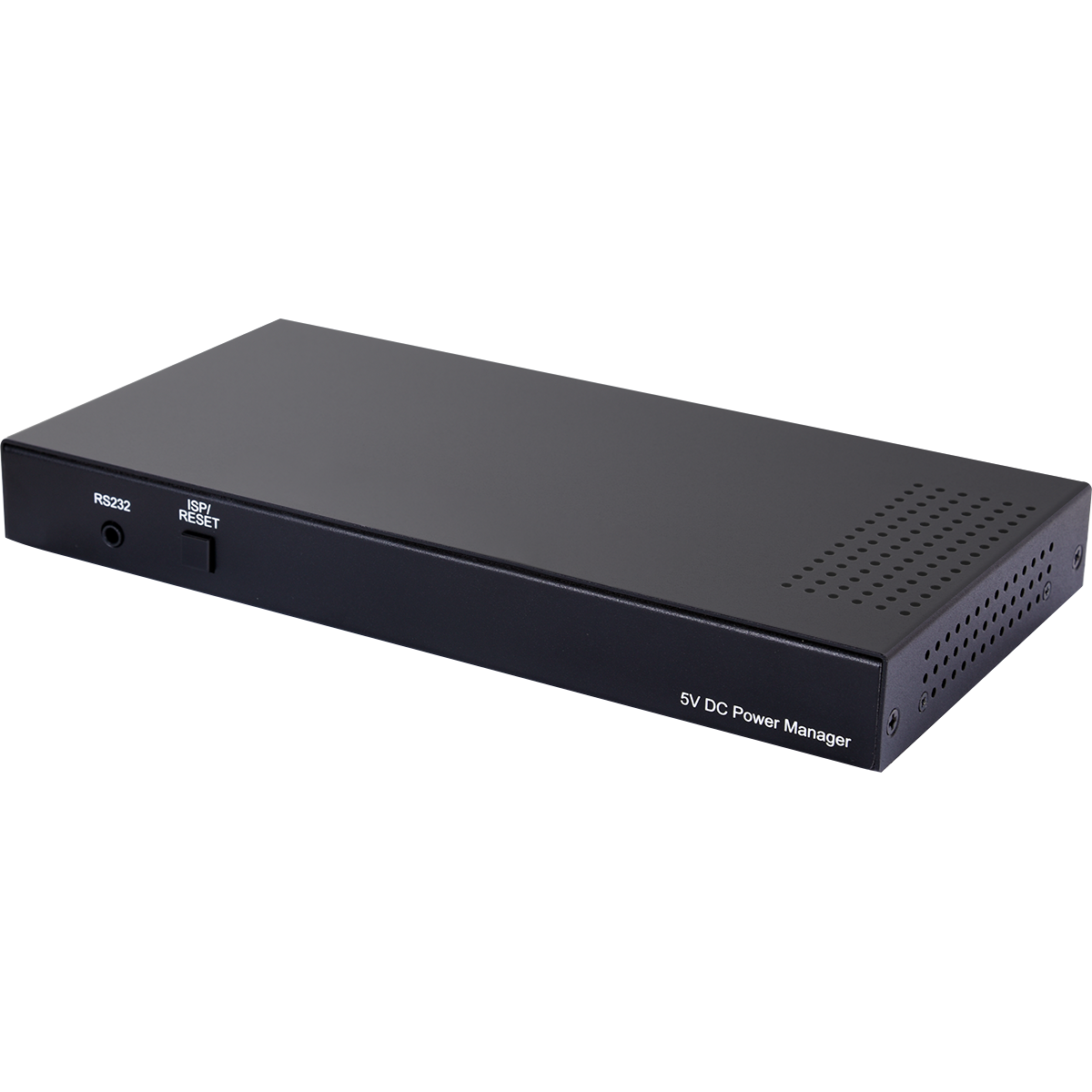

CSR-8PSU-5V
8-Port 5V DC Power Manager
This 8-Port Managed 5V DC Power Supply is a DC power splitter which can distribute up to 3 amps of 5 volt power to up to eight connected devices via 2-pin terminal block connections (120 watts total across all 8 outputs). Ideal for professional applications, this unit provides direct per-port power control via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows for detailed power scheduling based on a repeating daily/weekly schedule, or single events. Up to 2 fans may be connected and their speed can be either automatically controlled based on a detected temperature, or set to a single static speed. Detailed status information about the power input, each power output, current fan speed, and system temperature is provided to give a comprehensive system overview.

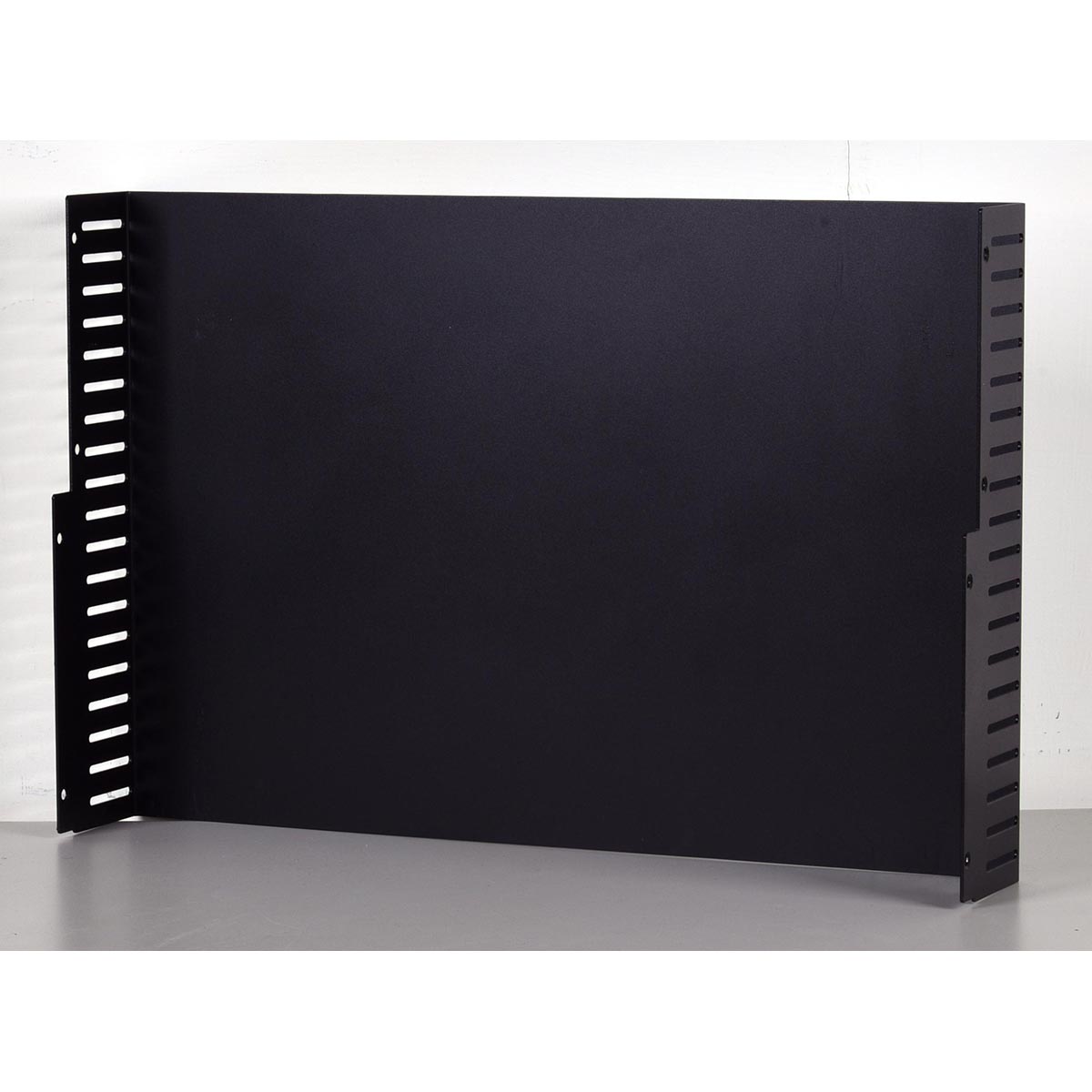

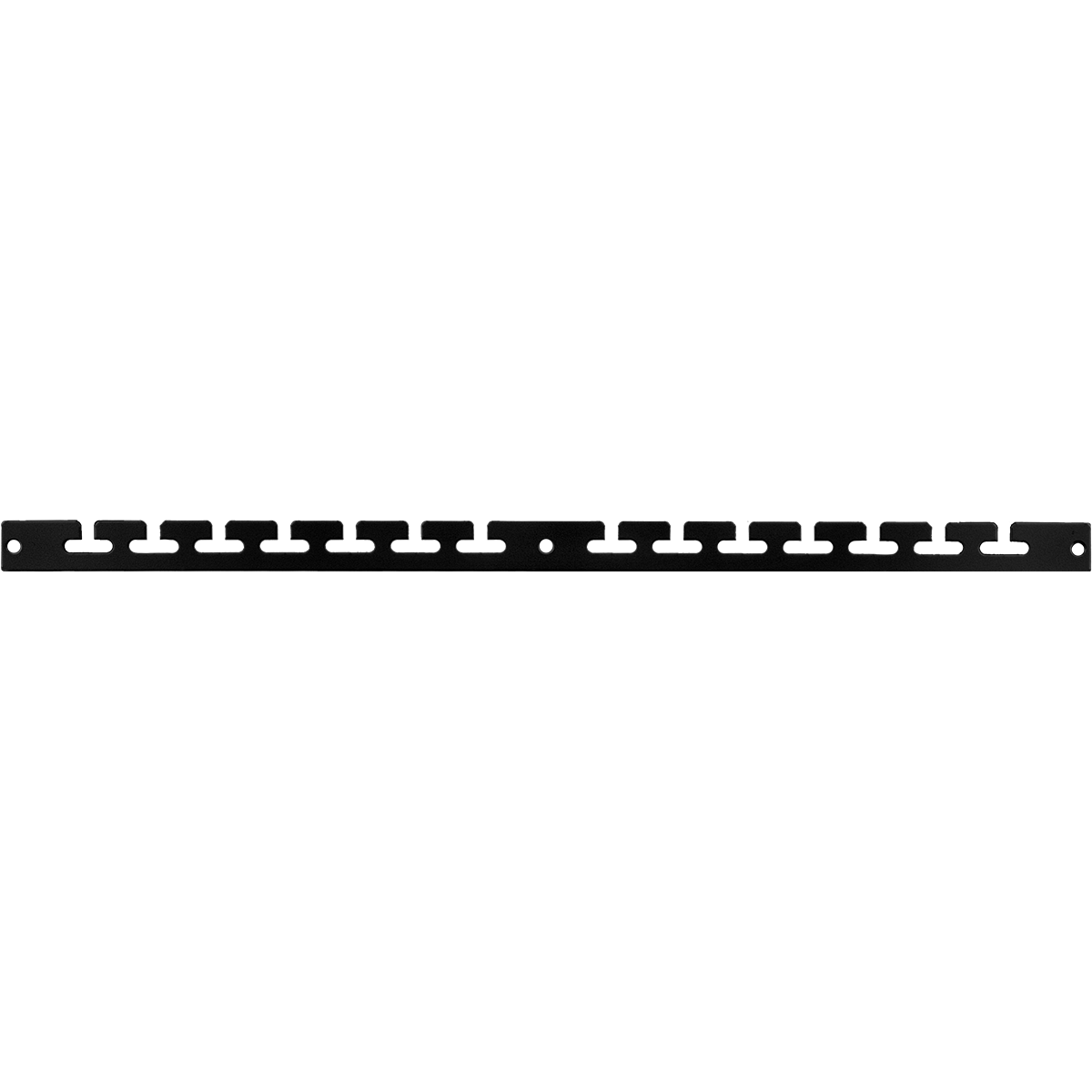

CSR-G6400CBTRAY
Cable Management Frame
This flexible rack-mounting system offers the ability to efficiently house up to 15 professional AV products and is available as a 6U rack chassis. This storage unit is suitable for customers who require the efficient integration and mounting of multiple units into a relatively small rack space along with optional cooling fans and intelligent power control. Each rack chassis is a standard 19 inches wide. The system allows for the optional inclusion of up to 2 power supply units, multiple cooling fan units, cable management frames, and a network switch tray.
