DCT-36

DCT-36 EOL

Amplifier with LR/Optical/CAT Input Mix with MIC

Supports Optical input sampling rate up to 192kHz
Supports Optical, L/R, CAT inputs and 48V/Line Microphone
Supports audio CAT input up to 300m
Supports each output speaker up to 50W
Output sound up to 20dB and microphone up to 18dB
Supports Stereo or Mono output

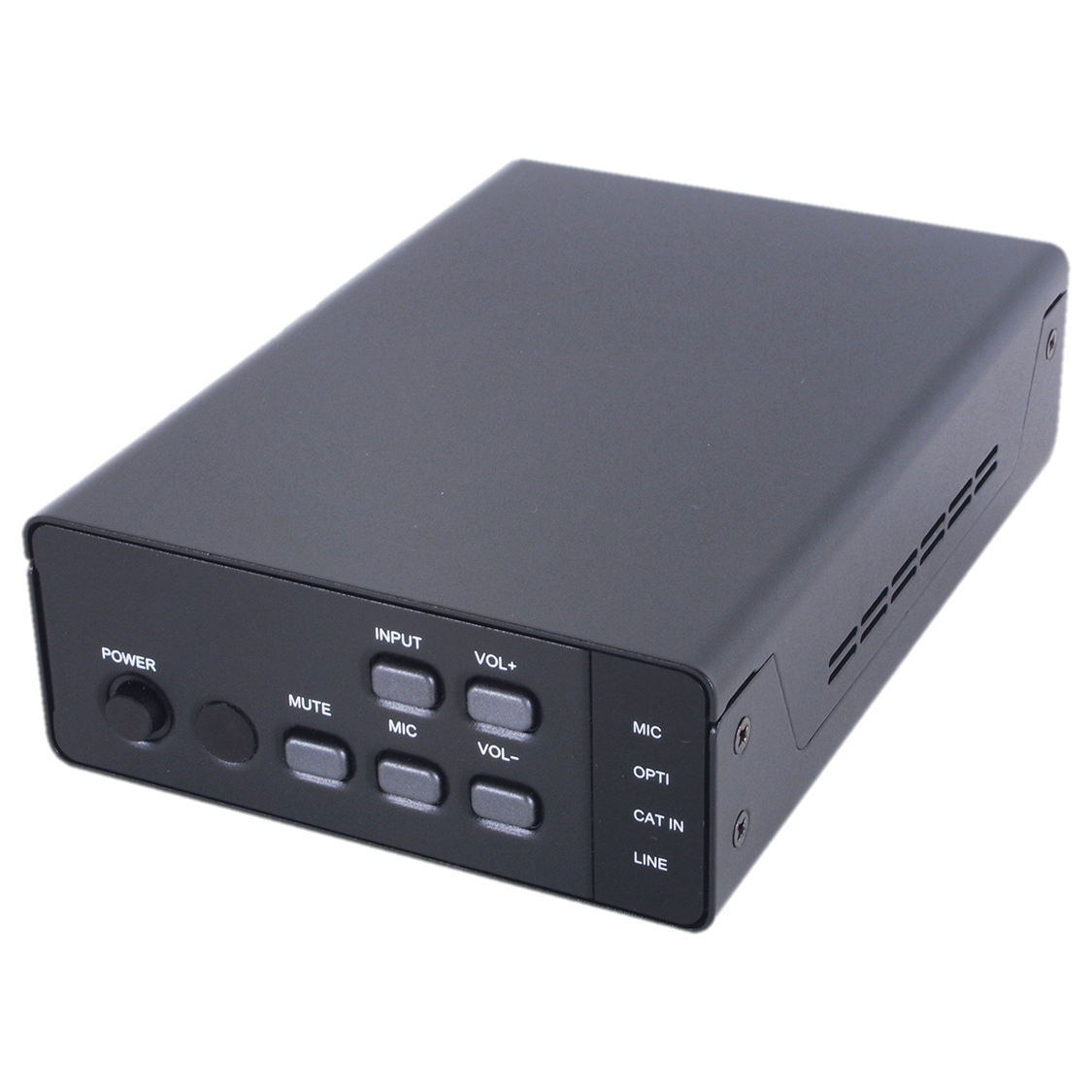

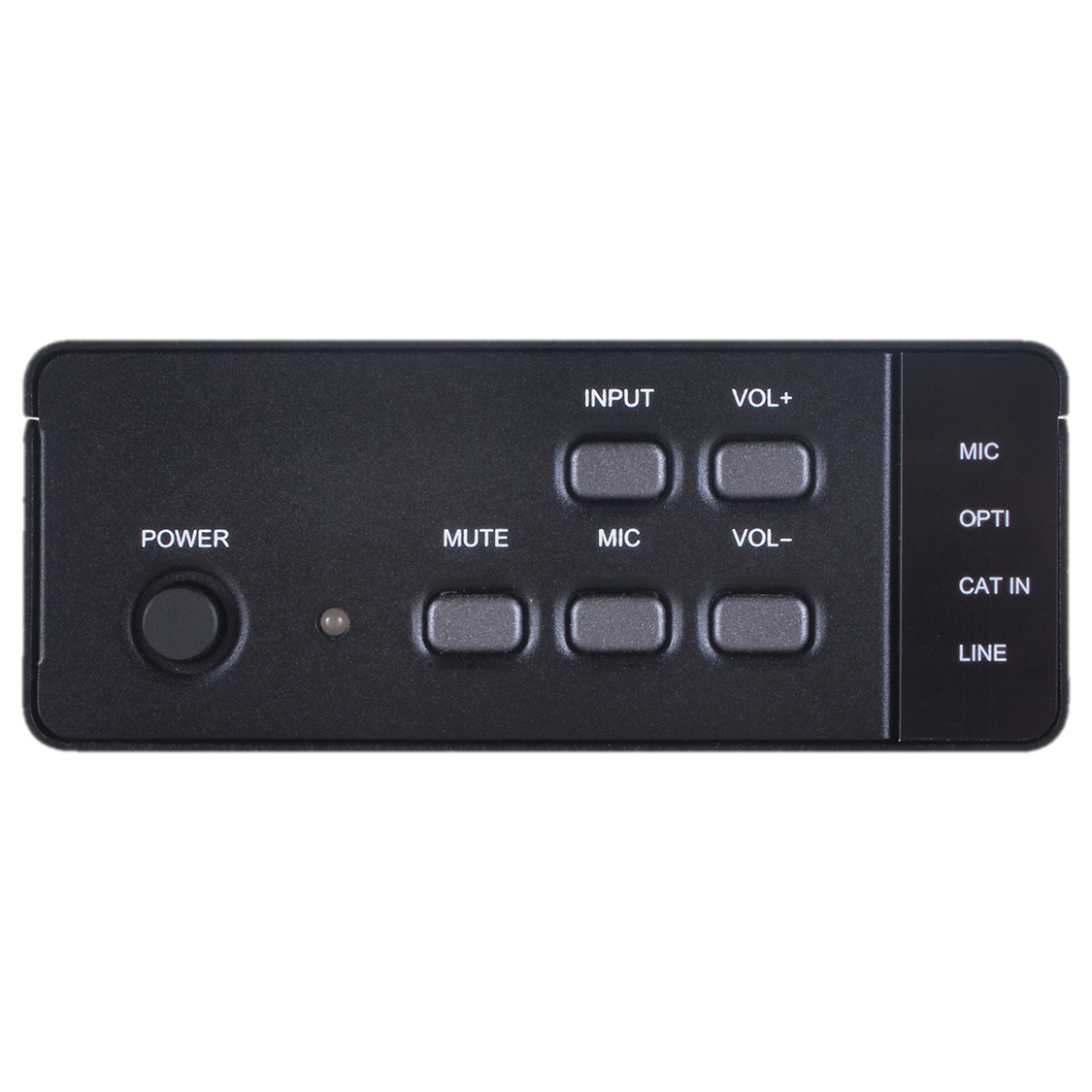

Supports Volume control from On-panel, Telnet or WebGUI or RS232 through Audio CAT
CAT Support RS-232 Input Control for Baudrate 115200bps
Supports Microphone sound mix into output sound

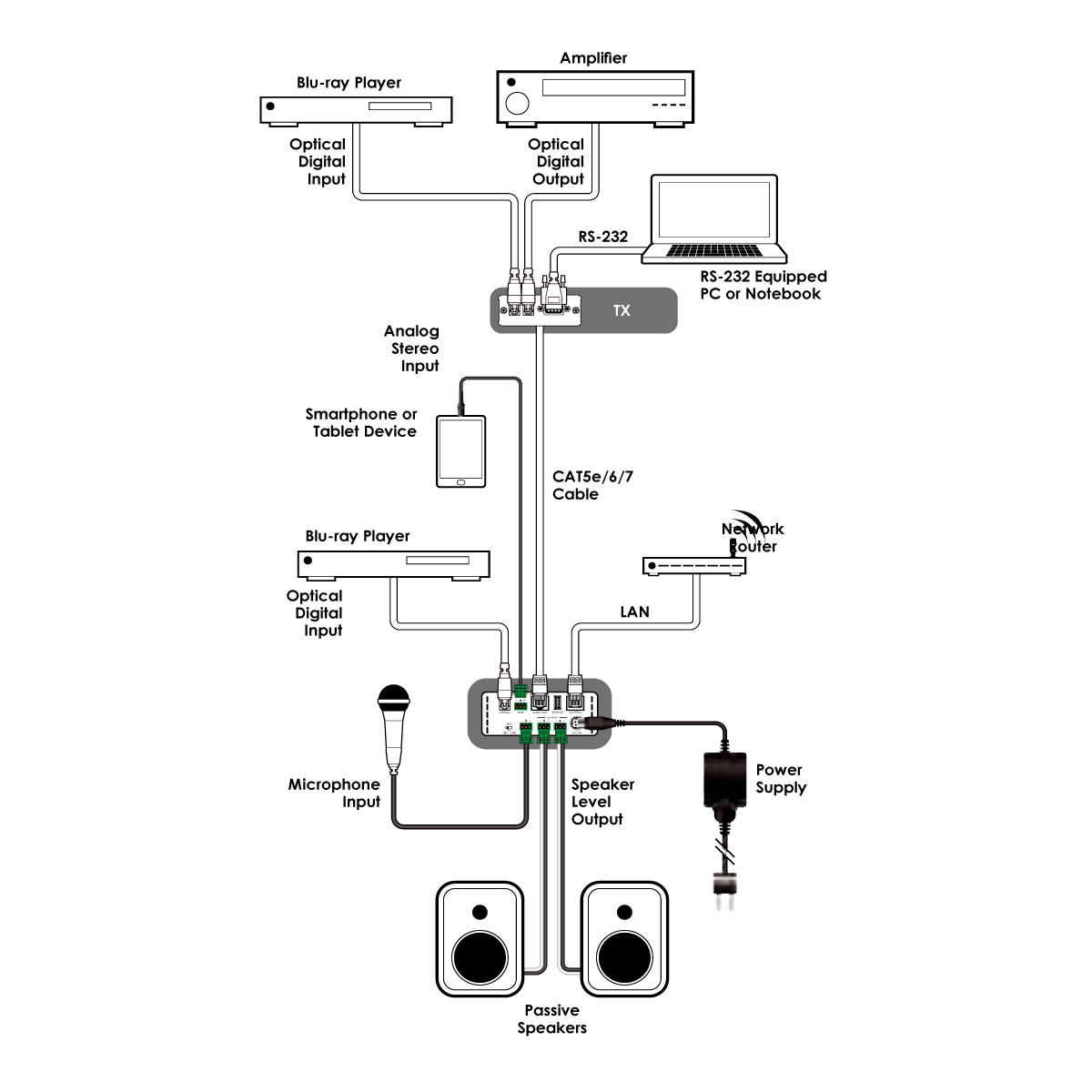

The Amplifier with Optical/LR/CAT Input Mix with MIC is a fabulous gadget for audio mixture with vocal sound and output to analog speaker with mono or stereo sound. Allowing user with both digital and analog audio source selections along and a distance input up to 300m away. Controls like Telnet & WebGUI allow user with easy adjustment and remote over the audio setting and on-panel control with LED indication adds-on the friendly use for the device.

Interfaces

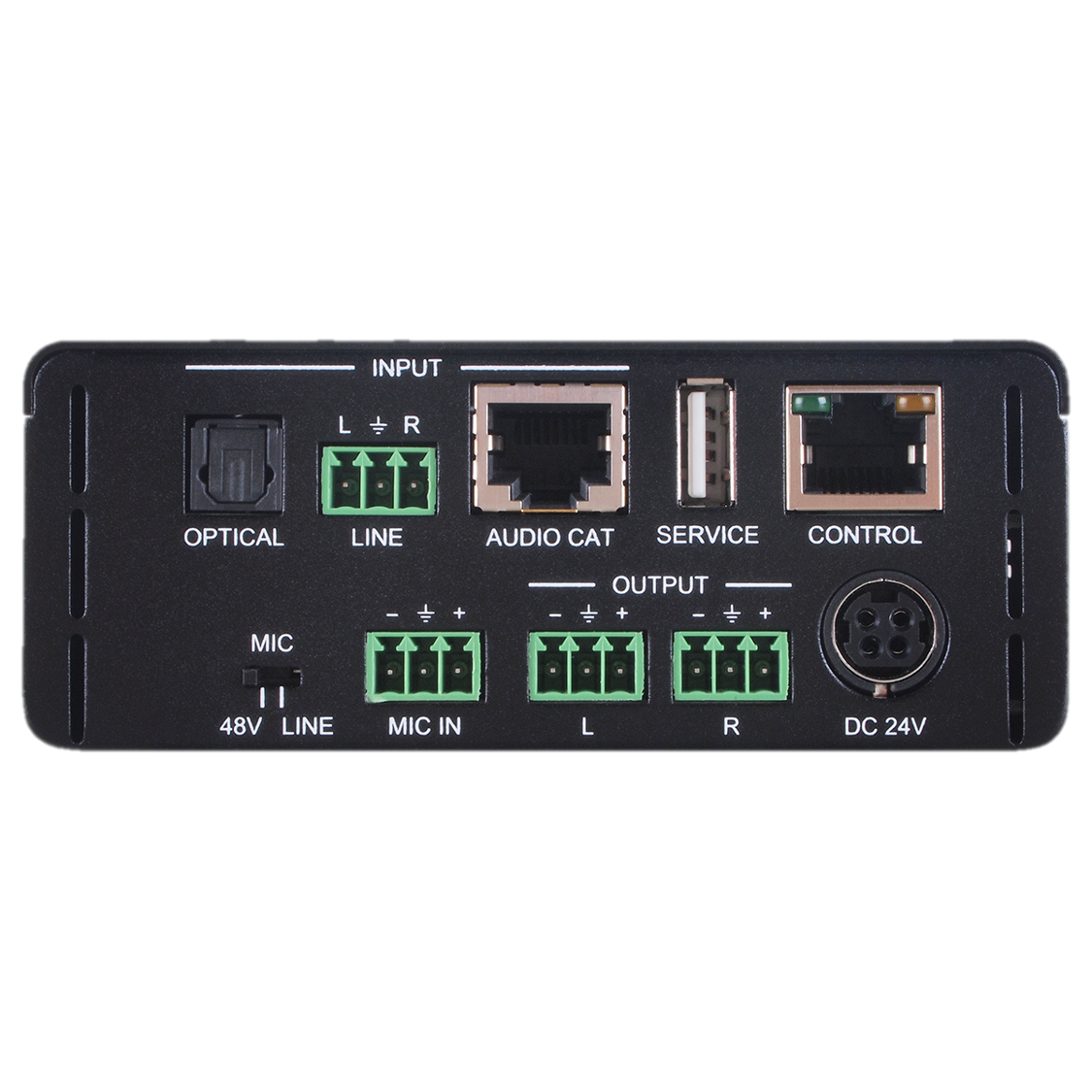

Input Port	1 Optical 1 L/R (Terminal Block) 1 CAT5e/6/7 1 Mic (Terminal Block) 1 IP Control (RJ-45) 1 USB (Service only)
Output Port	1 L/R (Terminal Block)

Audio
ESD Protection	Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)

Power
Power Supply	24V/2.7A DC
Power Consumption	58.3w

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	109.5 mm ×155 mm ×43 mm [Jacks Excluded] 109.5 mm ×157 mm ×48 mm [Jacks Included]
Weight	644g

Ordering Information
Model No.	Product Description
DCT-36	Amplifier with LR/Optical/CAT Input Mix with MIC

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/19	DCT-36_Manual	1	all	DCT-36_Manual
