DT-12

Optical 2-Way Splitter

Supports the S/PDIF standard of digital audio transmission
Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation) audio signal
Supports compressed 2-channel and multi-channel Dolby Digital and DTS audio signals
Provides electromagnetic-noise-free transmission
Easy to install and to operate

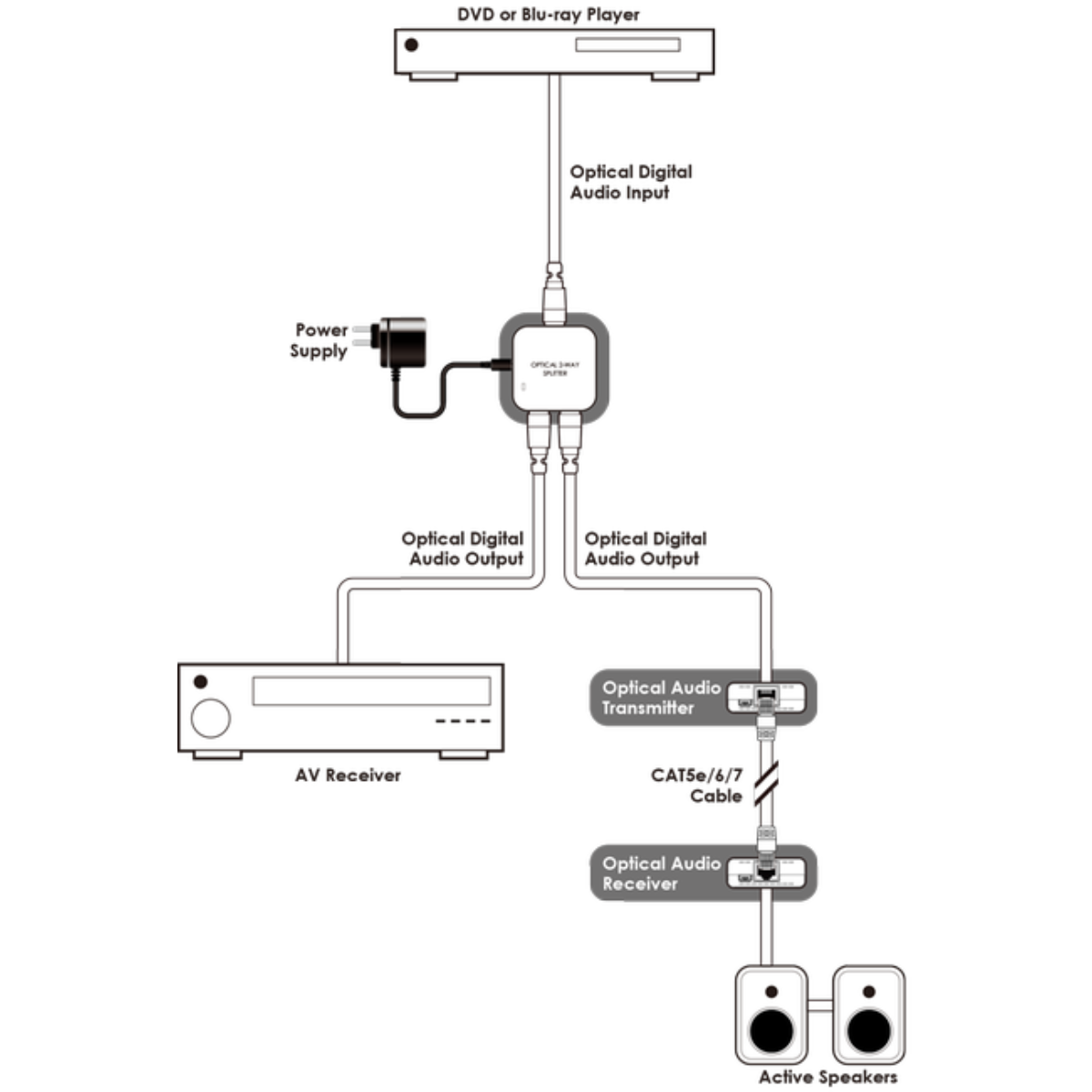

The Optical Digital Audio Splitter can split a single optical digital input to two outputs to lengths of up to 5m, using TOSLink optical cables, reliably and without loss of quality. It is designed to be compact, easy to install and use making it ideal for home or professional audio distribution.

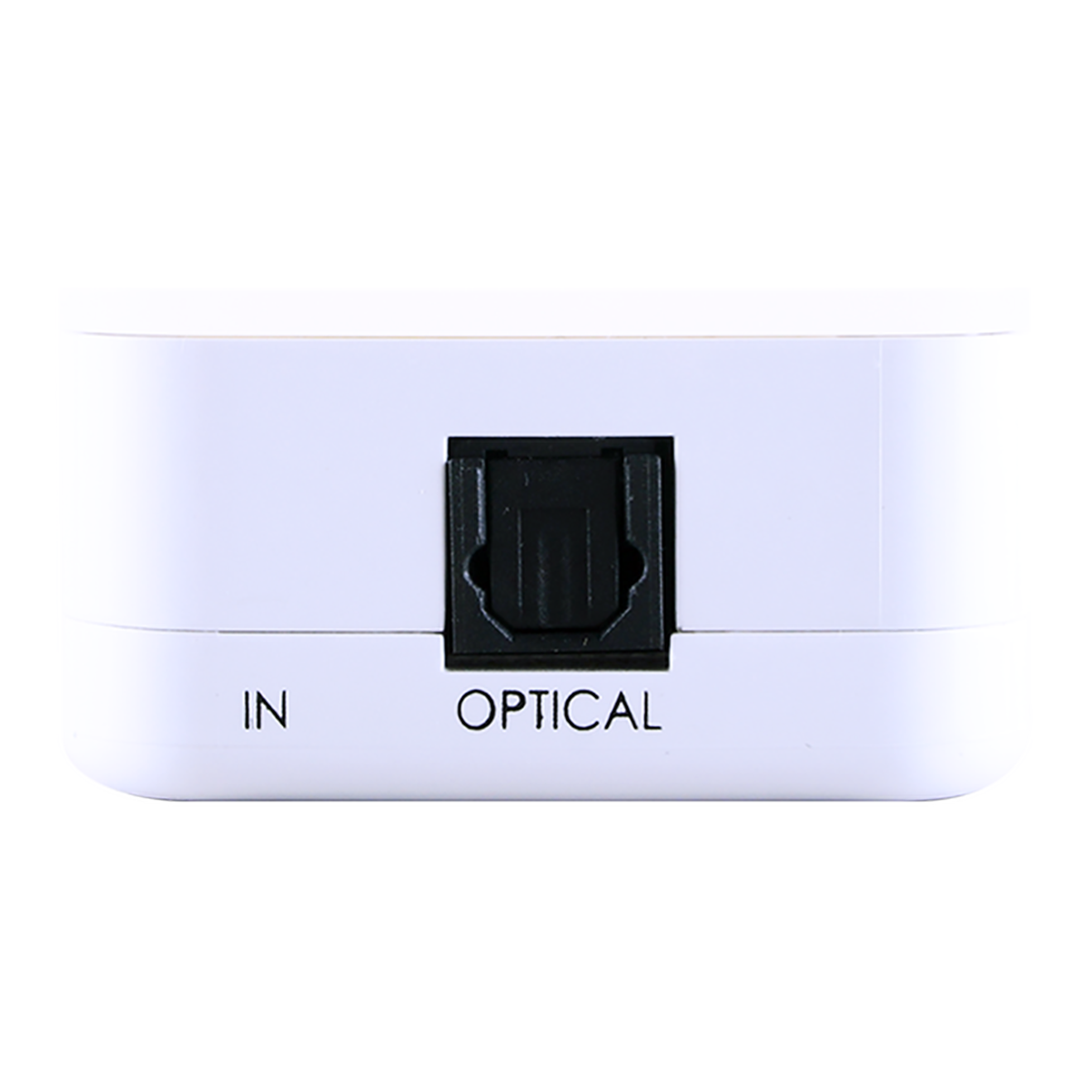

Input Port	1×Optical (TOSLink)

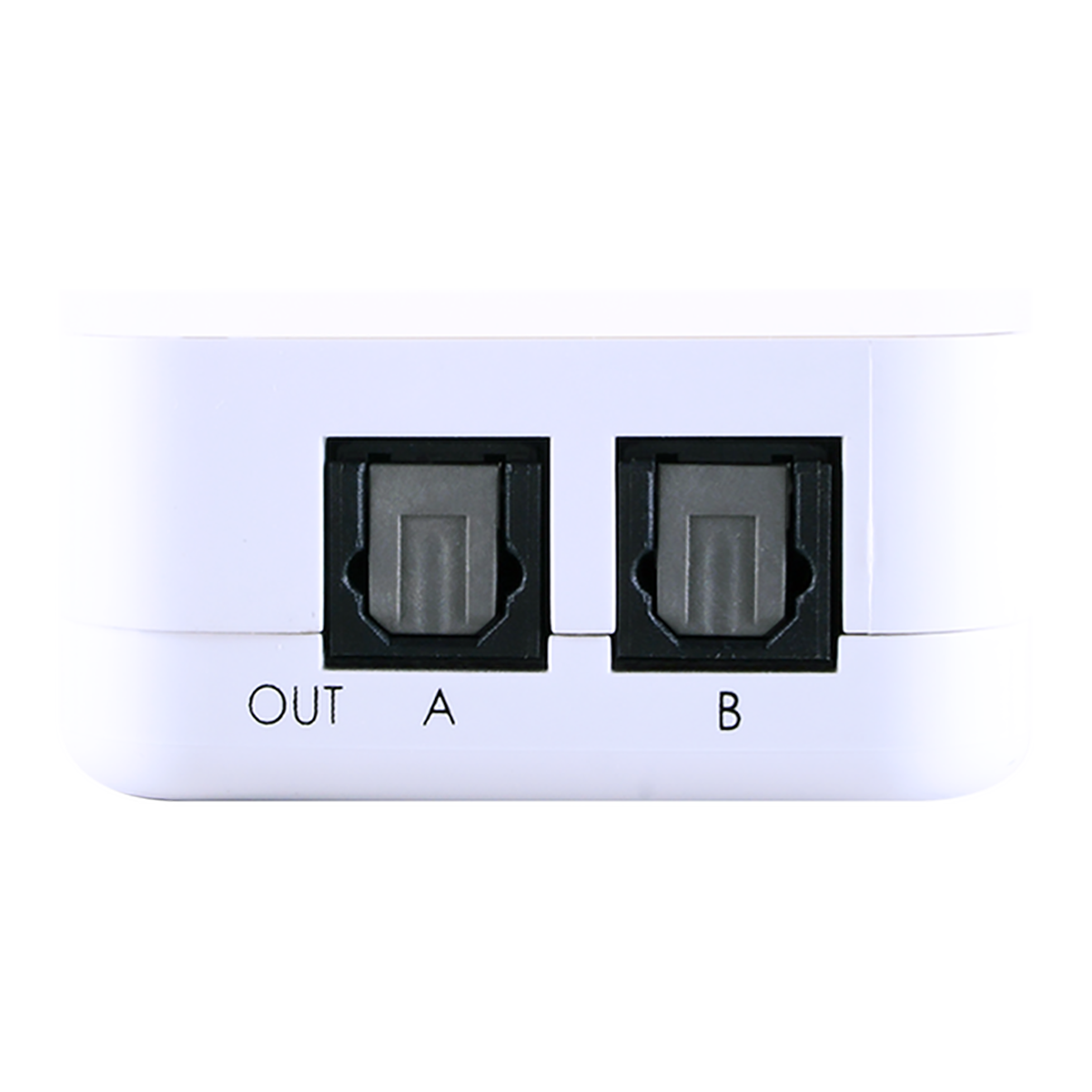

Output Ports	2×Optical (TOSLink)
Power Supply	5 V/0.5 A or 0.36 A DC (US/EU standards, CE/ FCC/UL certified)
Dimensions	46 mm (W)×45.5 mm (D)×23.5 mm (H)
Weight	22 g
Chassis Material	Plastic
Silkscreen Color	White
Operating Temperature	0 °C ~ 40 °C

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/06	DT-12 Manual	1	all	DT-12 Manual
