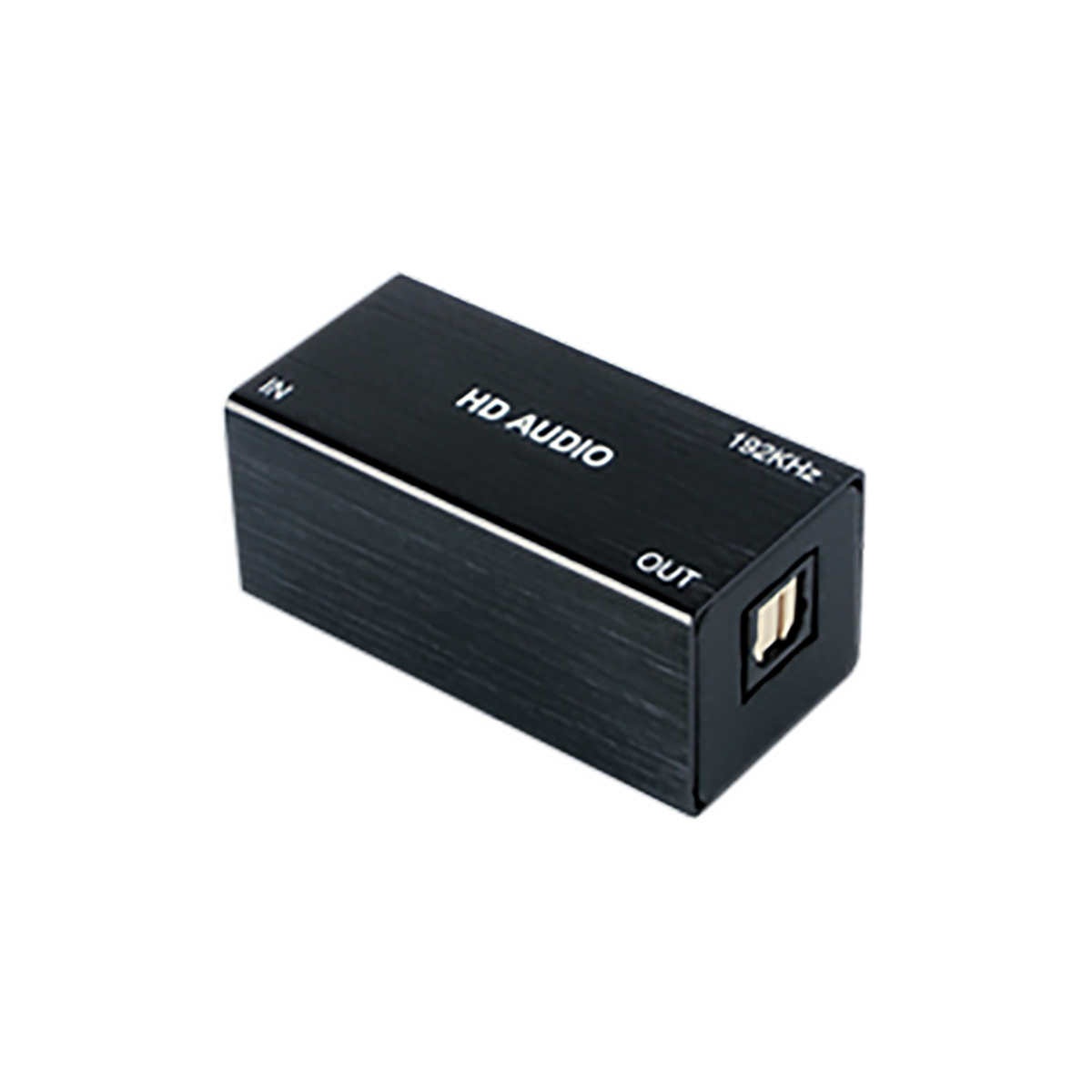

CDB-6

USB to Optical Audio Converter (up to 192kHz)

Output HD audio from your PC/laptop to an audio amplifier
Superior USB audio processor (XMOS U8A) which supports up to 192kHz/24bits sample rate
Superior optical module supporting up to 192kHz audio
Simple operation and compact design
No external power required

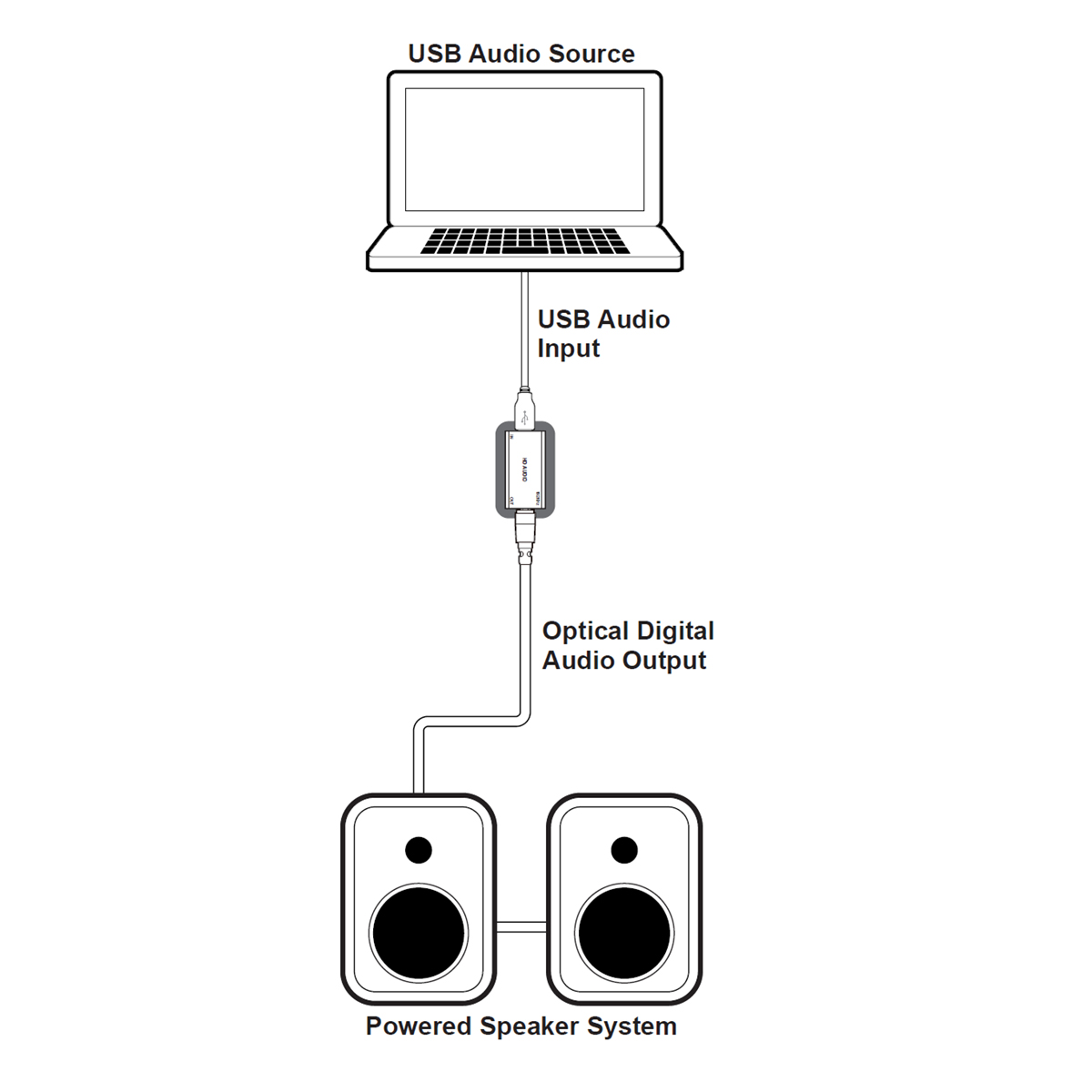

This unit is a simple but smart device and no external power is required. It allows you to connect your PC/laptop to an audio amplifier or other audio destination that has an S/PDIF input without needing a dedicated audio card. This compact HD audio product supports LPCM 2.0 audio with a maximum sampling rate of 192kHz at 24bits. This unit connects to your PC/laptop using any available USB 2.0 (or higher) port (Windows and Mac OSX compatible).

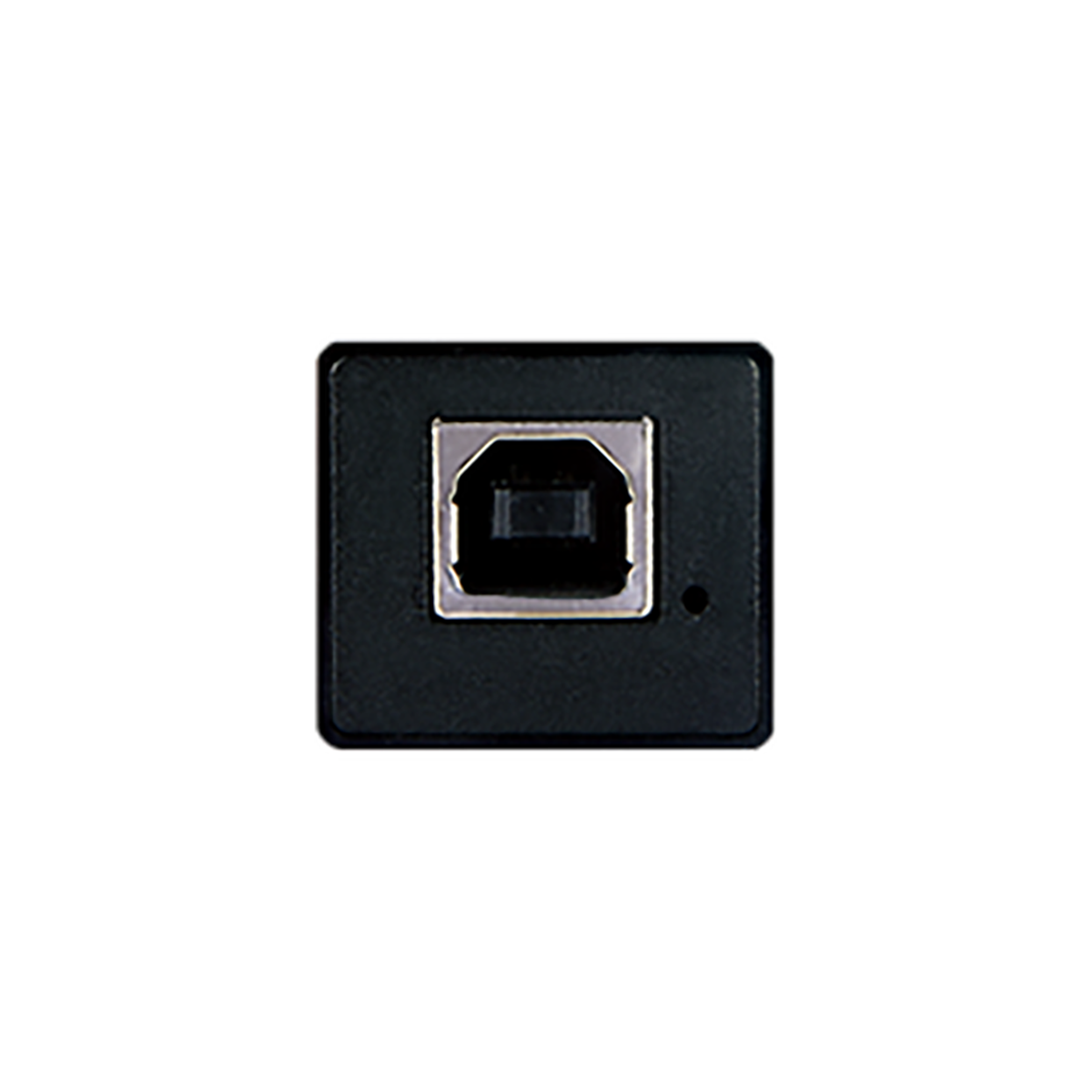

Input Port	1×USB Type-B

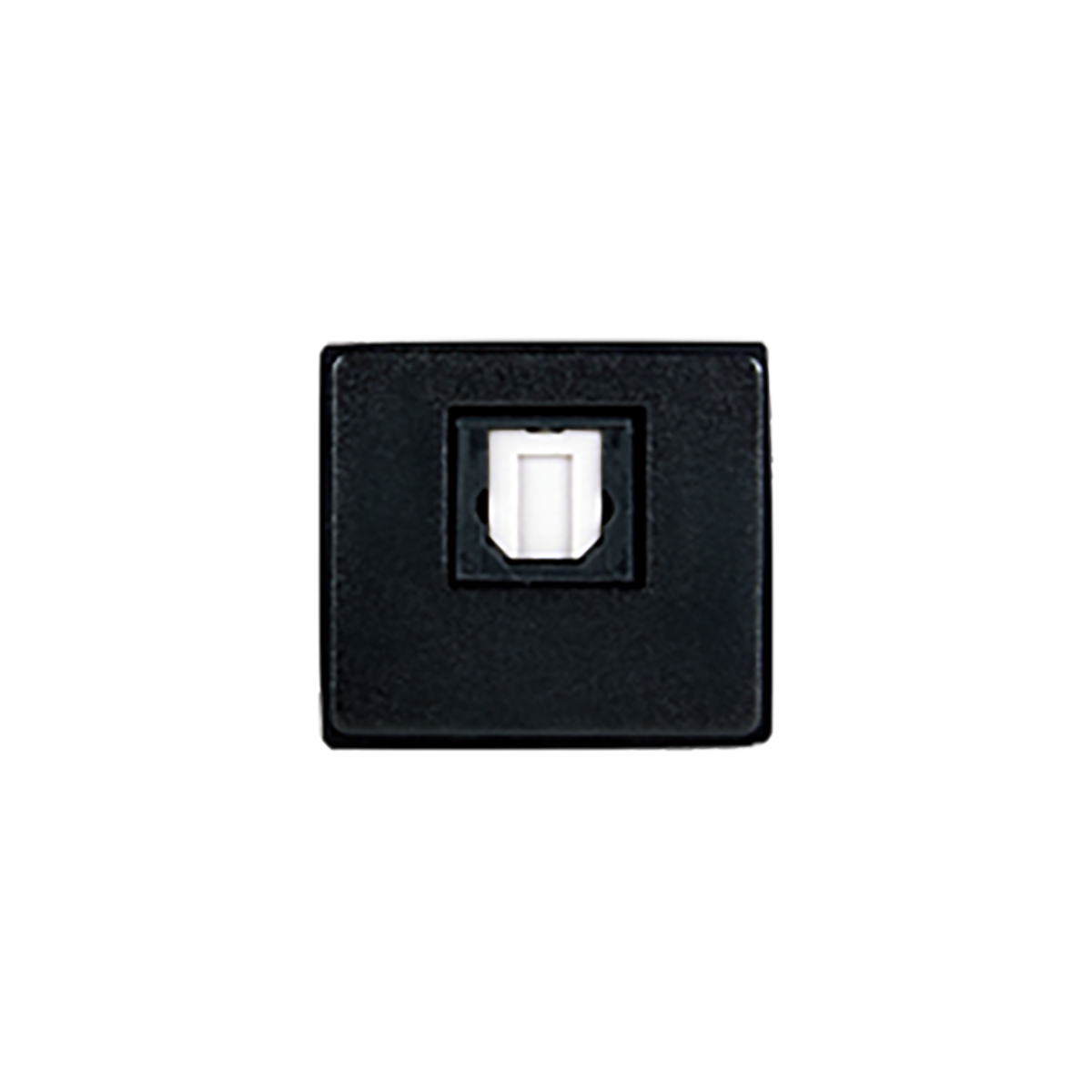

Output Port	1×TOSLINK
Input Audio Format	USB Audio 2.0
Output Audio Format	LPCM 2.0
Audio Sample Rates	44.1, 48, 88.2, 96, 176.4, 192kHz
ESD Protection	Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)
Dimensions	69mm×22.5mm×25mm (W×H×D) [Case Only] 69mm×22.5mm×25mm (W×H×D) [All Inclusive]
Weight	36g
Chassis Material	Aluminum
Silkscreen Color	Black
Operating Temperature	0˚C - 40˚C/32˚F - 104˚F
Storage Temperature	−0˚C - 60˚C/−˚F - 140˚F
Relative Humidity	20 - 90% RH (Non-condensing)
