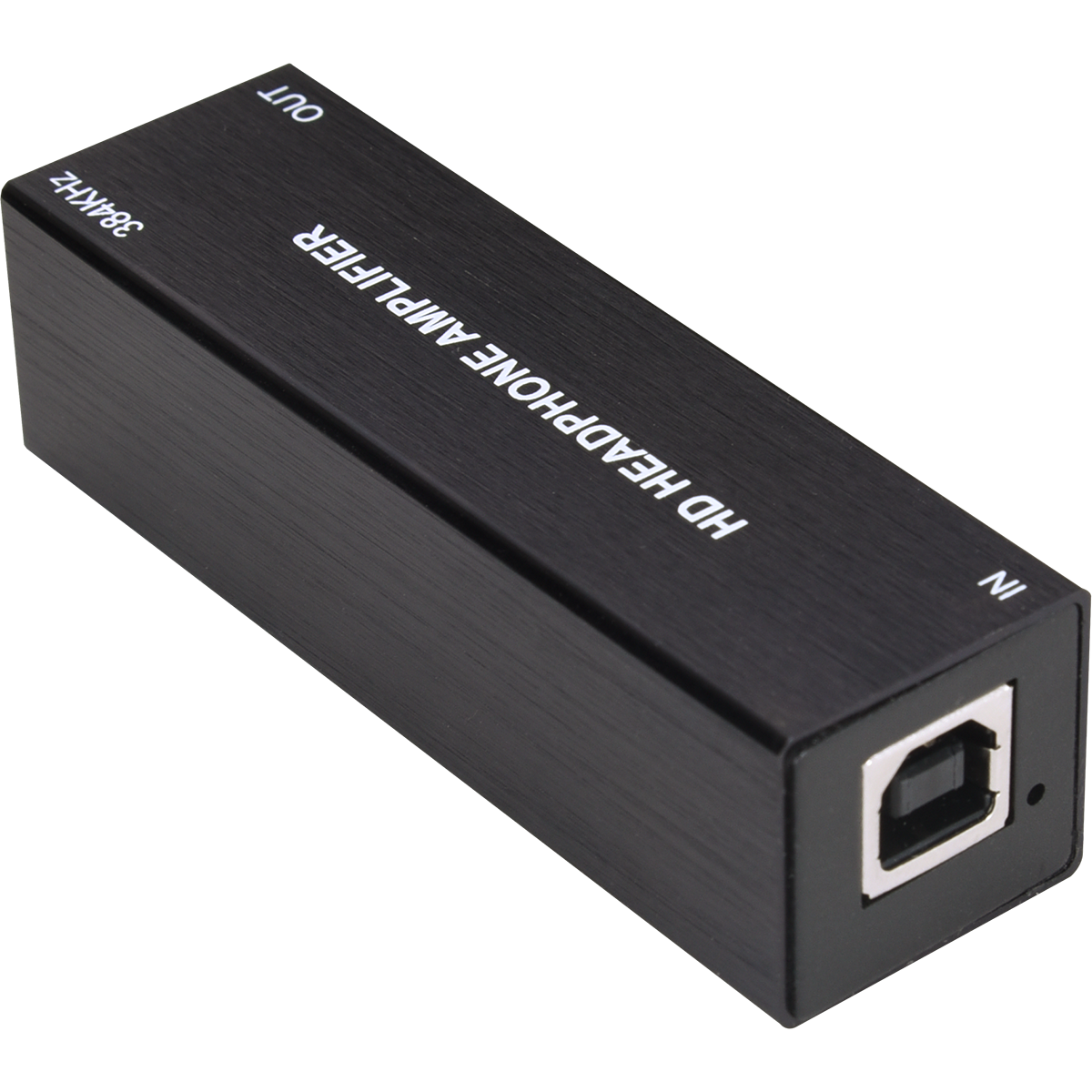

CDB-6HP

USB to Headphone Audio Converter (up to 384kHz)

Output HD audio from your PC/laptop to headphones
Superior USB audio processor which supports up to 384kHz/24bits sample rate
Superior DAC engine which supports up to 384kHz for digital to analog signal conversion
Direct-coupled amplifier for better frequency response and to avoid signal loss
Simple operation and compact design
No external power required

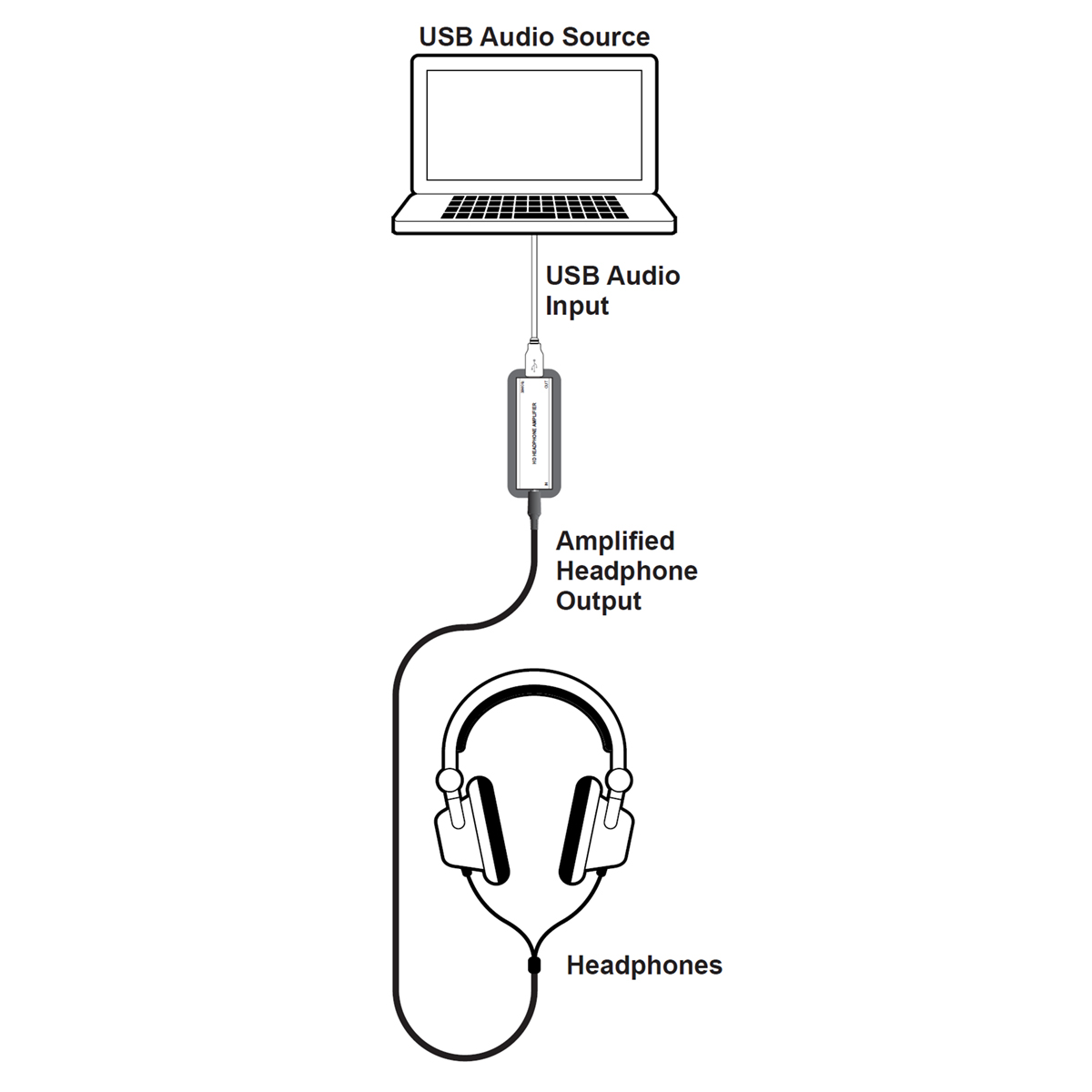

This unit is a simple but smart device and no external power is required. It allows you to connect your PC/laptop to a set of analog headphones or other analog audio destination devices for delivery of superior audio quality. This compact HD audio product supports LPCM 2.0 audio with a maximum sampling rate of 384kHz at 24bits. It utilizes a direct-coupled amplifier, for better frequency response, avoiding signal loss and providing higher audio quality than is typically delivered by a standard PC/laptop’s headphone output. This unit connects to your PC/laptop using any available USB 2.0 (or higher) port (Windows and Mac OSX compatible).

Video Bandwidth	340 MHz/10.2 Gbps
Ethernet Speed	100 Mbps
Transmitter
Inputs	1×DVI , 2×Ethernet, 1 x L/R 1×RS-232, 1×IR Extender
Outputs	1×CAT5e/6/7, 1×IR Blaster
Receiver
Inputs	1×CAT5e/6/7, 1×IR Extender
Outputs	1×DVI, 1×RS-232, 1 x L/R 2 ×Ethernet, 1×IR Blaster
DVI In/Out Cable Distance	Up to 6 Meters
CAT6 In/Out Cable Distance	Up to 100 Meters
DVI In/Out Supports Resolution	480i~1080p@50/60, 1080p@24, VGA~WUXGA(Dual Link DVI Not Supported)
IR Frequency	30~50 kHz
ESD Protection	Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Power Supply	24 V/1.25 A DC (US/EU Standards, CE/FCC/ UL certified)
Dimensions	125 mm(W) x 123 mm (D) x 30 mm (H)/Jacks Excluded 125 mm(W) x 135 mm (D) x 30 mm (H)/ Jacks Included
Weight	384 g (TXC) 392 g (RXC)
Chassis Material	Aluminum
Silkscreen Color	Black
Operating Temperature	0˚C~40˚C/32˚F~104˚F
Storage Temperature	−20 ˚C~60 ˚C/−˚F~140 ˚F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	13 W

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/06/11	CDB-6HP_Manual	-	-	CDB-6HP_Manual
2025/03/07	CDB-6 / CDB-6HP / CDB-6HR_Driver_V3.20.0	V3.20.0	-	CDB-6 / CDB-6HP / CDB-6HR_Driver_V3.20.0
