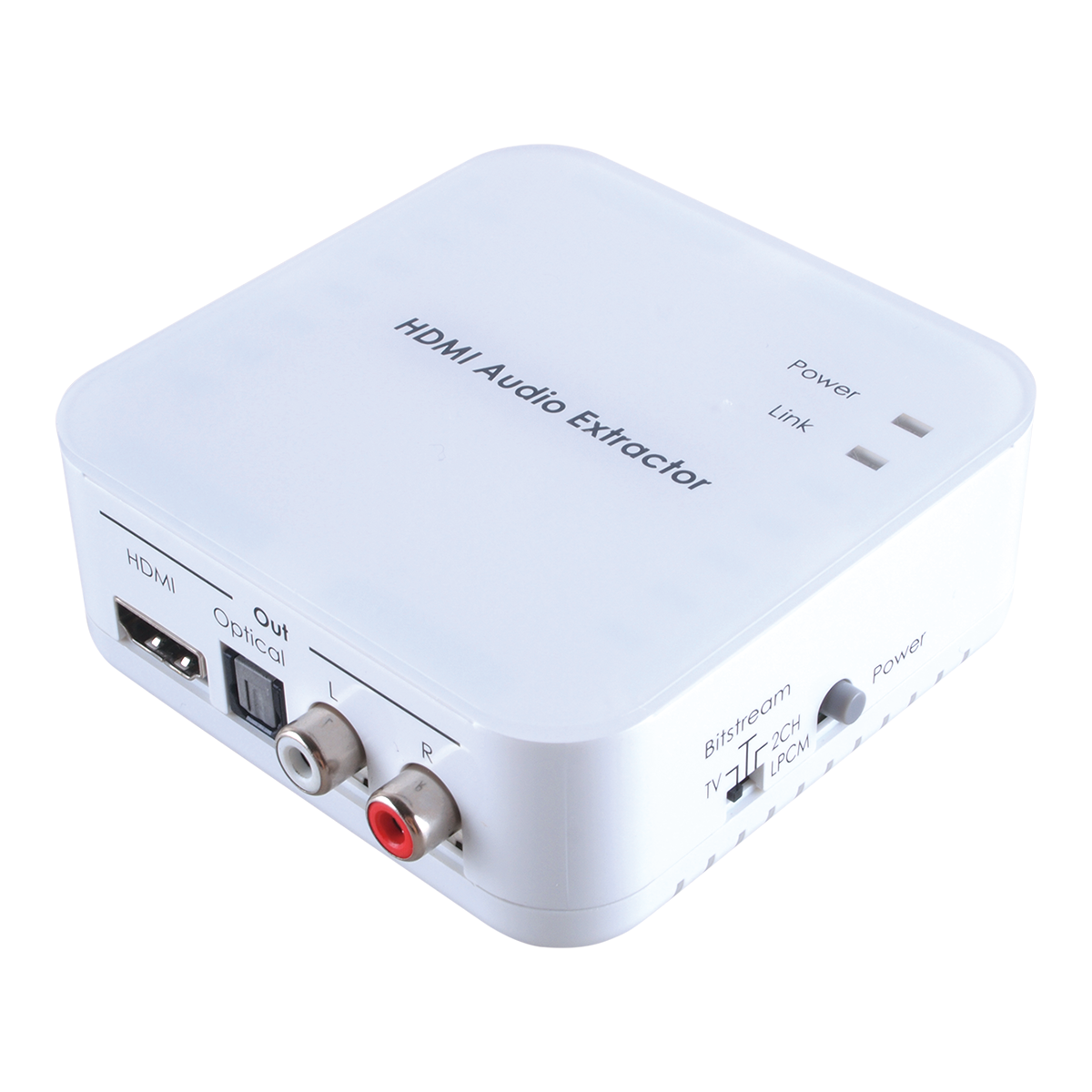

CLUX-11CD

HDMI Audio Extractor (up to LPCM 2CH)

Compliant with HDMI, HDCP 1.2 and DVI 1.0
Supports HDMI audio sampling rates up to 192 kHz
Supports Optical S/PDIF sampling rates up to 48 kHz
Supports TMDS clock frequency rate 225 MHz
Supports high-bit-rate (HBR) audio
No HDMI output connection is required to receive audio at the analog and optical outputs
Maximum input and output HDMI cable length can run up to 15 meters at 1080p at 8-bit resolution
Low power consumption
Supports EDID management for audio formats, can switch among builtin EDID (LPCM 2CH/Bitstream) and external EDID (TV)
Supports 3D signal

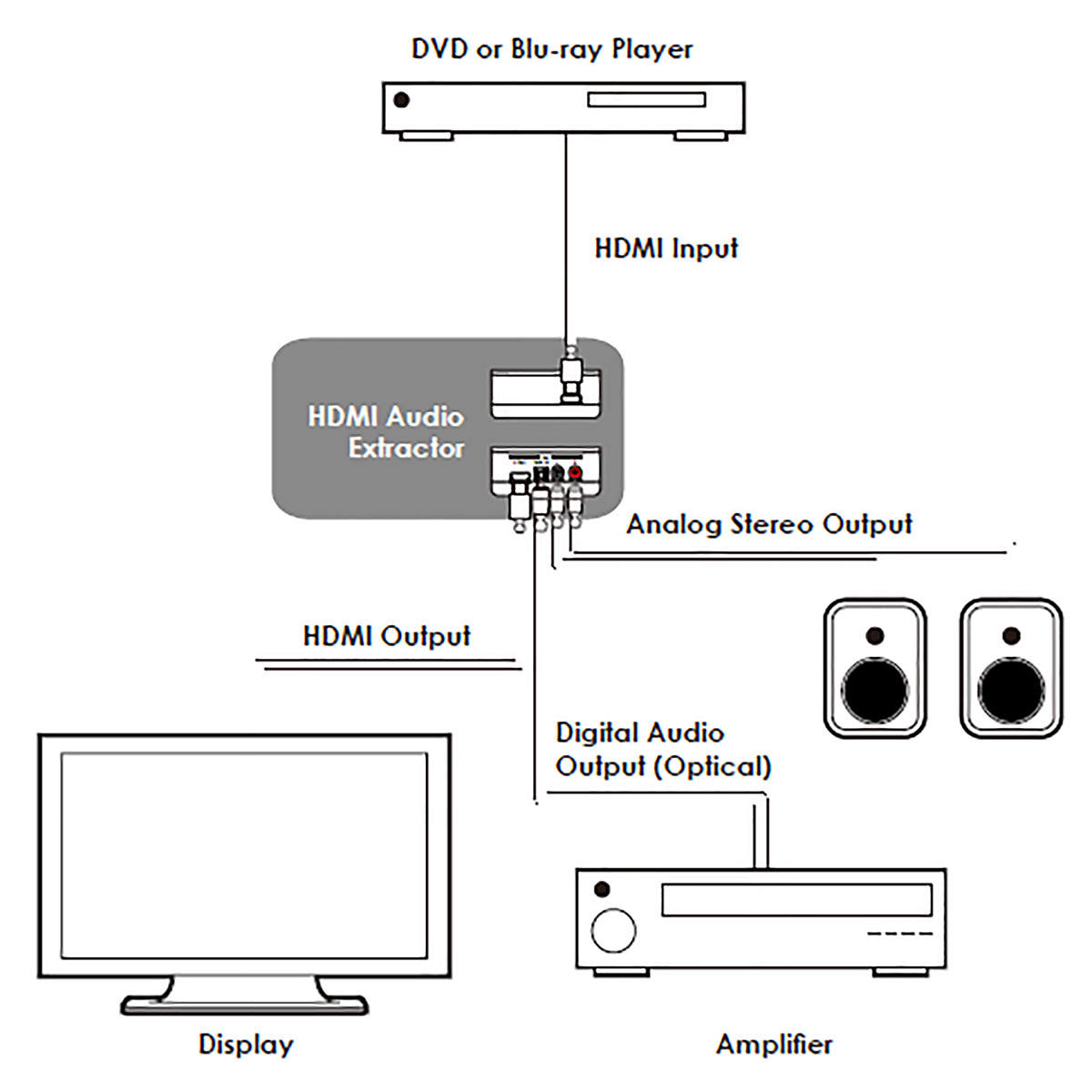

The HDMI Audio Extractor allows you to extract audio signals from your HDMI source. When connecting to a TV or display you don’t always get the best audio, or in the case of a PC monitor, no audio at all. So with this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analog Stereo (L/R) audio. This means that you can output your audio signal to external speakers or extend your audio signal pathway.

Interfaces
Input Port	1×HDMI
Output Port	1×HDMI 1×Optical 1×L/R

Interfaces

Input Port

1×HDMI

Output Port

1×HDMI

1×Optical

1×L/R

Power
Power Supply	5 V/1 A linear power adaptor (US/EU Standards, CE/FCC/UL Certified) Or 5 V/1.2 A switching power adaptor (with universal plug, CE/FCC/UL certified)
Power Consumption	2.1 W

Power

Power Supply

5 V/1 A linear power adaptor

(US/EU Standards, CE/FCC/UL Certified)

5 V/1.2 A switching power adaptor

(with universal plug, CE/FCC/UL certified)

Power Consumption

2.1 W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	90.7 mm × 34 mm × 85.8 mm
Weight	107g

ORDERING INFORMATION
Model No.	Product Description
CLUX-11CD	HDMI Audio Extractor

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/06/24	CLUX-11CD Manual	-	-	CLUX-11CD Manual
