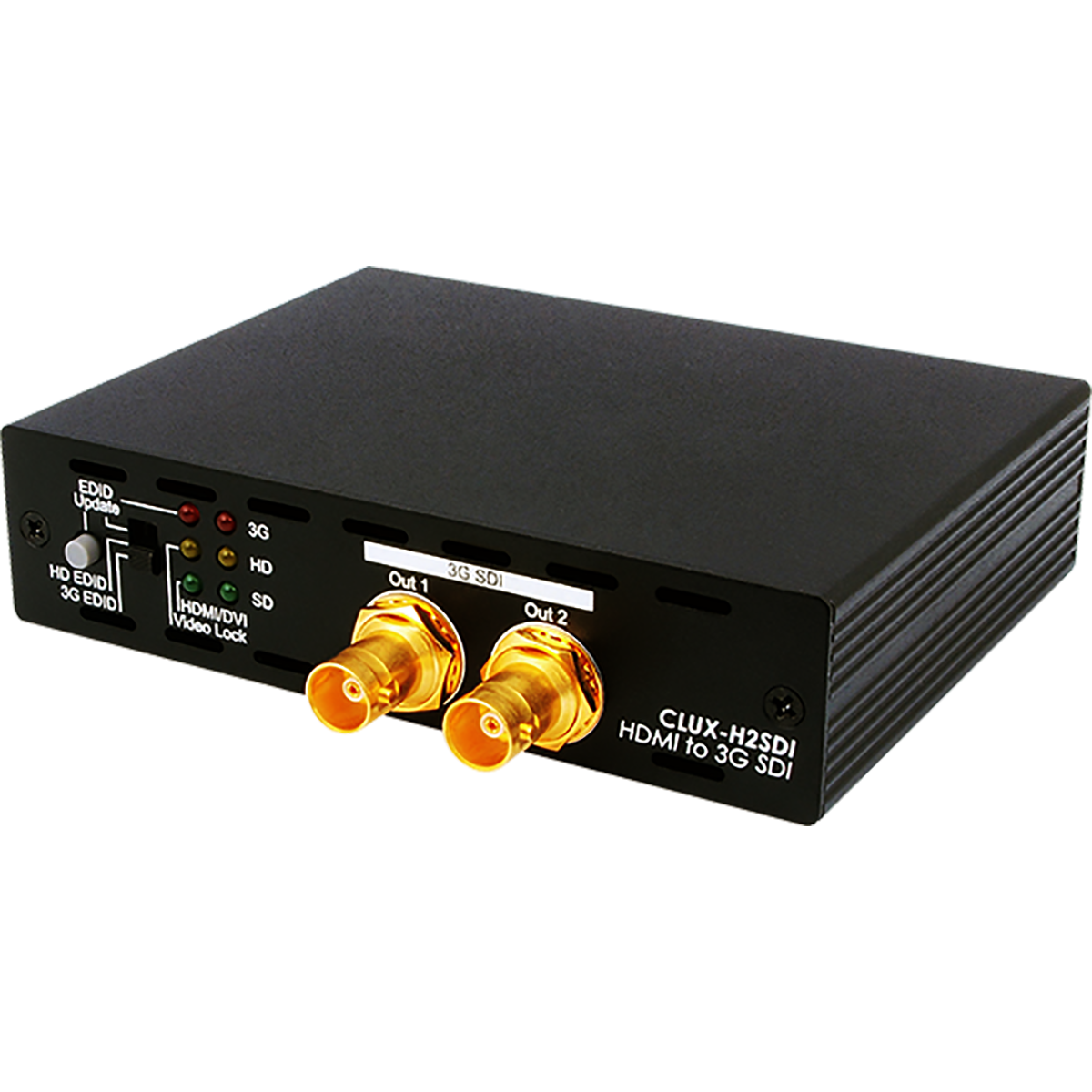

Converter

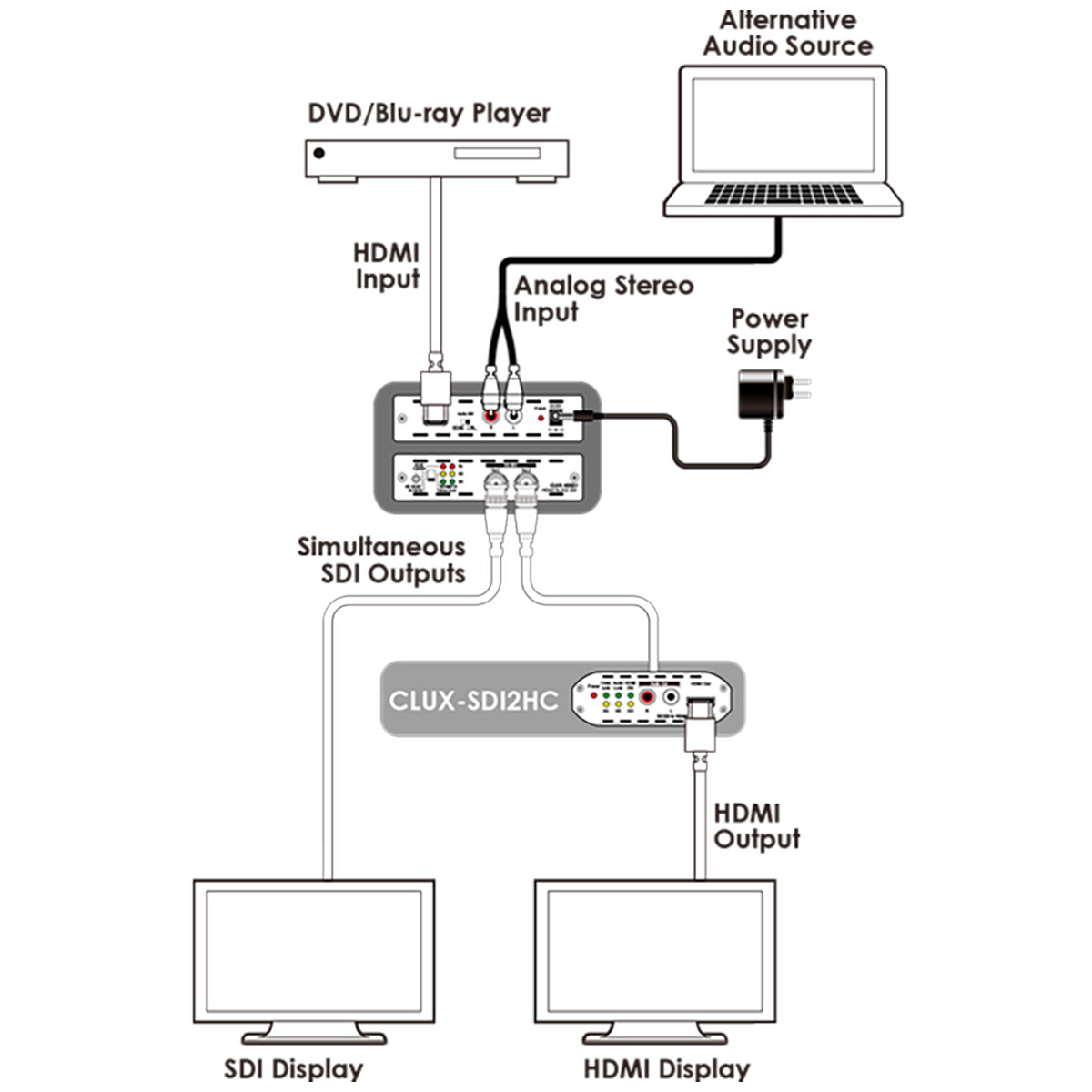

• Shows HDMI source on two SDI displays simultaneously
• SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
• Converts HDMI signal to SDI:

1. 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

2. 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

3. 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

• Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60

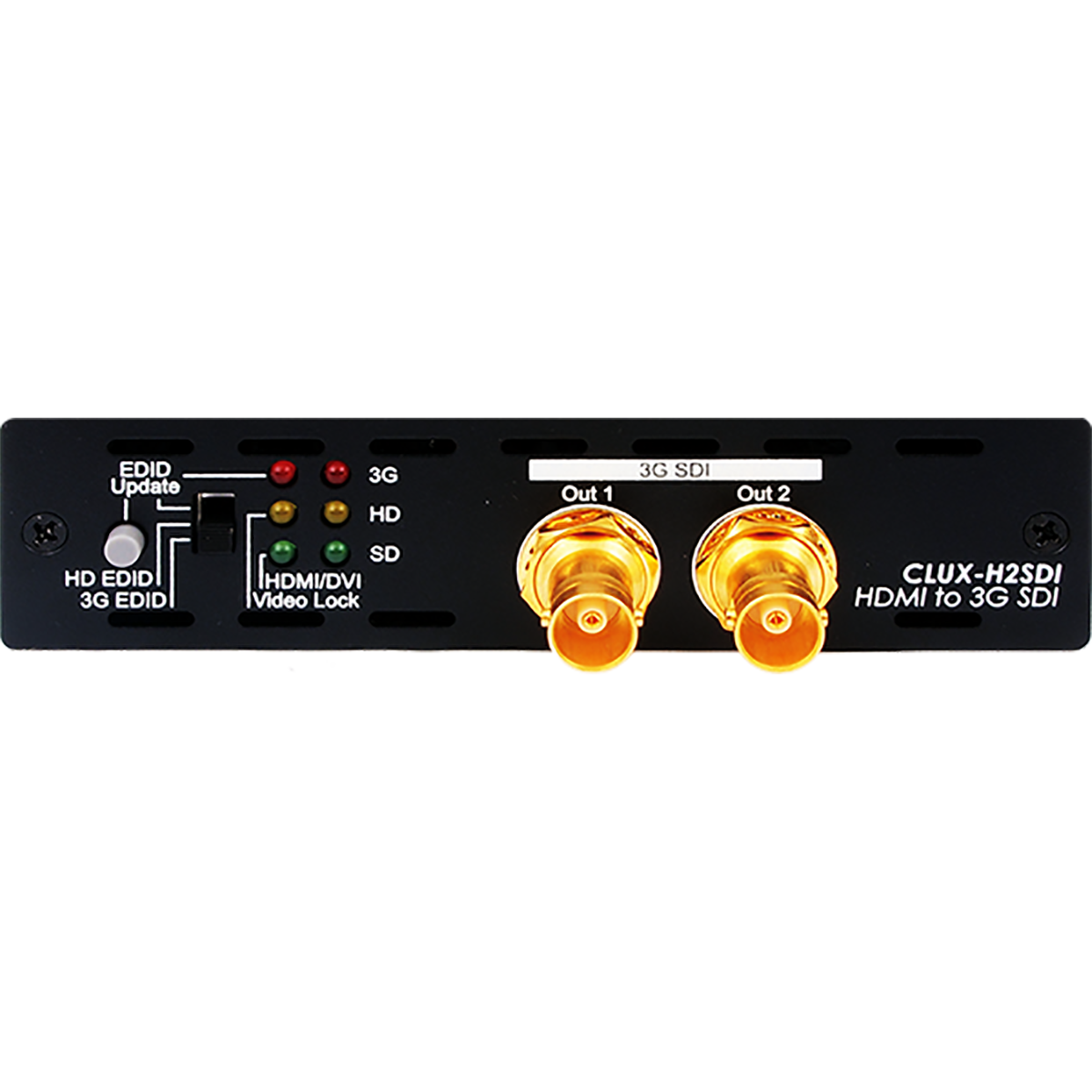

• Choose between a selectable EDID and recordable EDID

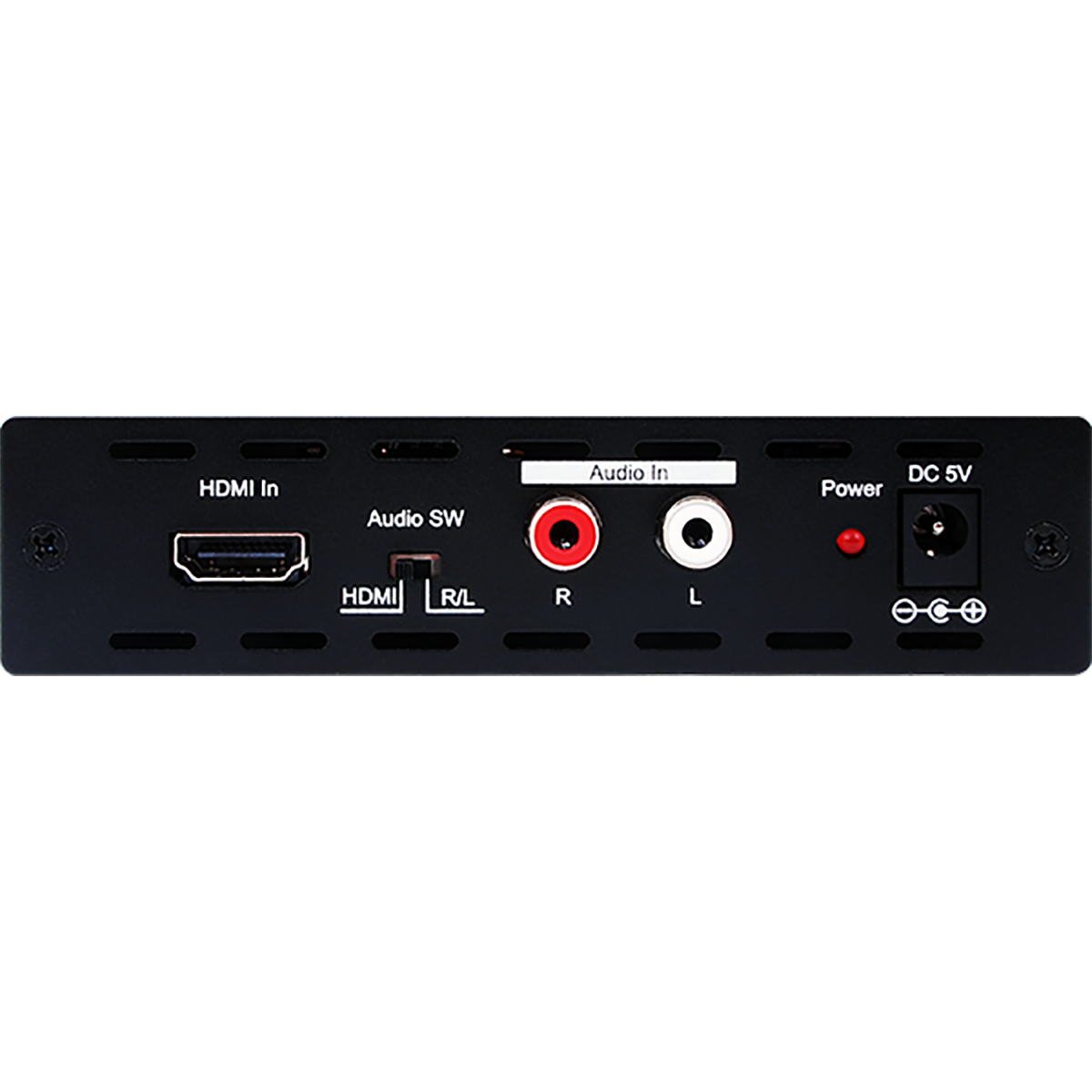

• Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2 CH (external L/R) for DVI audio
• Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Note:

1. Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications.

2. This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted.
