DCT-25

DCT-25 EOL

Replacement Model >DCT-37

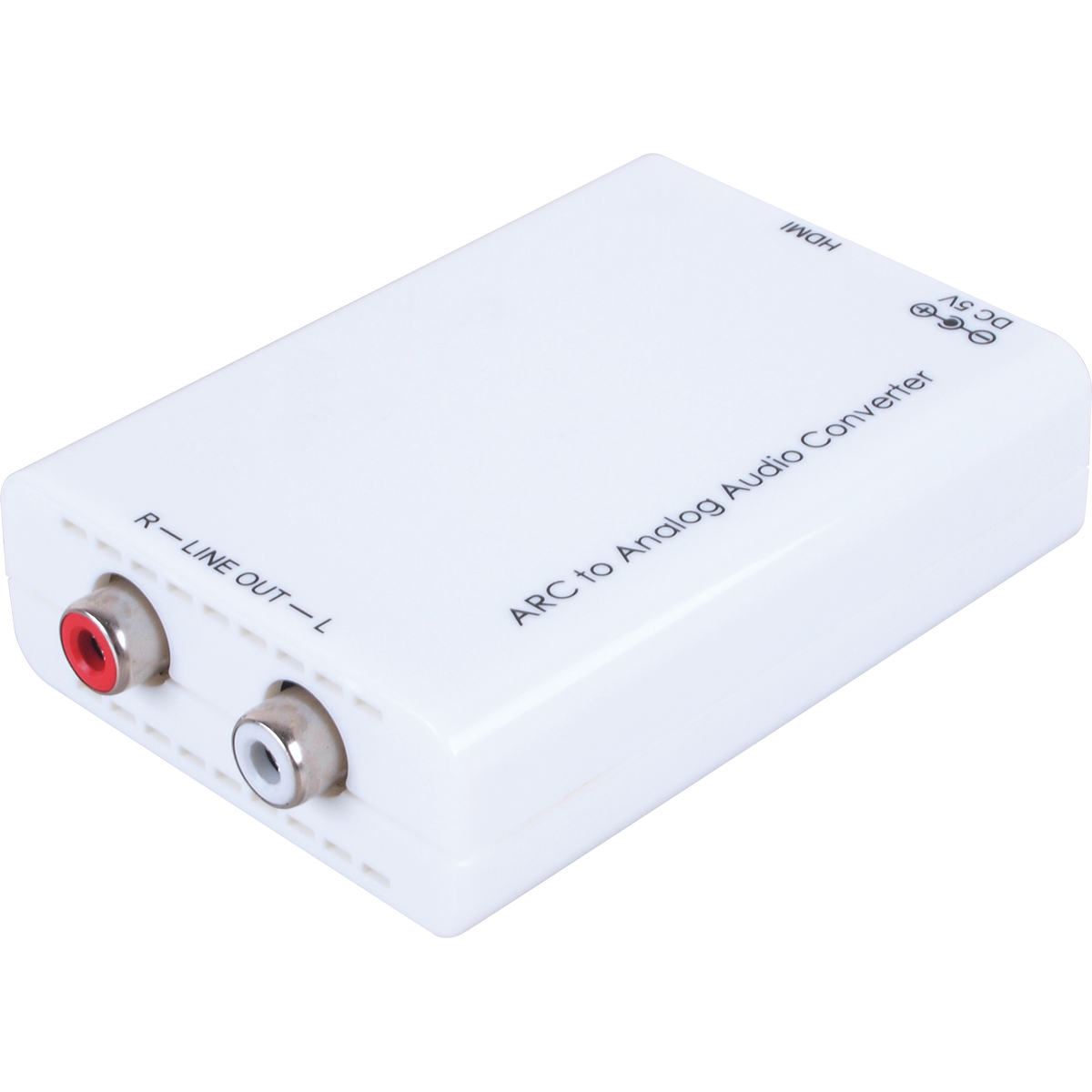

ARC to Analog Audio Converter

Supports Digital to Analog audio Conversion (DAC)
Extracts the HDMI audio signal from an HDTV’s ARC connection and convert it to an Line-level analog stereo output
Supports HDMI sampling rate up to 192kHz
Synchronous output sound on TV and Line out
Supports volume control from TV’s remote control via CEC function
Plug and play with no software require

Note: To ensure the ARC audio performance, an HDMI standard ARC cable is required.

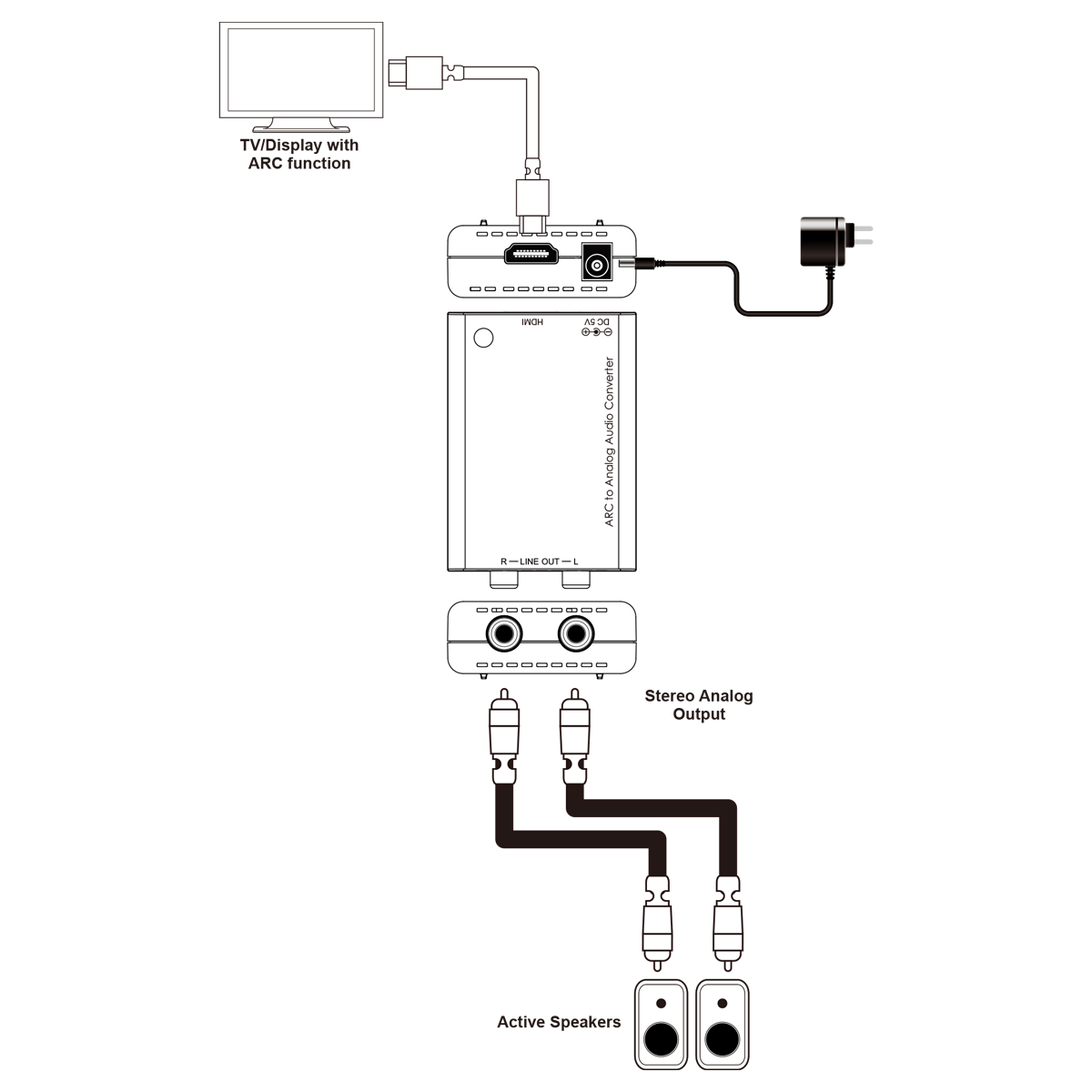

The ARC to Analog Audio Converter is designed to extract audio signal from an HDTV’s HDMI ARC (Audio Return Channel) connection and convert it to an analog stereo signal, allowing the connection of an HDTV with HDMI-only output to non-HDMI equipped amplifiers, AV receivers or Active Speakers. It supports HDMI audio sampling rates up to 192kHz and analog stereo 2CH audio output.

Interfaces
HDMI ARC port	1 HDMI
Output Port	1 Analog Stereo (2RCA)

Power
Power Supply	5V/1A DC
Power Consumption	0.72W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	55mm x 22.5mm x 75.5mm [Case Only] 55mm x 22.5mm x 80.5mm [All Inclusive]
Weight	46g

Ordering Information
Model No.	Product Description
DCT-25	ARC to Analog Audio Converter

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/19	DCT-25_Manual	1	all	DCT-25_Manual
