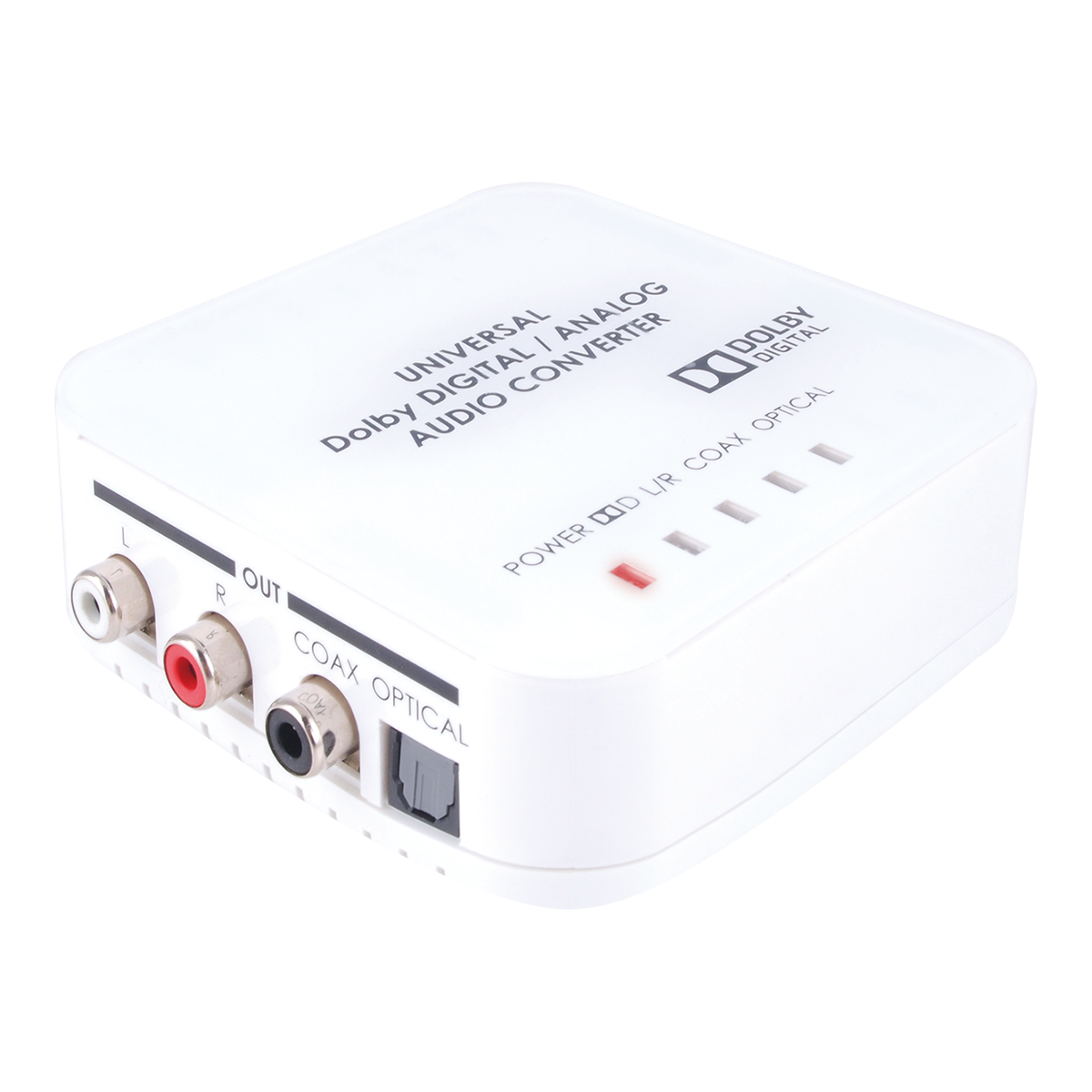

DCT-9DN

Universal Digital/Analog Audio Converter with Dolby® Digital Decoder

Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
Integrated Analog–to-Digital Converter (ADC)
Supports LPCM input sampling rates from 32 to 96 kHz
Output sampling rates is adjusted to 48 kHz
Supports Dolby Digital audio downmixing to 2CH audio
Supports Dolby Digital sampling rate 48kHz
Provides electromagnetic-noise-free transmission
Easy to install and operate
Compact and elegant design

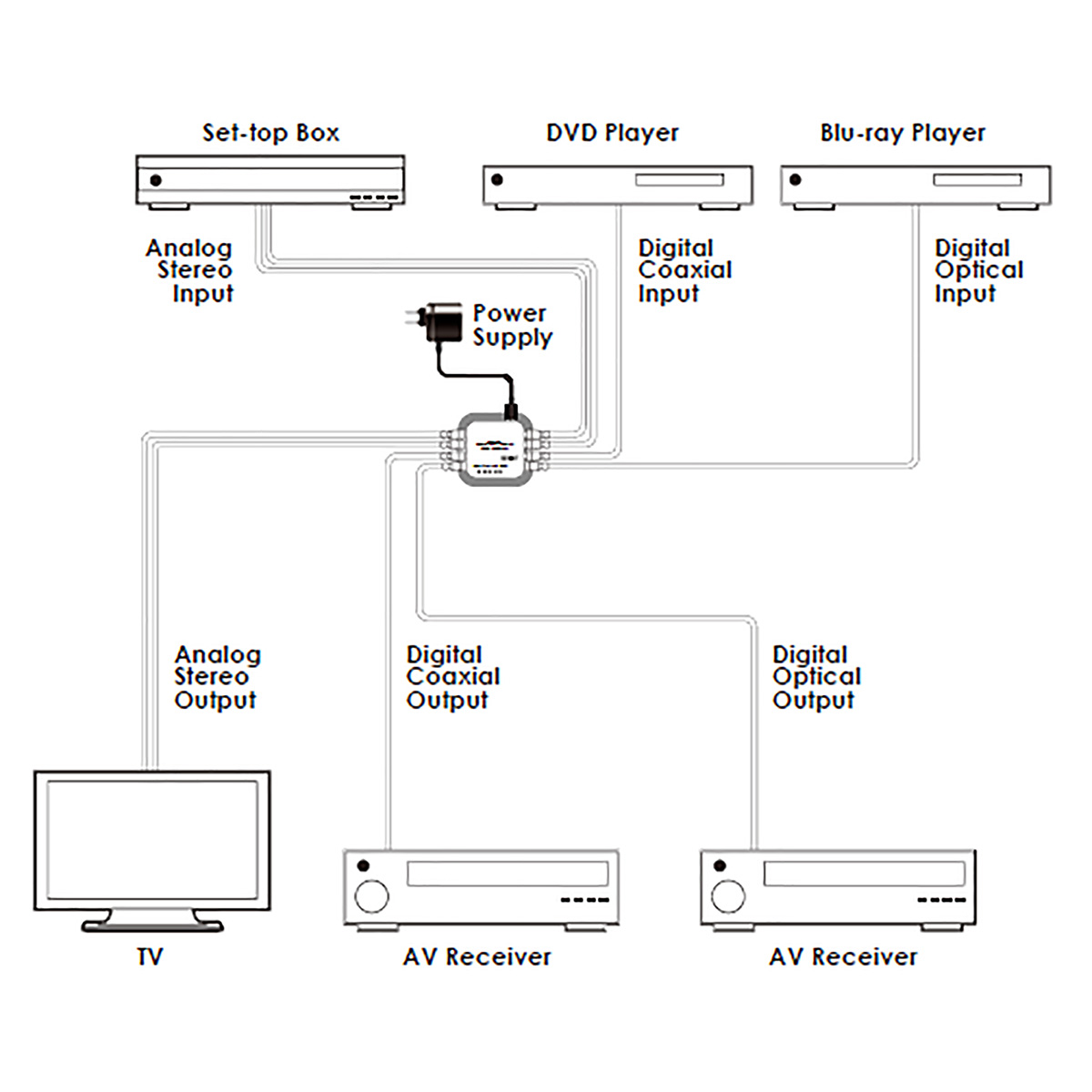

The Universal Digital/Analog Audio Converter with Dolby Digital decoder can convert among Optical, Coaxial and analog audio signals. With the ability to convert digital signals into analog and analog signals into digital, this device supports the simultaneous conversion of audio formats so when converting Optical into analog audio you can also convert it into Coaxial. Therefore, if you find yourself limited by multiple audio formats the Universal Digital/Analog Audio Converter with Dolby Digital decoder is the perfect choice.

Interfaces

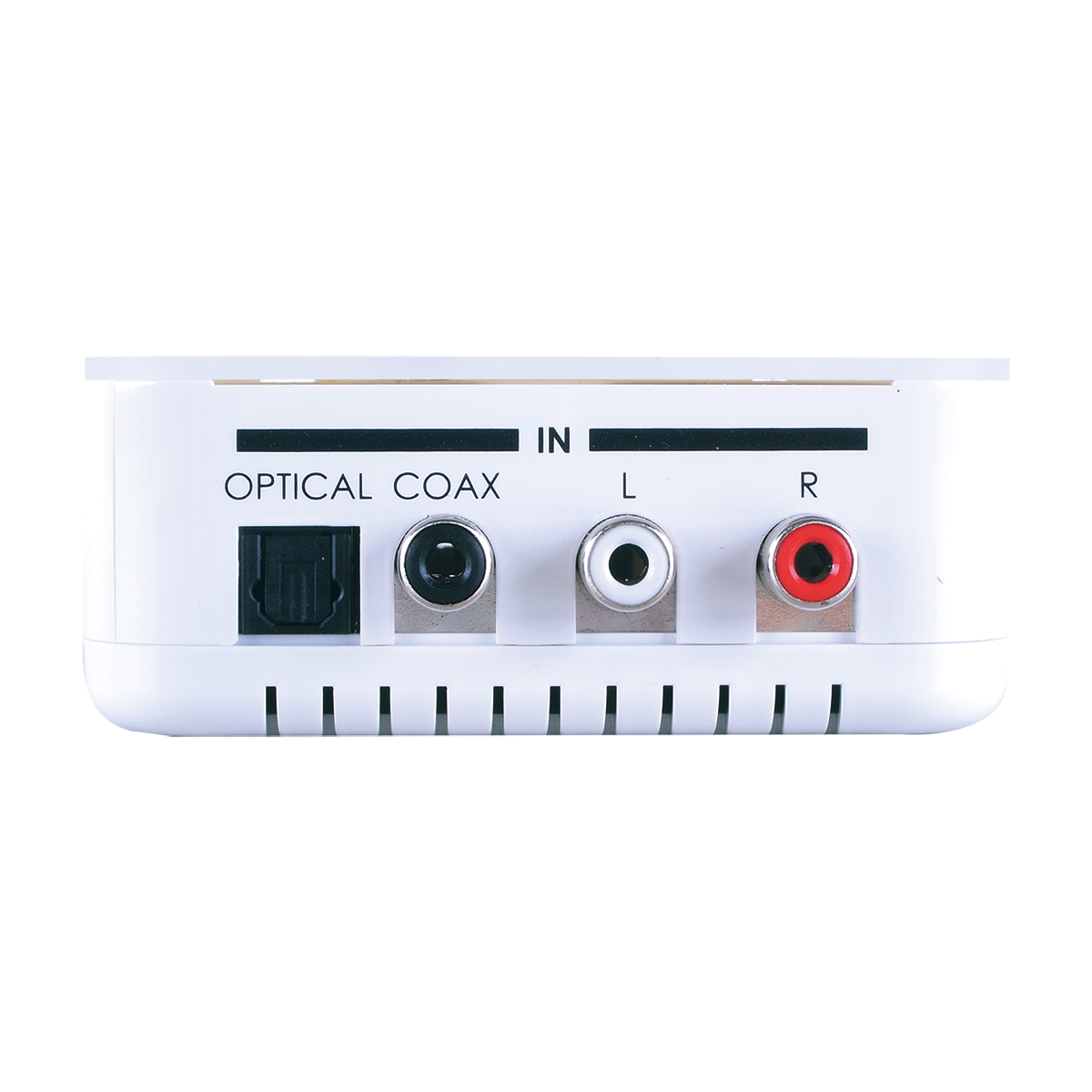

Input Port	1 Optical 1 Coaxial, 1 Analog Stereo (L/R)

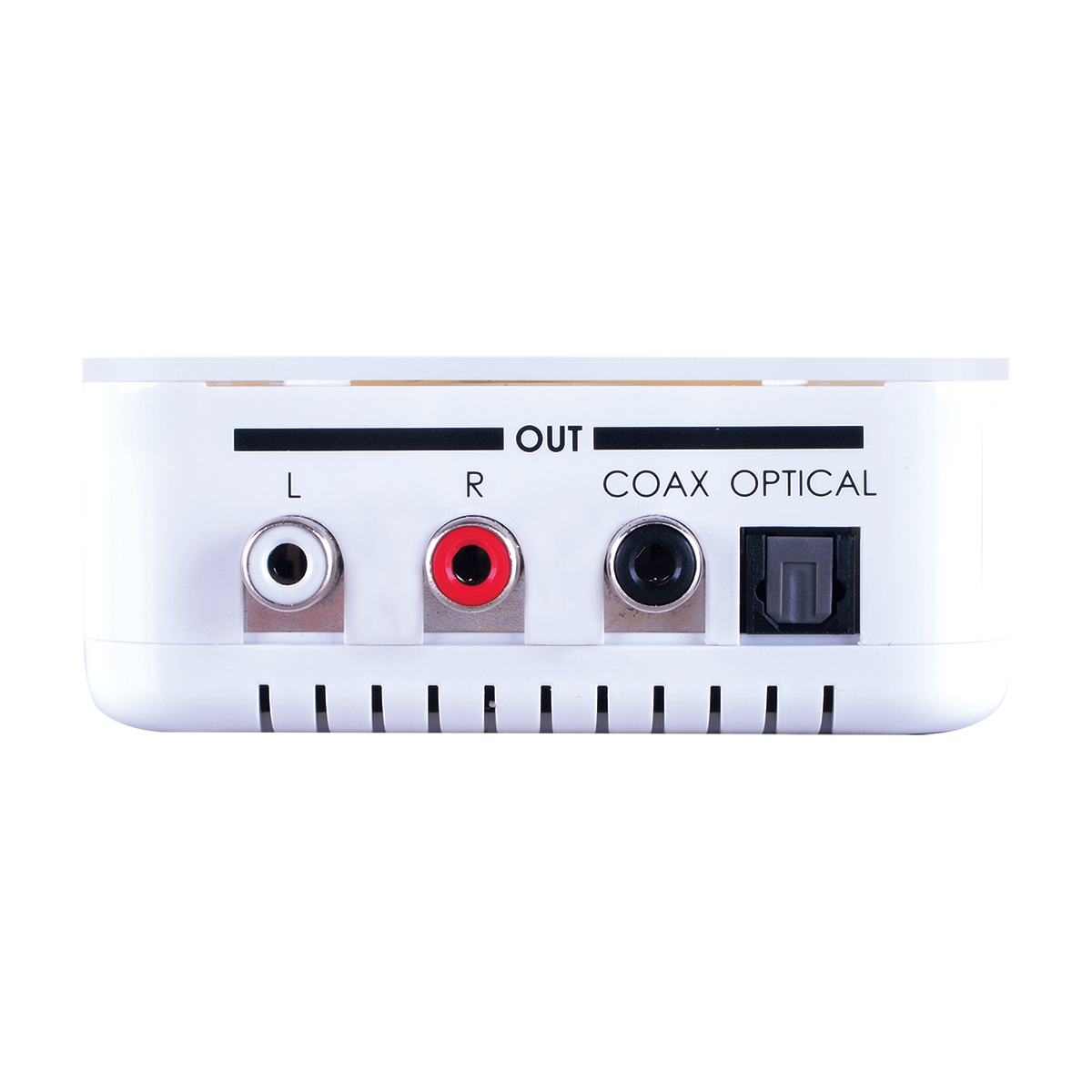

Output Port	1 Coaxial 1 Optical 1 Analog Stereo (L/R)

Power

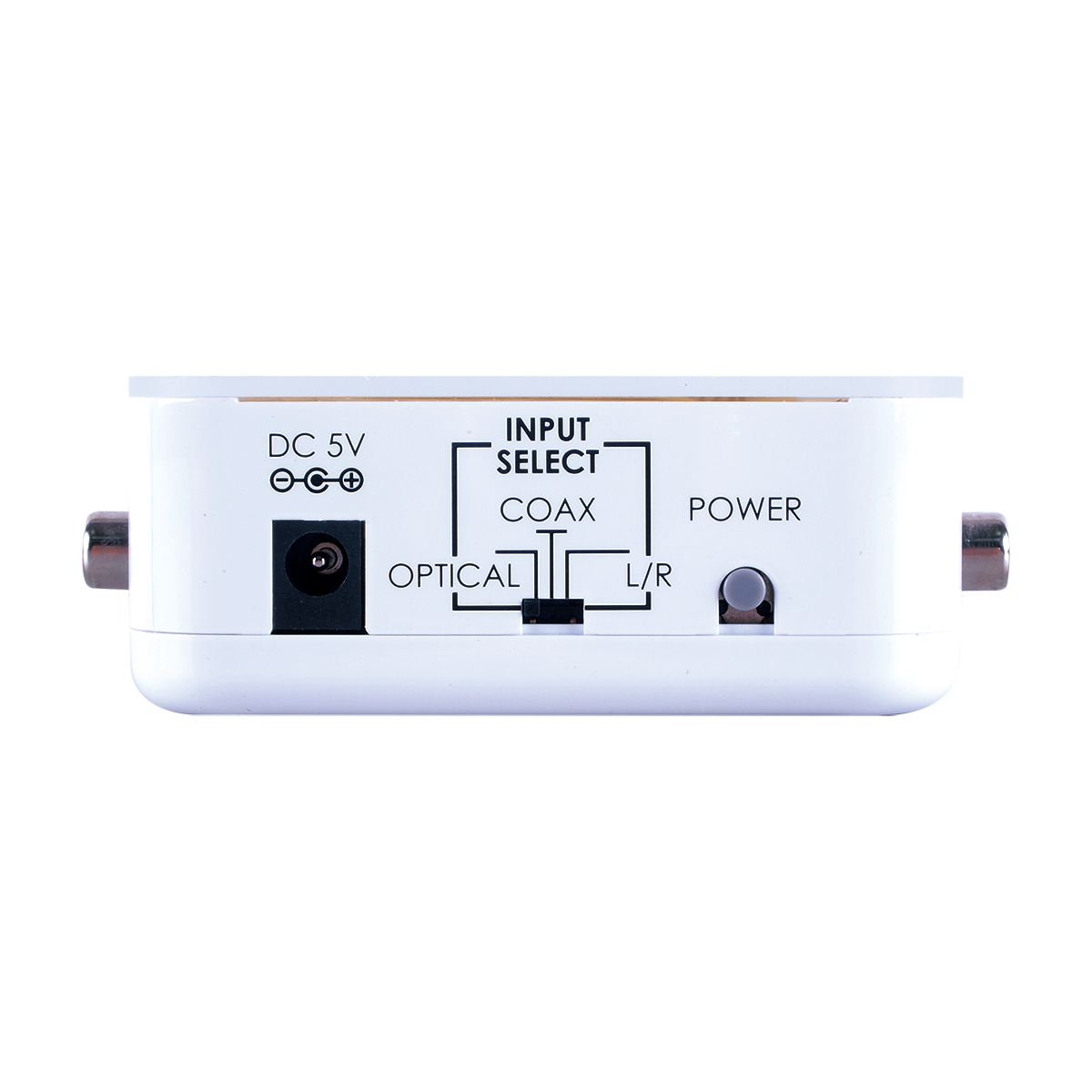

Power Supply	5V/1A DC
Power Consumption	2.1 W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	97 mm × 35 mm × 85 mm [All Inclusive]
Weight	110g

Ordering Information
Model No.	Product Description
DCT-9DN	Universal Digital/Analog Audio Converter with Dolby® Digital Decoder

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/18	DCT-9DN_Manual	1	all	DCT-9DN_Manual
