Extender

CPLUS-V11PE8

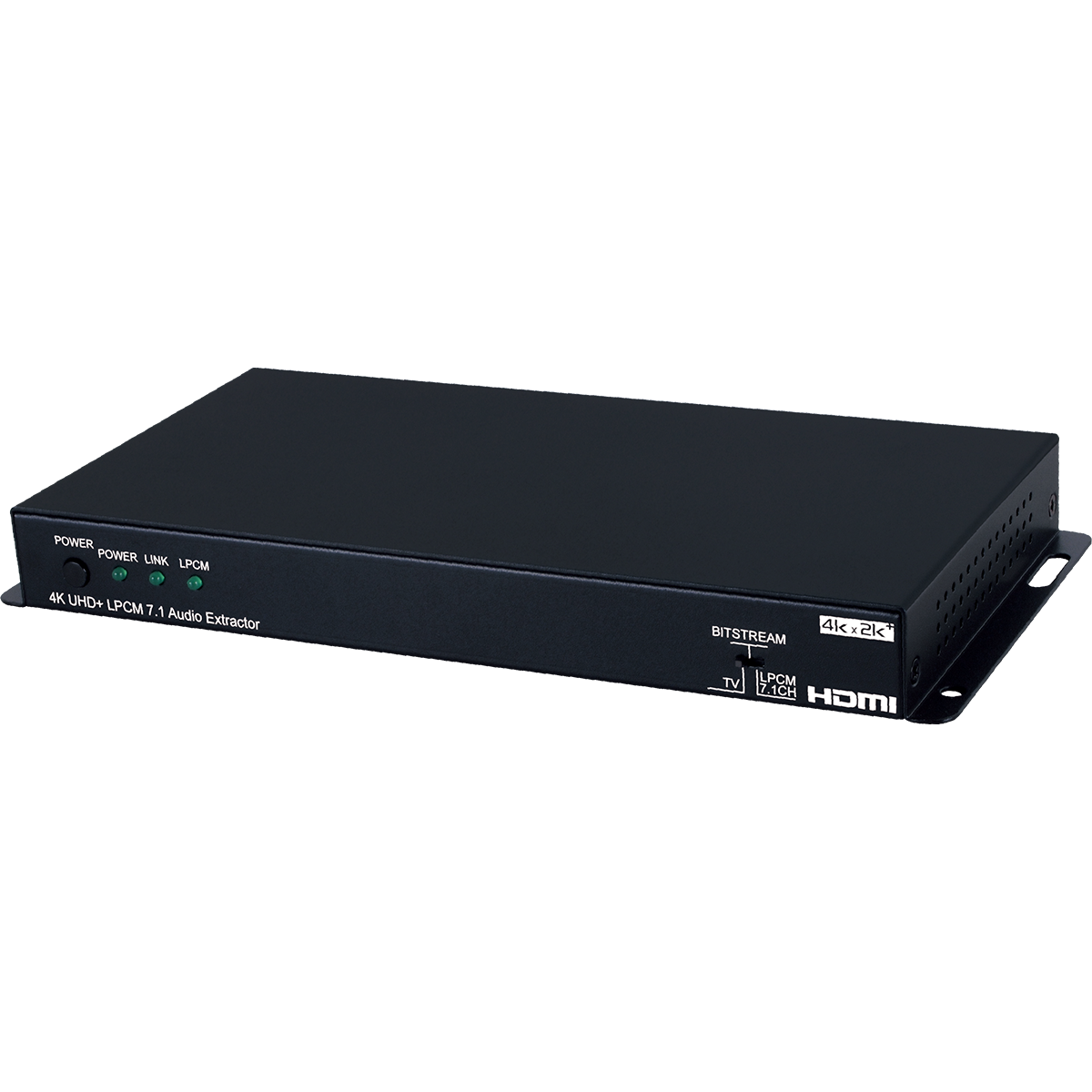

4K UHD+ HDMI Audio Extractor

  • HDMI input and output with 18Gbps (600MHz) 4K UHD support
  • DVI 1.0 compatible with the use of an HDMI-DVI adaptor
  • HDCP 1.4 and 2.2 compliant
  • Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
  • Supports 48-bit Deep Color up to 1080p@60Hz
  • 2 slots for user-created EDIDs, and EDID bypass support
  • Supports CEC passthrough
  • Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
  • Audio extraction of LPCM 7.1 sources to 8 channel analog output and S/PDIF (S/PDIF output is limited to 2 channel source support)
  • Audio extraction of Bitstream sources to S/PDIF output (analog output will be muted)
  • Supports HDMI and S/PDIF audio sampling rates up to 192kHz
  • Provides EDID management with EDID bypass and 2 user modifiable EDIDs
  • PC based EDID management tool support
  • Supports RS-232 style control via a Virtual COM port over USB
