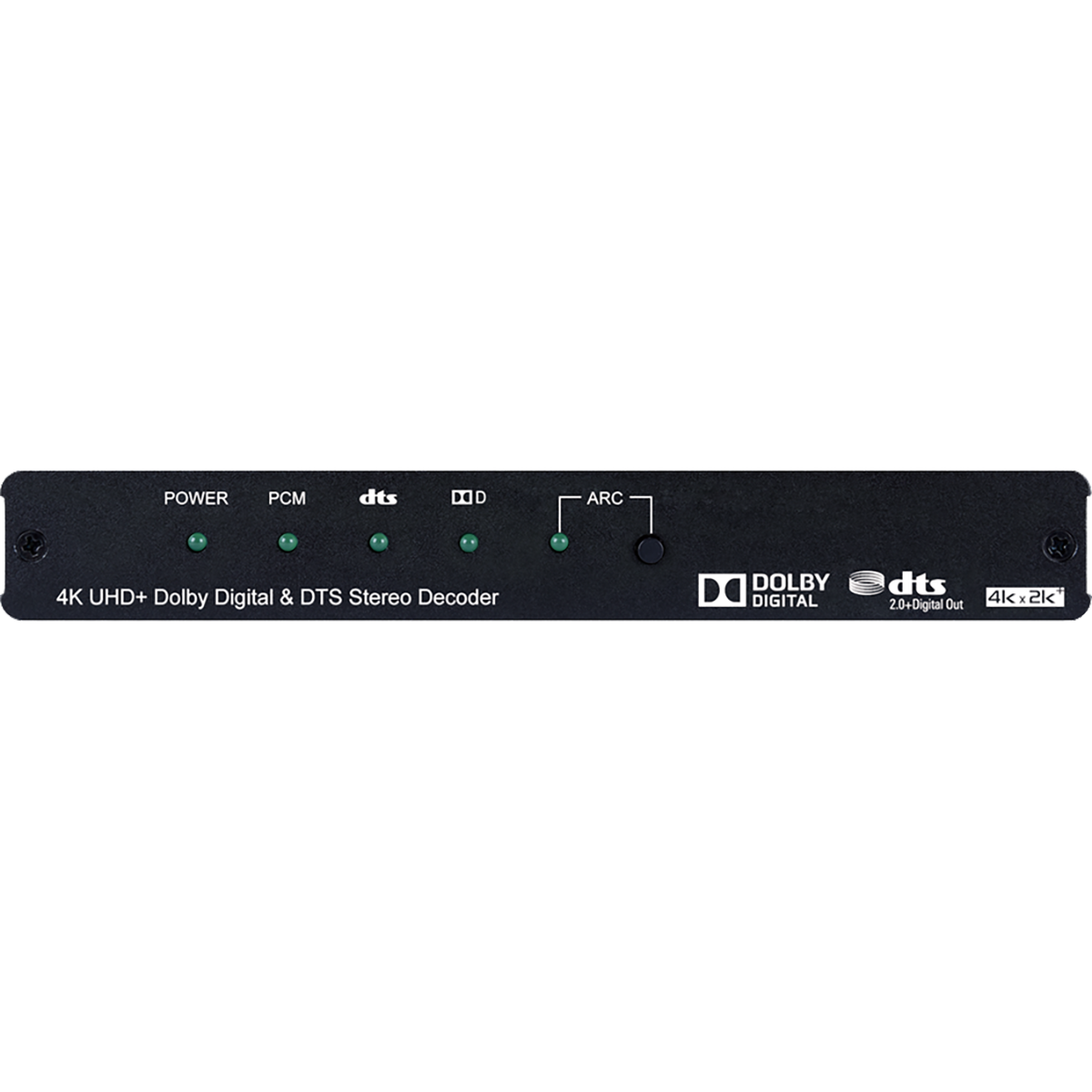

CPLUS-VPE2DD
4K UHD+ HDMI Dolby Digital & DTS Stereo Decoder
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- DVI 1.0 compatible with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
- Supports 48-bit Deep Color up to 1080p@60Hz
- Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
- Embedded Dolby Digital Decoder technology
- Embedded DTS 2.0+Digital Out Decoder technology
- Integrated digital interpolation filter and Digital-to-Analog Converter (DAC)
- Supports LPCM sampling rates up to 96kHz
- Supports Dolby Digital sampling rates up to 48kHz
- Supports DTS sampling rates up to 96kHz

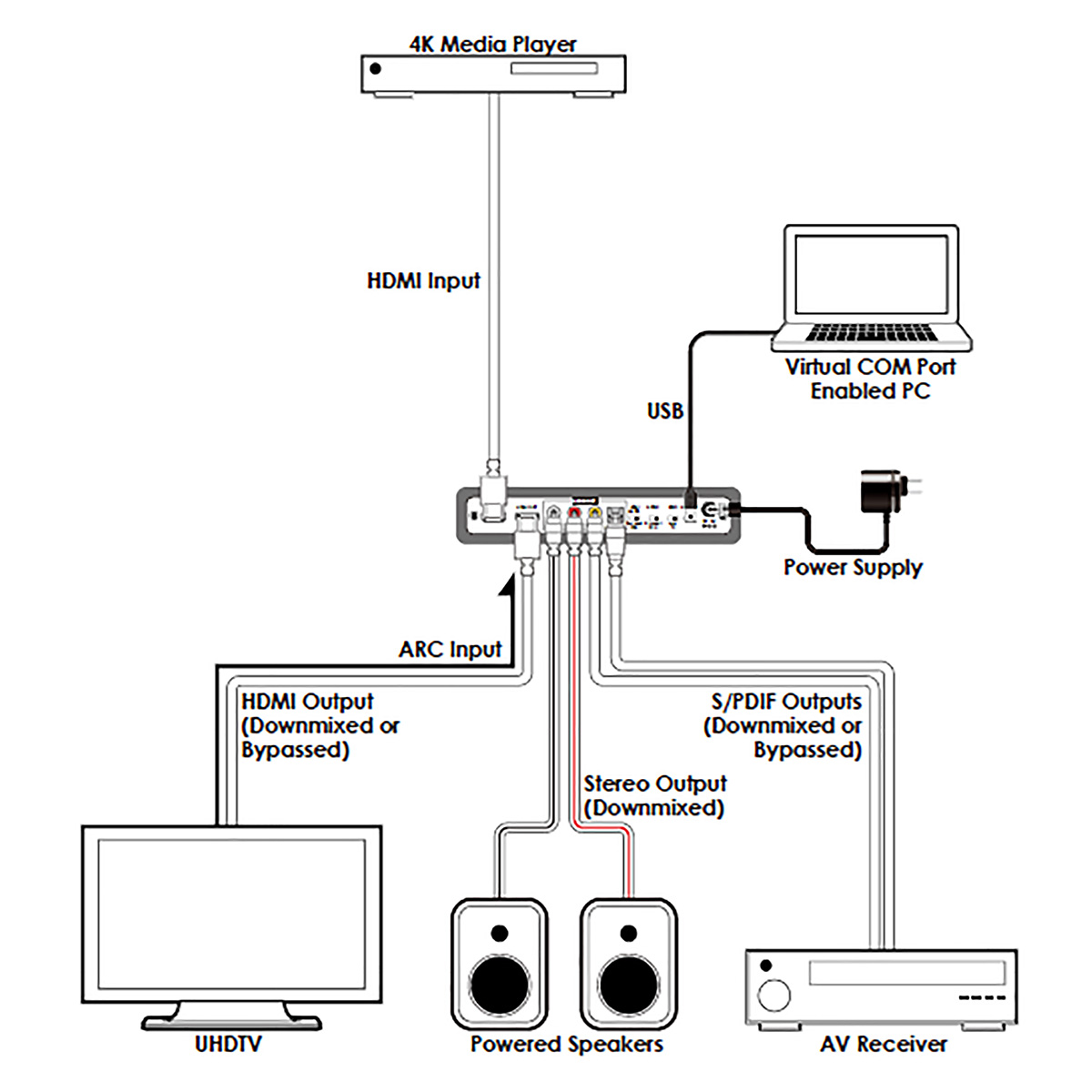

- Simultaneous audio output via HDMI, analog stereo, Coaxial and Optical
- Supports coaxial and optical audio sampling rates up to 96kHz
- Supports extracting the HDMI audio signal from an HDTV’s ARC feature
- Provides EDID management with EDID bypass and 1 user modifiable EDID
- PC based EDID management tool support
- Supports RS-232 style control via a Virtual COM port over USB
