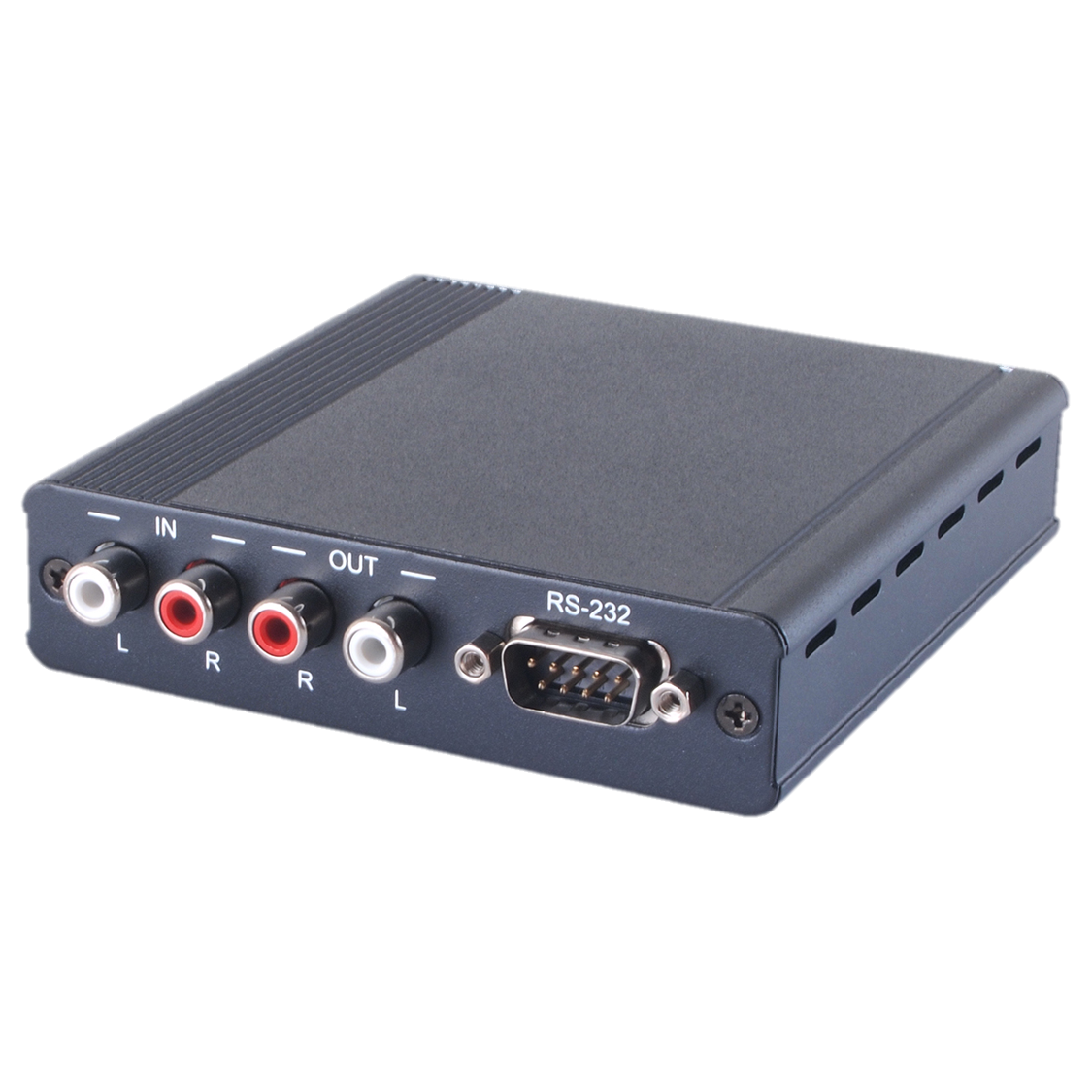

DCT-32RX

Analog Stereo Audio and RS-232 over CAT5e/6/7 Extender

Supports Analog stereo audio and RS-232 extension over a signal CAT5e/6/7 cable up to 300 meters
Supports Power over Cable (PoC) to Receiver unit
Bi-directional RS-232 control

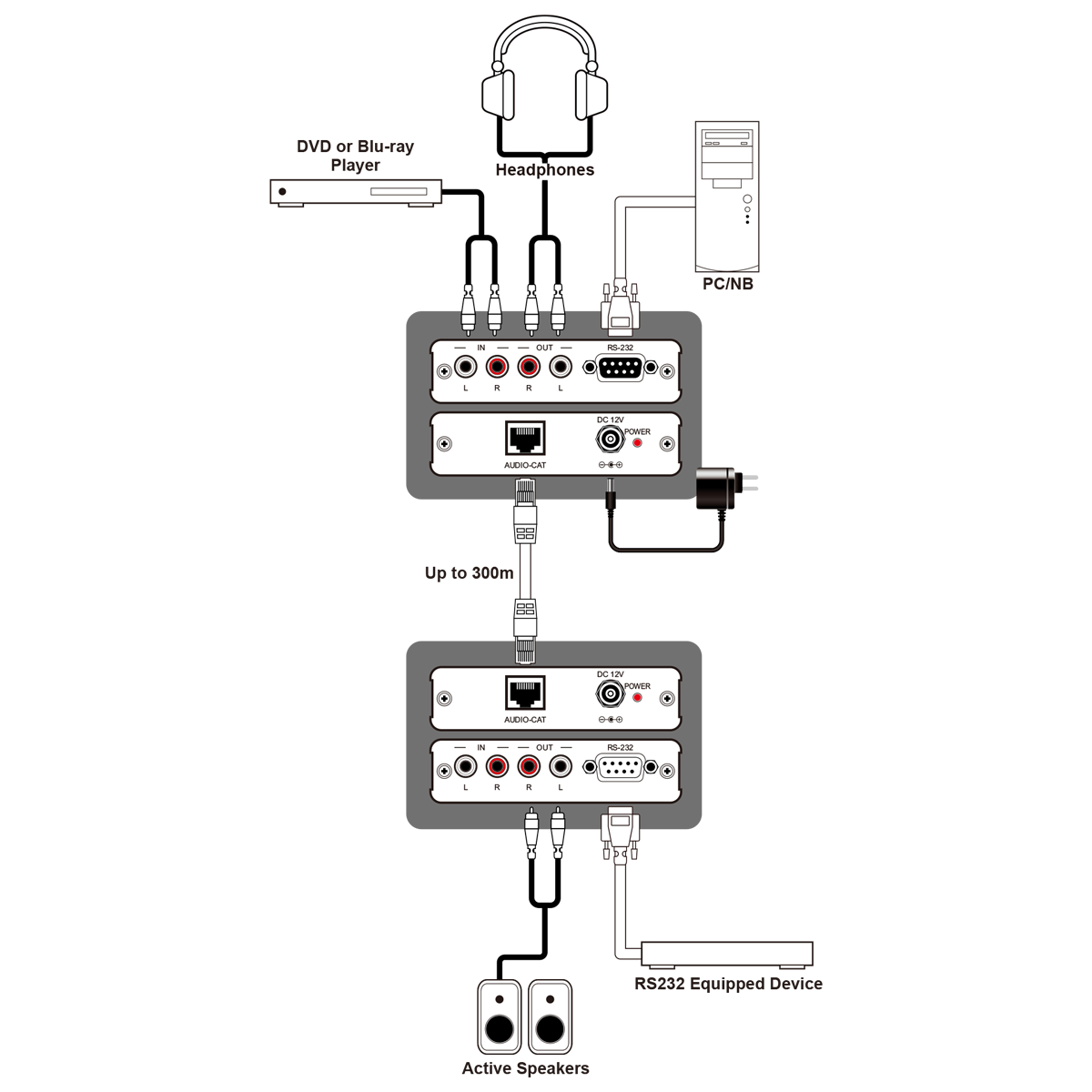

The Analog Stereo Audio and RS-232 over CAT5e/6/7 extender is design to extend analog stereo audio over a single run of CAT5e/6/7 cable up to 300m. With Bi-directional RS-232 control and PoC features added these units can be used with Receiver or Transmitter unit that supports RS-232 device control and one-way power supply

Interfaces

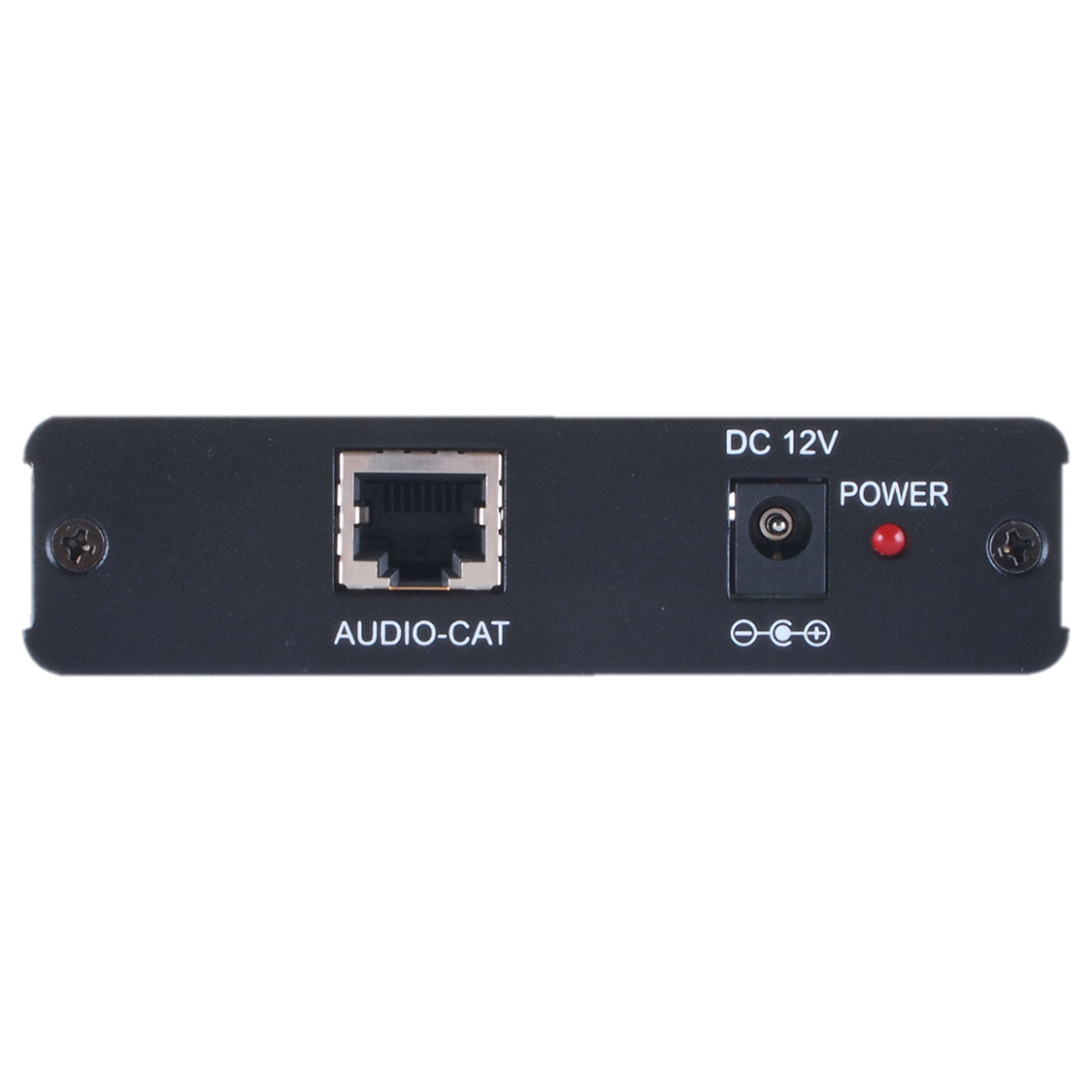

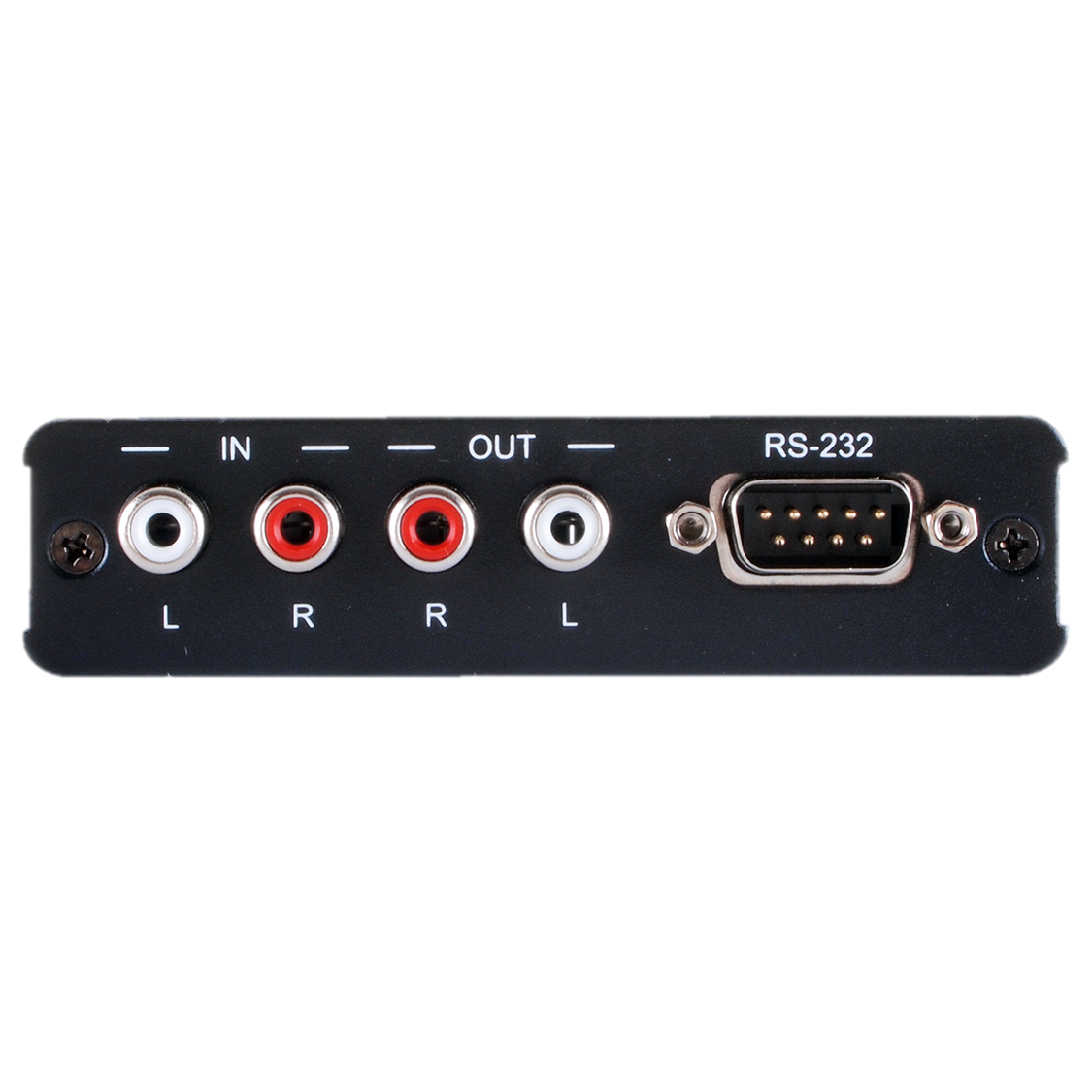

Input port	1 L/R (2-RCA) 1 AUDIO-CAT
Output Port	1 L/R (2-RCA) 1 RS-232

Power
Power Supply	12VDC/1.25A
Power Consumption	1.65W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	102mm x 25mm x 102mm [Case Only] 102mm x 25mm x 116.5mm [All Inclusive]
Weight	242g

Ordering Information
Model No.	Product Description
DCT-32RX	Analog Stereo Audio and RS-232 over CAT5e/6/7 Extender
DCT-32TX	Analog Stereo Audio and RS-232 over CAT5e/6/7 Extender

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/19	DCT-32TXRX_Manual	1	all	DCT-32TXRX_Manual
