CMX-12 EOL
HD/SD Digital AV Mixer
- Selective size and position for digital effects area and PIP windows.
- Automatic fade and wipe with speed preset control.
- Digital effects- Still,Mosaic,Paint and Negative.
- 96 wipe patterns.
- Chroma key & Luminance key.
- High Picture Quality.
- 3×8 back color.

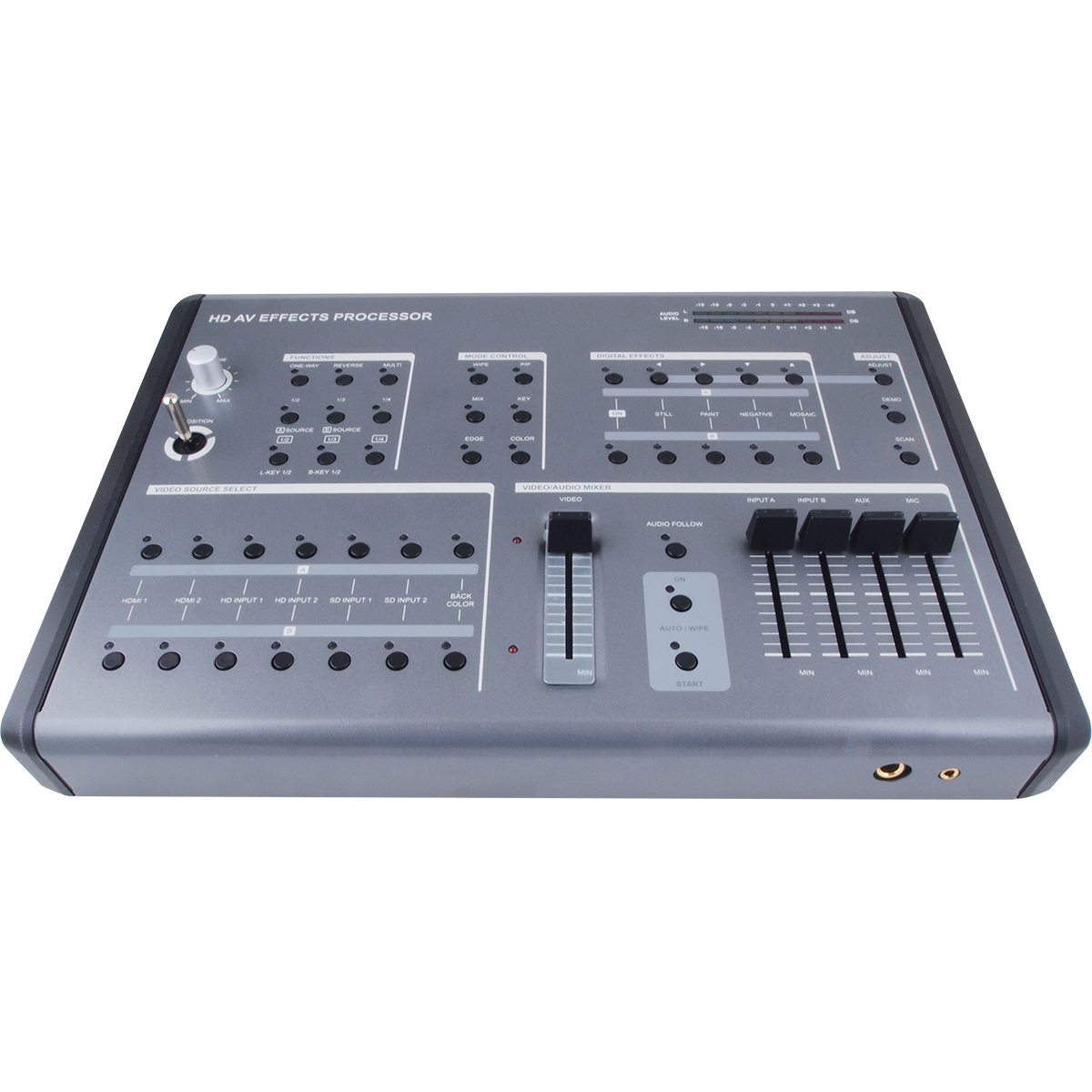

- Joystick control for digital effect position.
- Fade control for Video and Audio.
- Video and Audio mixing.

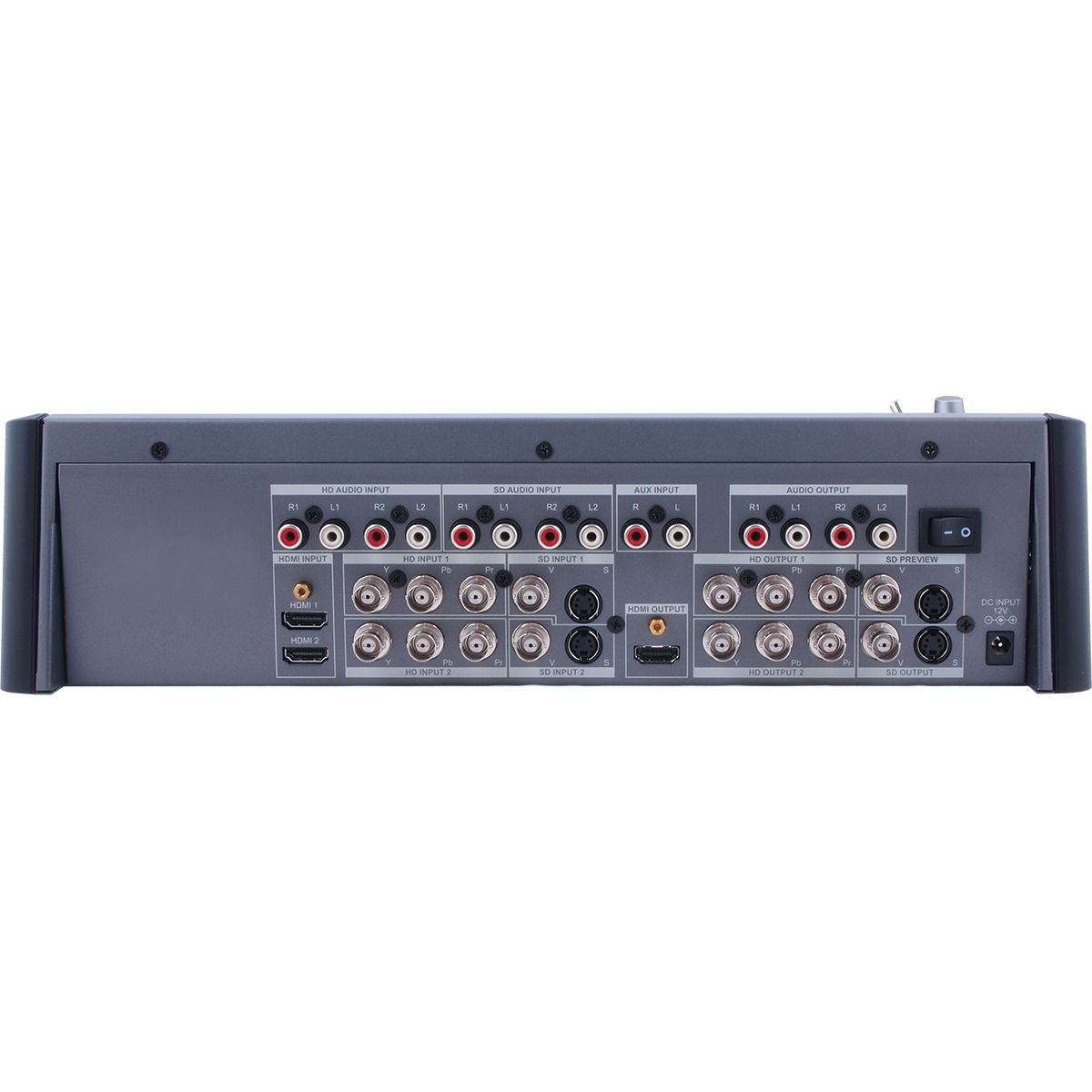

- 2× HDMI source inputs.
- 2× Component (YPbPr) source inputs.
- 2× Composite and S-Video source inputs.
- 1× HDMI recording output.
- 2× Component (YPbPr) recording outputs.
- 1× Composite and S-Video recording outputs.
- 1× Composite and S-Video preview outputs with On-screen Display.
- Auxiliary audio input.
- Microphone input and headphone output.
- Picture in Picture control (3 window sizes).
- Each A/B BUS can adjust the Contrast/Brightness/Color/Hue/Detail and Aspect Ratio.
- Supports Lip-Sync delay up to 170 ms.
- Composite supports 3D comb filter and YC separation.
- Motion and Edge Adaptive De-interlacing. Note: When the selected source input is not connected or has HDCP protection, only a blackscreen will be displayed.
