Processor

• Supports HDMI and S/PDIF audio sampling rates up to 192kHz
• Analog audio extraction supports LPCM 2.0 sources , audio sampling rate up to 48 kHz
• Optical S/PDIF audio extraction supports LPCM 2.0 & Bitstream formats
• No HDMI output connection is required to receive audio at the analog and optical outputs

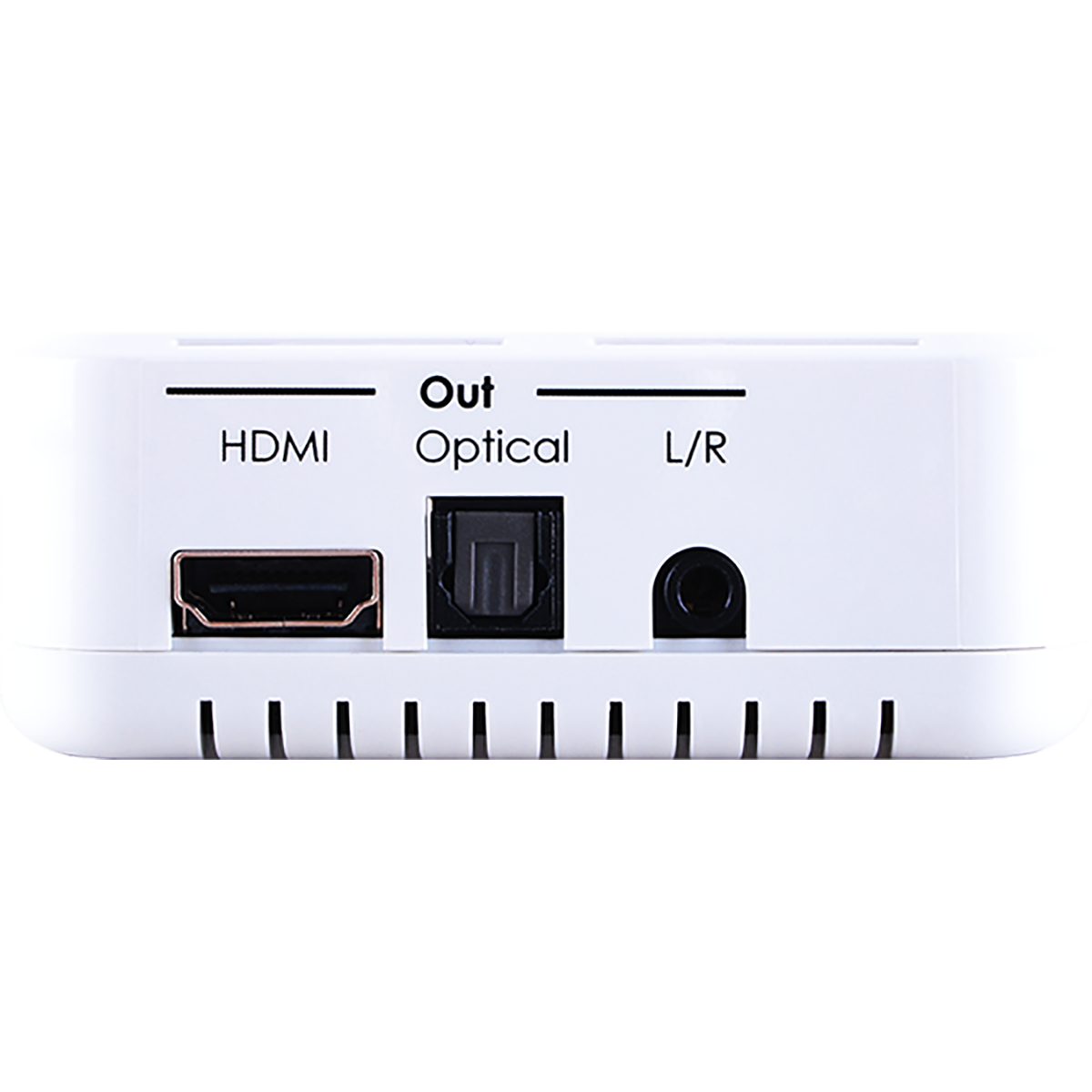

• Supports analog stereo L/R and Optical S/PDIF audio outputs

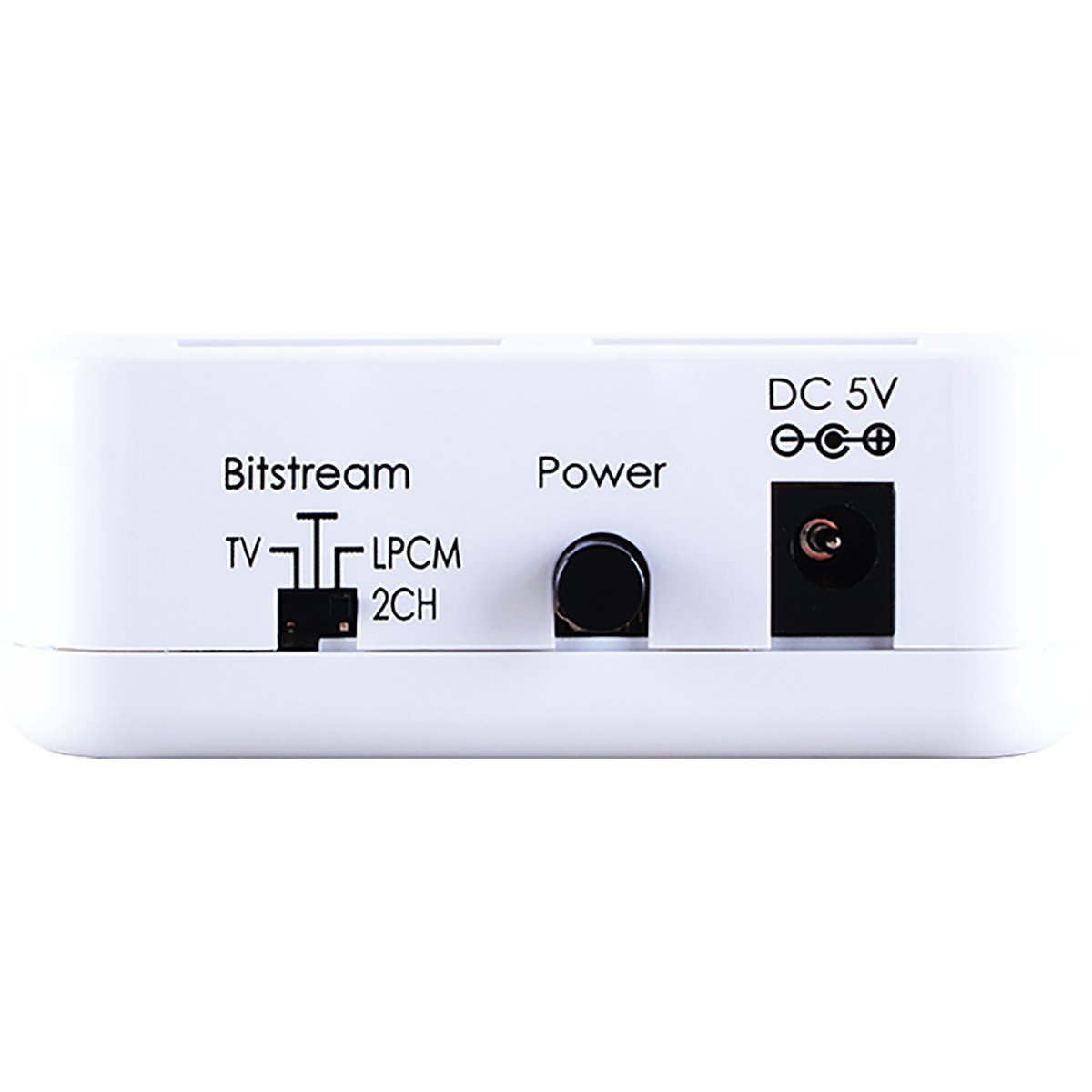

• Supports built-in audio EDID switching among LPCM 2CH, TV (external) EDID, and Bitstream audio
• Supports 4K@30Hz resolution and 3D signal

Note: When displaying HDMI 4K@30 signal, equivalent source signal, output display and HDMI cables are required in order to secure the best image display.
