CPRO-11SI

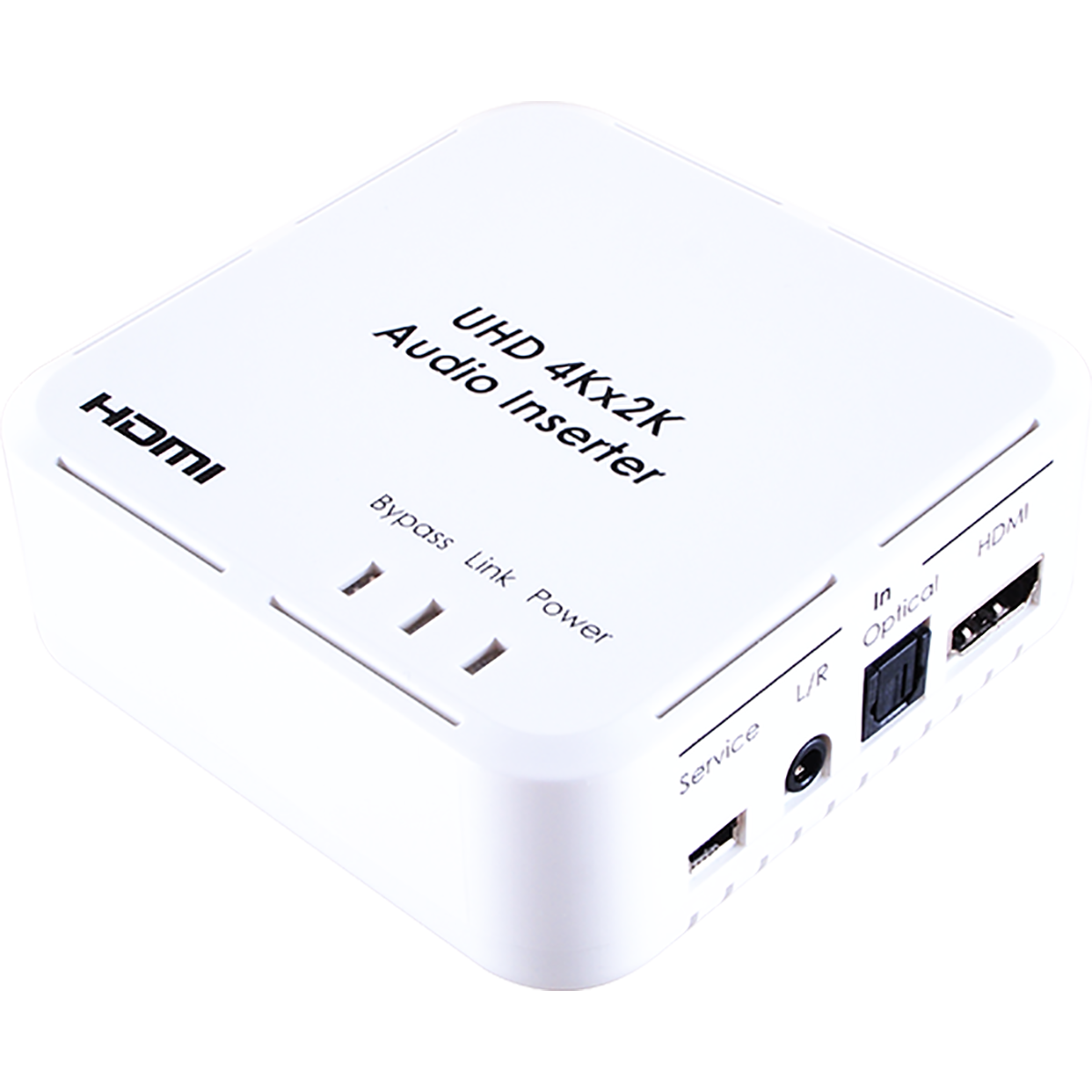

HDMI 4Kx2K Audio Inserter
- Compliant with HDMI, HDCP 1.2 and DVI 1.0
- Supports HDMI audio sampling rate up to 192 kHz
- Supports Optical S/PDIF audio sampling rate up to 192 kHz
- Supports L/R audio sampling rate up to 48 kHz
- Supports external HDMI, Digital or Analog audio signal embeds into HDMI
- HDMI supports high-bit-rate (HBR) audio
- Maximum input and output HDMI cable length can run up to 15 meters at 1080p at 8-bit resolution or 10 meters at 1080p at 12-bit resolution
- Supports DVI conversion with HDMI to DVI adaptor
- Supports CEC bypass
- Supports 4Kx2K resolution and 3D signal
Note: When displaying HDMI 4Kx2K signal, equivalent source signal,output display and HDMI cables are required in order to secure the best image display.
