DCT-35

DCT-35 EOL

Optical & L/R to L/R Audio Controller

Support optical input sampling rate up to 192kHz
Supports Optical & L/R inputs to L/R output
Support Stereo out or Mono out
Support Volume control by Telnet or WebGUI
Control switch by single button press

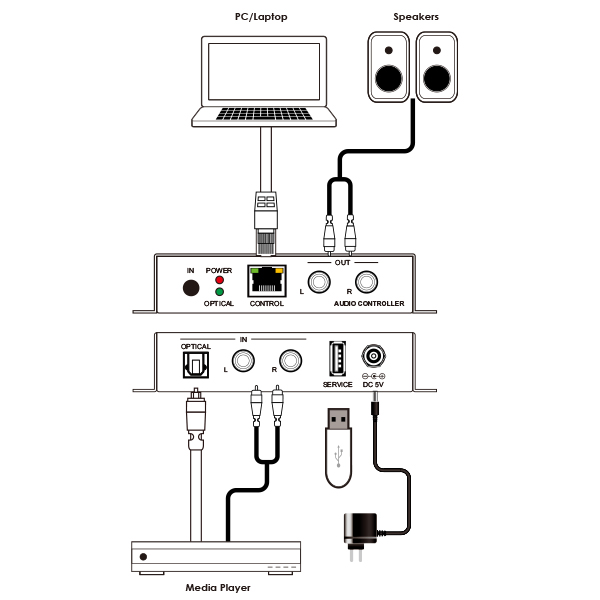

The Optical & L/R to L/R Audio Controller allows user with flexible and distance control over audio performance. With L/R & Optical inputs to L/R output, this device provides a digital to analog conversion or analog to analog bypass function. Controls like Telnet & WebGUI allow user with easy adjustment and remote over audio output. On-panel control with LED indication adds-on the friendly use for the device.

Interfaces
Input port	1 RJ45(Control) 1 L/R 1 Optical 1 USB(service)
Output Port	1 L/R

Power
Power Supply	5VDC/2.6A
Power Consumption	2w

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	55mm x 82mm x 22.5mm
Weight	342g

Ordering Information
Model No.	Product Description
DCT-35	Optical & L/R to L/R Audio Controller

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/19	DCT-35_Manual	1	all	DCT-35_Manual
