DCT-17

4 by 1 Optical Audio Switcher

Optical sampling rate supports up to 192 kHz
Low power consumption
Up to 24-bit resolution

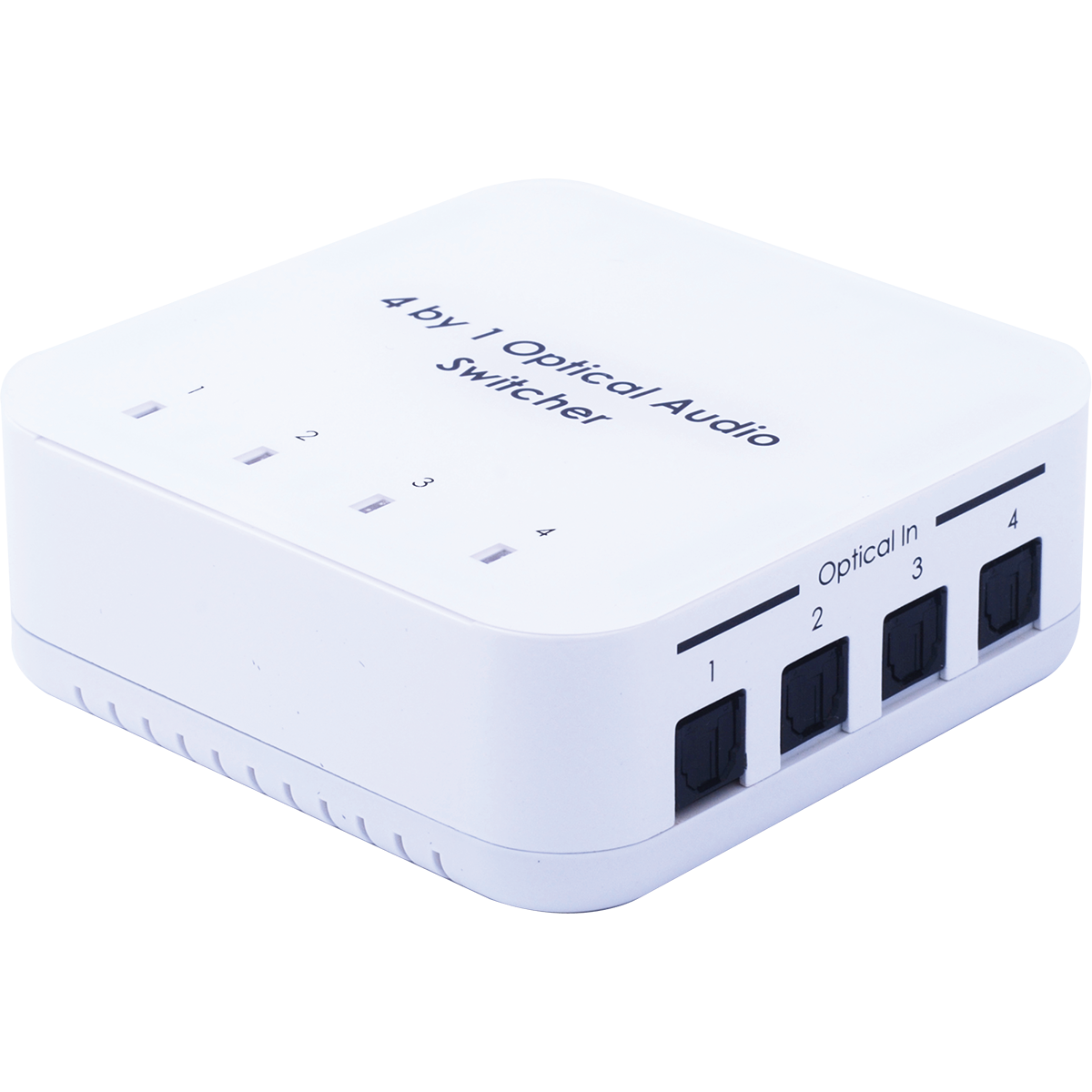

The 4 by 1 Optical Audio Switcher has four optical inputs and one optical output and allows users with multiple optical sources to switch between sources without delay. The device has a built-in last memory function and IR remote control which provides a more user-friendly experience

Interfaces

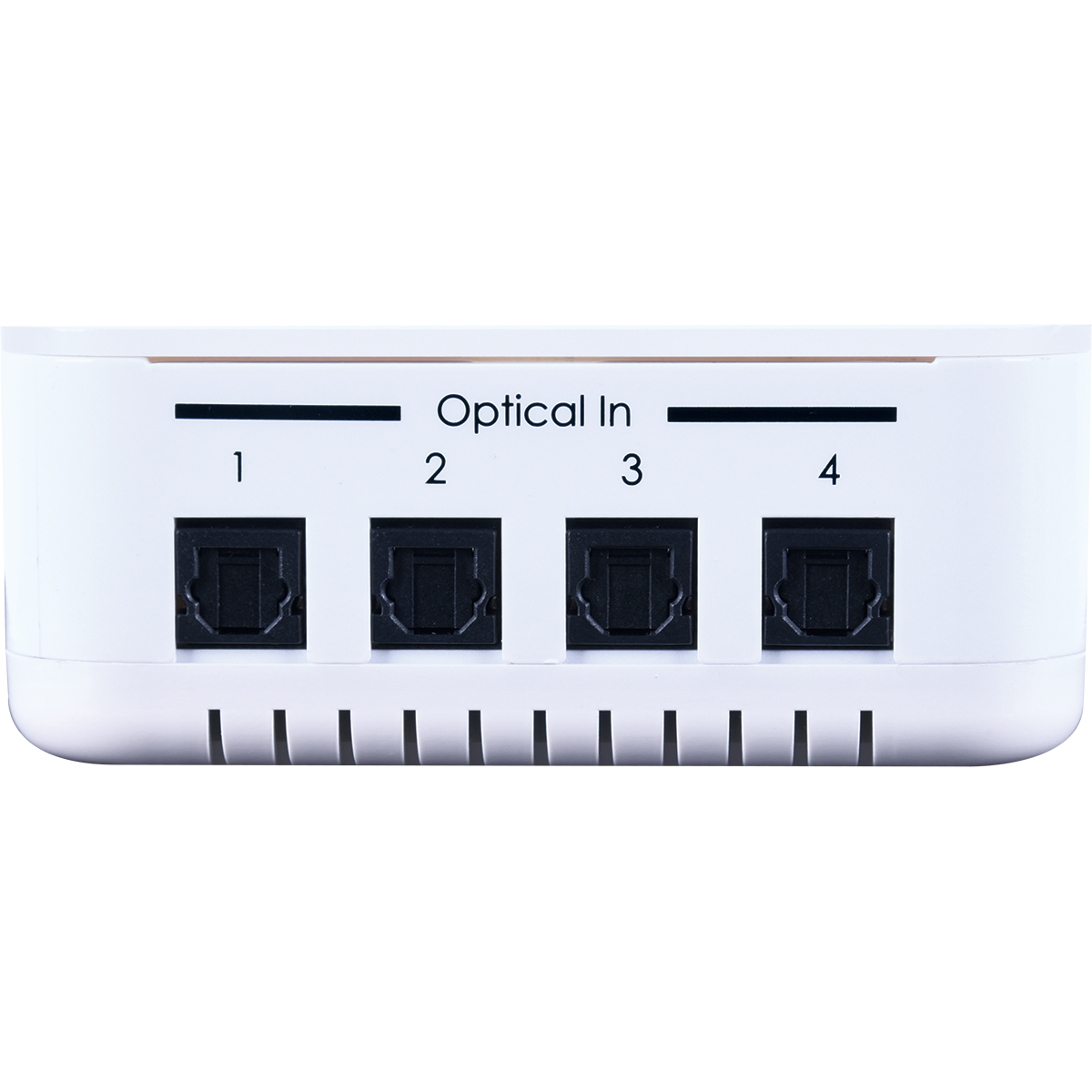

Input Port	4 Optical

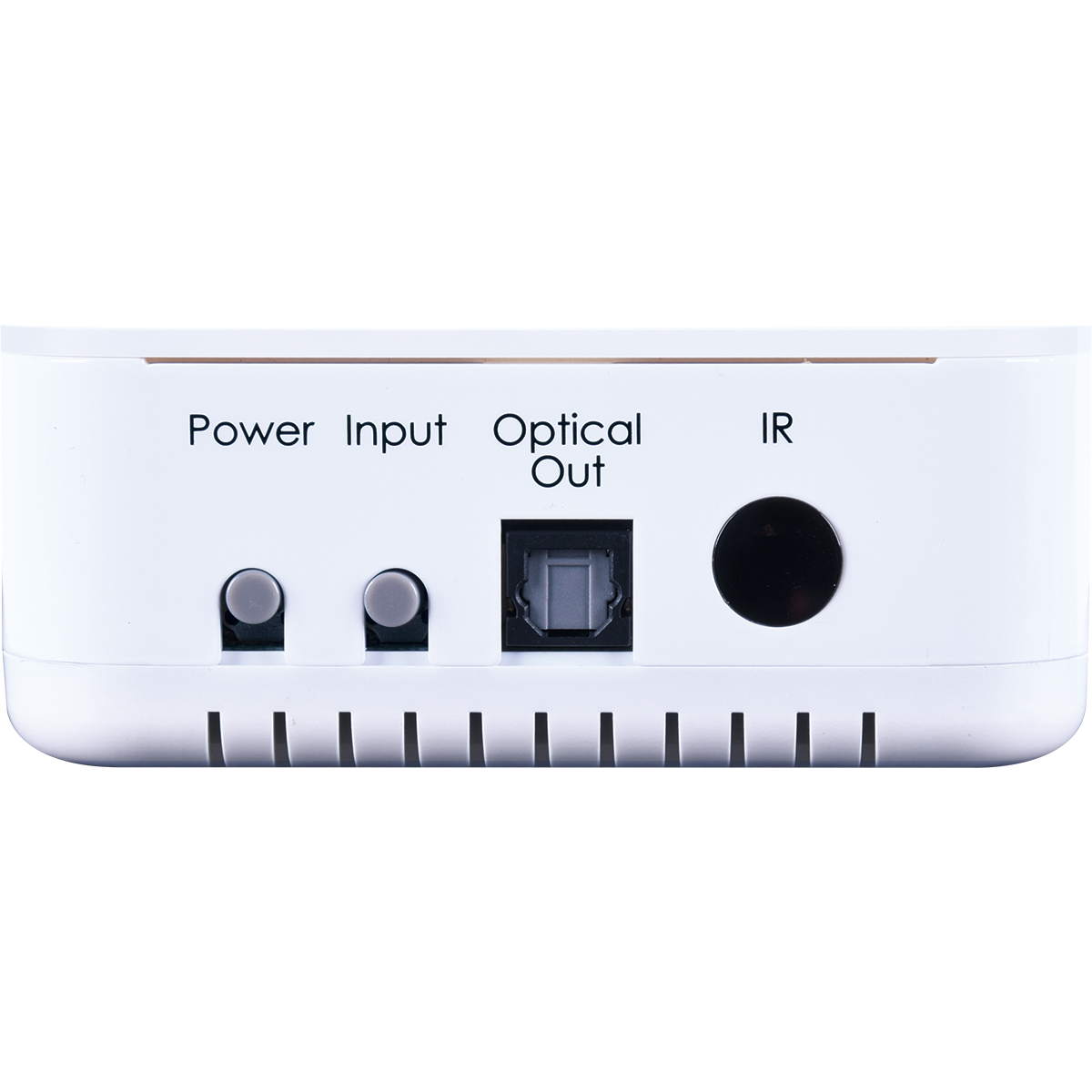

Output Port	1 Optical

Power

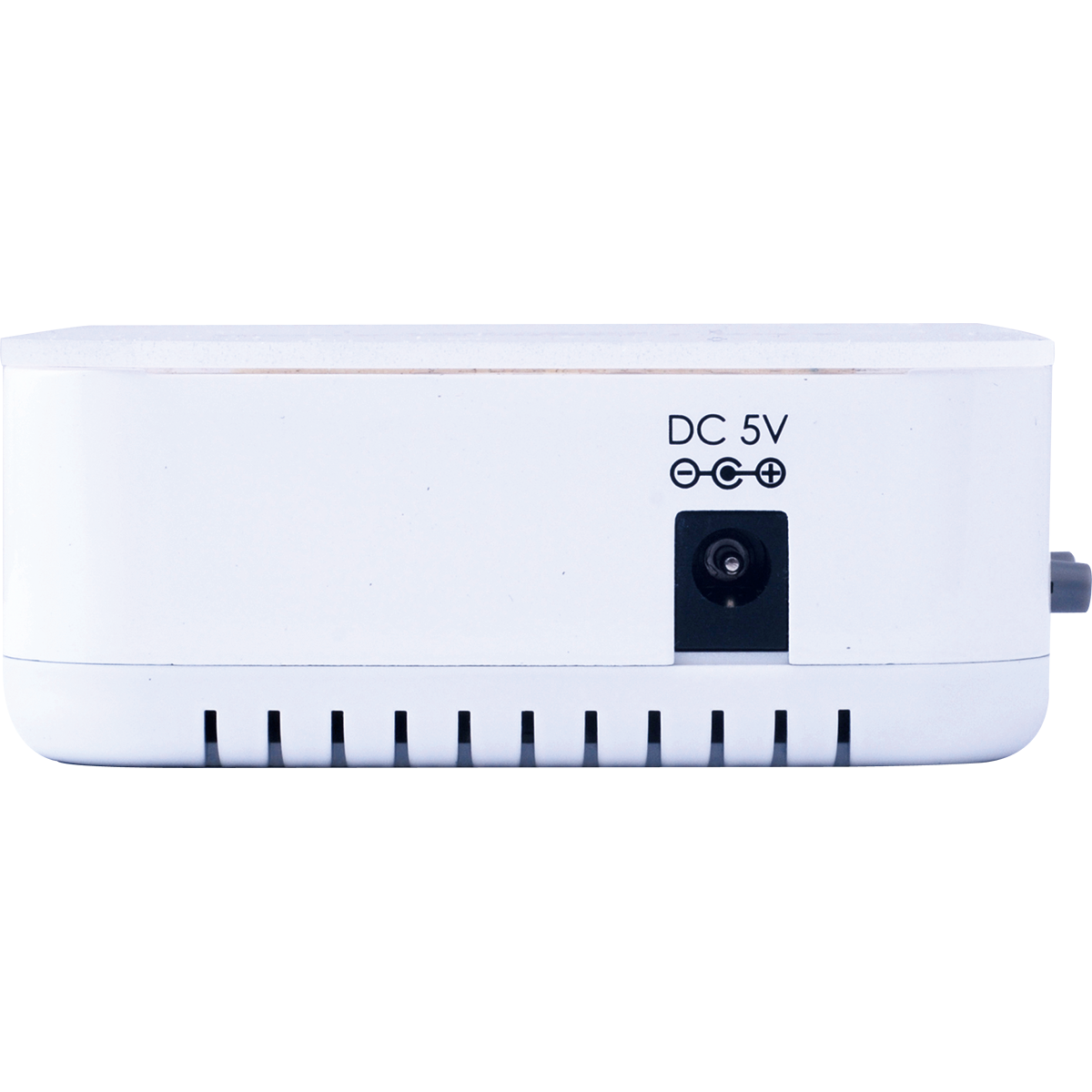

Power Supply	5 V/1 A DC
Power Consumption	<1 W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	85mm × 35mm × 85mm
Weight	90g

Ordering Information
Model No.	Product Description
DCT-17	4 by 1 Optical Audio Switche

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/18	DCT-17_Manual	1	all	DCT-17_Manual
