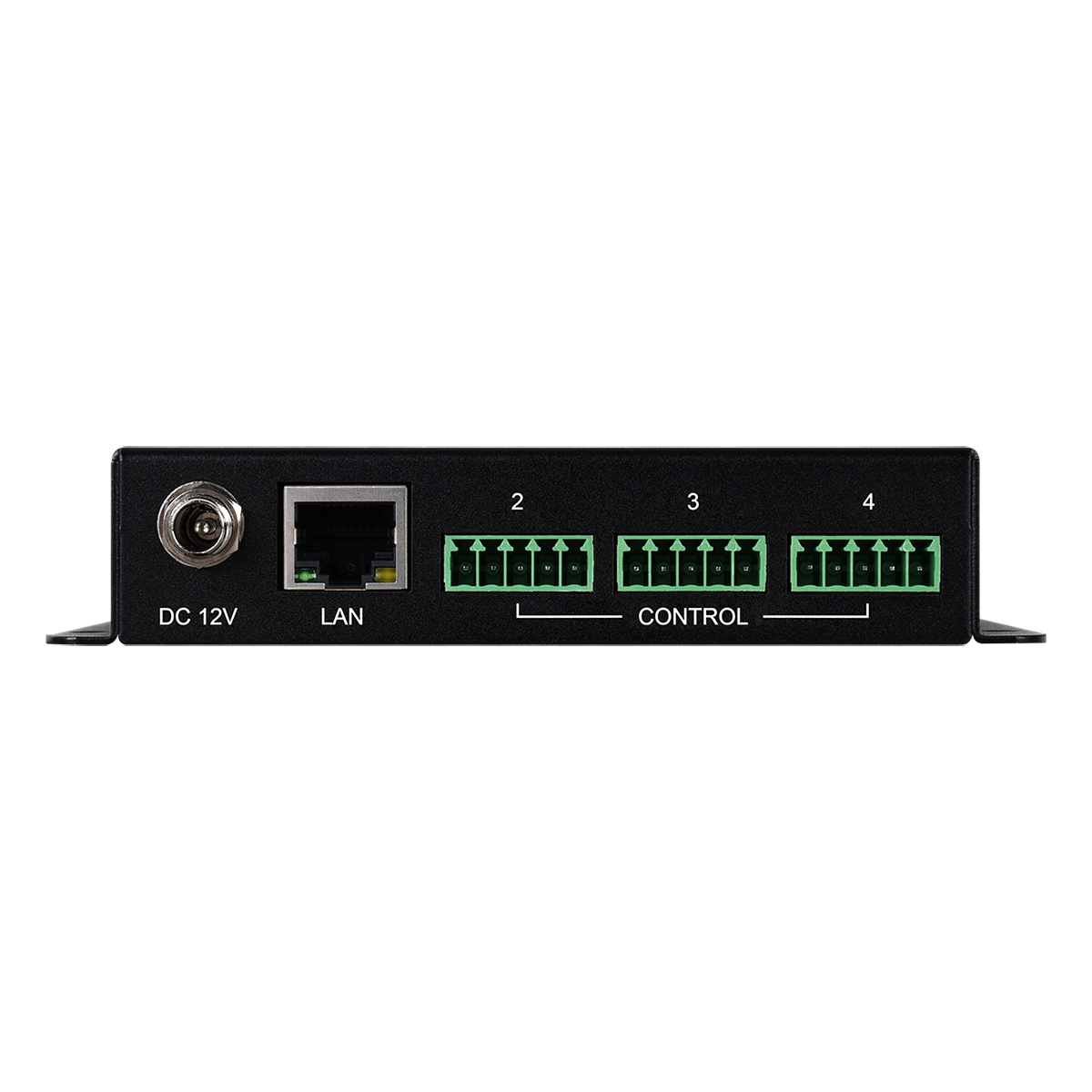

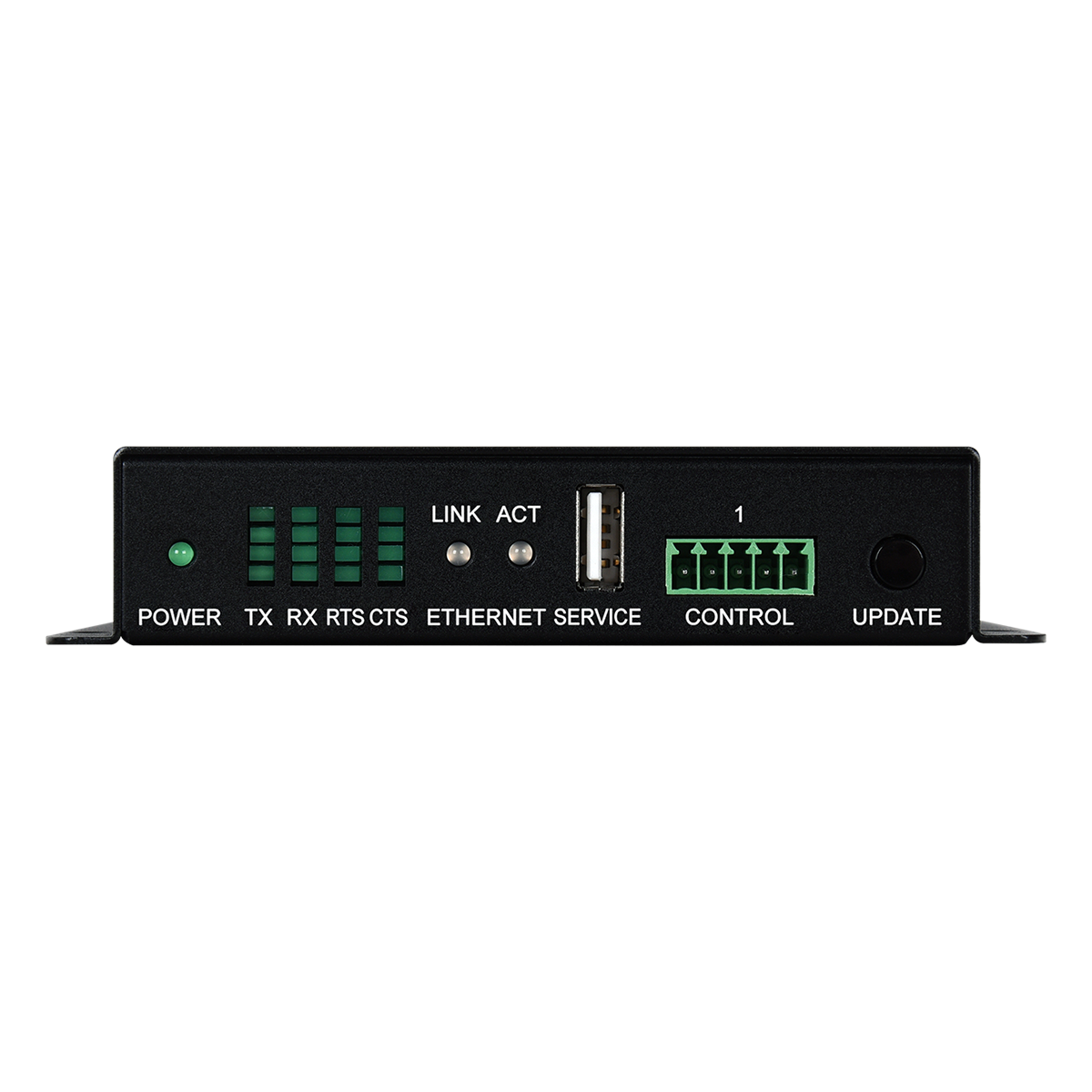

CDPS-IPSerial-4
IP to RS-232/422/485 Control Box
- Supports one RS-232/422/485 port and three RS-232 ports
- Enables control of up to four devices simultaneously
- Supports multiple user control interfaces including WebGUI and Telnet
- Easy access of serial settings and console for serial ports via WebGUI
- Supports IEEE 802.1x RTS/CTS protocol
- Supports Power over Ethernet (PoE), providing incredible installation flexibility
- LED indicates the unit’s status for confirmation
- Firmware can be easily updated in the field either via USB using the hotkey or through WebGUI

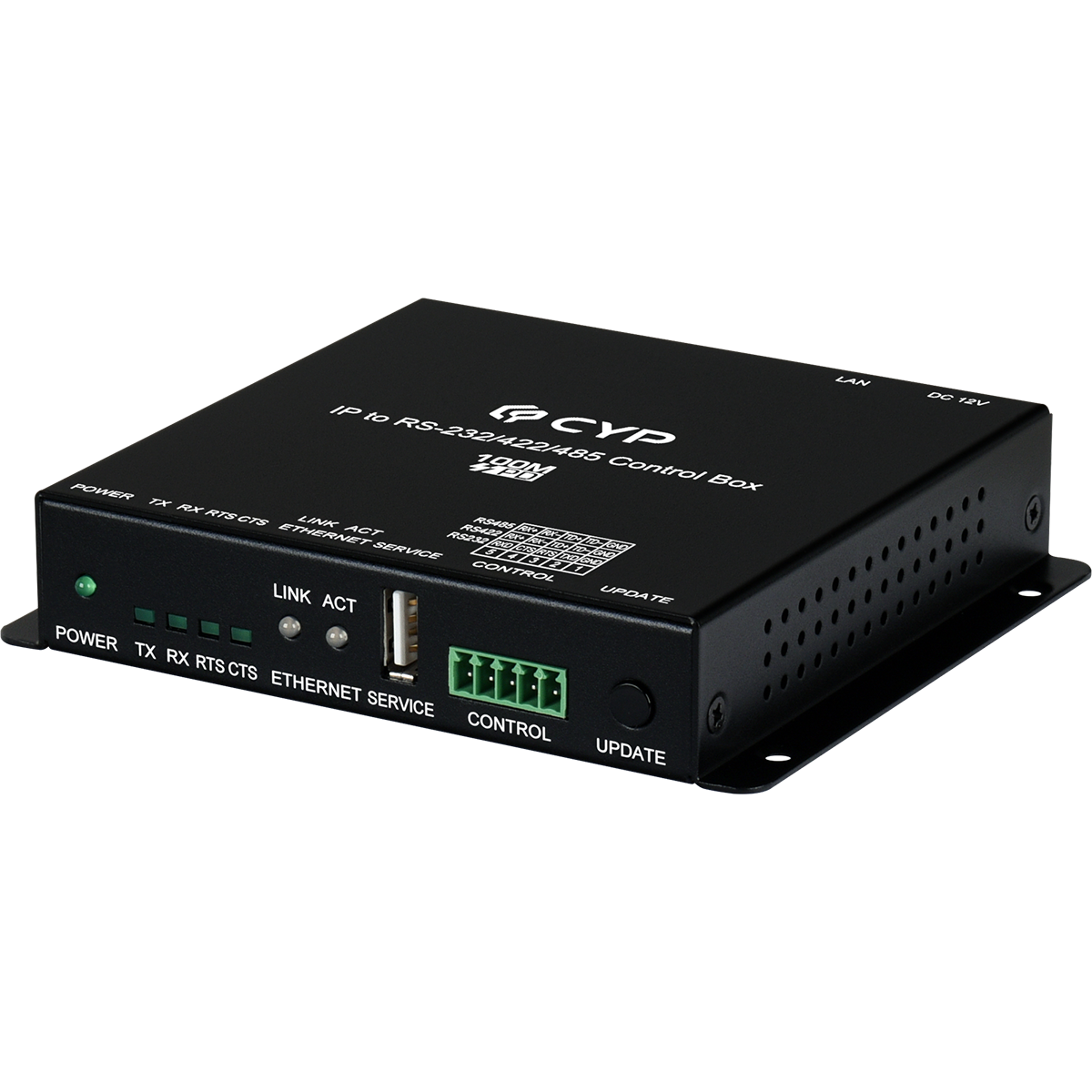

CDPS-IPSerial-1
IP to RS-232/422/485 Control Box
The Control System Center is a useful tool for users to control various devices which supports one RS-232/422/485 port. Users can connect to the device and control it via a 3 (or 5)-pin phoenix connector to send RS-232/422/485 commands from this unit. Comprehensive user control interfaces are available, including WebGUI and Telnet. This unit supports Power over Ethernet (PoE), enabling it to be powered directly from a standard PoE network switch without requiring an external power adapter. This provides installation flexibility. The LEDs on the board provide status indicators for users to check: power and Ethernet status. It supports IEEE 802.1x RTS/CTS protocol to avoid hidden stations. The unit also provides a hotkey for convenient firmware update.
