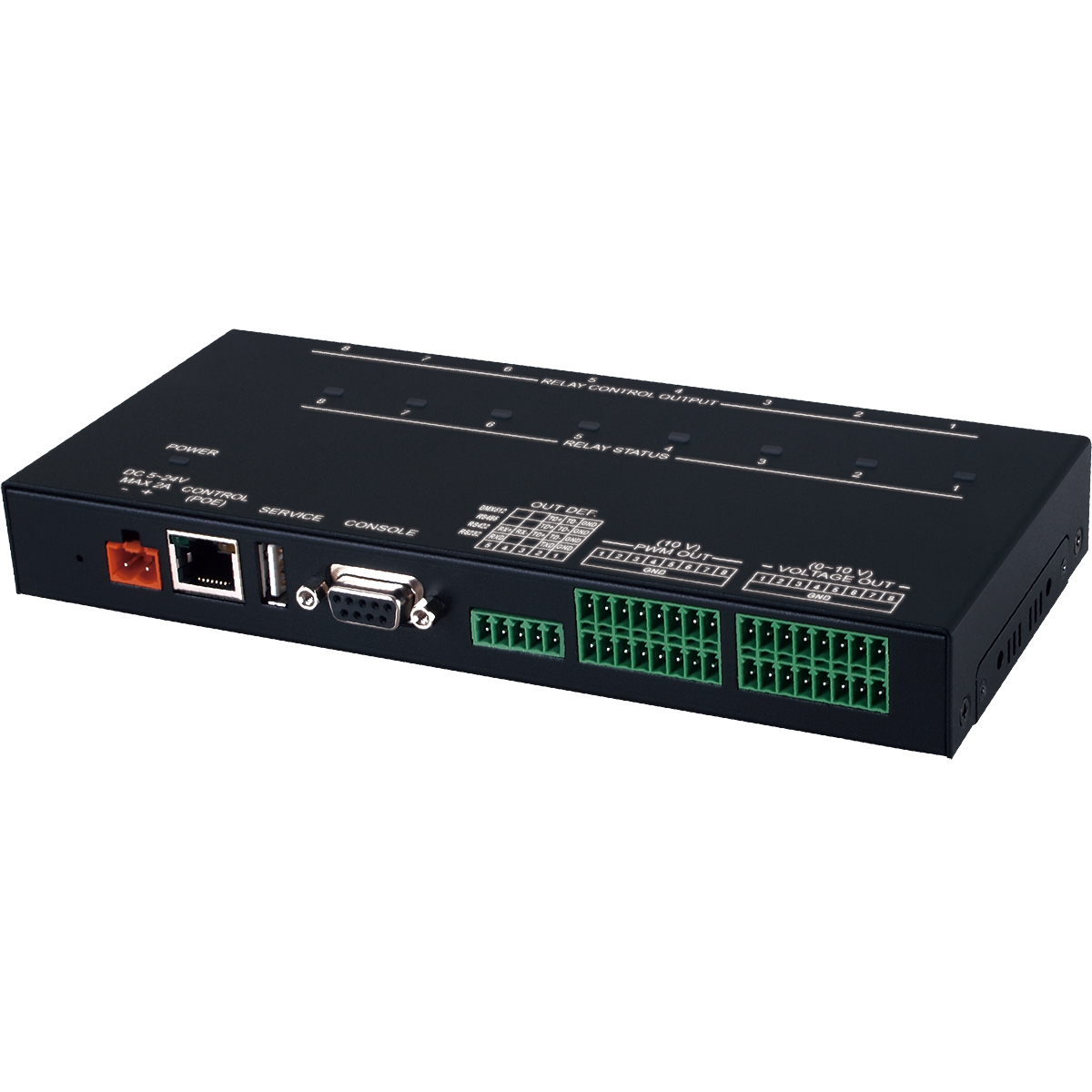

CDPS-RLY
Auxiliary Relay Control System

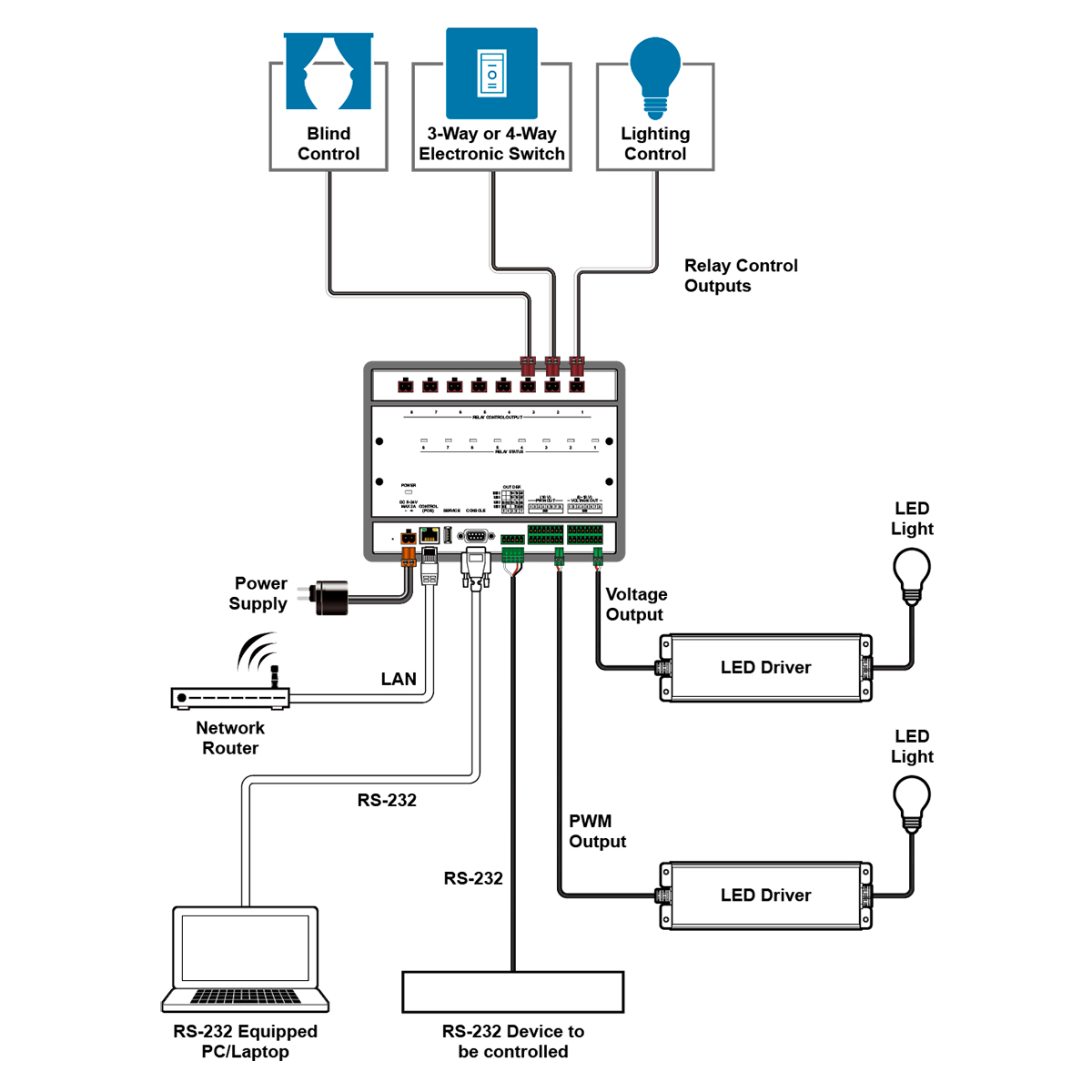

- Supports 8 Relays, 8 PWM, 8 Voltage outputs, and 1 customizable setting

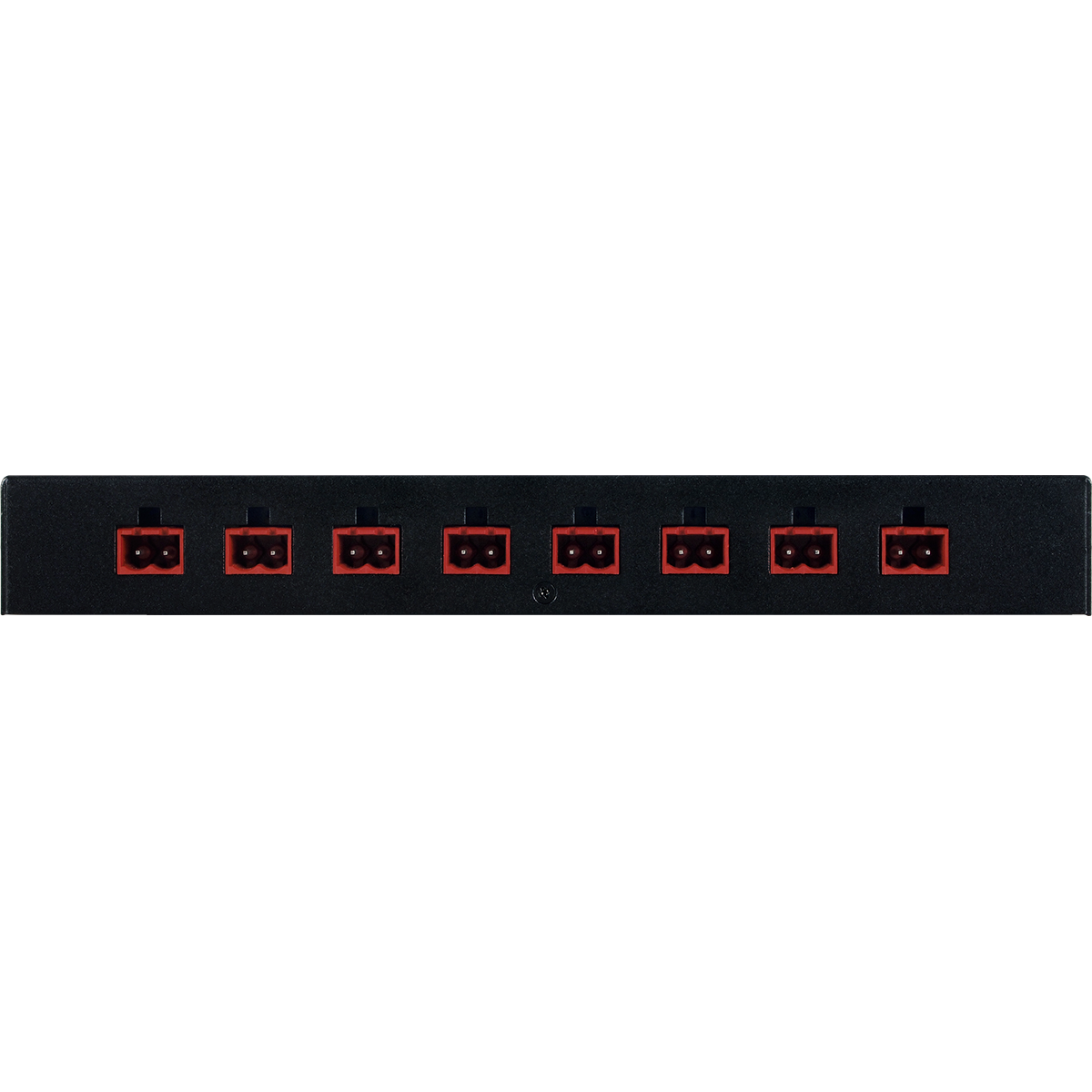

- Relay supports close, open and toggle controls with LED illuminators and power up to 30V/DC, 10A
- PWM supports 10 volts with 0 – 100% duty cycle adjustable
- Voltage output supports from 0 – 10 volts with an adjustment from
- 0 – 100% (0, 0.1, 0.2 – 10 volts)
- Customizable setting supports RS-232/422/485 with adjustable baud rate
- DMX-512 data transmission supports up to 250Kbps with unidirectional, serial transmission and daisy-chain configuration up to 512 nodes , with a maximum response time of 22ms (roughly 44Hz)
- RS-232/Console supports up to 256 bytes per command
- Supports 5V/2.6A – 24V/0.5A DC power supply
- Supports USB and WebGUI firmware updates
- Supports RS-232 and Telnet controls
- Control port supports PoE function
