CDPS-TG1

CDPS-TG1 EOL

Replacement Model >CDPW-K3Series

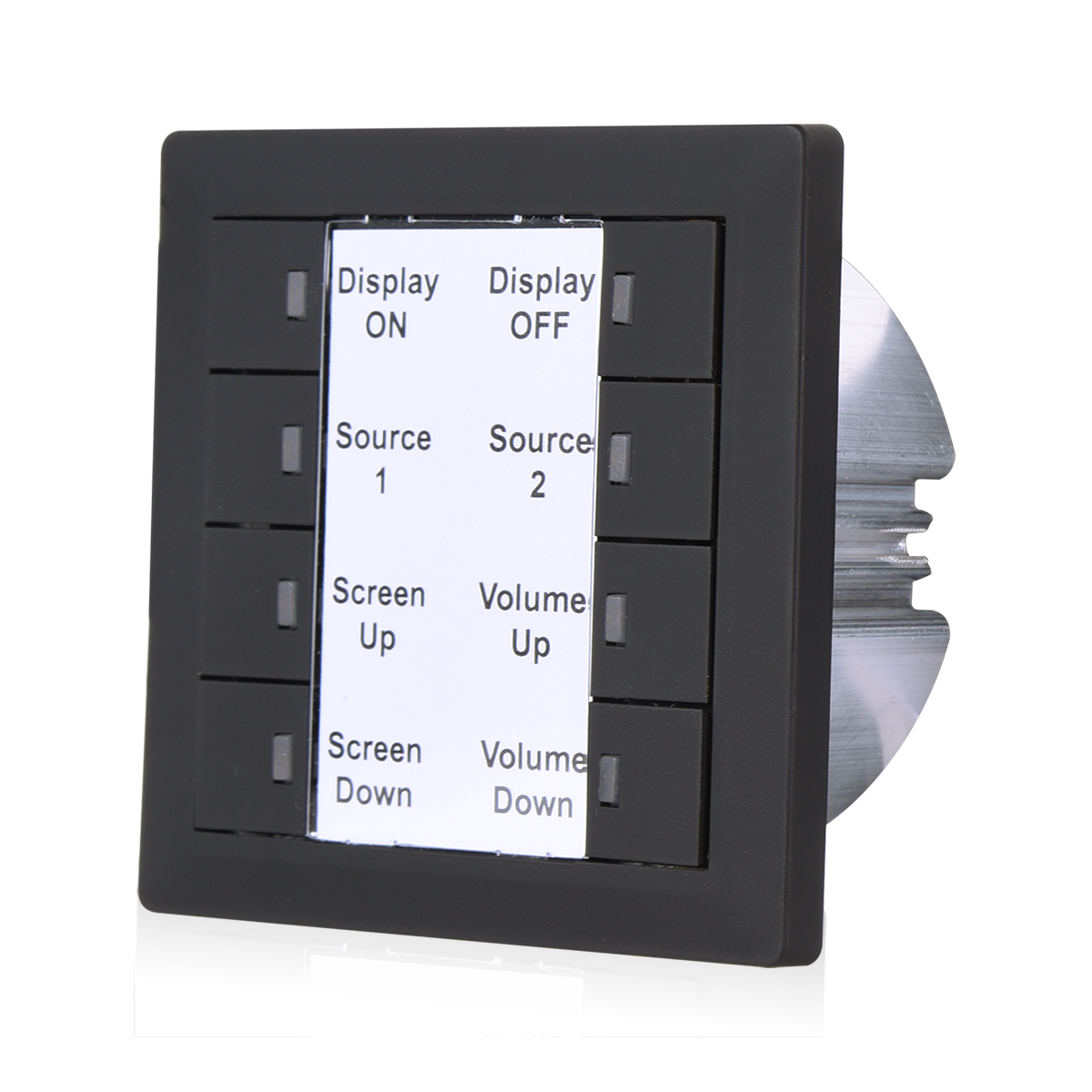

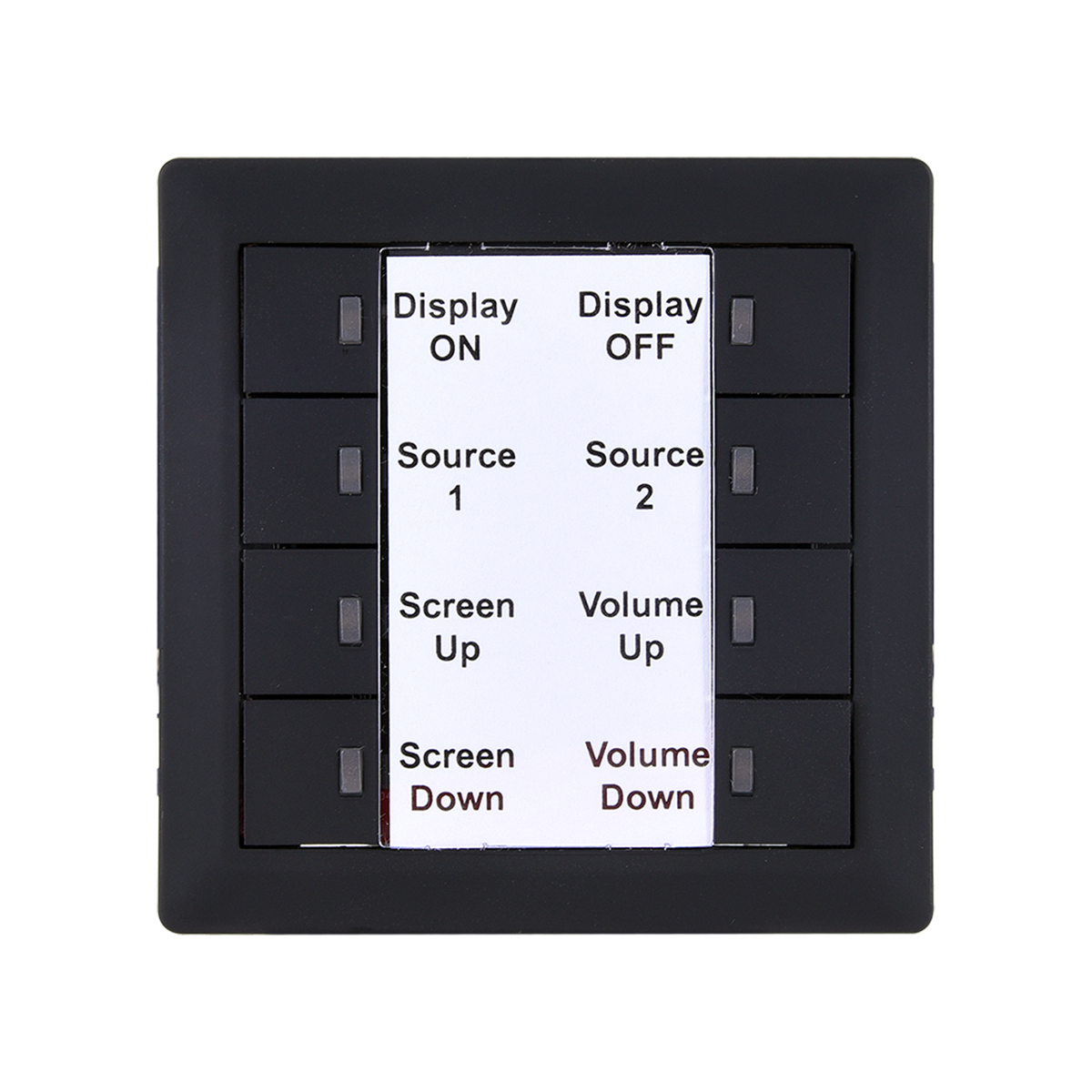

Trigger Control Keypad

8 buttons linked directly to 8 triggers which are capable of instantly activating macros or functions on a connected control device
Provides instant extended physical control of compatible control devices
Allows for easy execution of macros (on compatible control systems) which can activate complex, multi-step, events with a single button press
No external power supply required
User customizable button labels
Elegant appearance

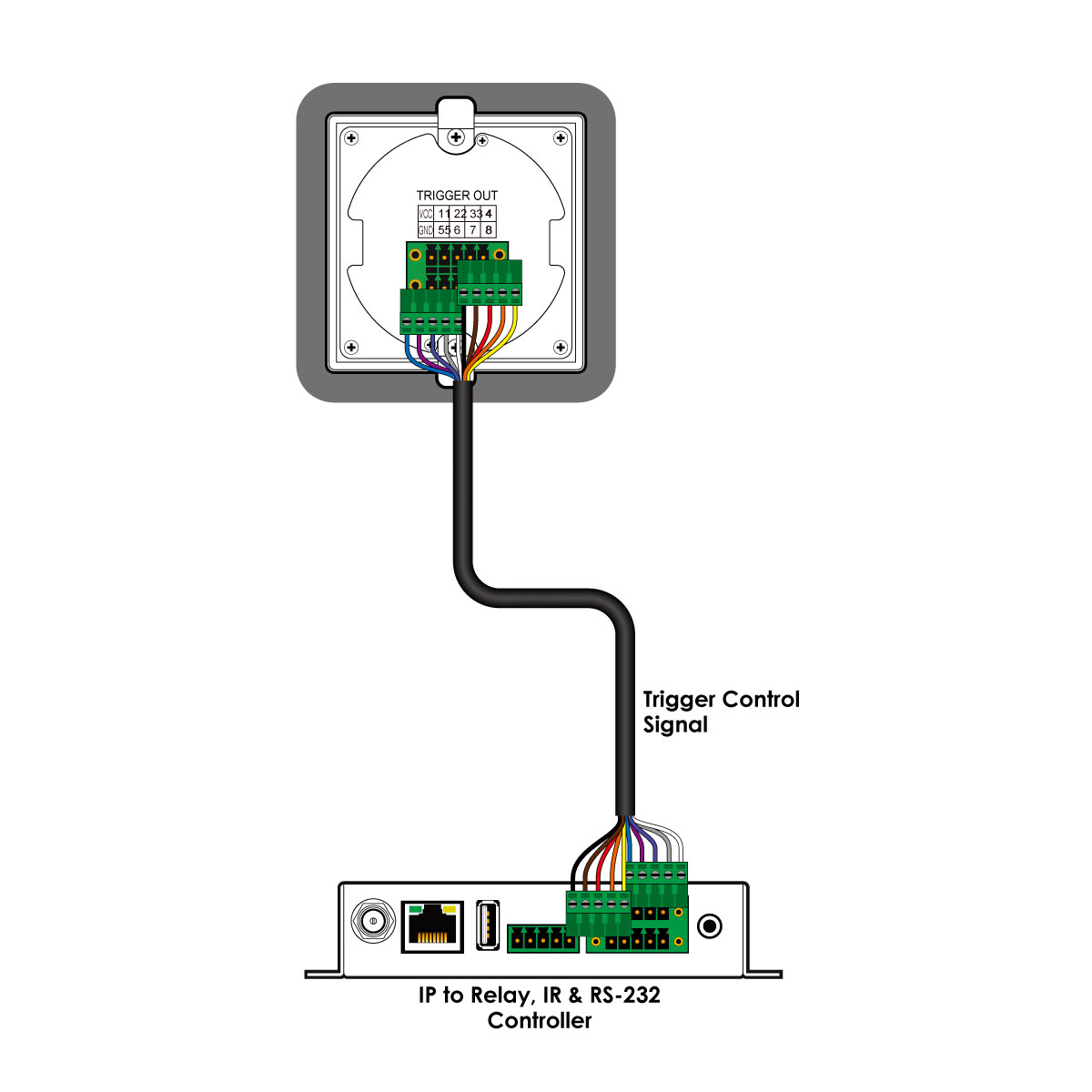

This keypad is designed to be a simple and efficient interface for a more complex control system. This keypad features a set of 8 buttons which directly activate its 8 trigger connections which can be attached to any compatible control system. The keypad’s connection cable allows for the extension of instant system control to locations that are more convenient for user interaction such as a conference table, lectern, or wall plate. The sophisticated appearance makes this keypad an elegant and decorative addition to your living or working space.

Interfaces
Input Port	8×Buttons

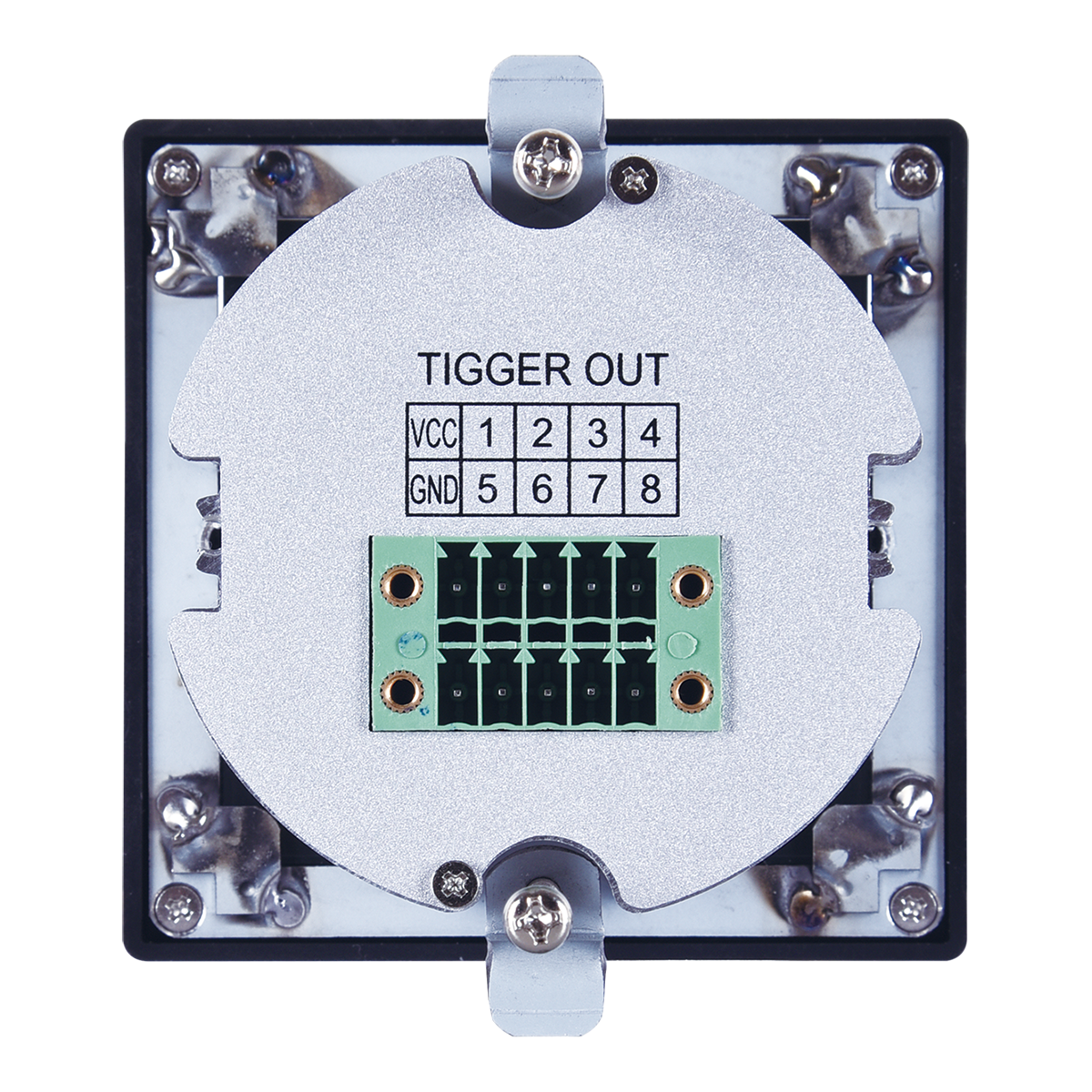

Output Port	8×Ternimal Blocks

Enclosure
Chassis Material	Face plate: Plastic Casing: Metal
Chassis Color	Black
Dimensions (W×H×D)	70mm×70mm×33mm [Case Only] 70mm×70mm×33mm [All Inclusive]
Weight	100g

Field Firmware Update
N/A

ORDERING INFORMATION
Model No.	Product Description
CDPS-TG1	Trigger Control Keypad

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/18	CDPS-TG1_Manual	1	all	CDPS-TG1_Manual
