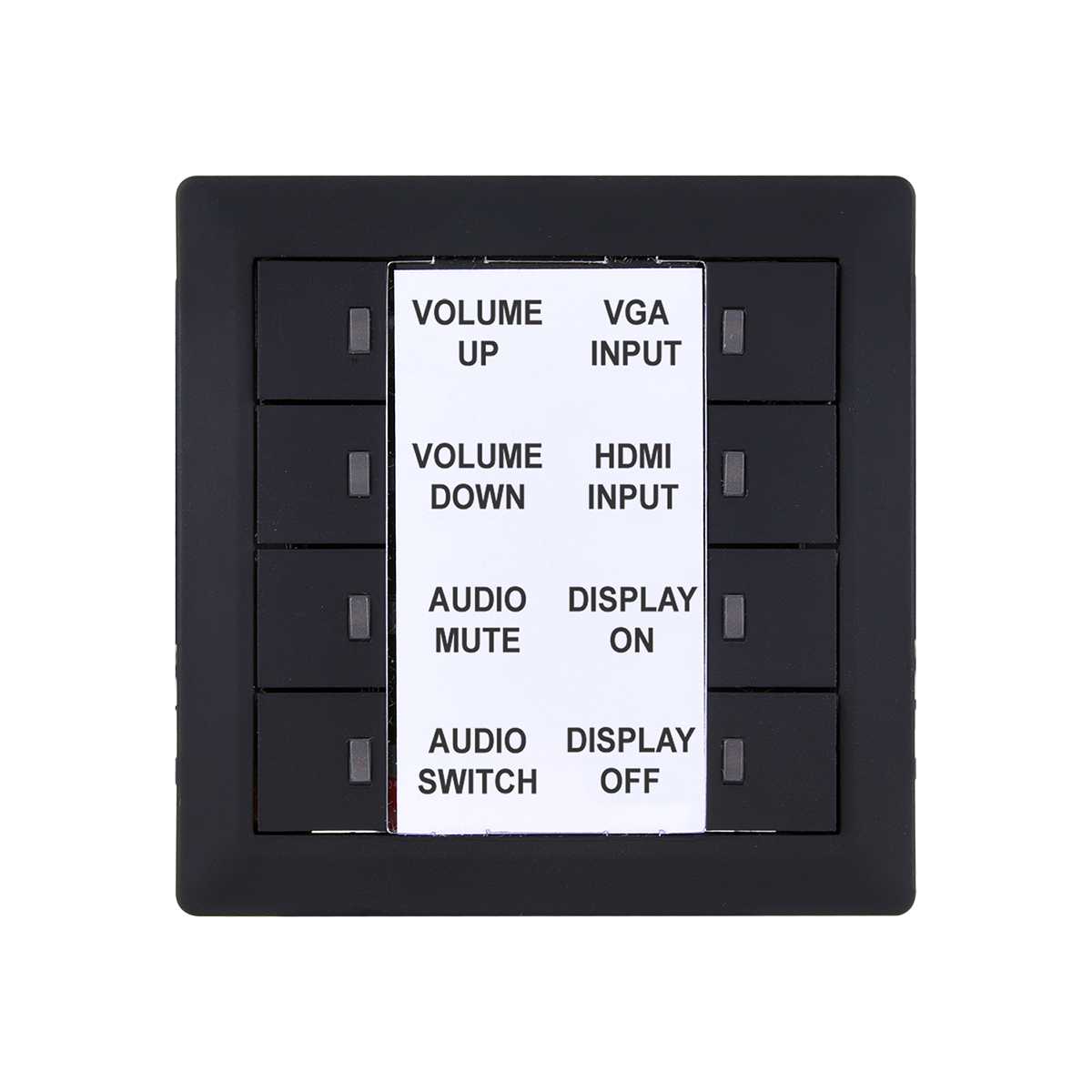

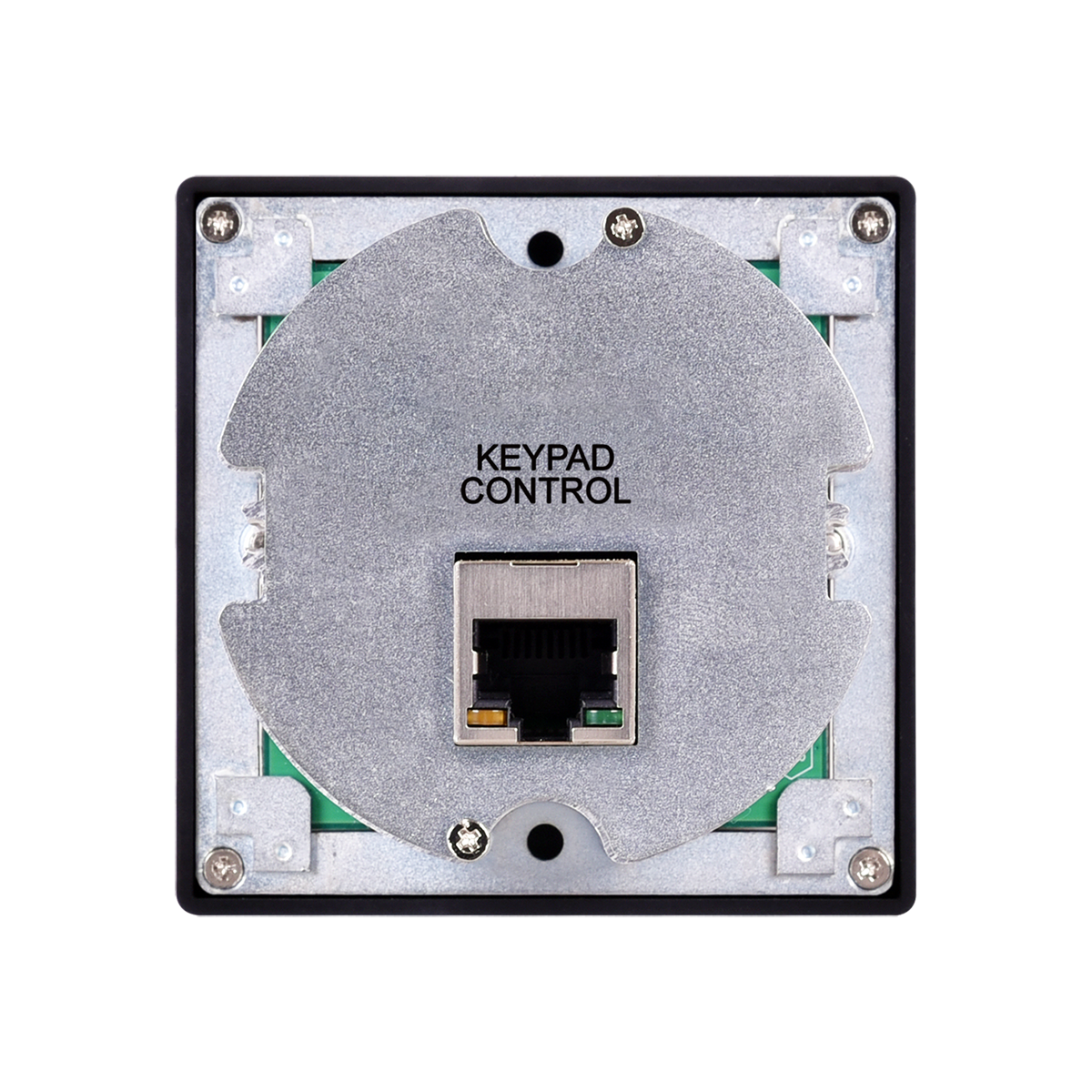

​For aesthetic considerations, we specially designed wall plate extender. CMF-100 includes this kind of extender which contains scaler and control functions. It is a multi-functions AV solution designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. The system consists of CH-2607TXPL Scaler Wall Plate HDBaseT Transmitter, CH-2607RXPL HDBaseT Receiver and CDPS-TG2 keypad control.

The Transmitter can send high-definition uncompressed audio/video over a single cable up to a distance of 60 meters at 1080p. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display’s EDID). 4K UHD HDMI video sources, up to and including 4K@50/60Hz (4:4:4, 8-bit), are supported by converting the signal to 4K@30Hz when necessary. This system may be powered by 48V PoH from the Receiver, which allows for greater flexibility in installations.

Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. An input button on the face of the unit provides quick, single button press, manual input selection. Other functionality is controllable via front panel controls, WebGUI, Telnet, and RS-232. Additionally, the receiver features an analog audio de-embedding 2x20 watt 4 Ohm stereo amplifier.
