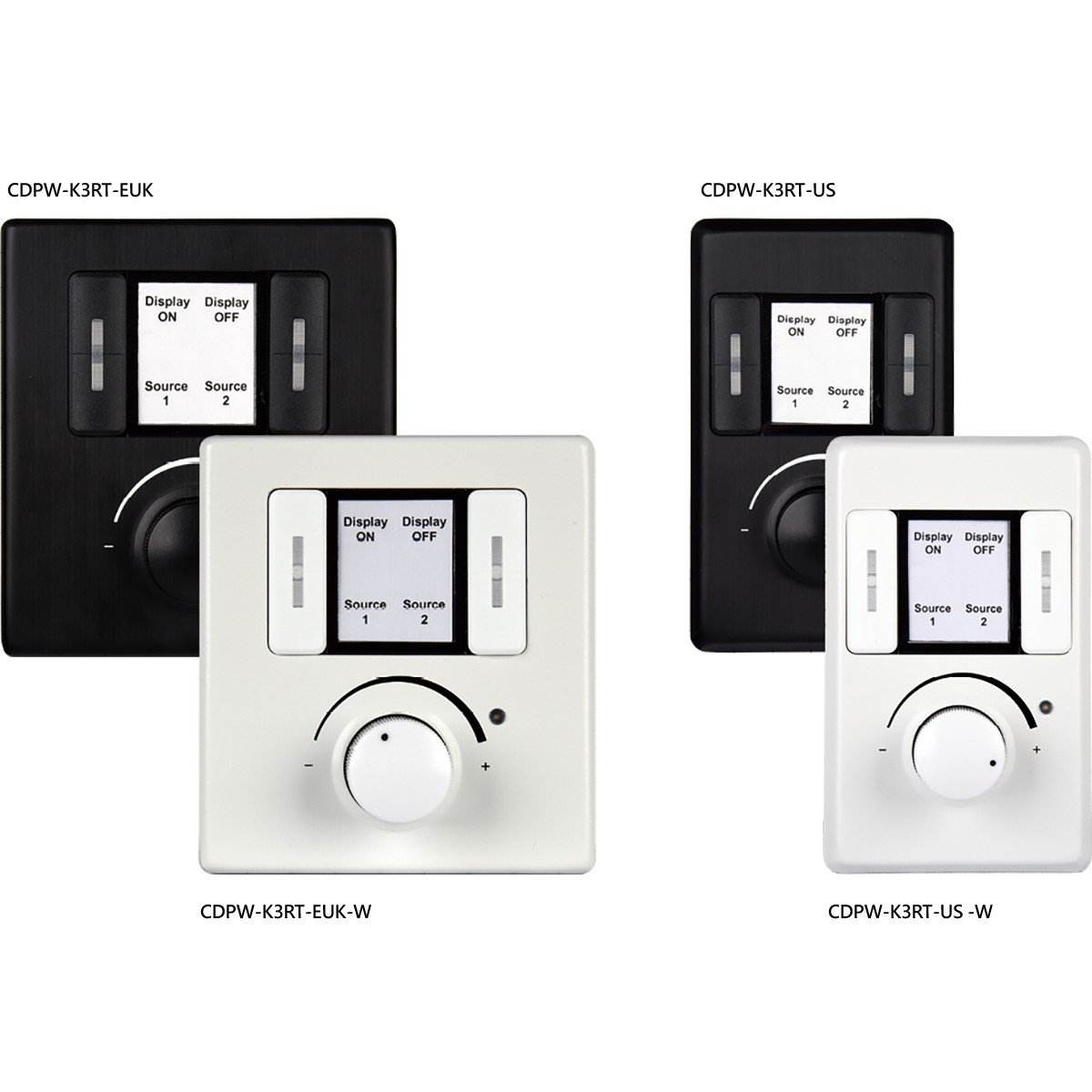

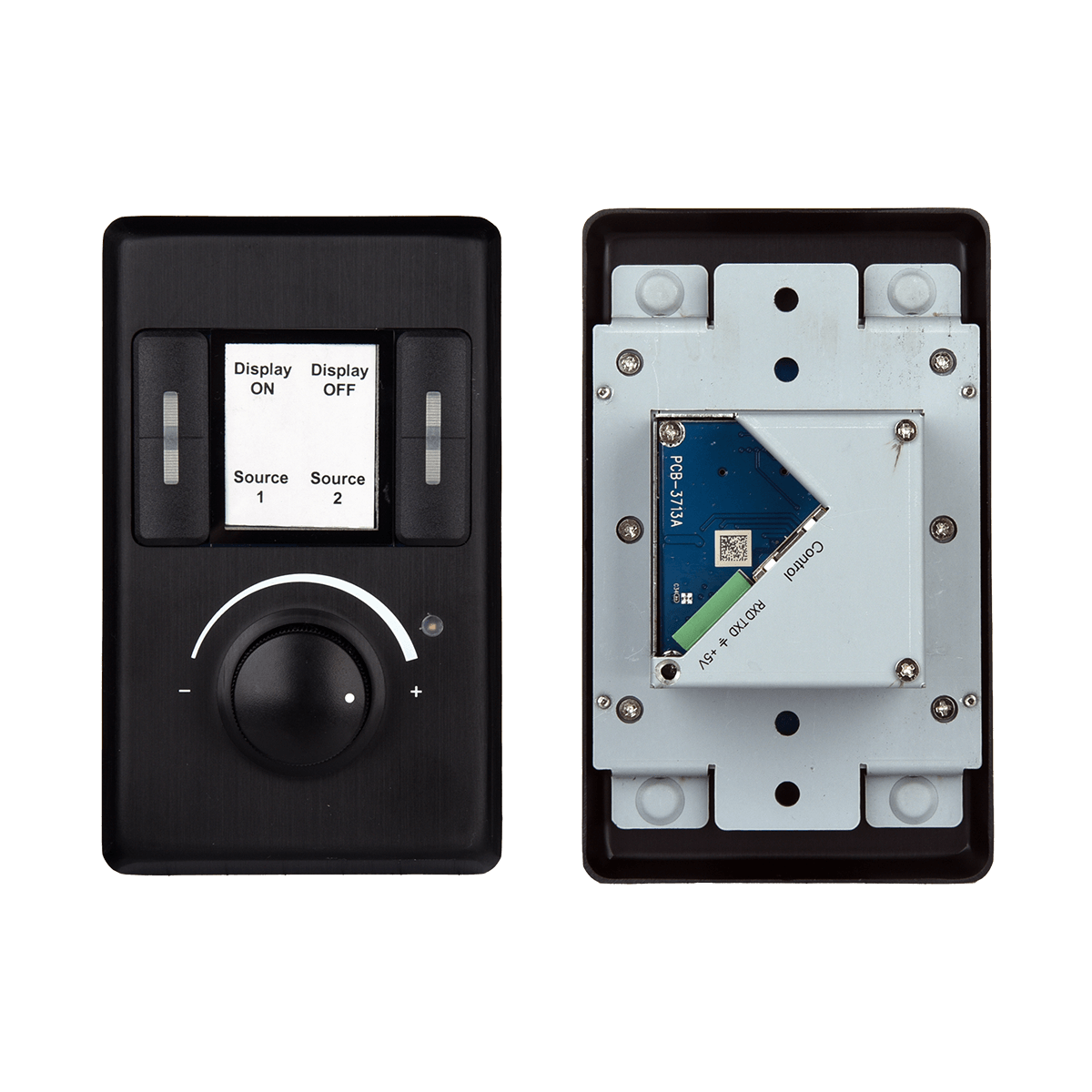

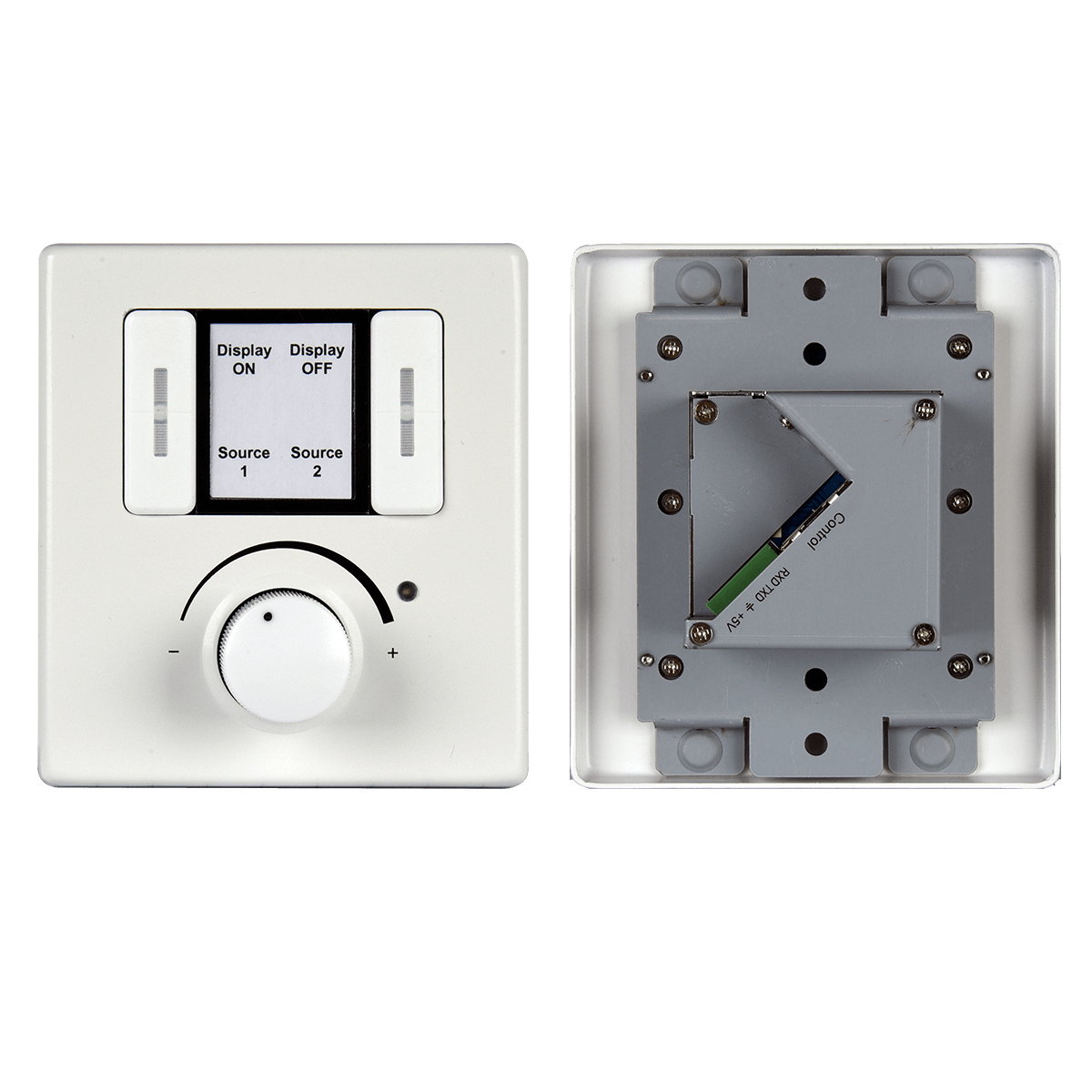

CDPW-K3RT Series
IP Keypad with Rotary Encoder
- 1-Gang (US or EU/UK) wall plate design with customizable tri-color LED buttons
- Can be powered by an Ethernet switch that supports the IEEE 802.3af PoE standard (Optional)
- Supports up to two years of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss
- Controllable via keypad, RS-232, Telnet and WebGUI
- 7 macros for controlling user equipment
- Up to 128 total commands can be stored and used across all macros in the system
- Supports customizable daylight savings time configuration
- Supports condition checking within macro commands for expanded macro design flexibility
- Supports time and date macro scheduling (single and recurring)
- Firmware update via micro USB and WebGUI
