MED-RKCS-0864

ARM PC Control System

OS supports Android 14 / Debian 11 (Linux Kernel 5.10)
Quad-core Cortex-A76 and quad-core Cortex-A55,up to 2.4GHz
Built-in AI accelerator NPU with processing performance of up to 6.0 TOPS, supports int4/int8/int16/FP16/BF16/TF32
Built-in 4 core GPU Mali G610 (4x256KB L2 Cache) supports OpenGLES3.2/OpenCL2.2/Vulkan1.1
Rich I/O: 1GbE RJ45, USB 3.2 GEN 1, USB2.0
3 video outputs simultaneously

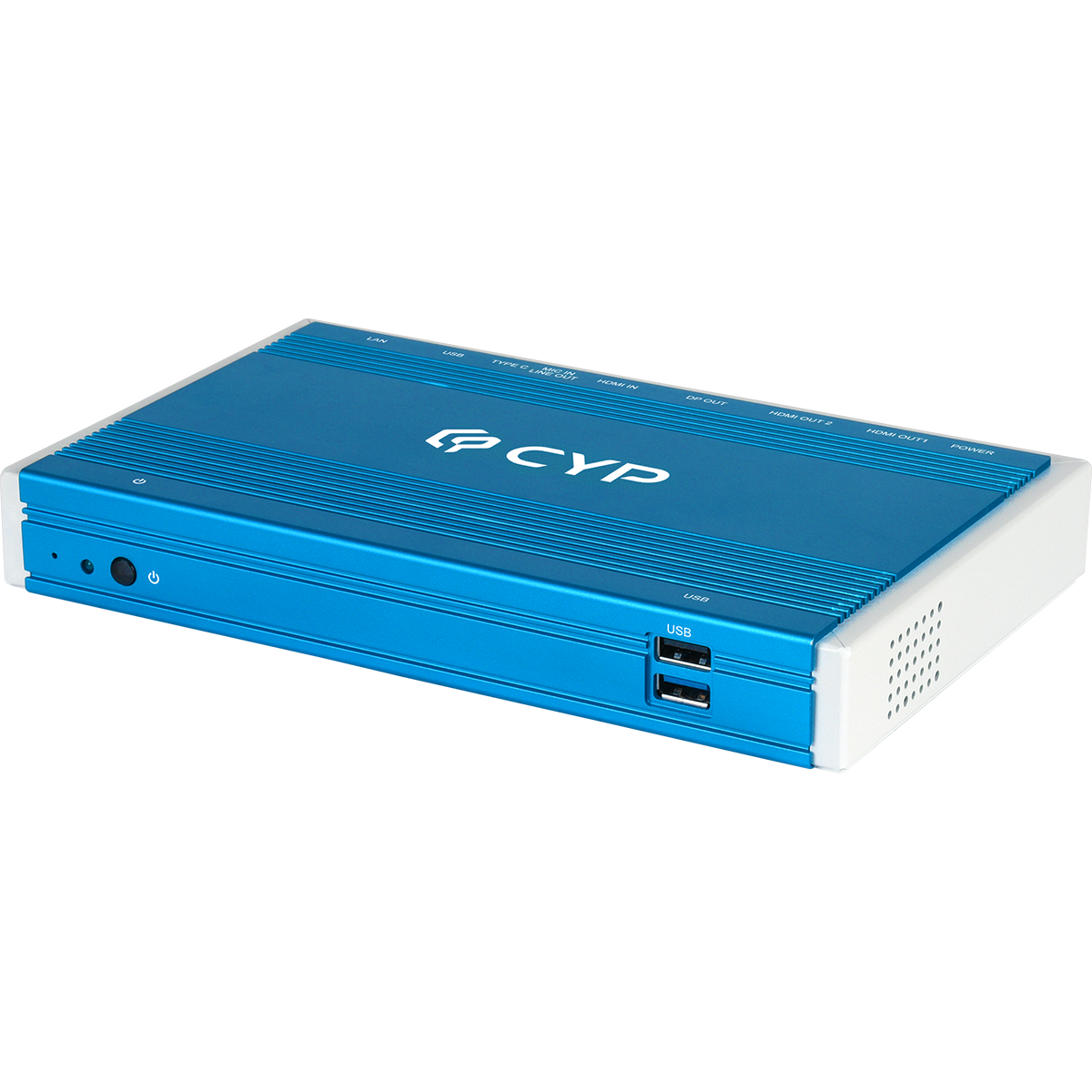

MED-RKCS-0864 is an ARM-based console which can be widely used in vertical application fields and positioned for functionality and fast application deployments.
The hardware configurations are powered by Rockchip RK3588 multi-core processors with 8GB LPDDRx memory & 64GB eMMC NAND FLASH on board default.
Versatile connectivity supports video in & out , GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~60°C and RoHS targeting for retail, infotainment and medical IT industries.
This compact device allows for easy and discreet installation on the back of a display, delivering performance to improve the working efficiency from behind the scenes.

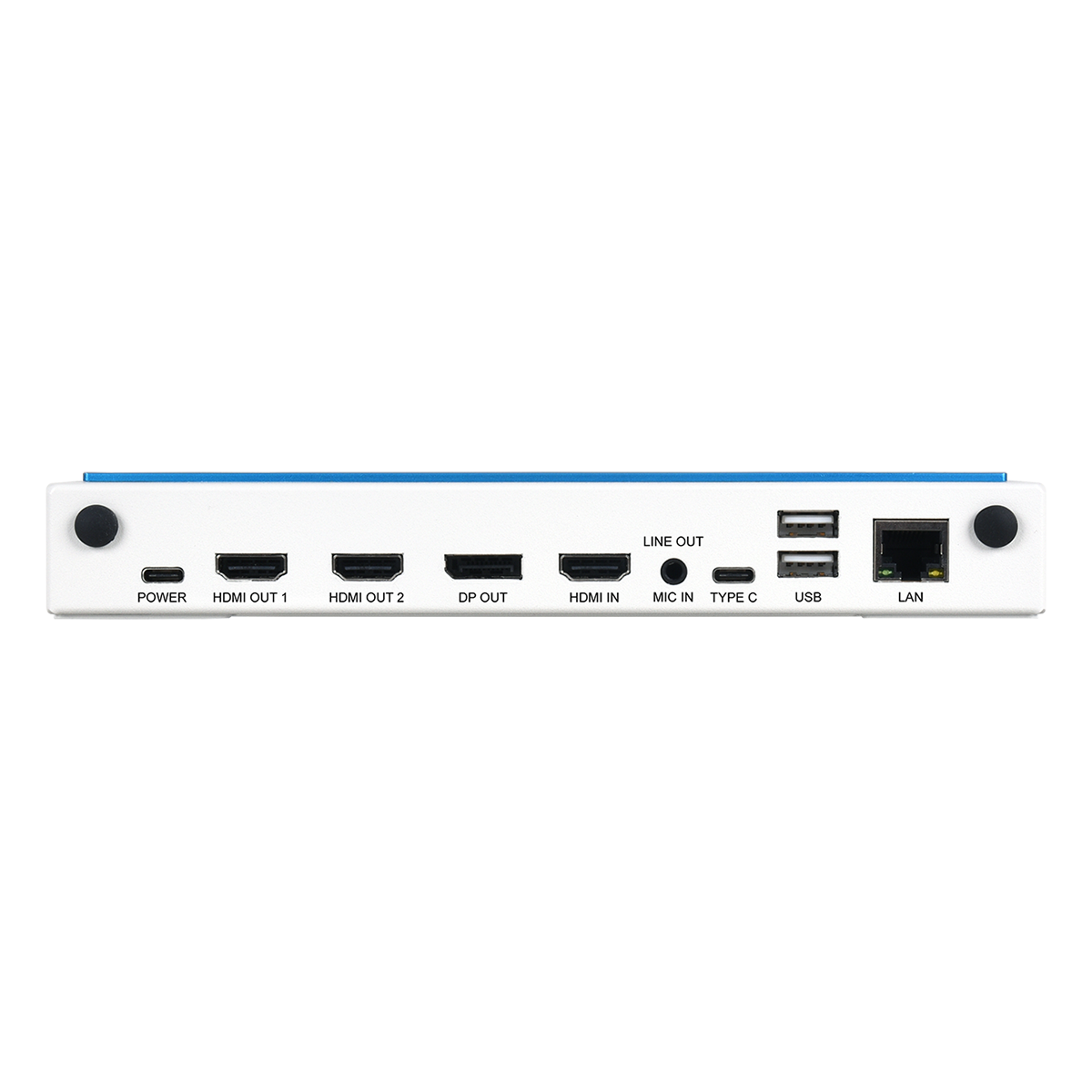

Interfaces
Input Port	1×HDMI (Type-A)
Output Port	2×HDMI (Type-A) 1×DisplayPort
Bi-directional Port	1×Mic in/ Line out (3.5mm)
Control I/O	1×IP Control (RJ-45) 3×USB 2.0 (Type-A) 1×USB 3.2 GEN 1(Type-A) 1×USB 3.2 GEN 1(Type-C)

Power
Power Supply	20V/2.25A
Power Consumption	43W

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	1. ×
Input Signal Type	4096×2160p@60 8-bit YUV 4:4:4
Output Signal Type	3840×2160p@60 8-bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI/DP	3840×2160p@60

Audio
HDMI	LPCM (2 Channels, 48KHz)
DisplayPort	LPCM (2 Channels, 48KHz)
Mic In	1Vrms
Line Out	1 Vrms S/N Ratio: > 70dB (1kHz with 0dBFS)

System
CPU Memory	Rockchip RK3588 Quad core Cortex A76 and Quad core Cortex A55 up to 2.4GHz LPDDR4,8GRAM
Storage	64GB eMMC, Soldered on board M.2 Key M NGFF 75 Pin

System

CPU Memory

Rockchip RK3588 Quad core Cortex A76 and Quad core Cortex A55 up to 2.4GHz LPDDR4,8GRAM

Storage

64GB eMMC, Soldered on board

M.2 Key M NGFF 75 Pin

Enclosure
Chassis Material	Metal (Steel & Aluminum)
Chassis Color	Blue and White
Dimensions (W×H×D)	134mm×215mm×31mm [Case Only] 173mm×215mm×31mm [All Inclusive]
Weight	700g

Certification
Cetrification	FCC Part15 B IEC/EN55032, 55035 IEC-62368-1:2018

Certification

Cetrification

FCC Part15 B

IEC/EN55032, 55035

IEC-62368-1:2018

Field Firmware Update
USB-C to PC

ORDERING INFORMATION

Model No.	Product Description
MED-RKCS-0864	ARM PC Control System
