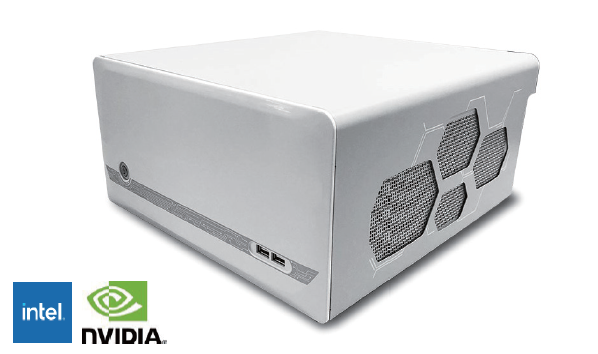

MED-VM500

Medical Video Management System with 9th Generation Intel Xeon / Core i7 CPU

• Intel® 9th generation Core I/Xeon Processor with C246A chipset

• Supports ECC DDR4 DIMM up to 64GB memory

• Excellent Thermal design with low fan noise OR room environment

• Support TPM 2.0 for security management

• Support Three 4K Displays: HDMI x 2, DP x 1

• System is medical Certified with graphic card and capture card

• Supprt the integration of Nvidia RTX A4000, A5000 and A6000 GPU Card

• Support CD DVD(optional)

• Support Built in speaker (optional)

Medical Video Management System with 9th Generation Intel Xeon / Core i7 CPU

SPECIFICATIONS

MAIN SPECIFICATIONS
Processor	Supports ECC/Non-ECC DDR4 2133 DIMM x 4 up to 64GB
Chipset	Intel® C246A
OS Support	Windows® 10 , Windows® 11 , Linux (optional)
Storage Disk Drive	2.5” SATA SSD x 2, M.2 2280 M Key SSD x 1 (NVMe or SATA SSD)
TPM	2.0
Speaker (Optional)	Built in Speaker
CD DVD(Optional)	SATA DVD+/-RW White Color

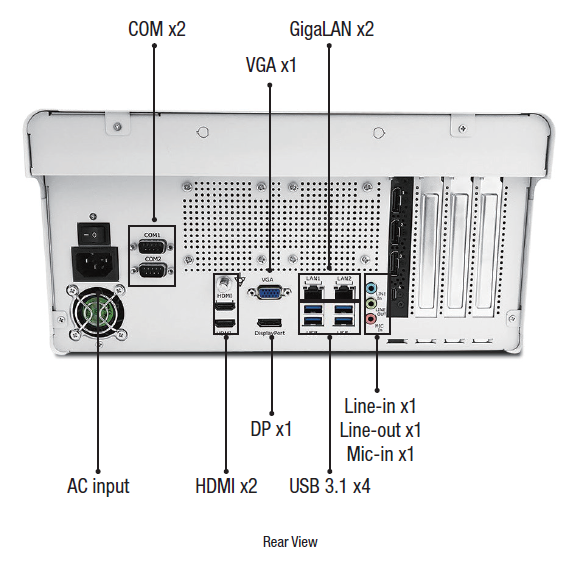

I/O

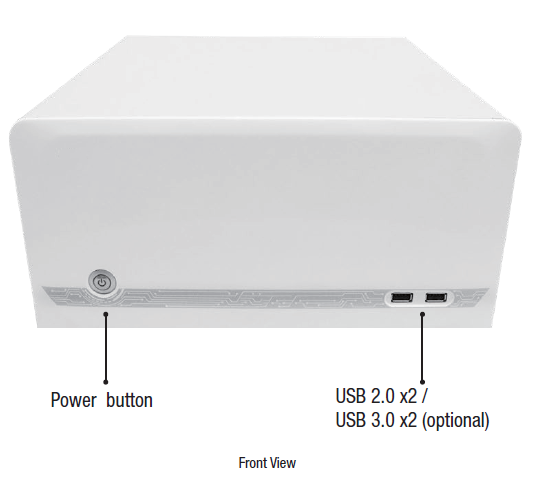

USB	Rear USB 3.1 Gen 1 x 4 Front USB 2.0 or USB 3.0(Optonal) Rear USB 3.1 Gen 2 x 6(Optional)
Ethernet	Gigabit LAN x 2
Audio	Line-in x 1, Mic-in x 1 and Line-out x 1
Serial Ports	RS-232 x 2
Extension area	M.2 E Key 2230 x 1 for Wireless module PCIe 3.0[x16] x1, PCIe 3.0 [x4] x2, PCIe 3.0 [x1] x 1
Capture card (optional)	4Kp60: HDMI 2.0 in FHD: HDMI x1, DVI-I x 1, YPbPr x1, SDI x1, CVBS x 1, S-Video x 1

MECHANICAL AND ENVIRONMENTAL
Power Consumption	100V to 240V AC Input, 500W
Operating Temperature	0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)
Dimension	330 x357.4 x168 mm
Package Size	500 x 490 x 300 mm
Gross Weight	8.6 kg
Net Weight	8 kg
Certifications	CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
