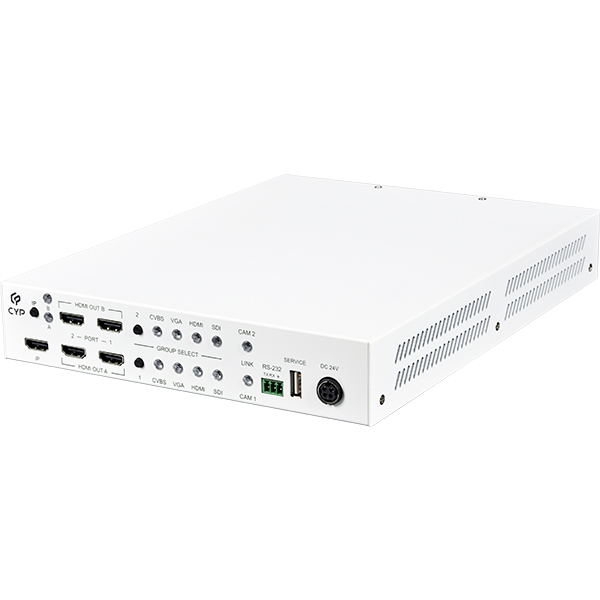

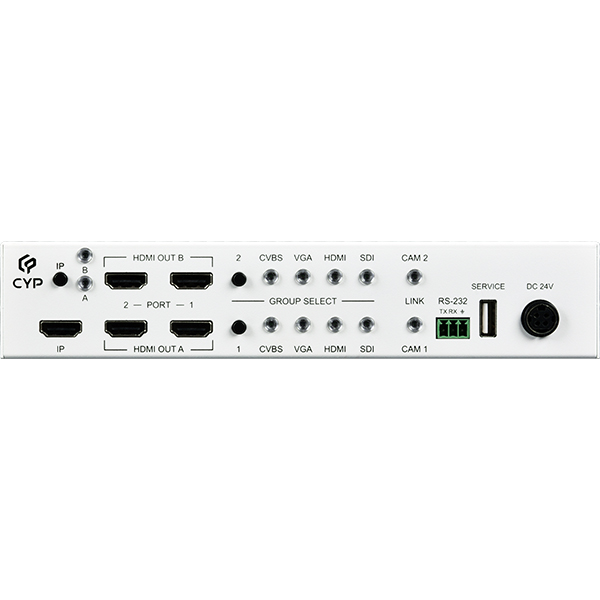

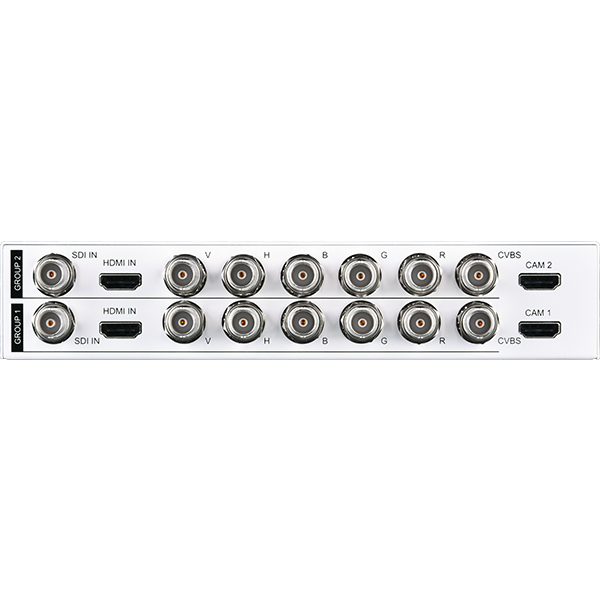

MED-AS60
Multi-input Switcher with Multi-Window Display
- Deep color support 8/10/12 bit source on both in and out
- Supports conversion of multiple video formats to HDMI outputs.
- Supports SDI Standards of SMPTE 259M-C, SMPTE 292M, and SMPTE 424M/425M-A
- Supports SDI bit rates at 270Mbps, 2.970Gbps & 2.970/1.001Gbps, and 1.485Gbps & 1.485/1.001Gbps.

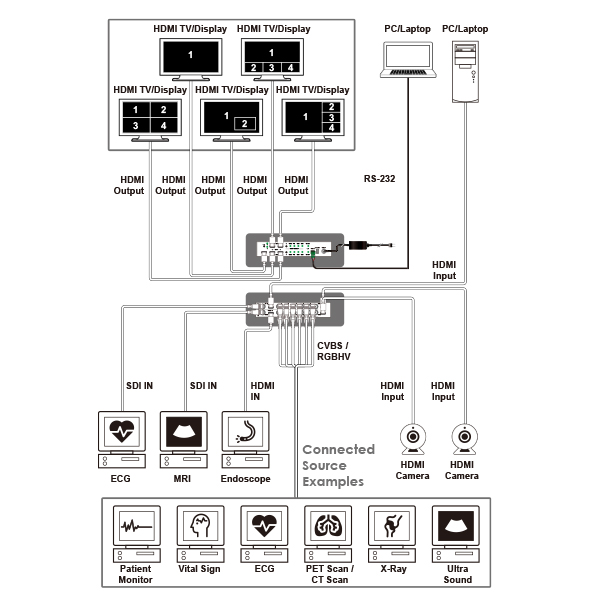

- The Multiviewer would be set into following mode:
– PIP (Picture In Picture)
– SBS (Side by Side)
– QUAD (Quad View)
– POP (Picture of Picture) - Supports RS-232 transition.
- FW update via USB flash drive.
