MED-VPR-3420
Multi-View with Streaming Solution for Video Conference
Multi-view switch portion
- HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
- Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode.
- Supports the ability to store a multi-window arrangement as a preset that can be recalled later
- EDID management
- Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI

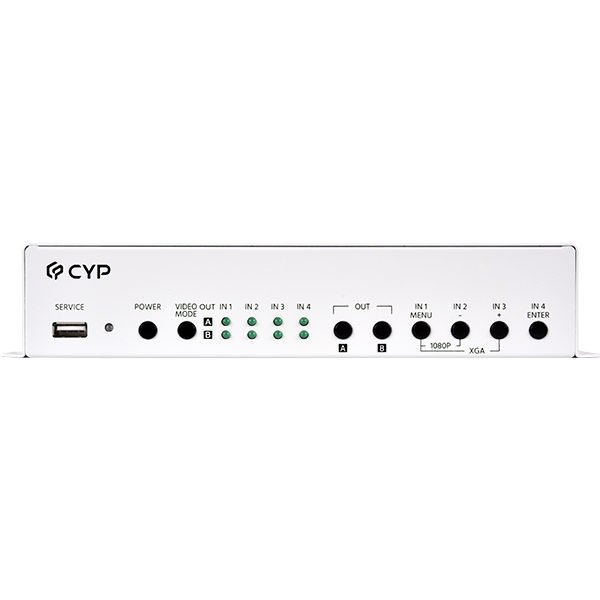

- Controllable via front panel buttons, WebGUI, Telnet, RS-232
Video Capture portion
- Automatically scales 4K sources to 1080p for USB capture
- Supports video timing stabilization to help ensure a reliable and stable USB capture stream
- Capturing over USB 3.0 allows uncompressed video and audio data capture(1080p, LPCM 2.0)
- Capturing over USB 2.0 applies minimal MJPEG compression to the video and audio data (1080p, LPCM 2.0)
- Supports capturing 2 channel digital audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input (selectable via capture software)
- Compliance with the UAC (USB Audio Class) and UVC (USB Video Class) standards, allows the unit to support most common capture and video streaming softwares
