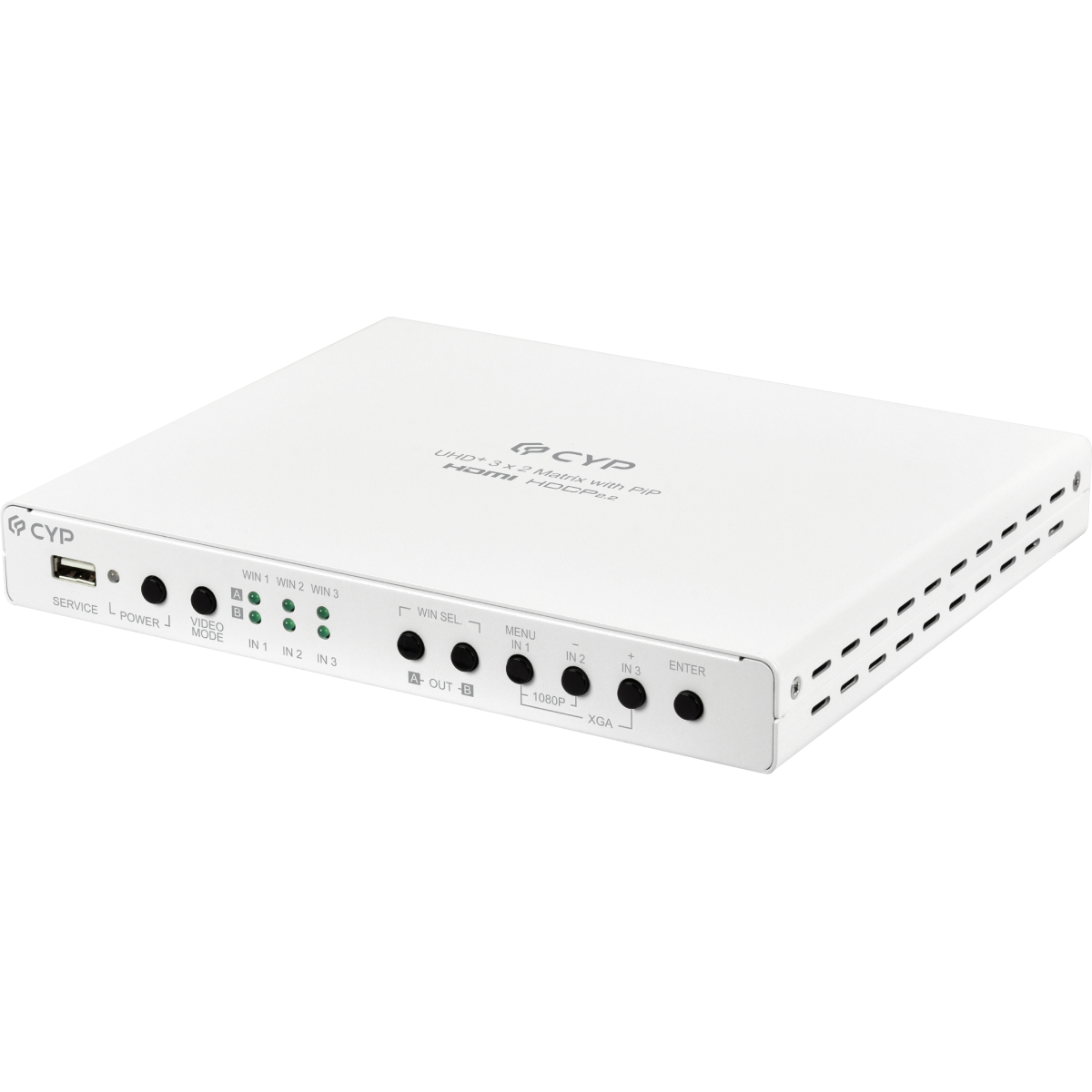

MED-PJ-8320

UHD+ 3 x 2 Matrix with PiP

Supports SDI output distance up to 60 meters, HDMI input/output with 18Gbps (600MHz) 4K UHD
Seamless switching (no loss of sync to display) when switching sources in 3x2 matrix mode
Supports PiP (Picture-in-Picture), PoP, Side-by-Side and Auto display options with independent audio source selection
Supports the ability to store a multi-window arrangement as a preset that can be recalled later
Each window can have a border with a selectable color
EDID management
Uploadable and freely positioned graphic logo support
Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI

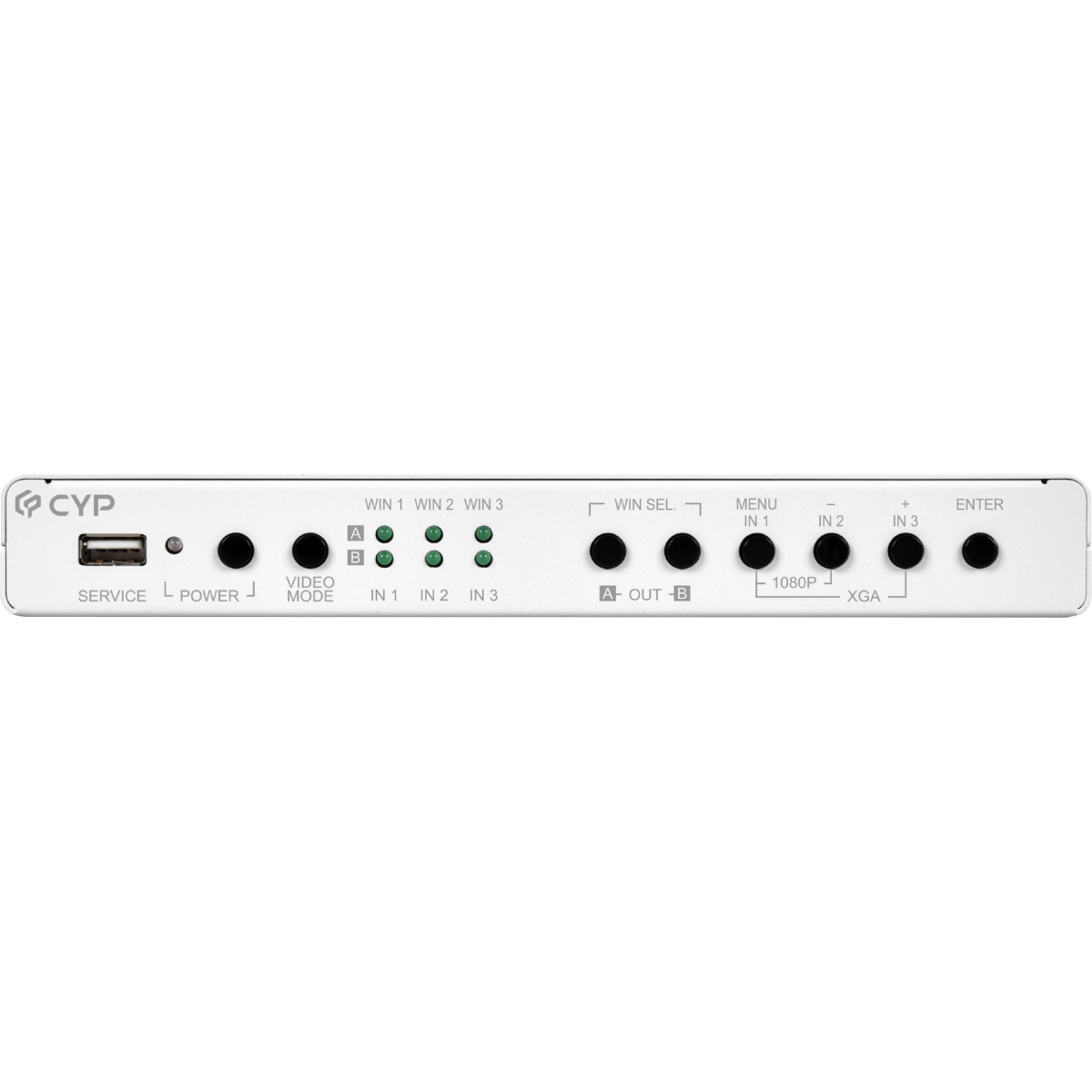

Controllable via front panel buttons, WebGUI, Telnet, RS-232

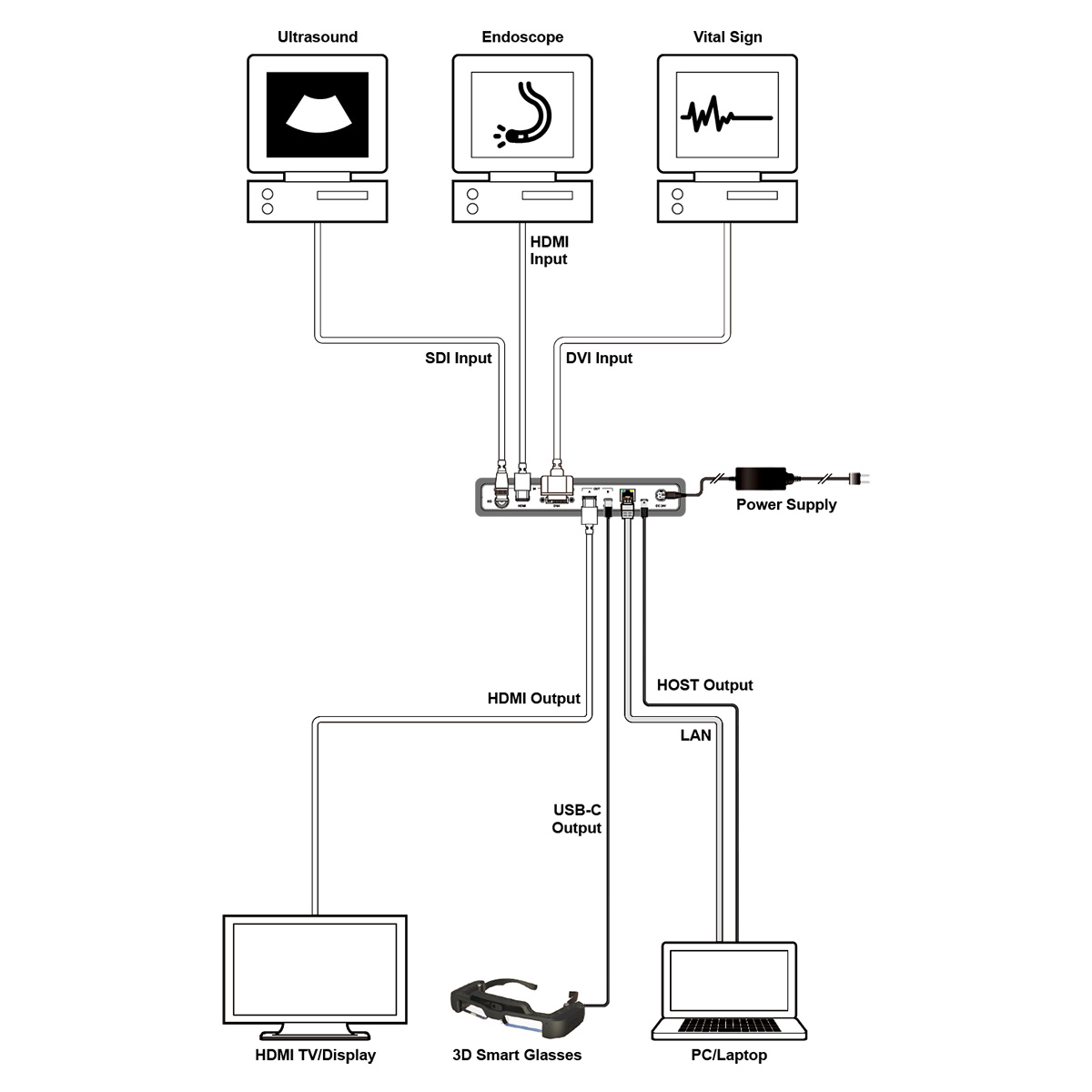

This 3 by 2 Matrix is a high performance switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple medical sources such as endoscope, X-Ray system, ultrasonic, Da Vinci Surgical System…etc. simultaneously during operation or diagnosis. Video resolutions (SDI & HDMI) up to 4K@60Hz and LPCM audio up to 7.1 channels and 192kHz are supported on both input and output and this unit is fully compatible with the HDCP 2.x standards. Any of 3 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including PiP, PoP, Side-by-Side, Auto display with the output being sent to general HDMI display and 3D Smart Glasses. Management of input/window routing, position and sizing can be controlled easily by use of the front panel controls as well as by WebGUI, RS-232, Telnet, options.

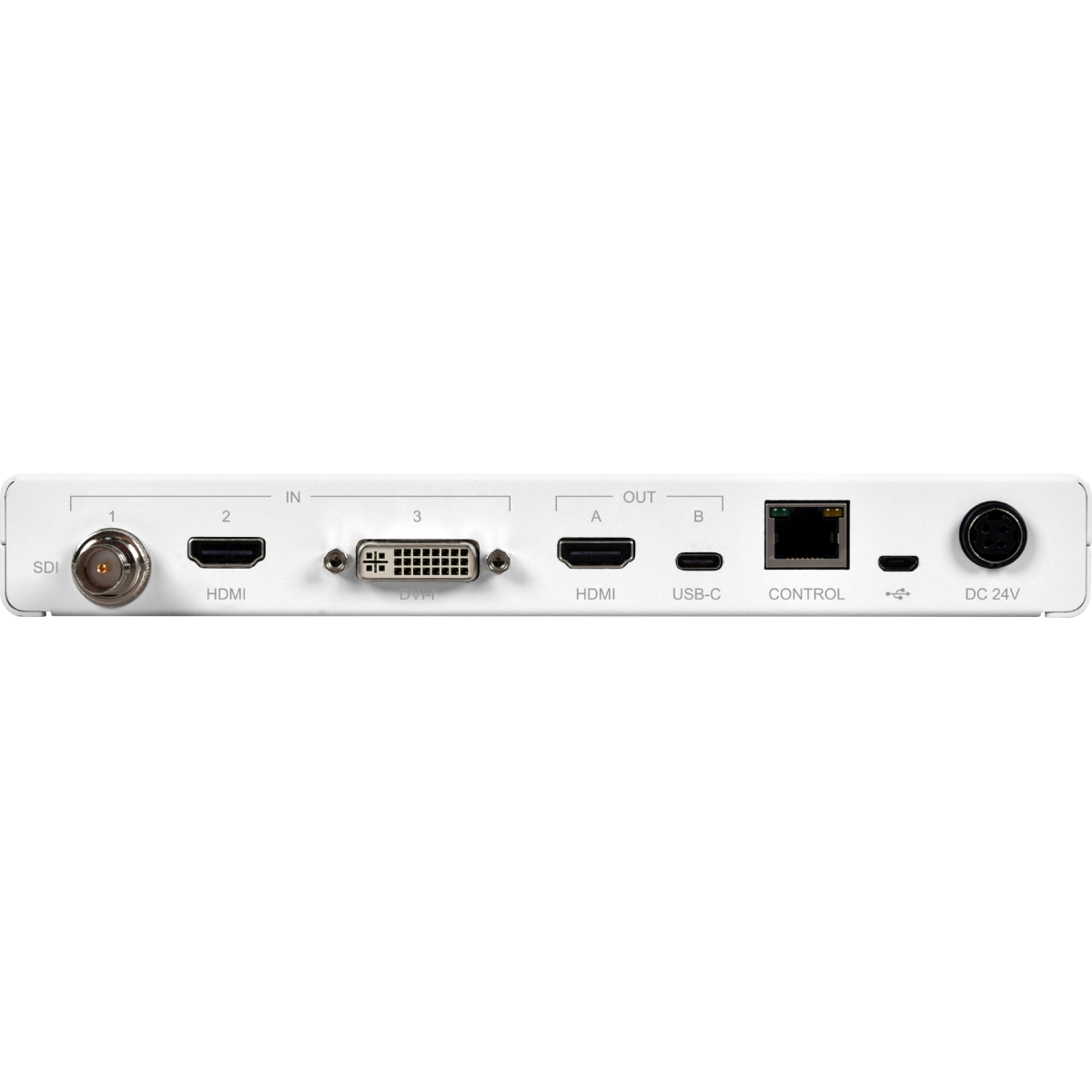

Interfaces
Input Port	1 SDI 1 HDMI (Type-A) 1 DVI-I
Output Port	1 HDMI 1 USB-C
Control I/O	1 IP Control (RJ-45) 1 Host Control (Micro USB)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2. ×
Input Signal Types	4096×2160p@60 8-bit YUV 4:4:4
Output Signal Types	4096×2160p@60 8-bit YUV 4:4:4
		Resolutions
Maximum Input	SDI	4096×2160p@60 YUV 4:4:4
	HDMI	4096×2160p@60 YUV 4:4:4
	DVI-I	1920x1080p@60 RGB 4:4:4
Maximum Output	HDMI	4096×2160p@60 RGB 4:4:4
	USB-C	4096×2160p@60 RGB 4:4:4

Power
Power Supply	24V/2.7A (Locking)
Power Consumption	22W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
DimensWions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×116mm [All Inclusive]
Weight	671g

Field Firmware Update
Interface	USB Flash Drive, WebGUI

Ordering Information
Model No.	Product Description
MED-AS60	Multi-input Switcher with Multi-Window Display

Video Processor

MED-PJ-8320
