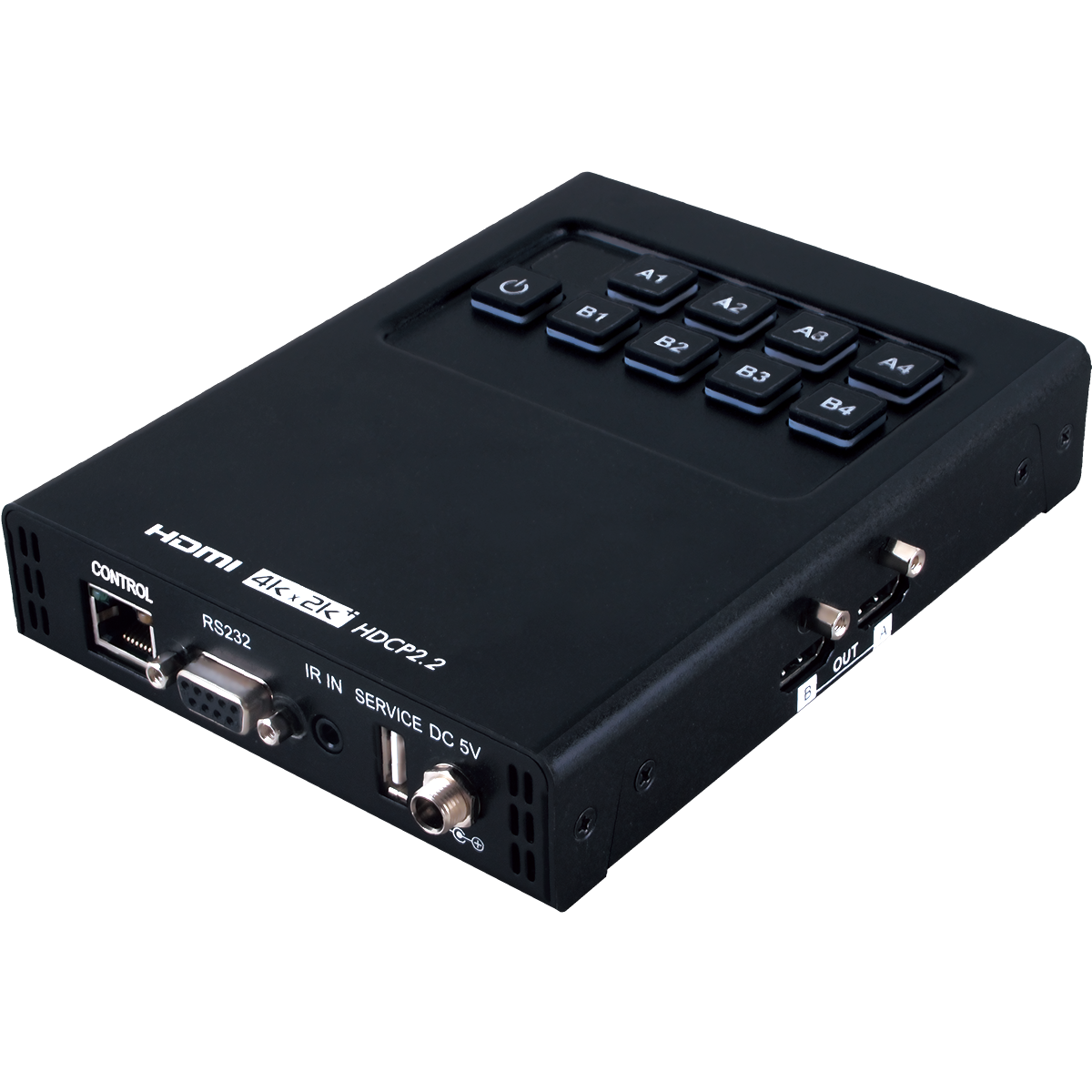

CDPW-V4H2HP EOL
4 by 2 HDMI 4K UHD Wall Plate Matrix with HDCP 2.2
- HDMI with 4096 x 2160p@60 supported
- Supports 4 HDMI inputs of one 4096 x 2160p@60 and 2 HDMI outputs of two 4096 x 2160p@60
- Supports data rate up to 18Gbps (600MHz) and Deep Color up to 1080p 16-bit
- Supports pass-through of HD audio formats of LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
CPLUS-V4H2HA
UHD+ 4x2 HDMI Matrix with Audio Output
This 4K60 4 by 2 Matrix provides the ability to connect up to four 4K60 HDMI sources to up to two 4K60 HDMI displays and freely switch between them. This unit comes with full support for 4K@60Hz (4:4:4, 8- bit) as well as support for 16-bit Deep Color, HDR (High Dynamic Range), 3D content, HD audio and other features defined by HDMI 2.0 specification. Pre-defined internal EDIDs and external EDIDs option are available for EDID managing. The matrix also supports auto source switch and display control for power on/off the connected devices by sending CEC or RS-232 commands. Control is provided via frontpanel buttons, RS-232, and IR remote.

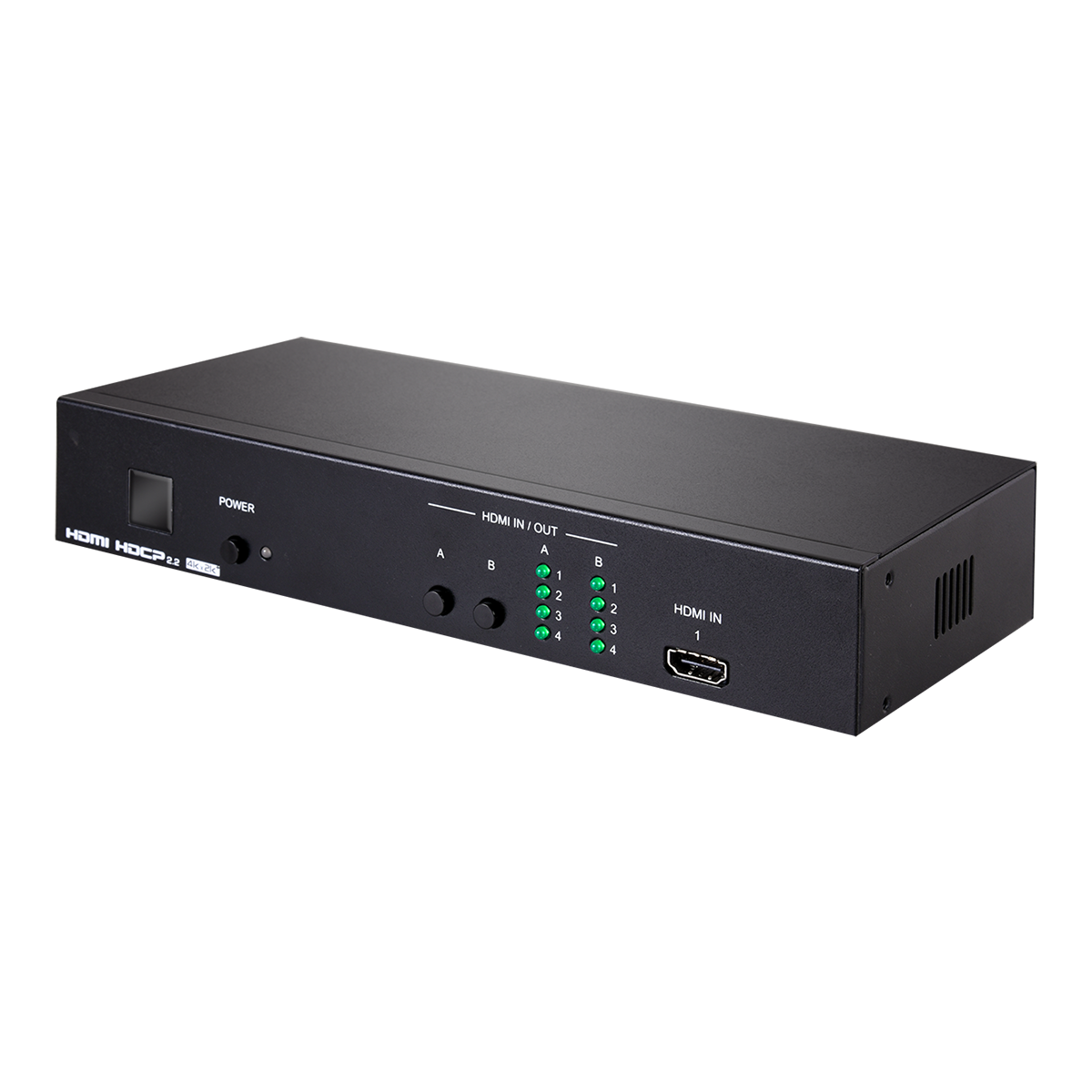

CPLUS-V4H2HP
UHD+ 4×2 HDMI Matrix
This 4×2 HDMI Matrix allows the customer to route up to four 18Gbps HDMI input signals to any of two 18Gbps HDMI outputs. This unit supports 4K@60Hz (4:4:4), 16-bit Deep Color, HDR (High Dynamic Range), HD audio formats and other features defined by the HDMI 2.0 specification. Five pre-defined internal EDIDs and two external EDID options are available for EDID management. The unit provides intuitive front panel controls as well as RS-232, Telnet, WebGUI and IR remote control options.
